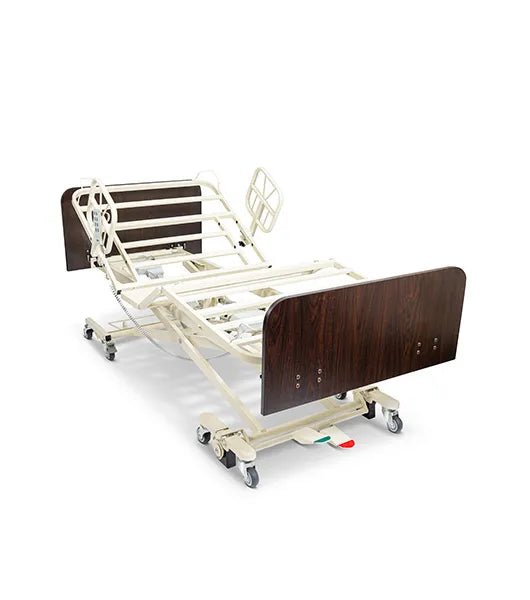

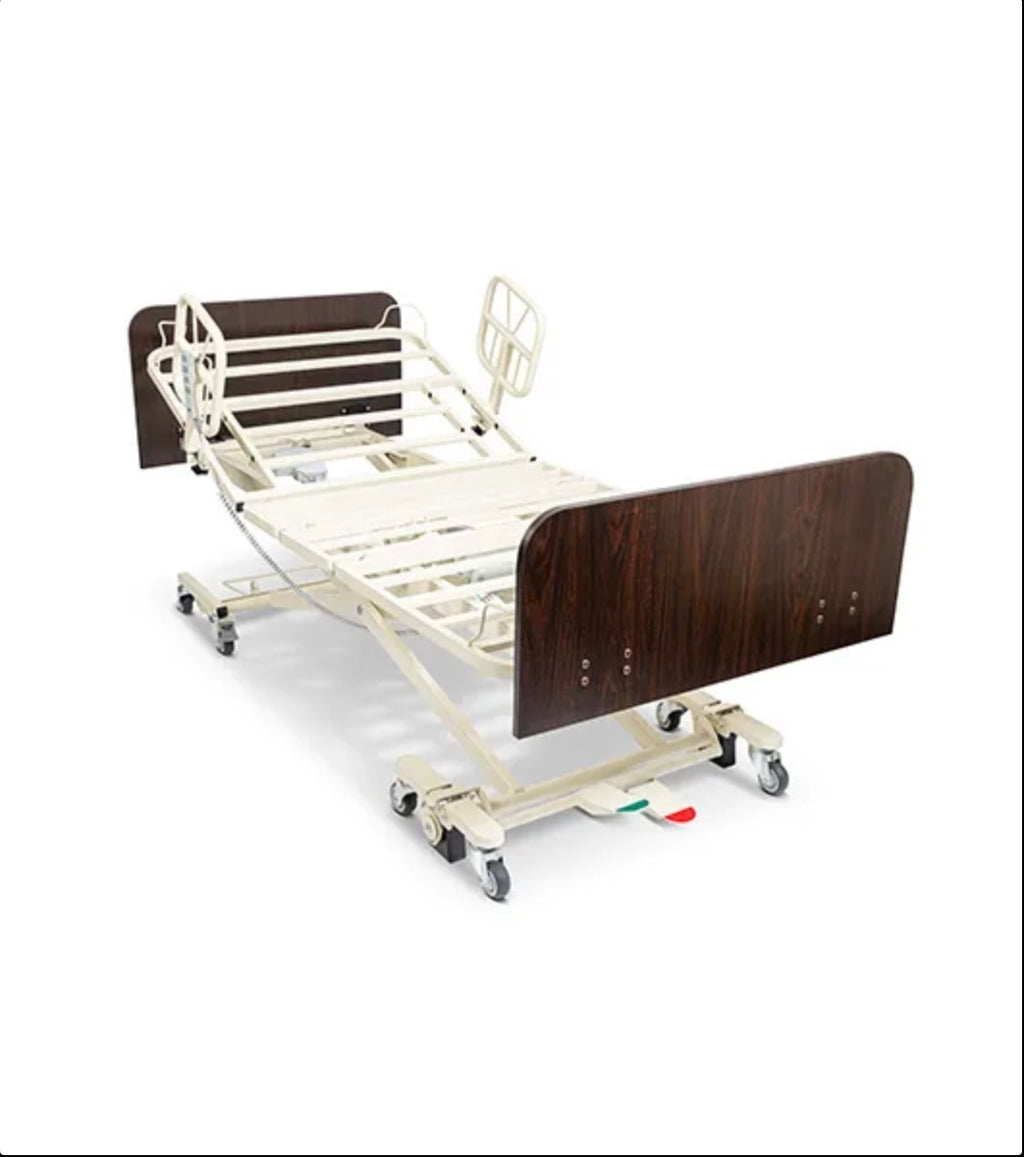

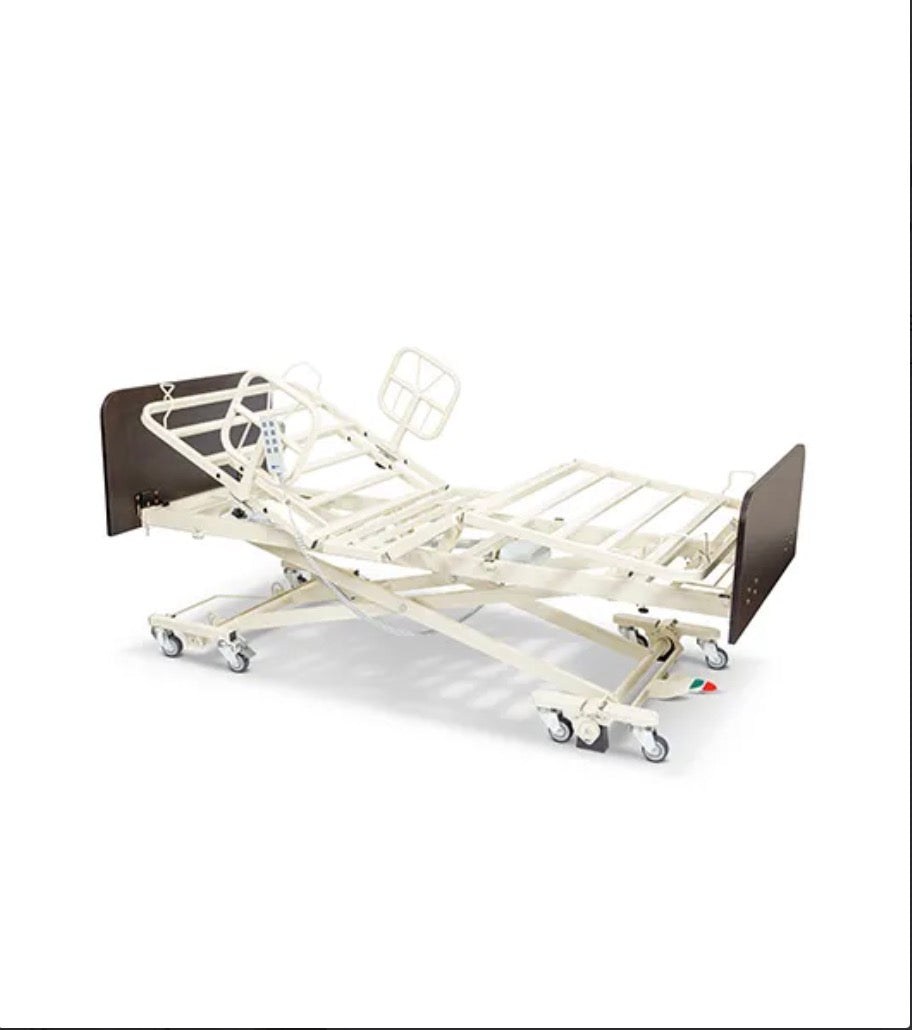

The Medacure ULB7/30 Versatile Series with Central Locking System is an all-in-one medical bed frame engineered for senior care, long-term care, rehabilitation, and home care environments. This 4-function electric bed lowers to 7 inches from the floor deck and raises to a 30-inch working height to support resident safety and caregiver access.
This upgraded version includes a central locking system with a single-pedal braking mechanism that locks the casters simultaneously. Multiple wood finish selections and assist bar/rail configuration options allow the bed to be matched to the user’s mobility needs and care setting.
Choose Your Configurations

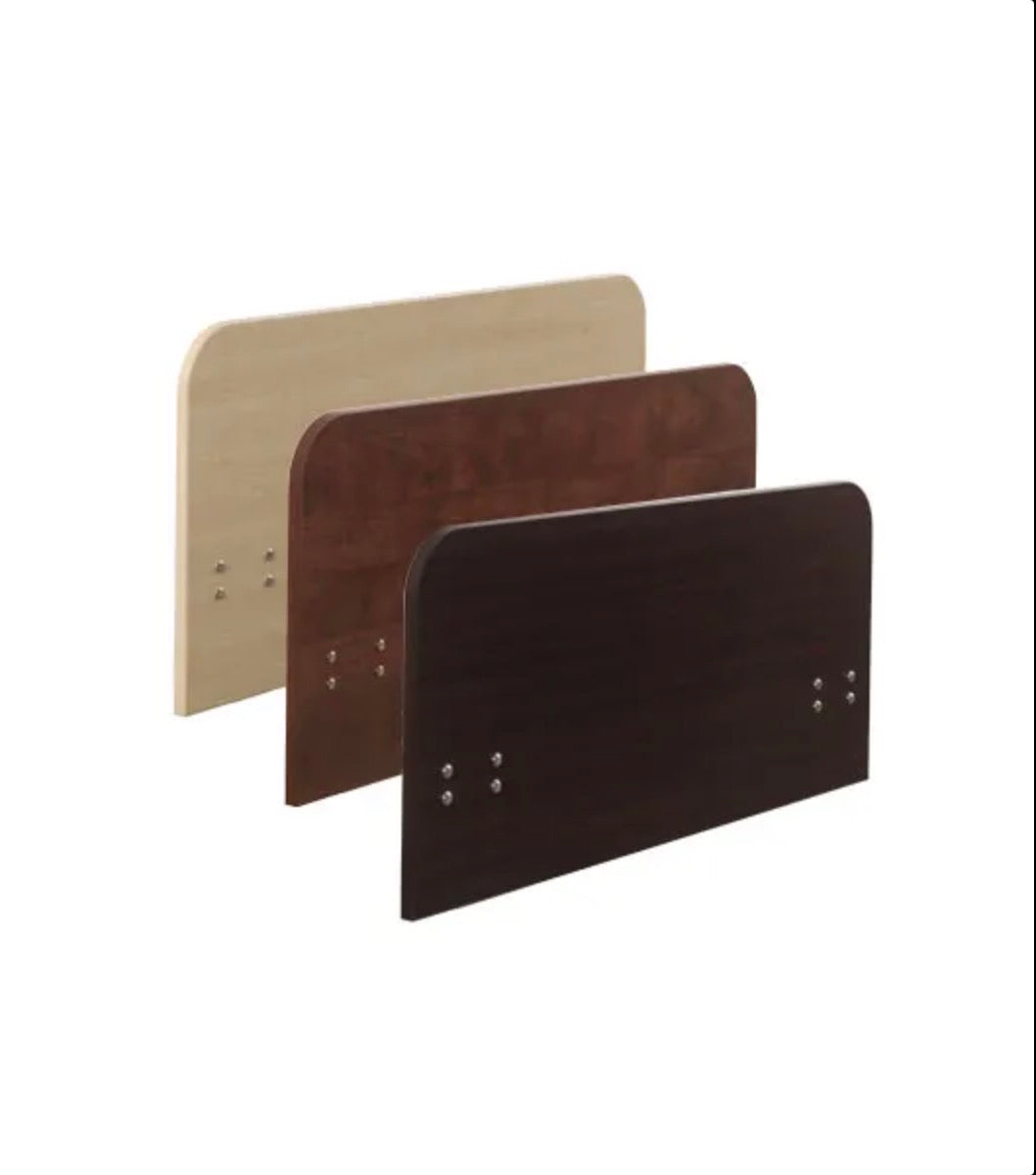

Head & Foot Board Wood Finish
Select your wood tone to complement existing home or facility décor:
- Mahogany – Deep, rich, classic elegance.
- Amber Cherry – Warm, inviting mid-tones.
- Maple – Bright, modern, clean look.

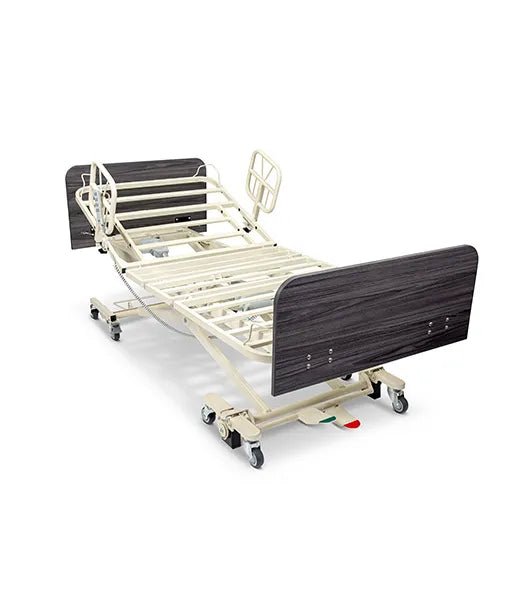

- Coastal Grey – Contemporary grey woodgrain finish designed to complement modern residential and care environments.
Assist Bars/Rails Options
Choose from a variety of assist bar and side rail configurations to provide the appropriate level of support for bed mobility, repositioning, transfers, and fall prevention based on individual user needs.
Key Performance Features
-

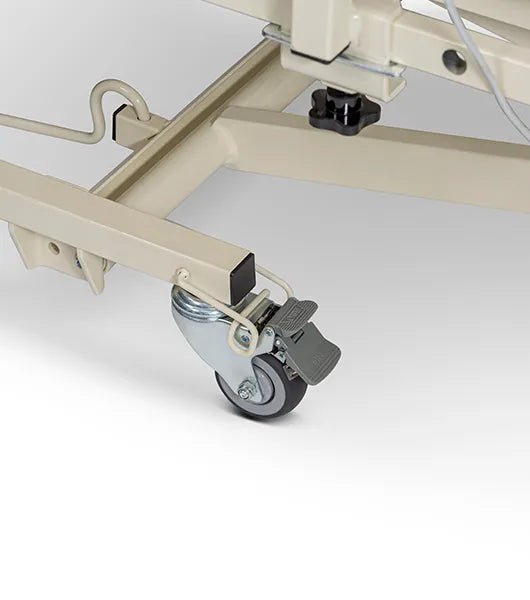

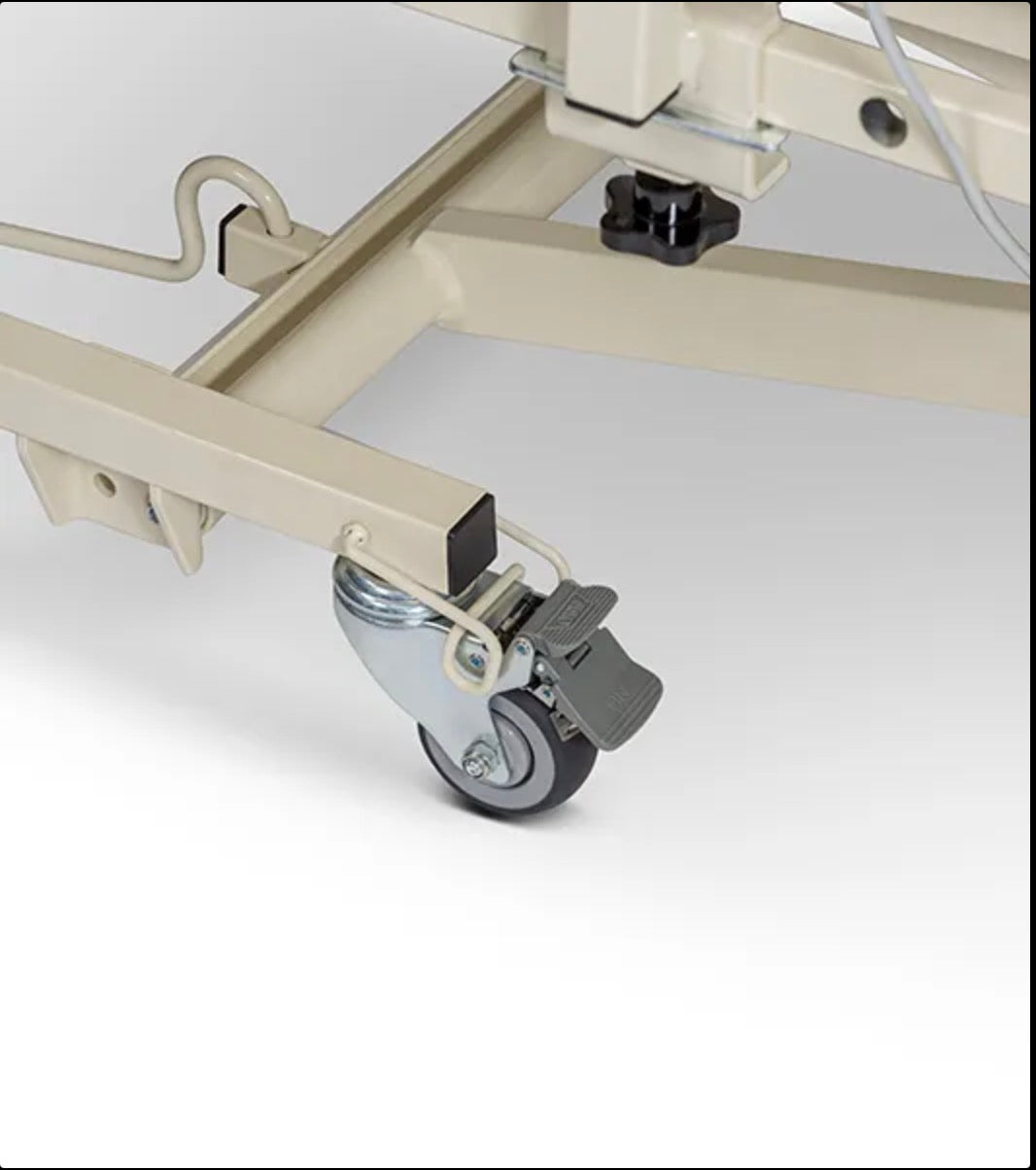

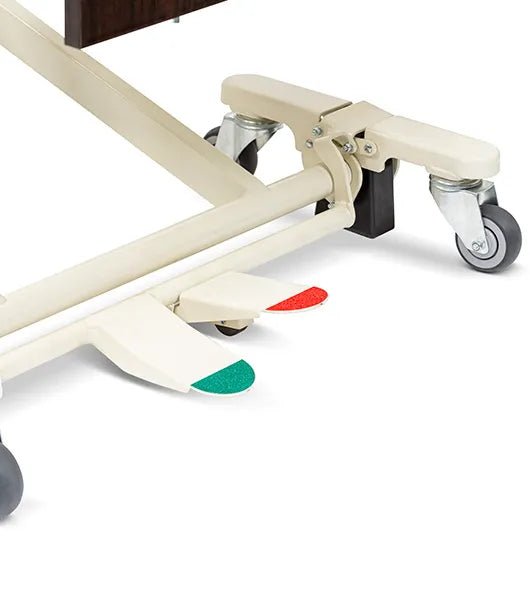

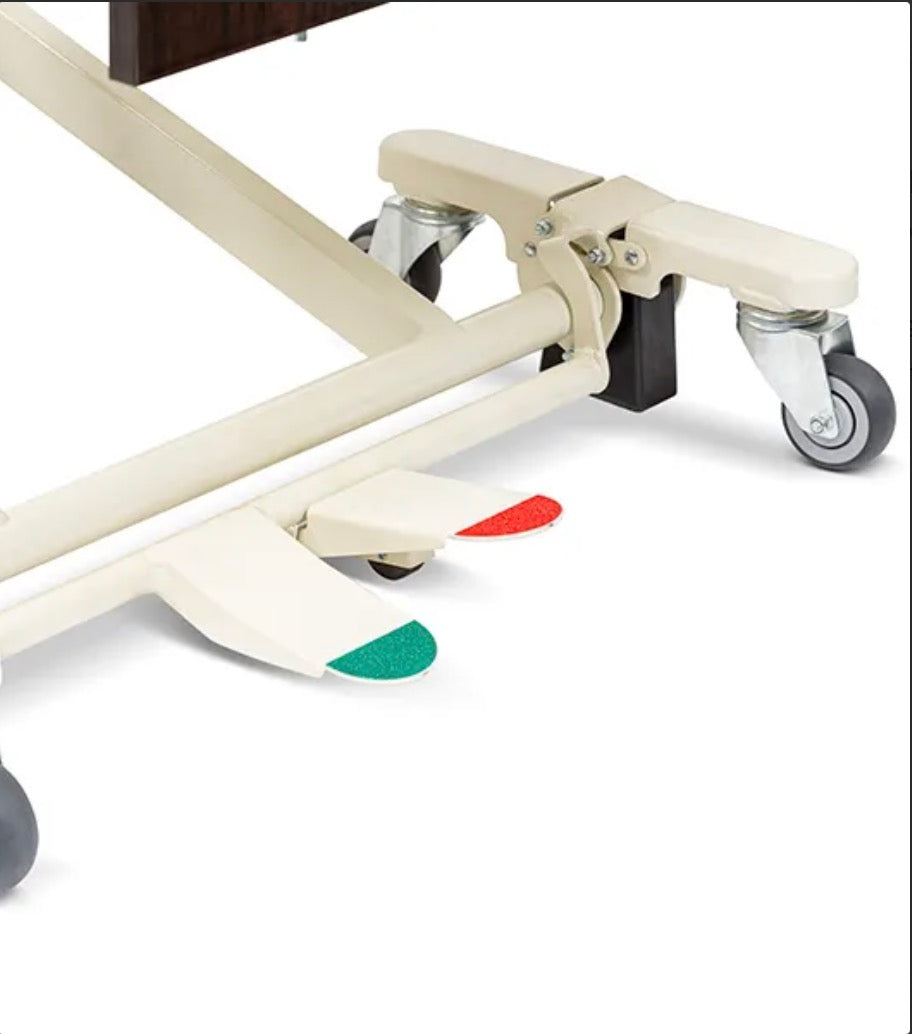

Central Locking System: Single-pedal braking mechanism engages all casters simultaneously for bedside stability and caregiver workflow efficiency.
-
Ultra-Low Safety Profile: Lowers to 7 inches from the floor deck to help reduce injury risk from accidental bed exits.
-
Ergonomic Caregiver Access: Raises to 30 inches to support transfers, personal care, wound care, and therapy tasks at a working height.
-
Built-In Length Extension: Frame adjusts from 80 inches to 88 inches to accommodate extended sleep surface requirements.
-

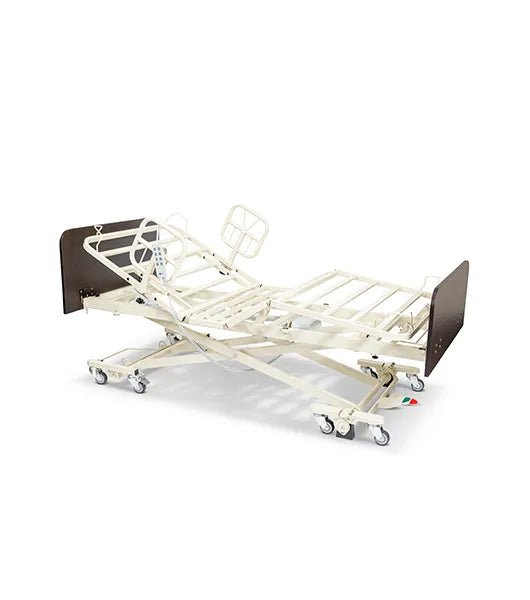

One-Touch Auto Contour: Coordinates head and foot section adjustment to support positioning and help reduce user migration in bed.

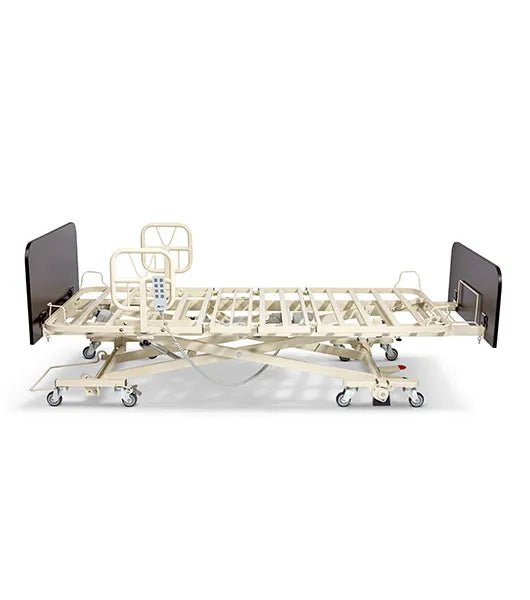

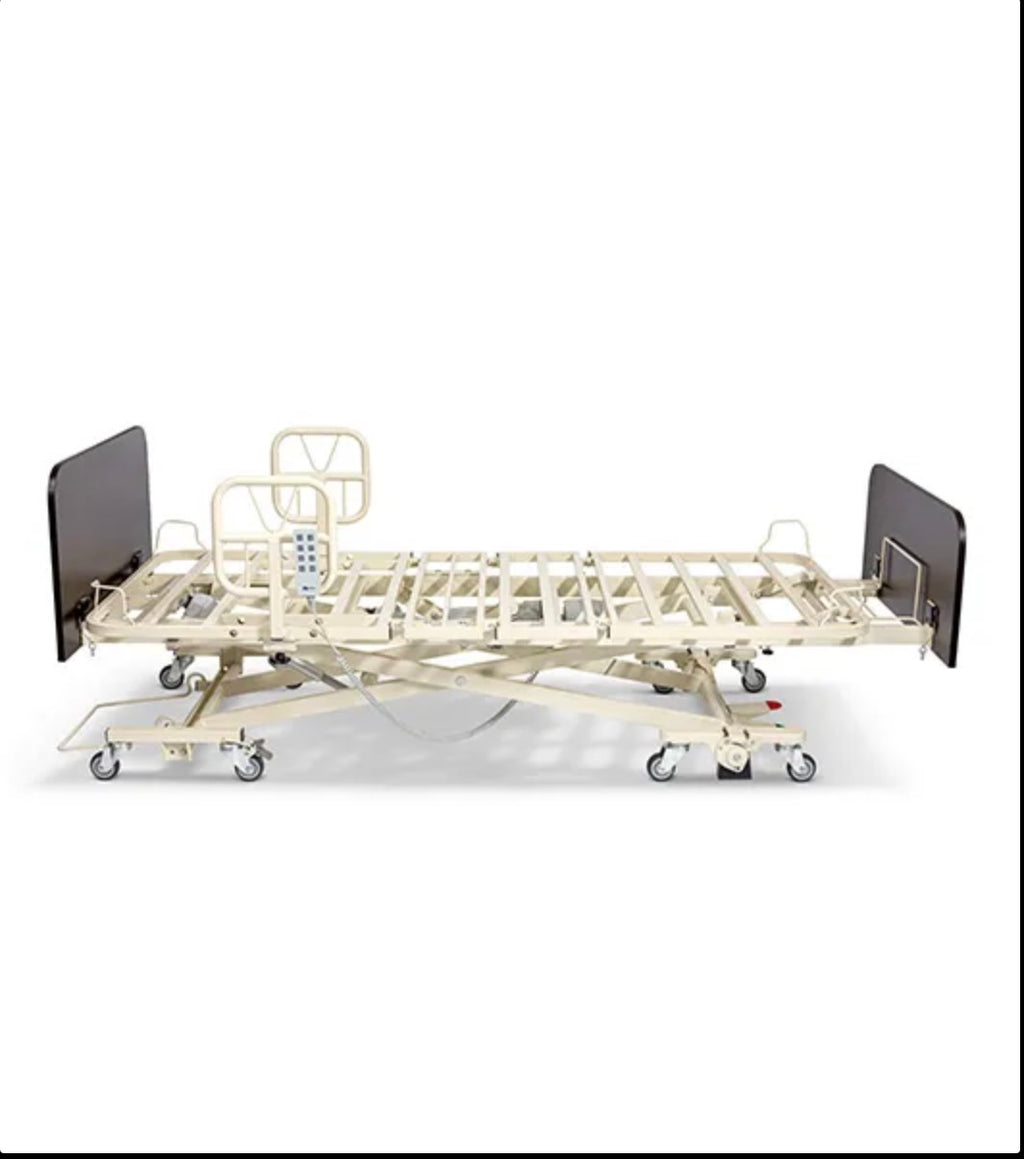

- Linak Component Integration: Powered by Linak actuators and controlled through an 8-function handheld pendant with universal symbols.
Technical Specifications
| Feature | Specification |
|---|---|
| Operation Type | Full Electric (Hi/Lo, Head, Foot, Auto Contour) |
| Locking Mechanism | Central Locking System (Single-Pedal Simultaneous Caster Lock) |
| Travel Range | 7" Minimum to 30" Maximum (Floor to Deck) |
| Deck Dimensions | 36" Fixed Width x 80" to 88" Adjustable Length |
| Weight Capacity | 500 lbs Safe Working Load |
| Construction | Reinforced Rectangle Tube Steel Frame |
| Mobility | Heavy-Duty Casters Managed by Central Brake Pedal |
| Electronics Brand | Linak Actuators & Controls |
| Wall Protection | Steel Bumper Guard at Head End |
| Warranty | 15 Years Frame, 3 Years Electronics, 1 Year Pendant |
