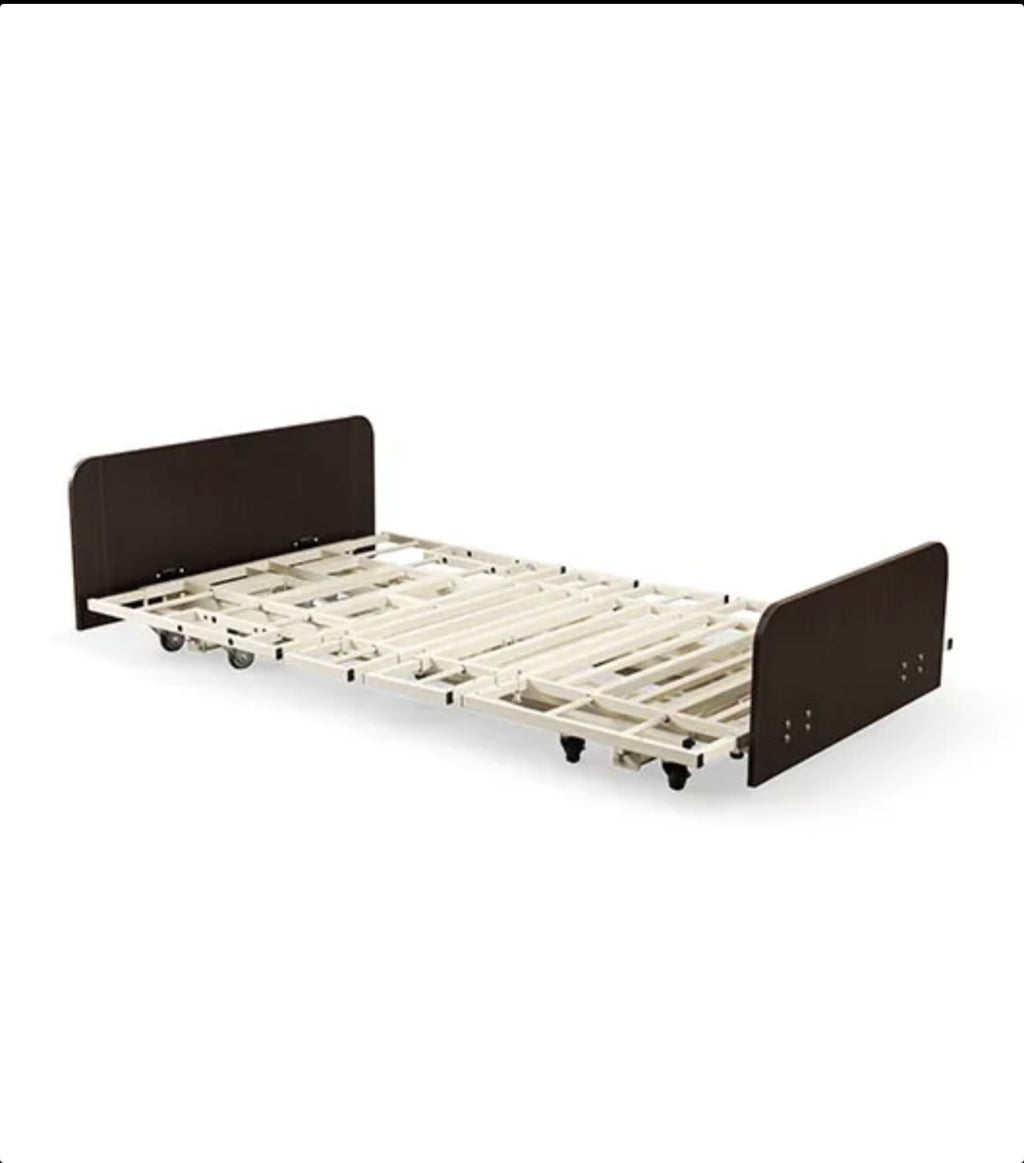

The Medacure ULB48-X-7/30 Versatile Series is a 4-function electric bed frame engineered for senior care and long-term care environments. As the expandable version of the Versatile Series, it combines an ultra-low 7-inch deck height with tool-less width and length expansion to accommodate a broad range of user requirements.
The expandable deck adjusts from 36 inches to 42 inches and up to 48 inches wide, while the sleep surface extends from 80 inches to 88 inches. Multiple wood finish selections and assist bar/rail configuration options allow the bed to be configured for individual mobility needs, room aesthetics, and care environments.
Choose Your Configurations

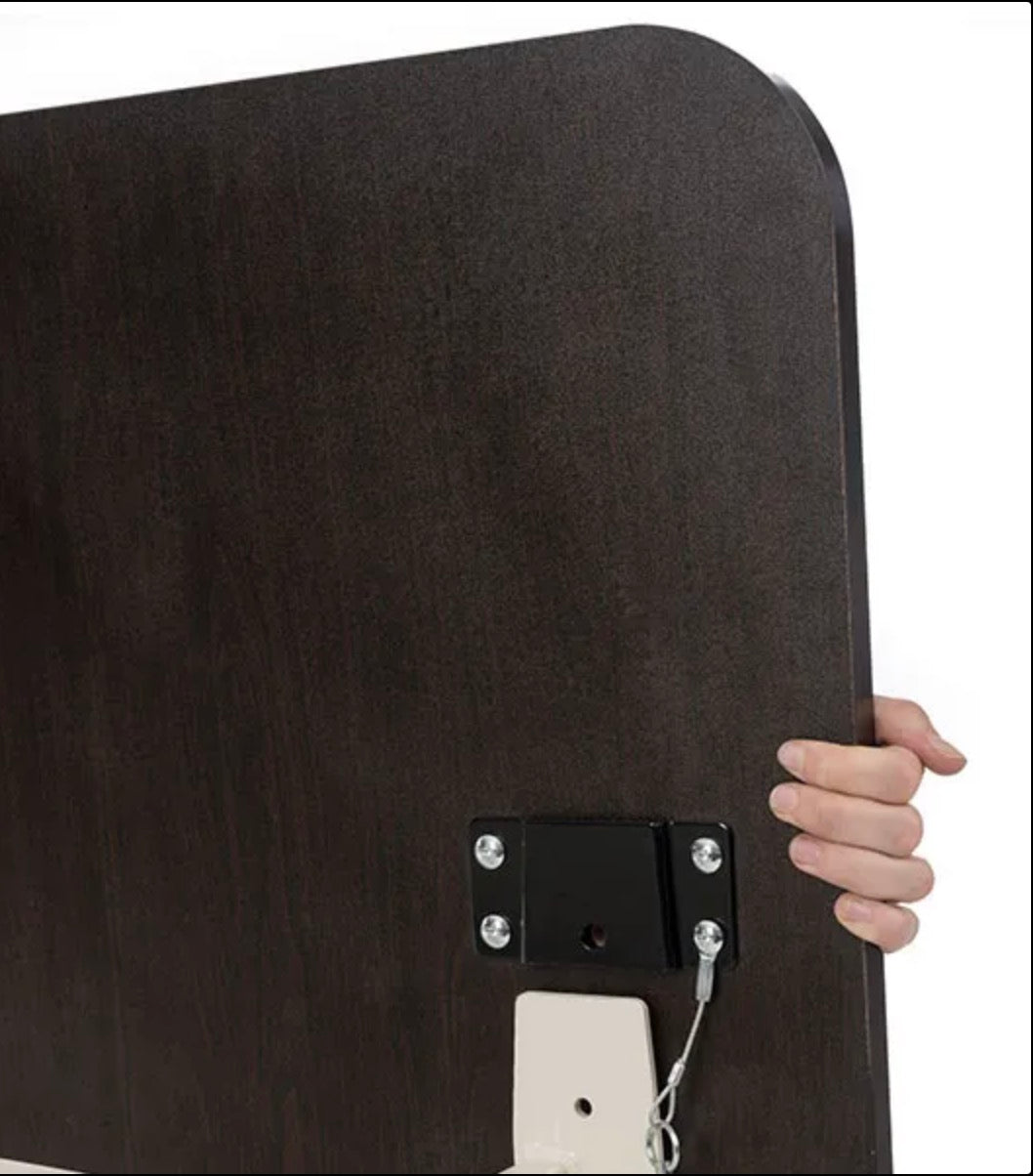

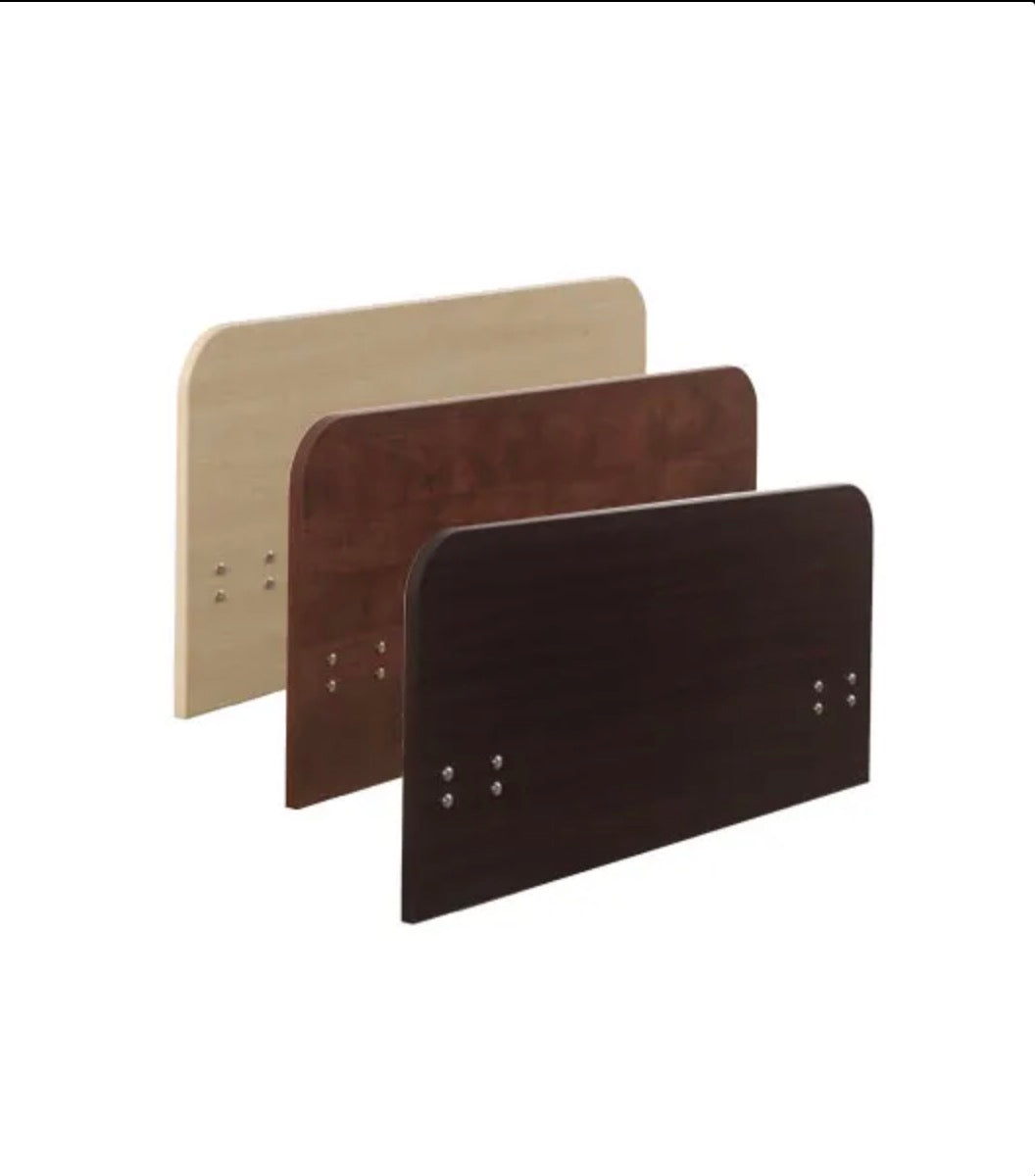

Head & Foot Board Wood Finish
Select your wood tone to complement existing home or facility décor:
- Mahogany – Deep, rich, classic elegance.
- Amber Cherry – Warm, inviting mid-tones.
- Maple – Bright, modern, clean look.
- Coastal Grey – Contemporary grey woodgrain finish designed to complement modern residential and care environments.

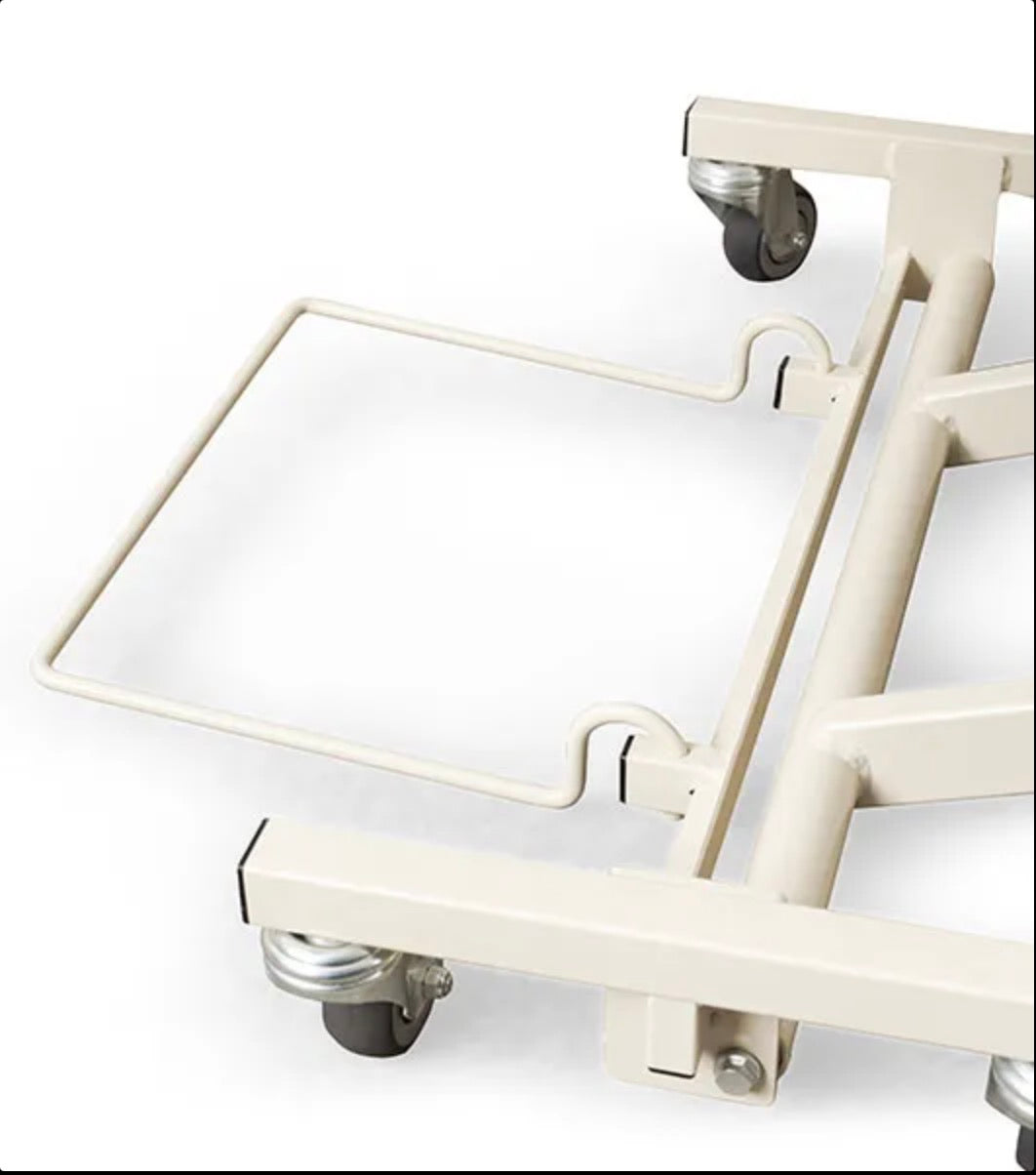

Assist Bars/Rails Options
Choose from a variety of assist bar and side rail configurations to provide the appropriate level of support for bed mobility, repositioning, transfers, and fall prevention based on individual user needs.
Key Performance Features
-

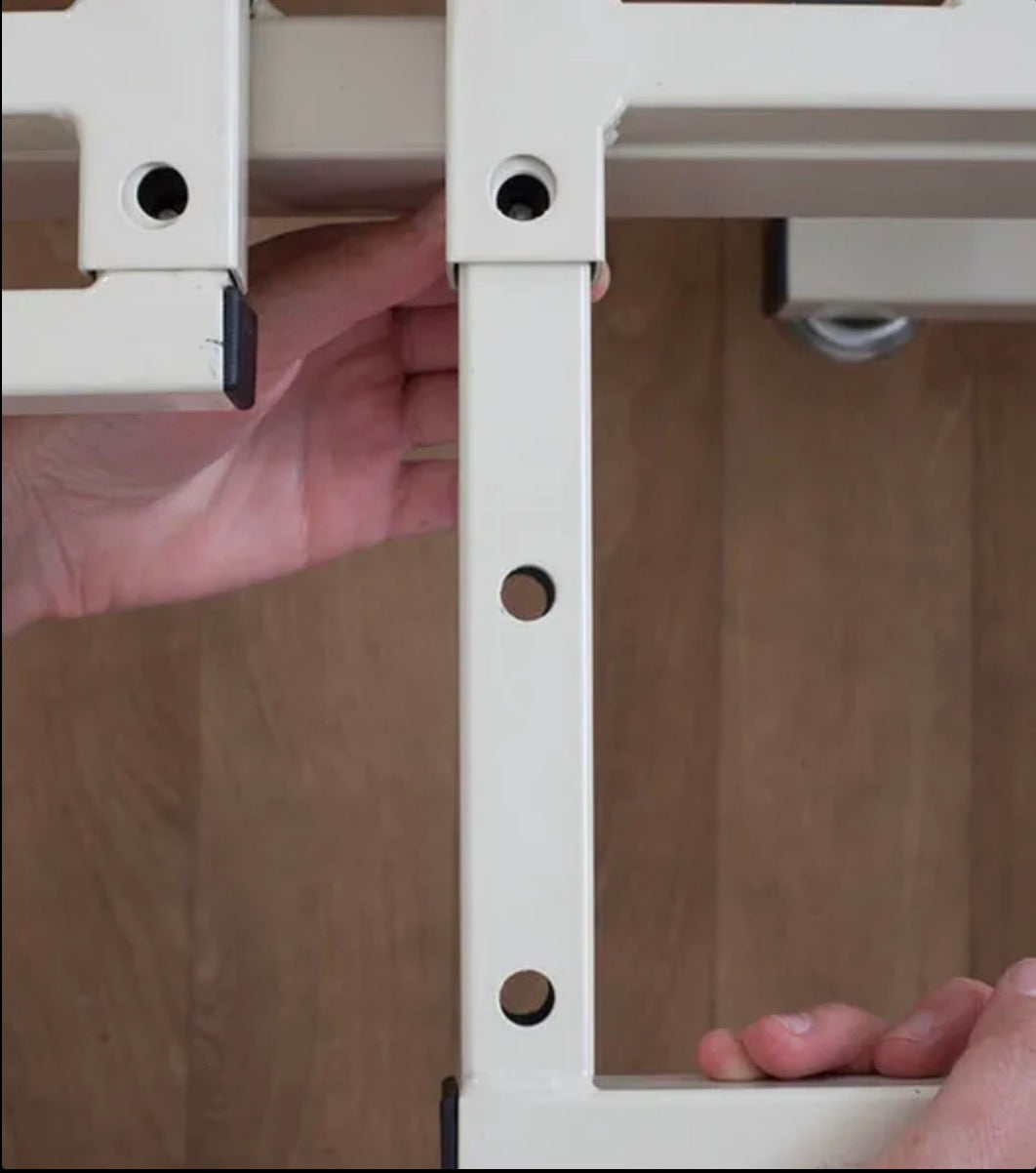

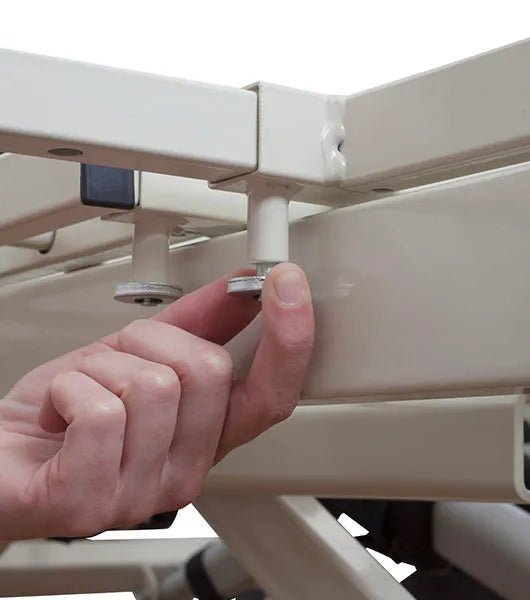

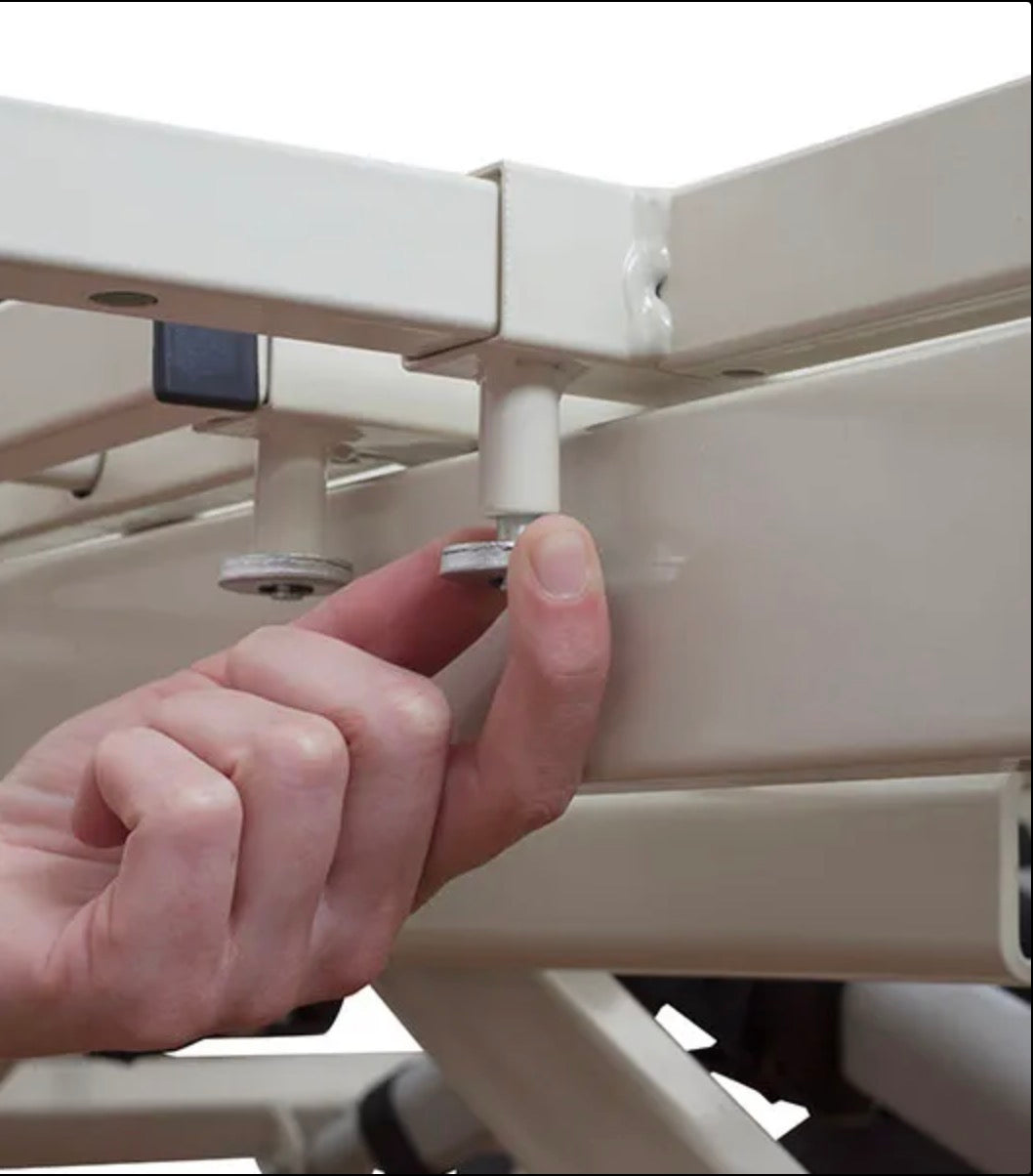

Built-In Width Expansion: Tool-less expansion deck adjusts from 36 inches to 42 inches and up to 48 inches wide to support varying user size requirements.
-

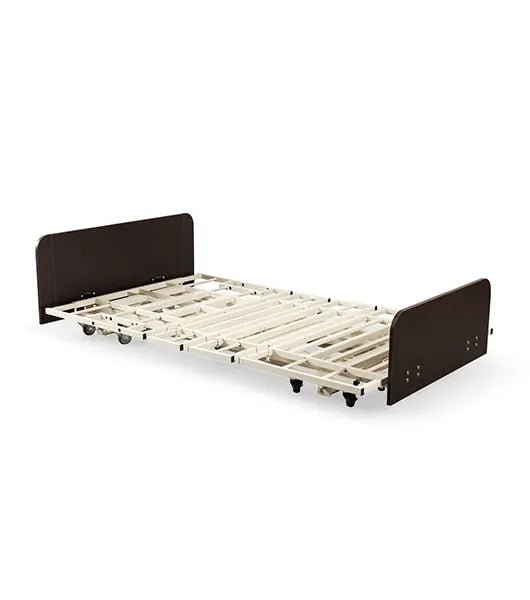

Ultra-Low Safety Profile: Lowers to 7 inches from the floor deck to help reduce injury risk associated with accidental bed exits and roll-outs.
-

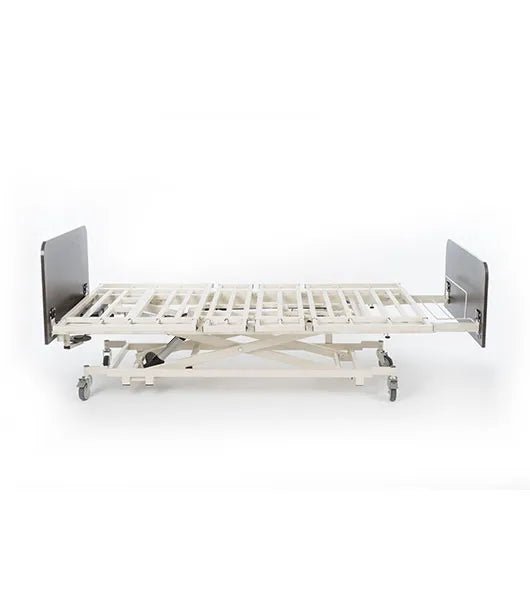

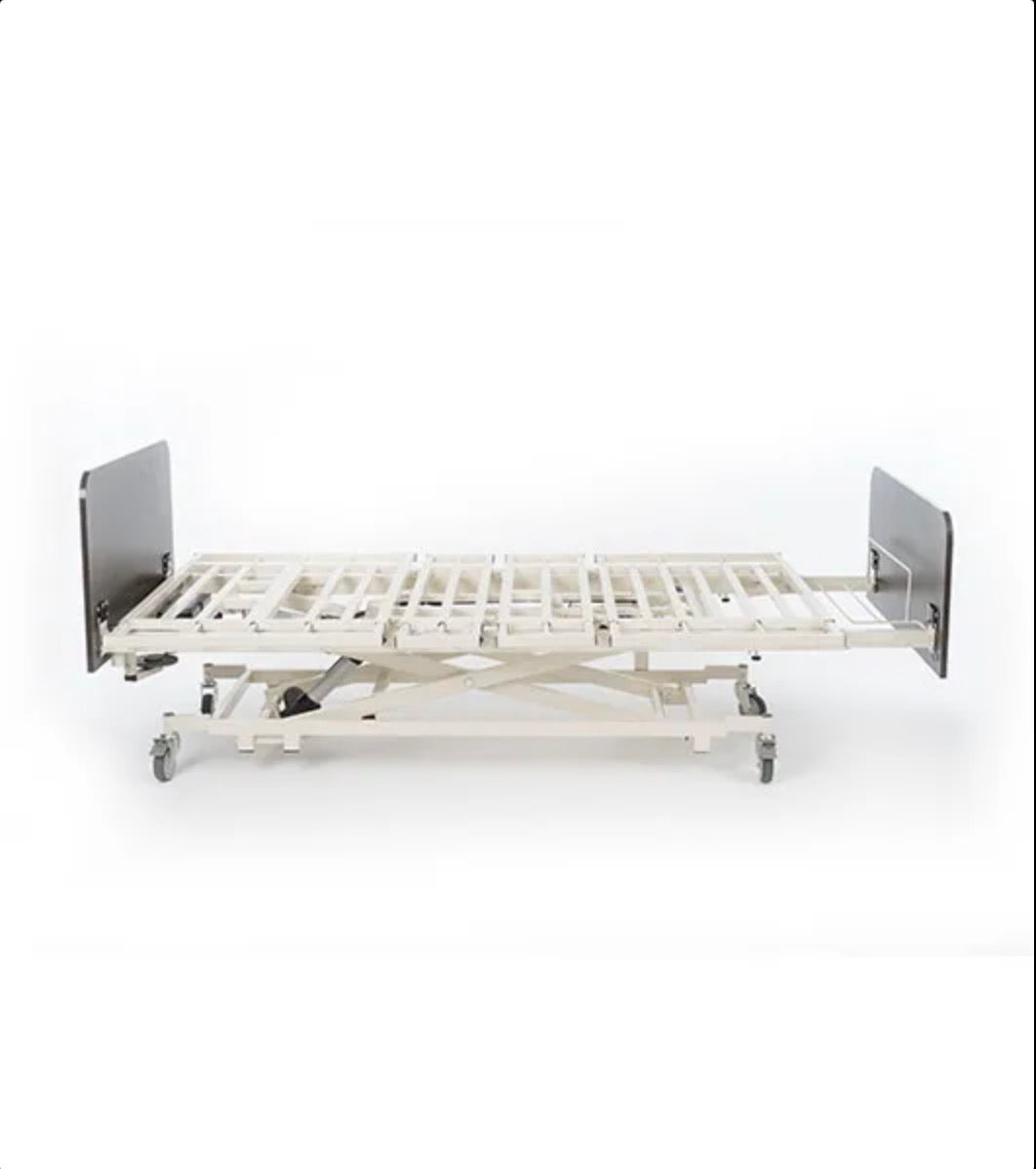

Ergonomic Caregiver Access: Raises to 30 inches to support transfers, personal care, wound care, and therapy activities at a working height.
-
Built-In Length Extension: Frame adjusts from 80 inches to 88 inches to accommodate extended sleep surface requirements.
-

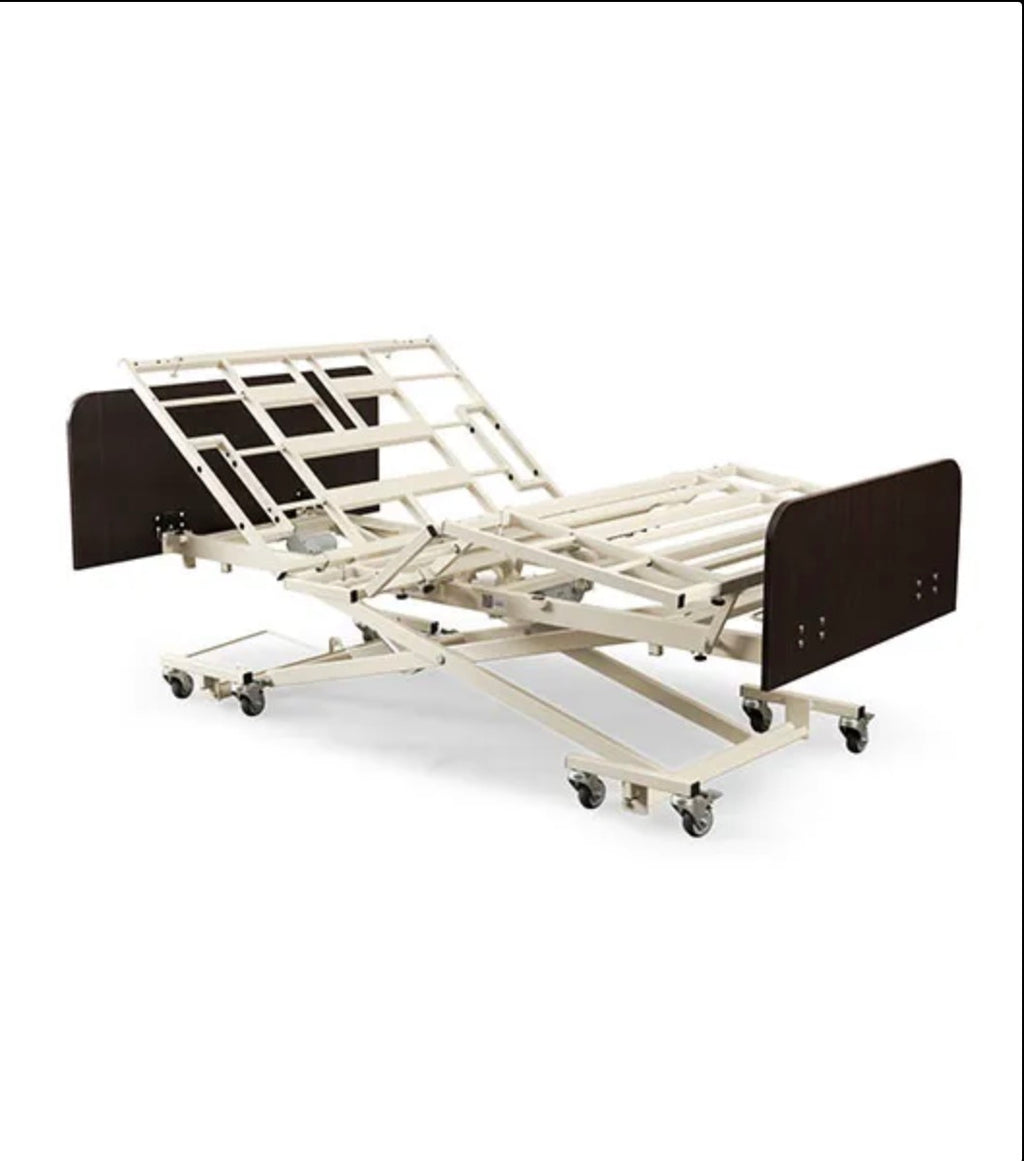

One-Touch Auto Contour: Coordinates head and foot section adjustment to support positioning and help reduce user migration in bed.

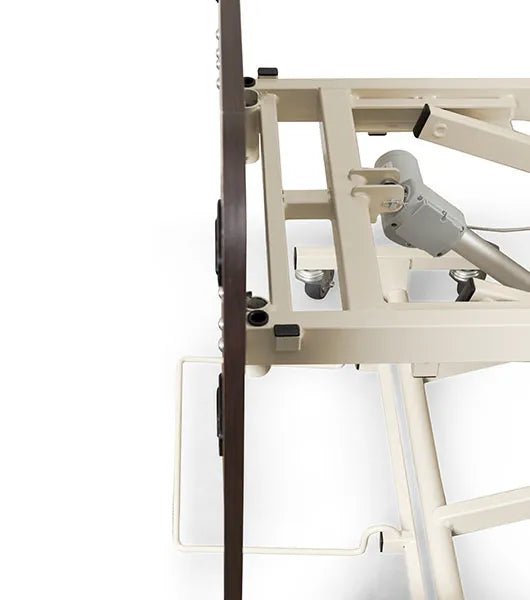

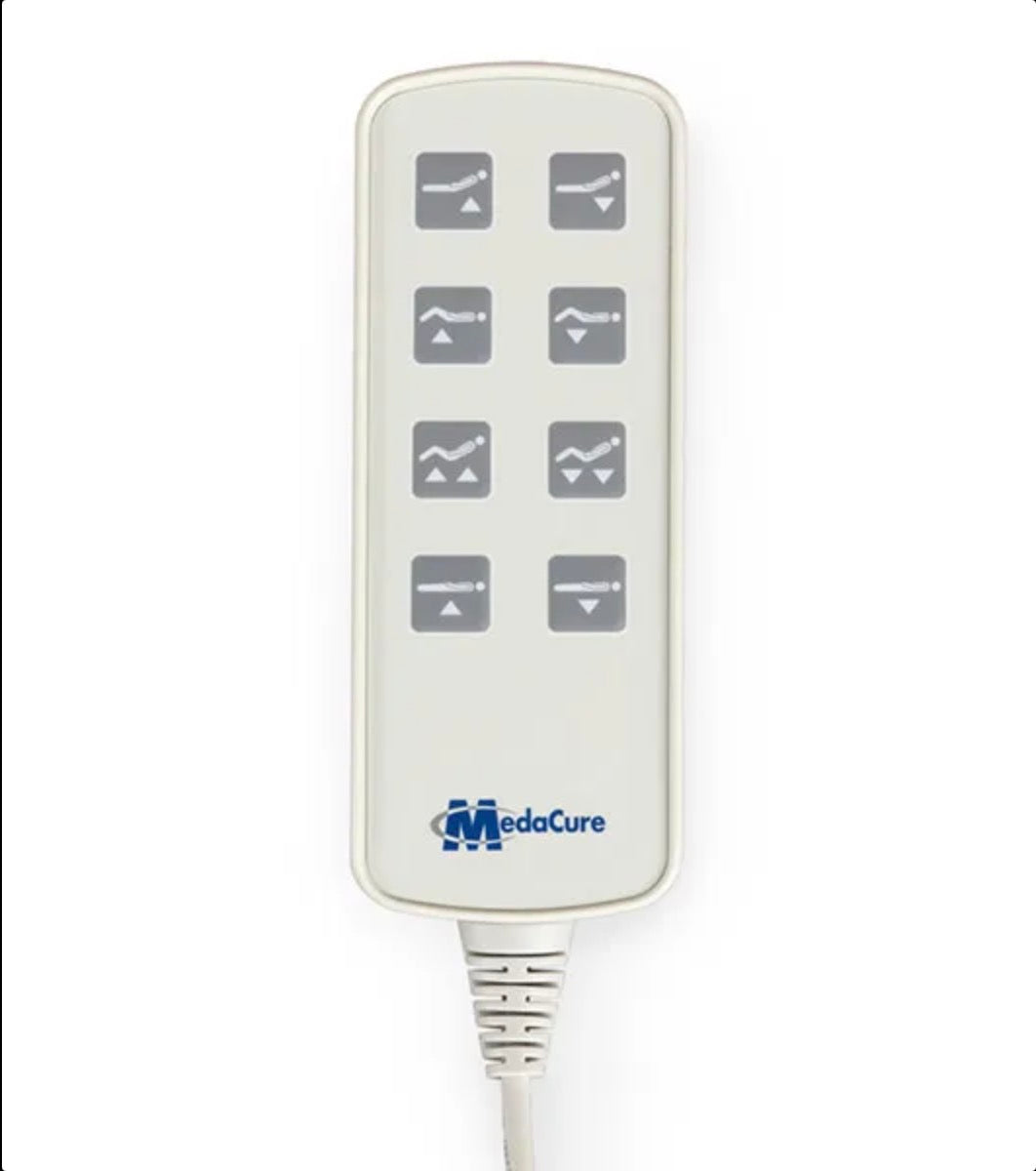

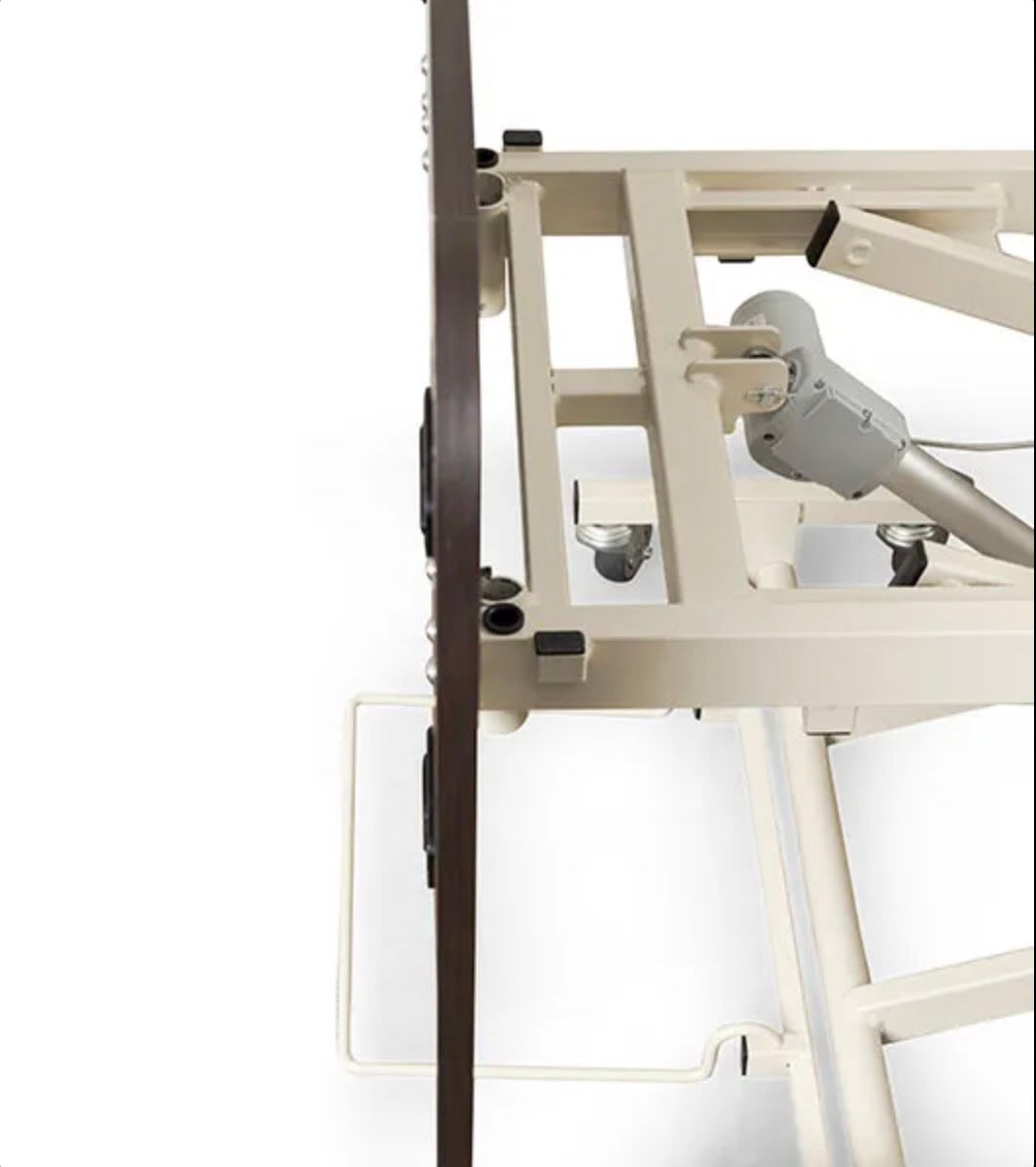

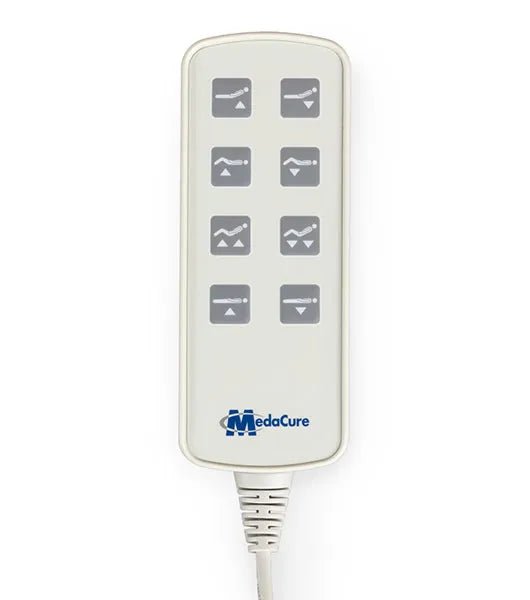

- Linak Component Integration: Powered by Linak actuators and controlled through an 8-function handheld pendant with universal symbols.
Technical Specifications
| Feature | Specification |
|---|---|
| Operation Type | Full Electric (Hi/Lo, Head, Foot, Auto Contour) |
| Built-In Width Expansion | Tool-Free 36" to 42" to 48" Expandable Deck |
| Built-In Length Extension | 80" to 88" Adjustable Length |
| Travel Range | 7" Minimum to 30" Maximum (Floor to Deck) |
| Weight Capacity | 550 lbs Safe Working Load |

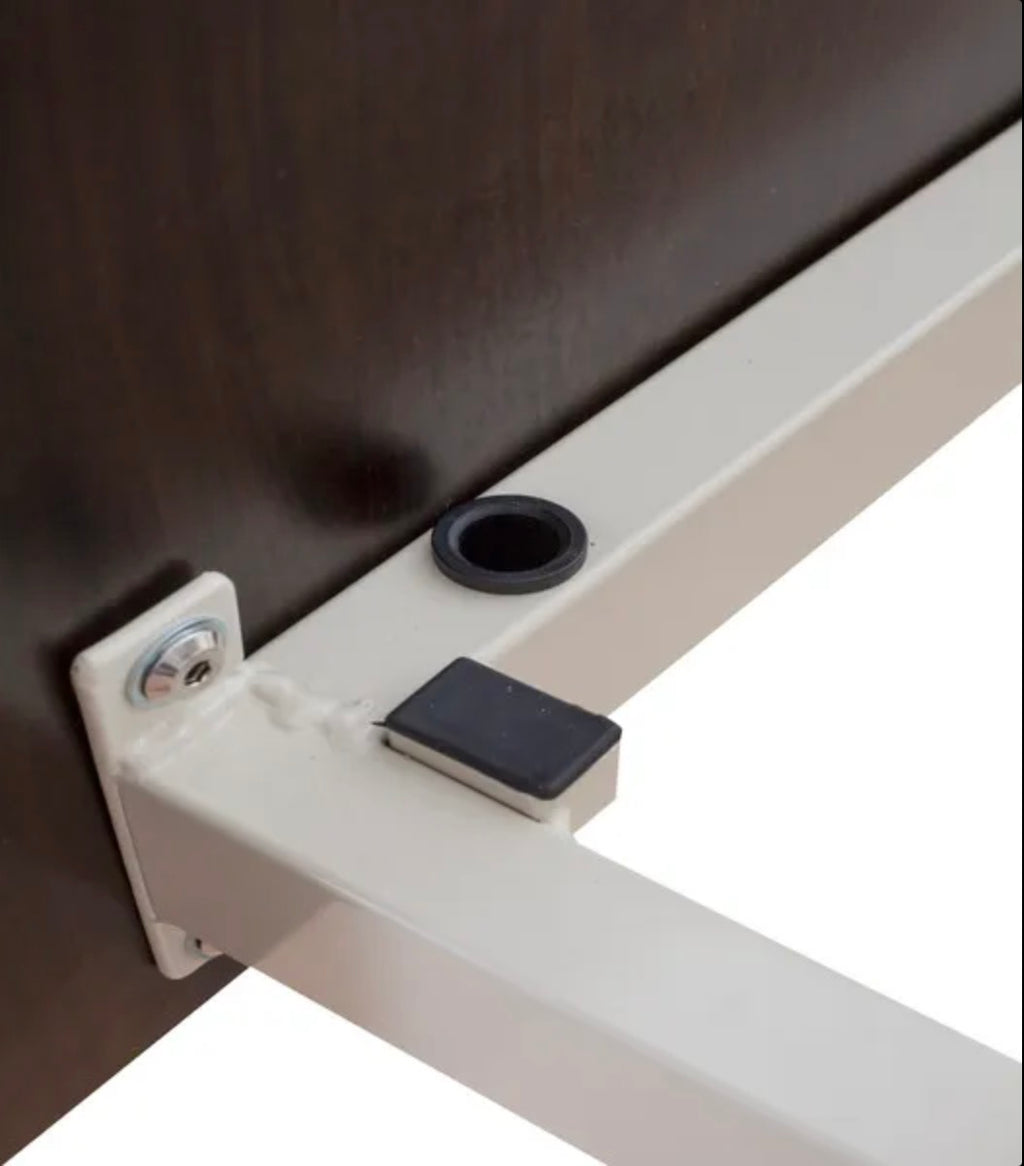

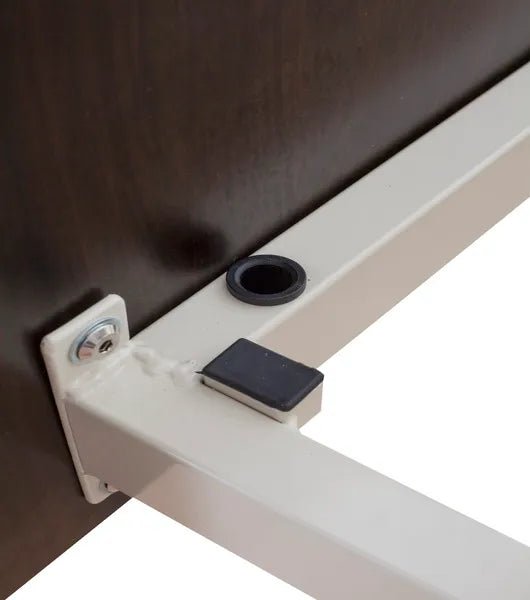

| Construction | Reinforced Rectangle Tube Steel Frame |
| Mobility | Eight 3" Casters (4 Swivel / 4 Locking) |
| Electronics Brand | Linak Actuators & Controls |
| Wall Protection | Steel Bumper Guard at Head End |
| Warranty | 15 Years Frame, 3 Years Electronics, 1 Year Pendant |
