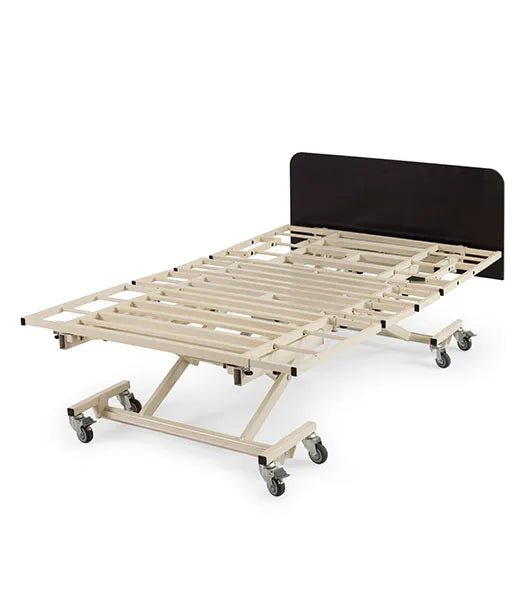

The Medacure Lincoln Expandable Bariatric Bed with Split Frame Design (LX-BARI-SF) is a 5-function electric bariatric bed frame engineered for high-capacity senior care and long-term care environments. This transportable split-frame configuration combines a reinforced bariatric platform with tool-less width and length expansion capabilities while allowing the frame to fold into a more compact form for transport, storage, and room-to-room deployment.
The expandable platform adjusts from 36 inches to 42 inches and up to 48 inches wide, while the sleep surface extends from 80 inches to 88 inches. Full-electric articulation includes Trendelenburg and Reverse Trendelenburg positioning functions, supporting a wide range of resident care requirements while simplifying transportation and installation workflows.
Choose Your Configurations

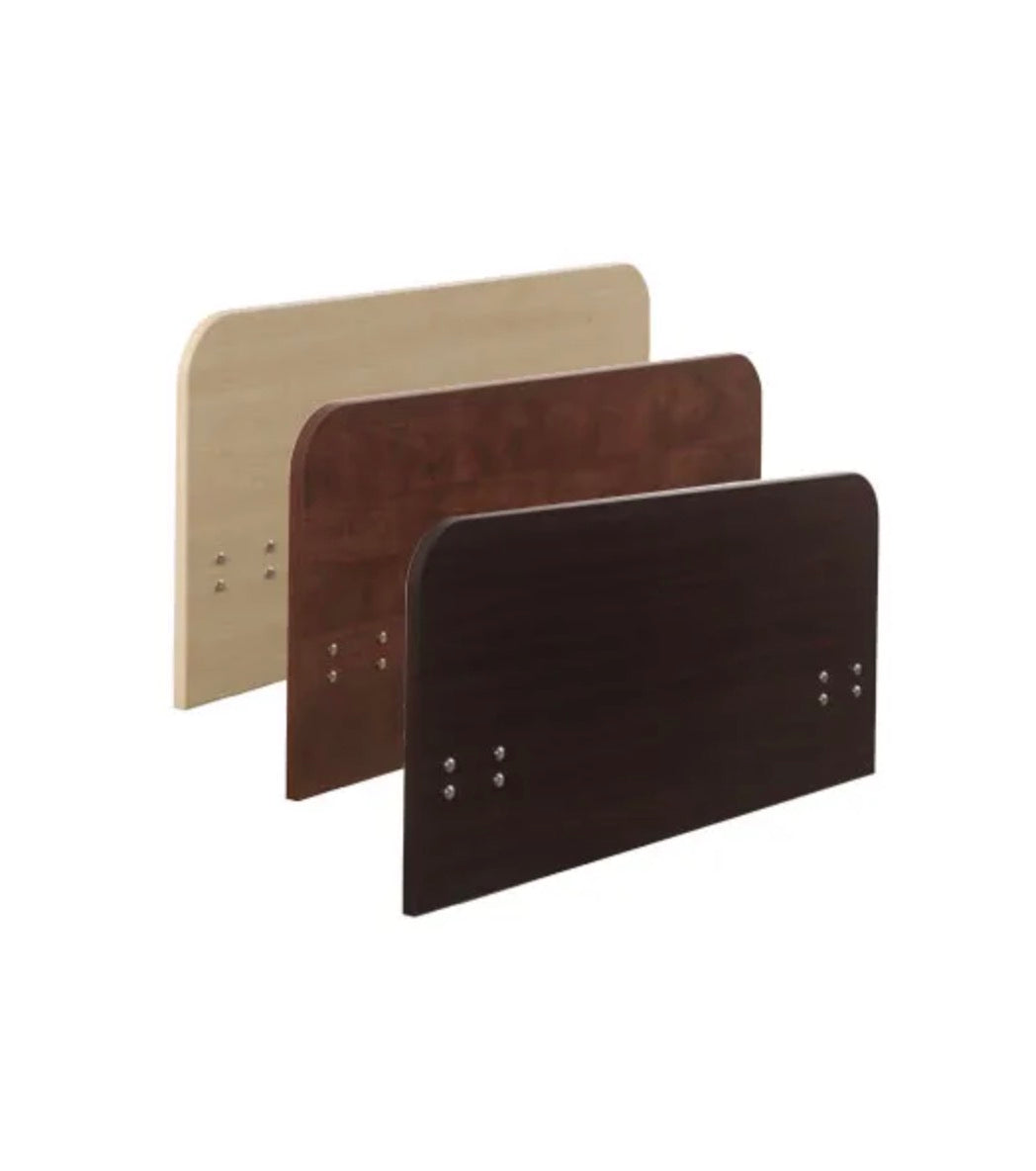

Head & Foot Board Wood Finish
Select your wood tone to complement existing home or facility décor:
- Mahogany – Deep, rich, classic elegance.
- Amber Cherry – Warm, inviting mid-tones.
- Maple – Bright, modern, clean look.
- Coastal Grey – Contemporary grey woodgrain finish designed to complement modern residential and care environments.
Assist Bars/Rails Options
Choose from a variety of assist bar and side rail configurations to provide the appropriate level of support for bed mobility, repositioning, transfers, and fall prevention based on individual user needs.
Key Performance Features
-

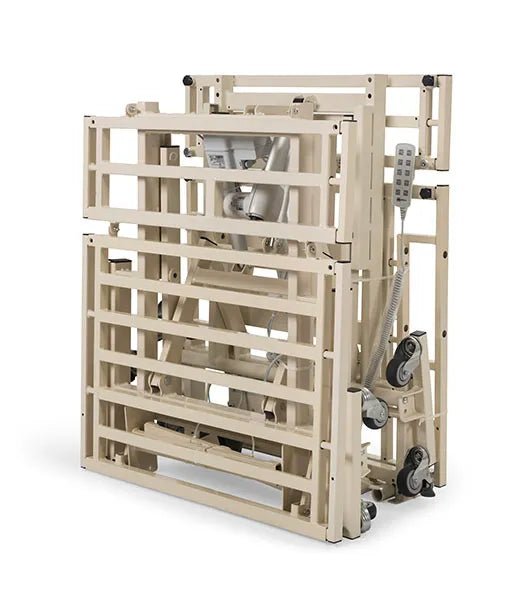

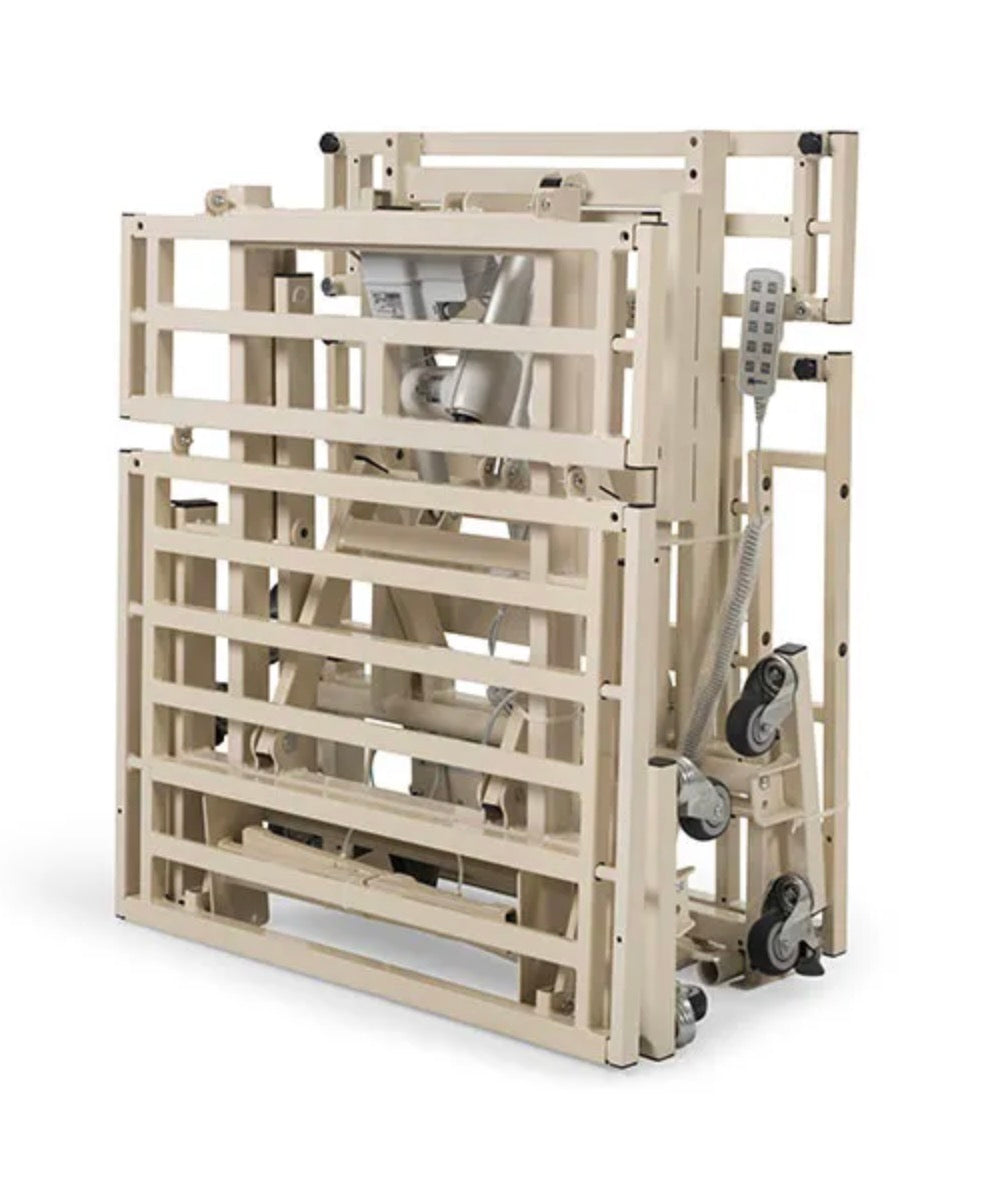

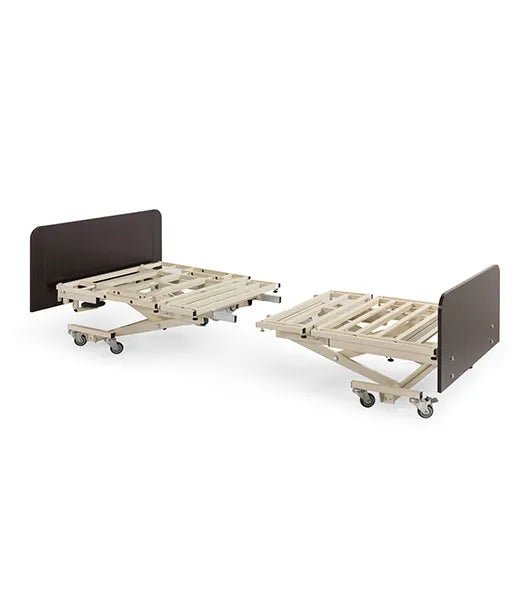

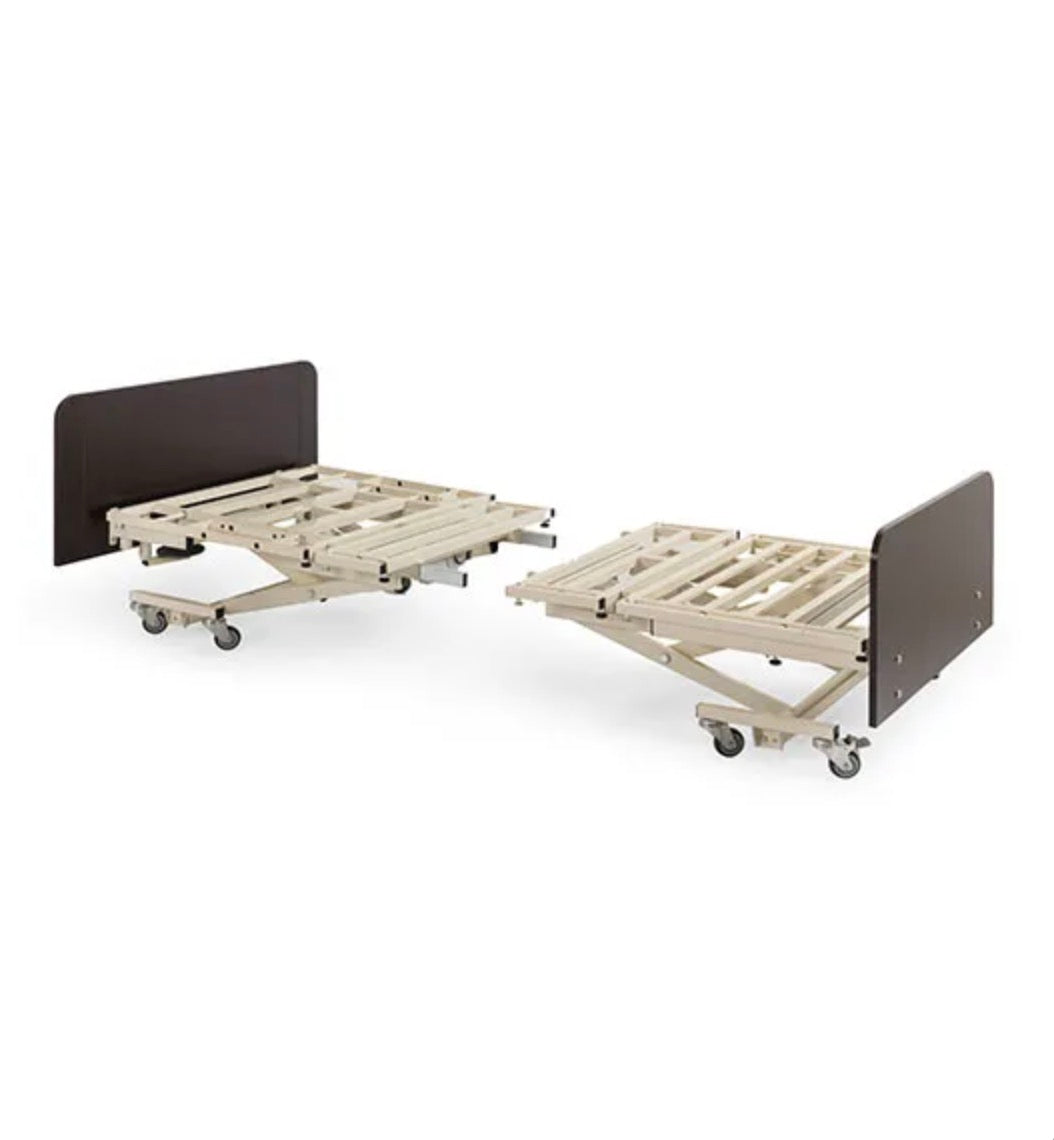

Split Frame Design: Folding frame configuration supports transport, storage, rental fleet management, and room-to-room deployment while maintaining full bariatric functionality.
-

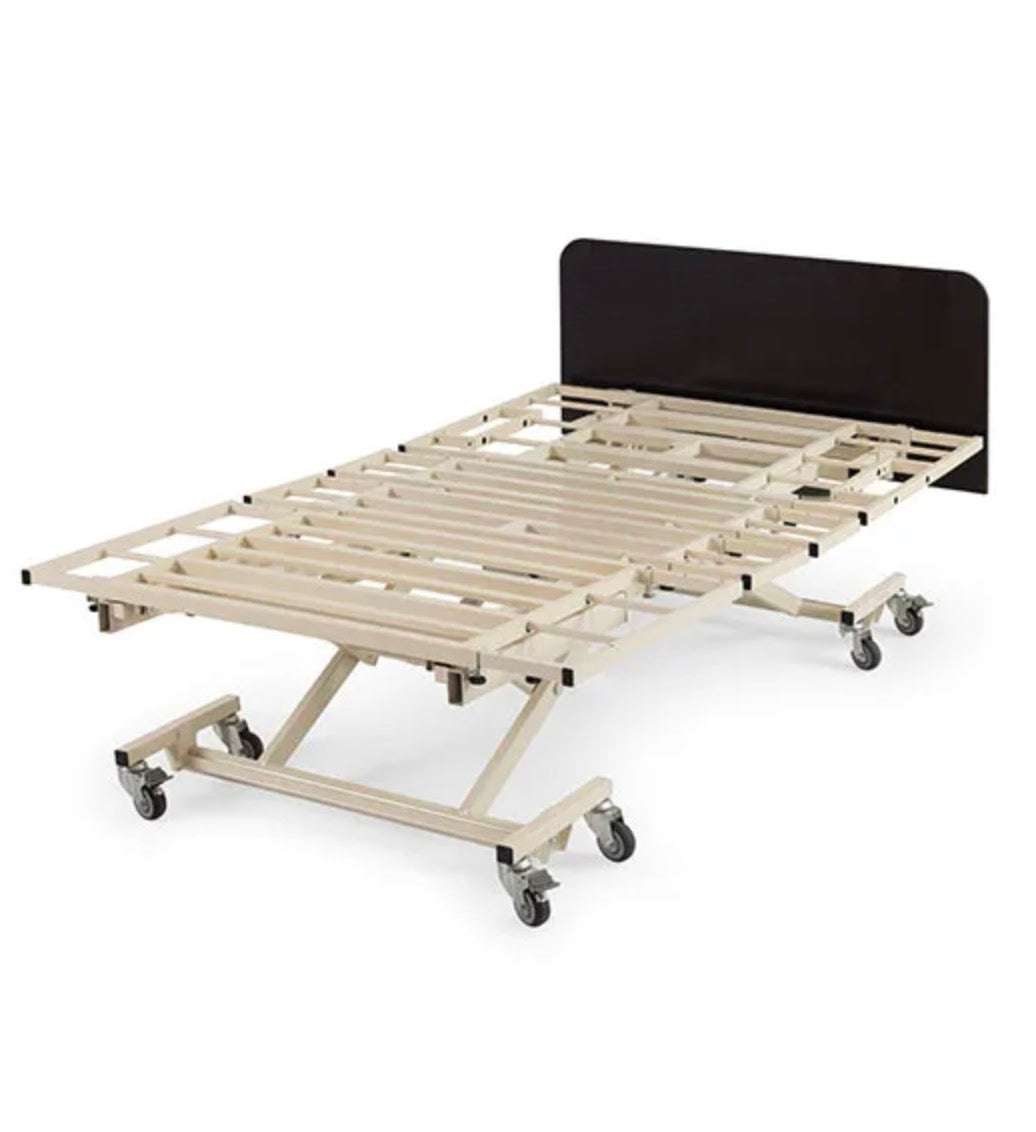

Built-In Width Expansion: Tool-less expansion deck adjusts from 36 inches to 42 inches and up to 48 inches wide to accommodate changing user size requirements.
-

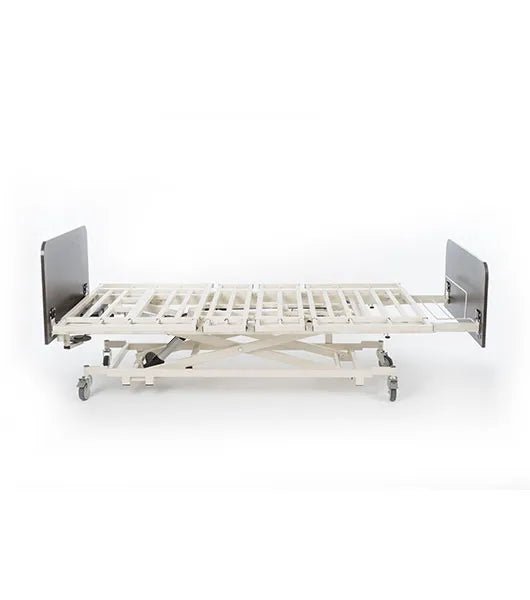

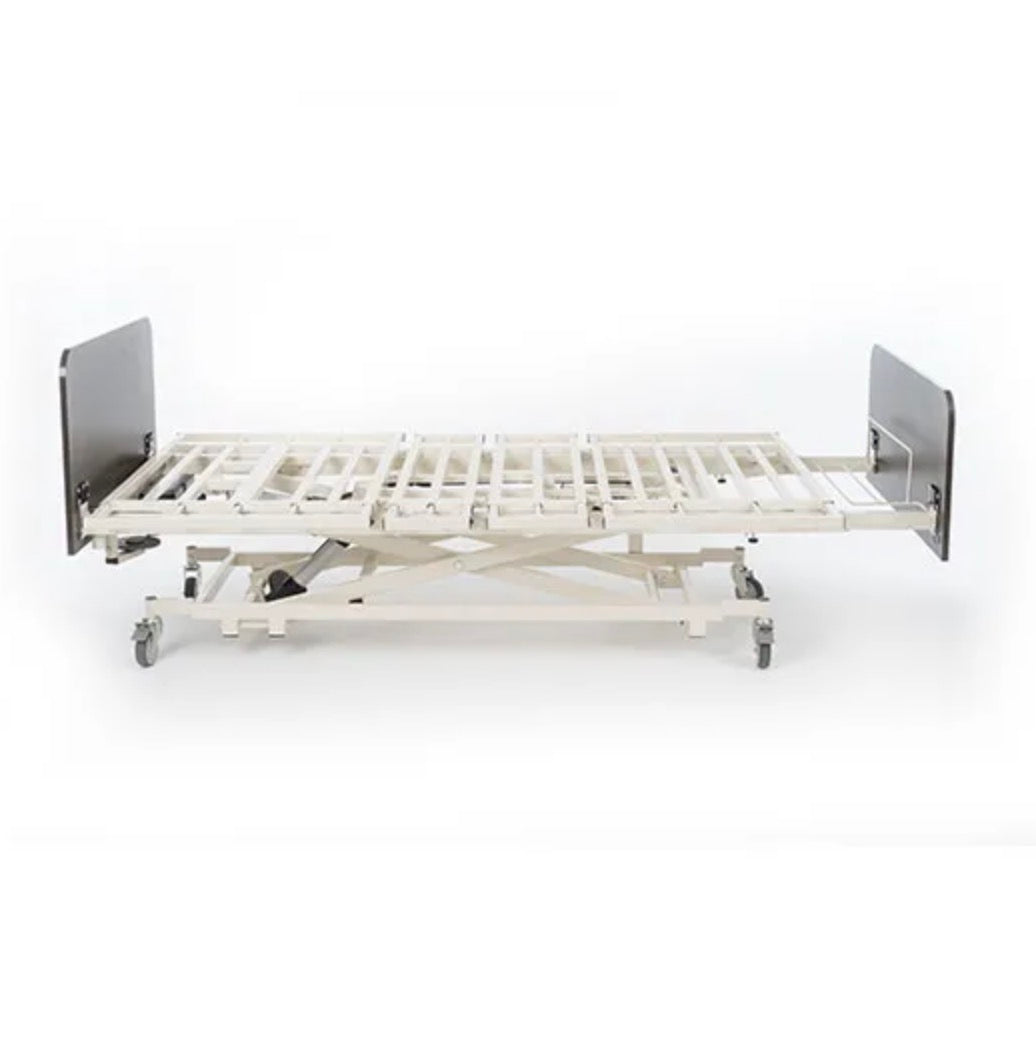

Built-In Length & Headboard Adjustment: Sleep surface extends from 80 inches to 88 inches while the expandable headboard adjusts with the bed configuration.
-
Advanced 5-Function Articulation: Provides electric Hi/Lo, head, foot, Auto Contour, Trendelenburg, and Reverse Trendelenburg positioning functions through the handheld control system.
-

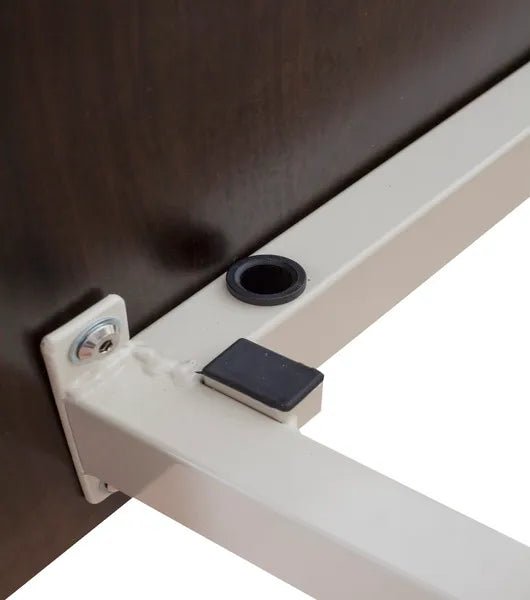

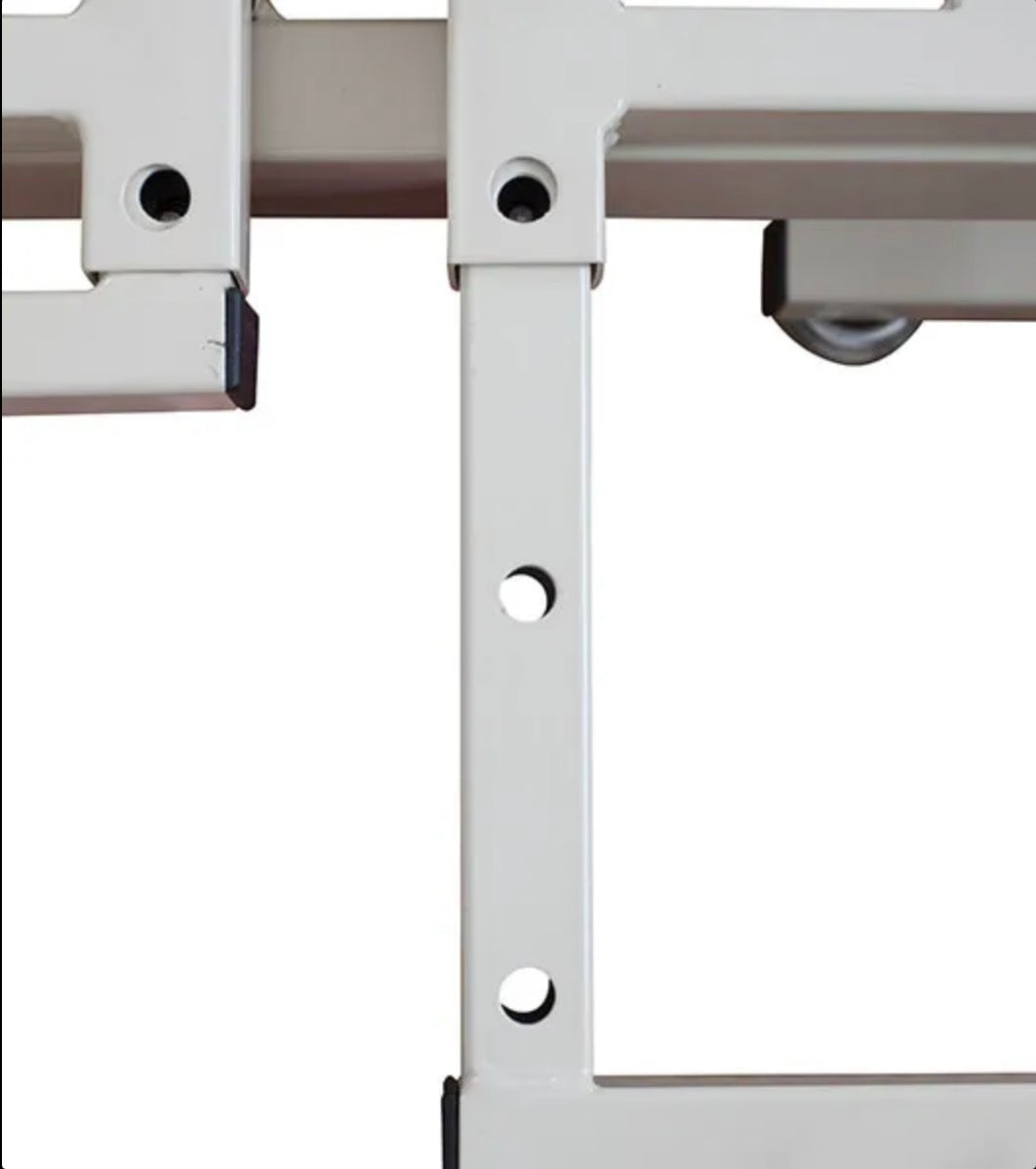

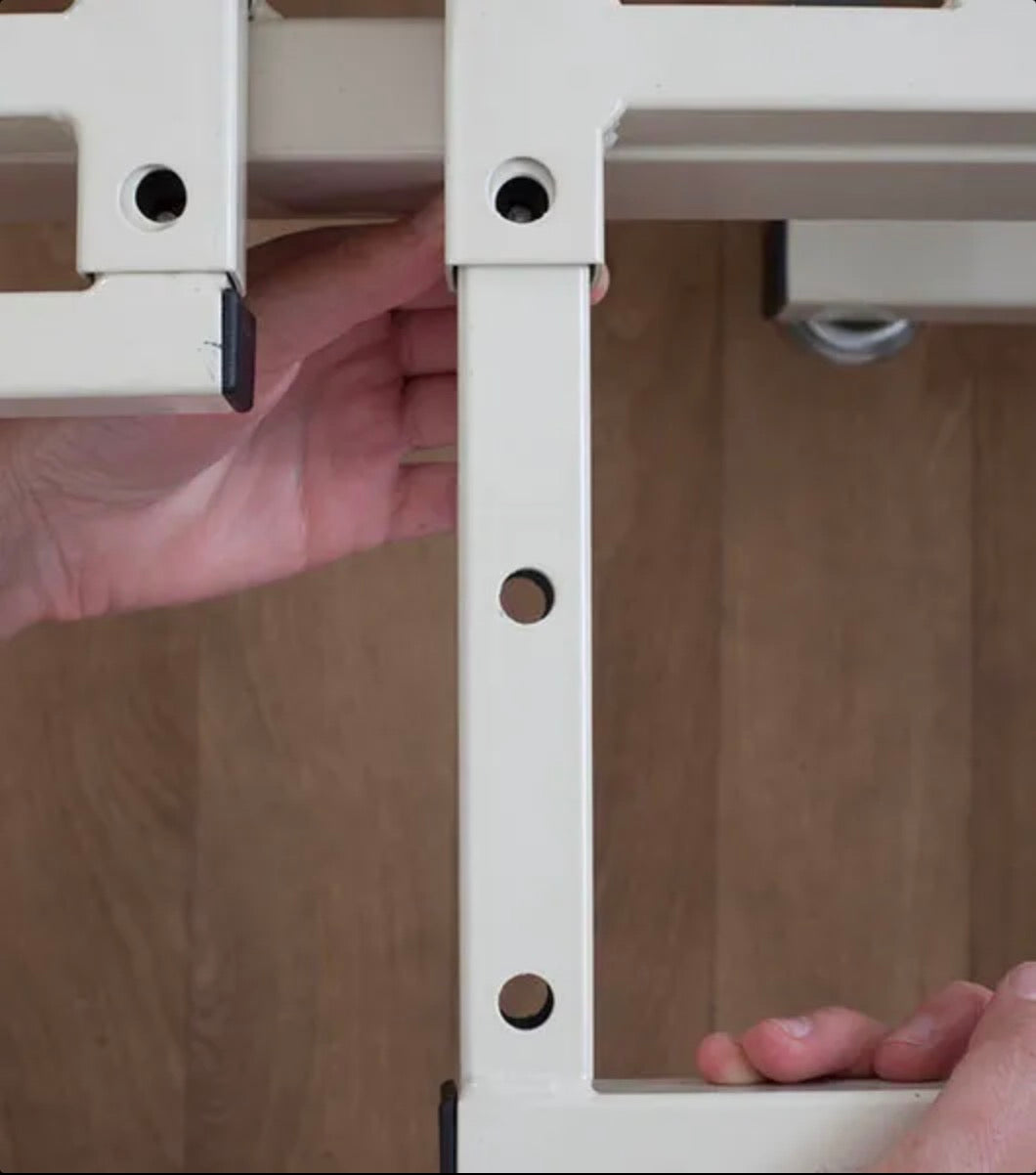

Tool-Less Assembly System: Frame expansion points and fold-down sections utilize spring-bolt mechanisms that do not require tools for adjustment or setup.
-
High-Capacity Bariatric Platform: Reinforced frame construction supports bariatric care applications with a 750 lb safe working load rating.
- Linak Component Integration: Powered by Linak actuators and controlled through a 10-function handheld pendant with universal symbols.
Technical Specifications
| Feature | Specification |
|---|---|
| Operation Type | 5-Function Electric (Hi/Lo, Head, Foot, Auto Contour, Trendelenburg/Reverse) |
| Model Number | LX-BARI-SF |
| Frame Design | Transportable Split Frame (Folds for Storage & Mobility) |
| Built-In Width Expansion | Tool-Free 36" to 42" to 48" Expandable Deck |
| Built-In Length Extension | 80" to 88" Adjustable Length |
| Expandable Headboard | Syncs with Deck Width Adjustments (36" to 42" to 48") |
| Low Range | 14" Minimum Height (Floor to Deck) |
| High Range | 30" Maximum Height (Floor to Deck) |
| Weight Capacity | 750 lbs Safe Working Load |

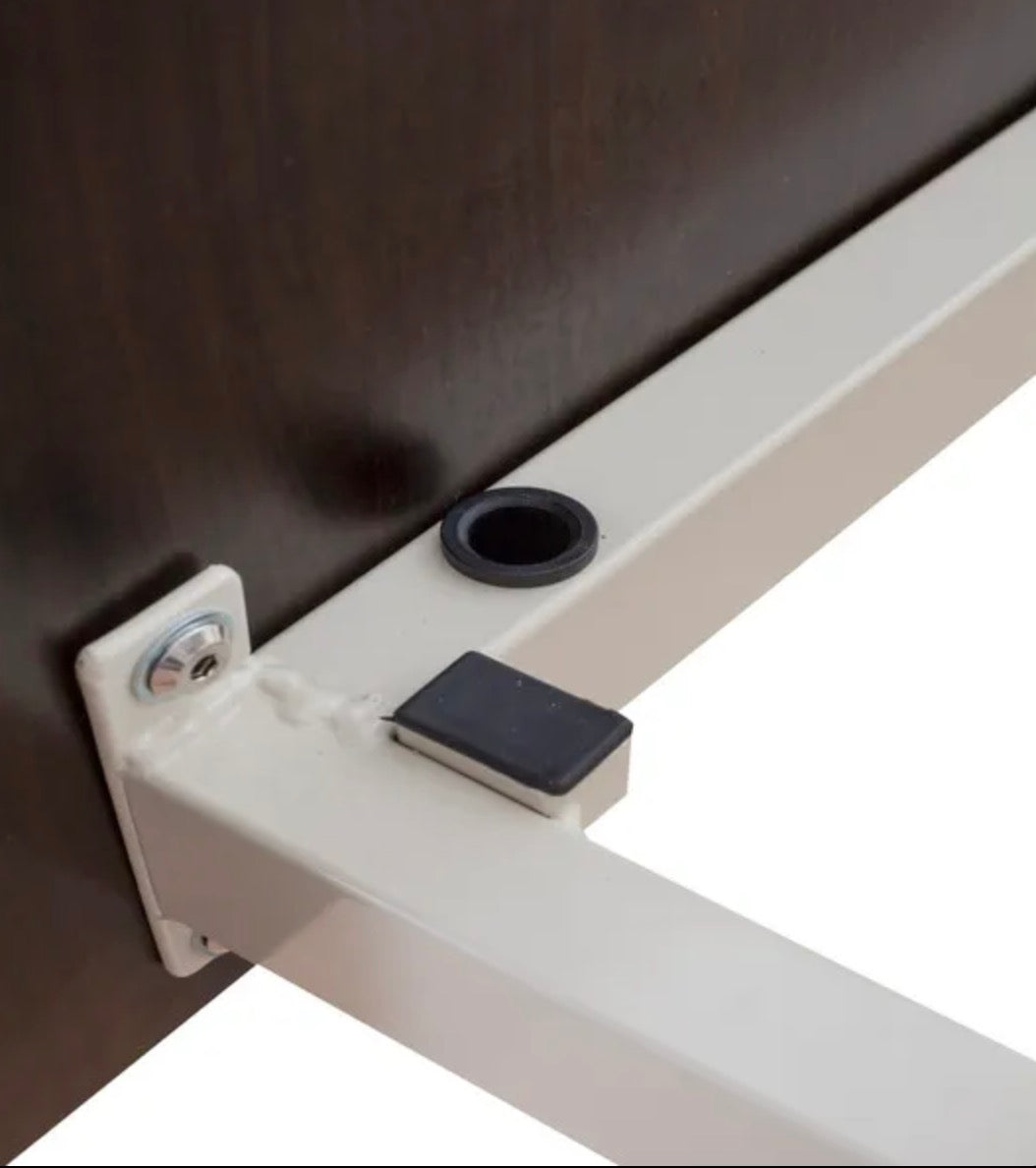

| Construction | Reinforced Heavy-Duty Rectangle Tube Steel Frame |
| Mobility | Eight 3" Heavy-Duty Casters (4 Swivel / 4 Locking) |
| Electronics Brand | Linak Actuators & Controls |
| Accessory Mounts | Dual Head-Corner IV Pole and Trapeze Bracket Mounts |
| Wall Protection | Retractable Head-End Bumper Guards |
| Warranty | 15 Years Frame, 3 Years Electronics, 1 Year Pendant |
