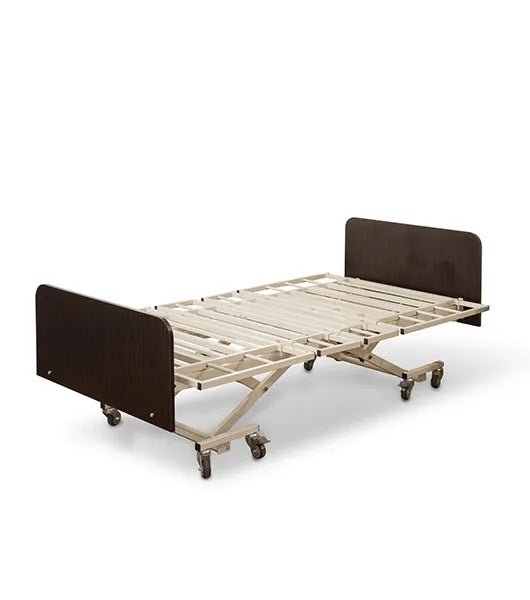

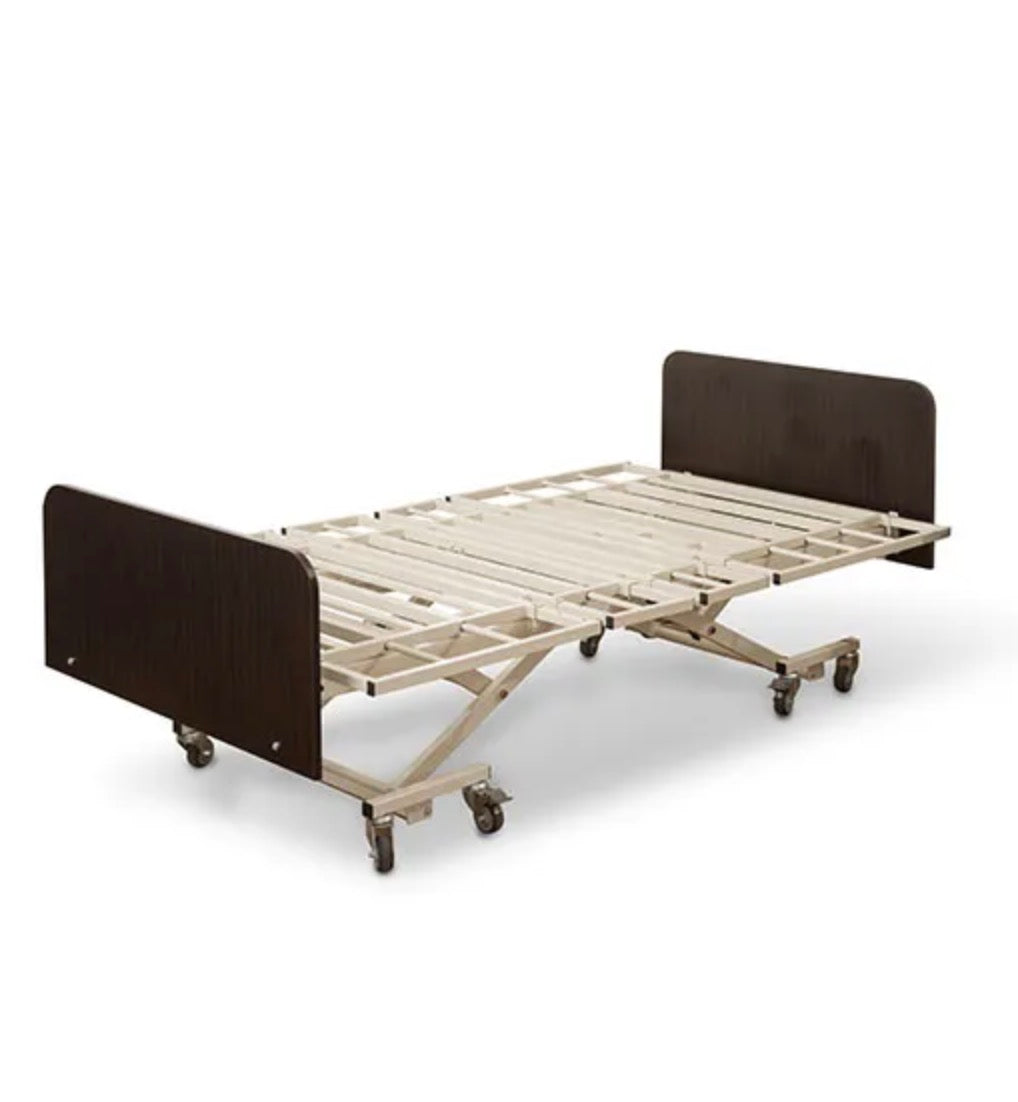

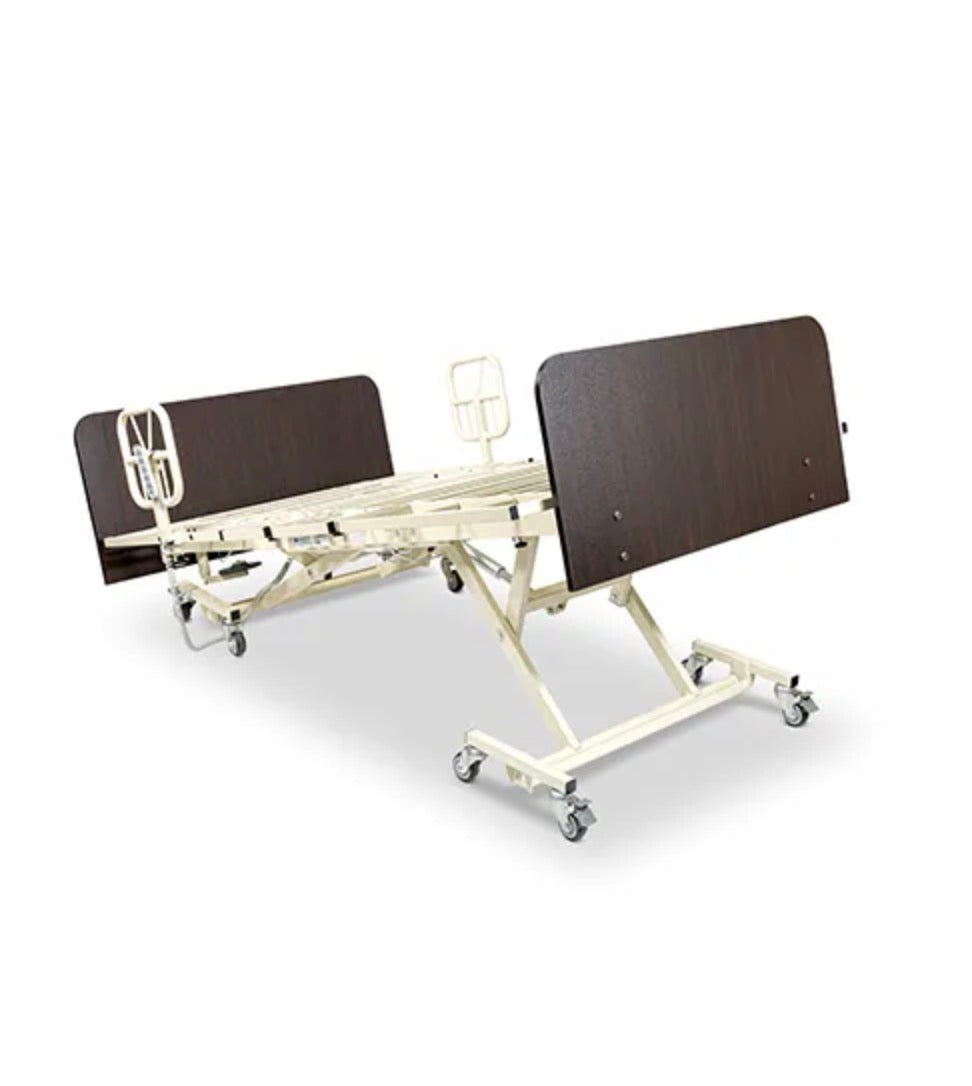

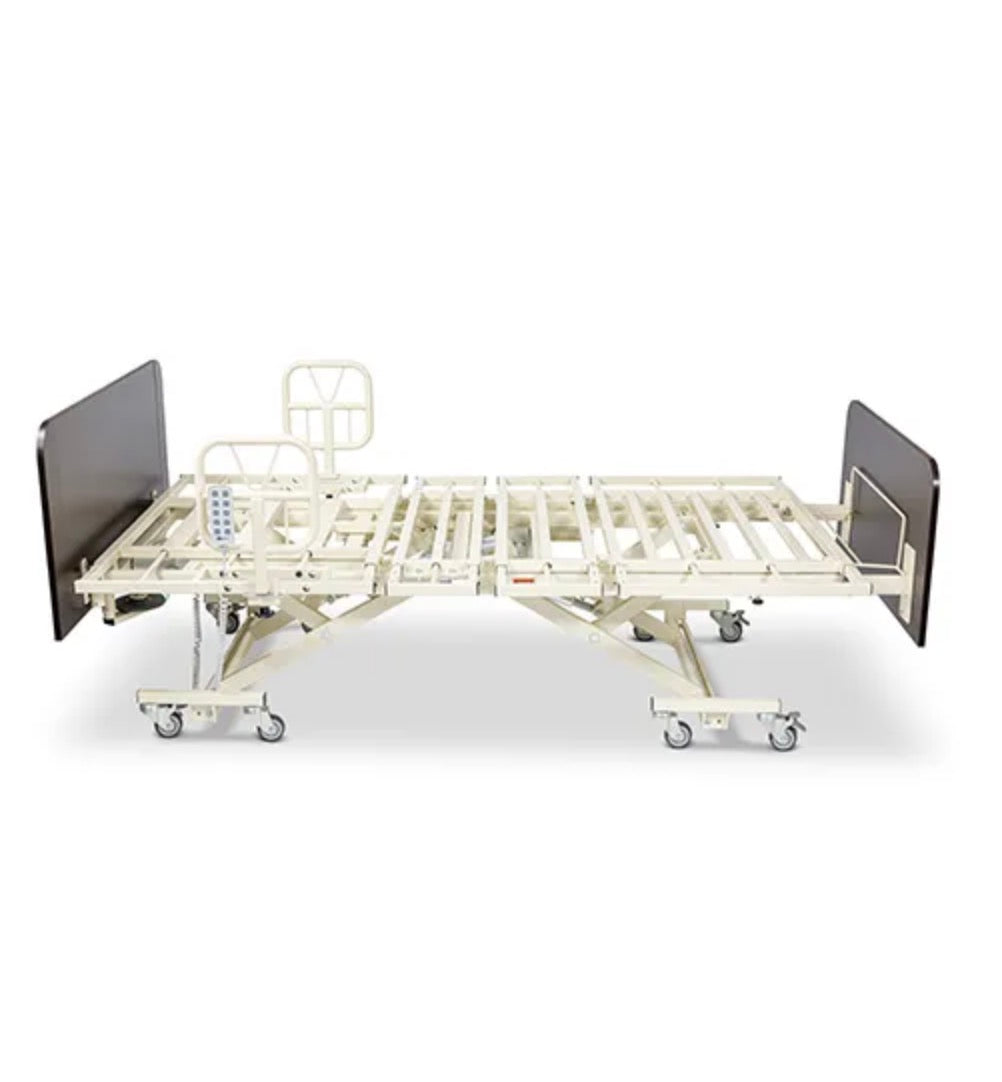

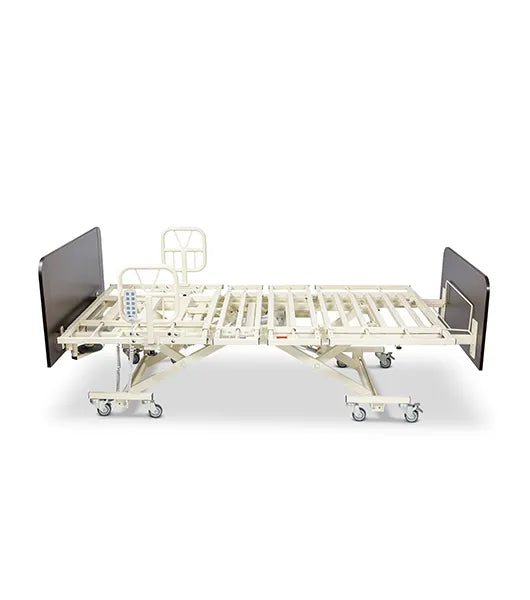

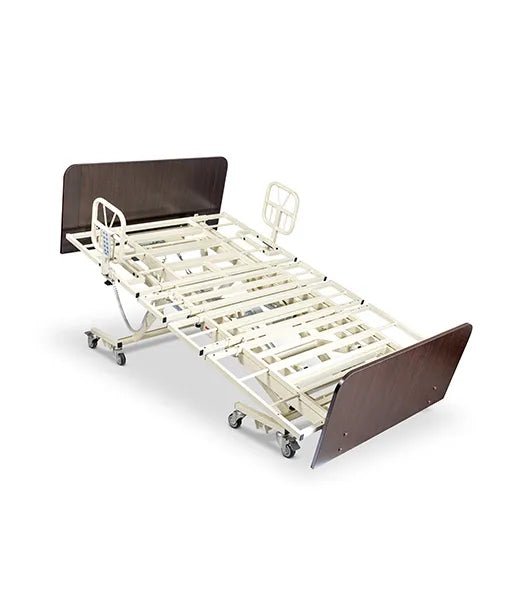

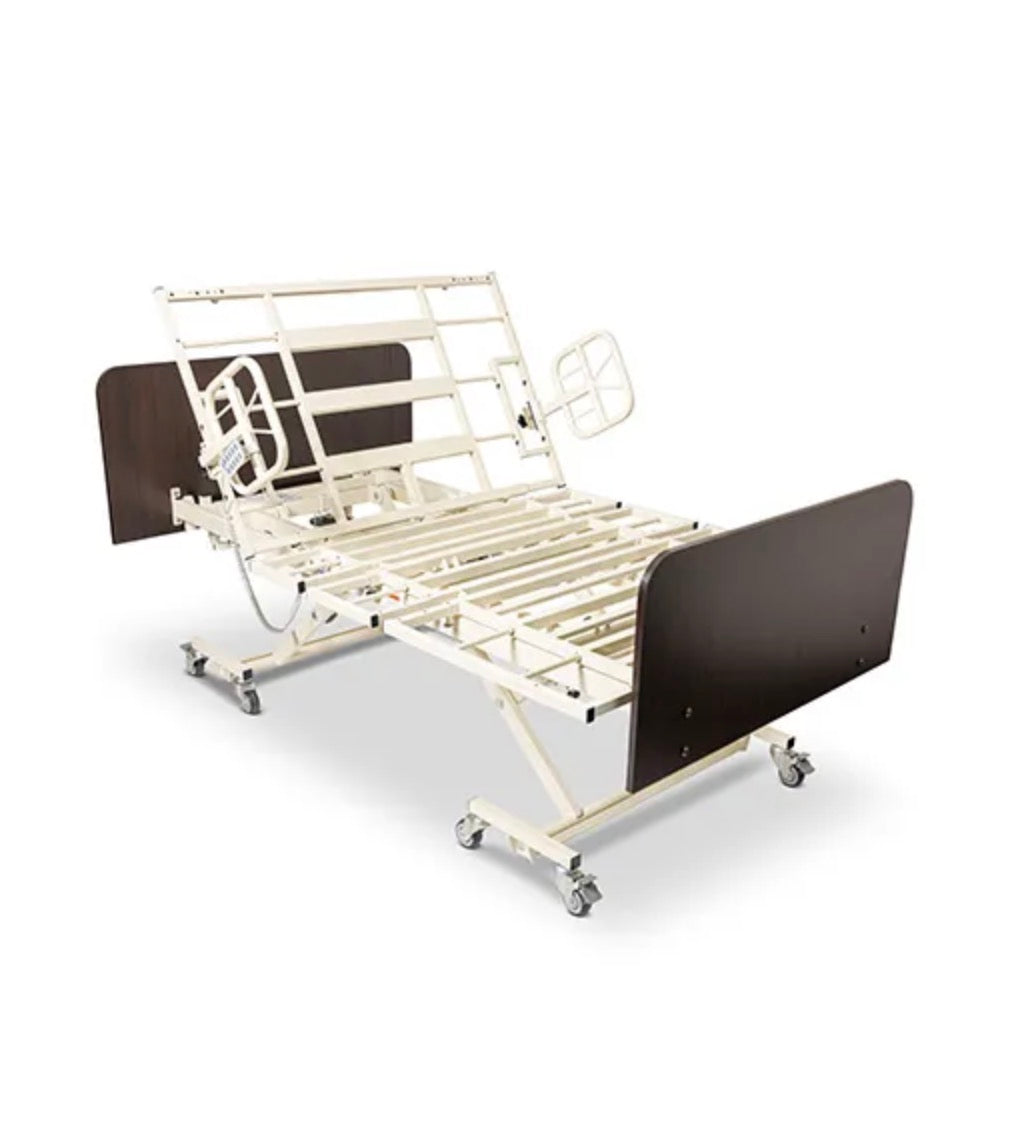

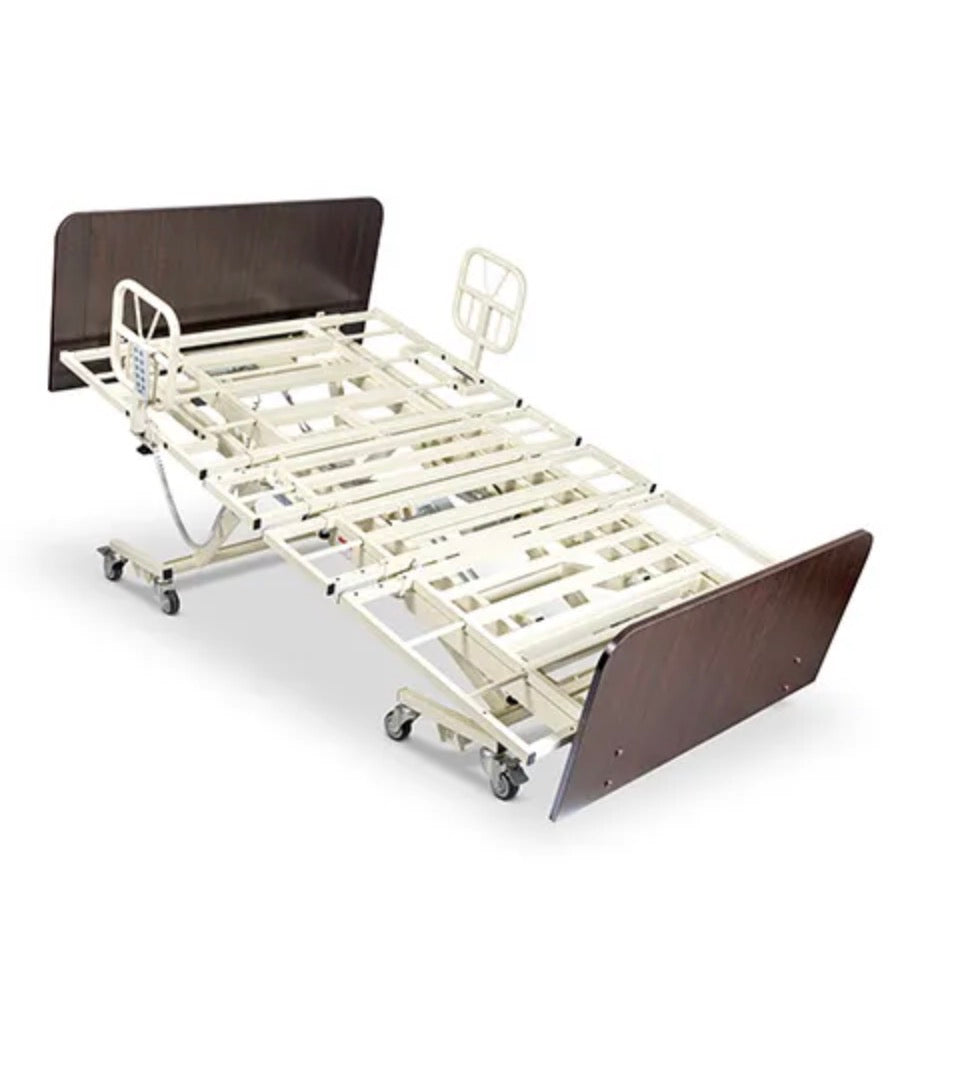

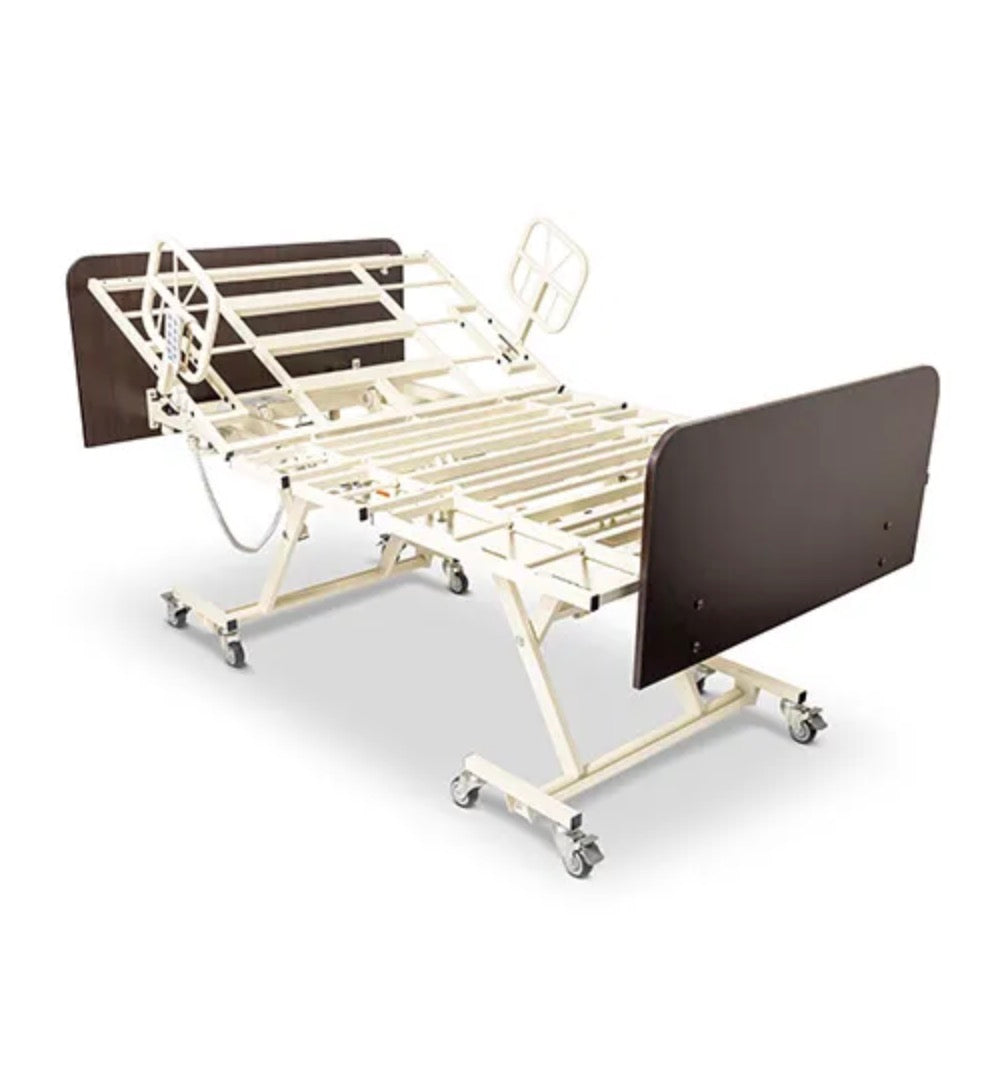

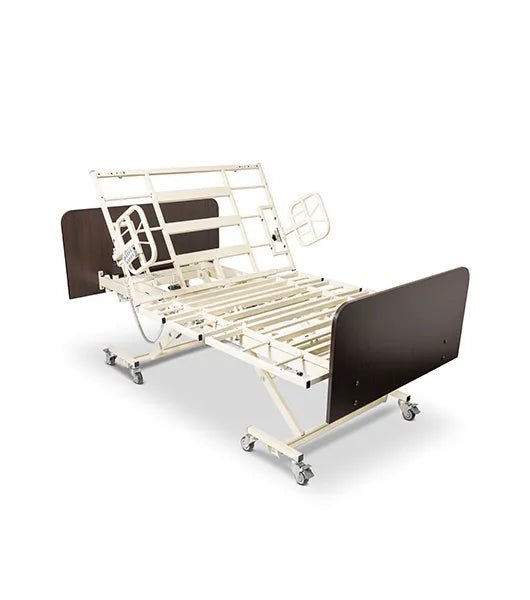

The Medacure Lincoln Expandable Bariatric Bed Series is a 5-function electric bariatric bed frame engineered for high-capacity senior care and long-term care environments. The expandable platform adjusts from 36 inches to 42 inches and up to 48 inches wide, while the sleep surface extends from 80 inches to 88 inches to accommodate a broad range of user requirements.
The reinforced frame incorporates full-electric articulation, including Trendelenburg and Reverse Trendelenburg positioning, along with a high-capacity platform rated for bariatric care applications. Multiple wood finish selections and assist bar/rail configuration options allow the bed to be configured for individual mobility needs and care environments.
Choose Your Configurations

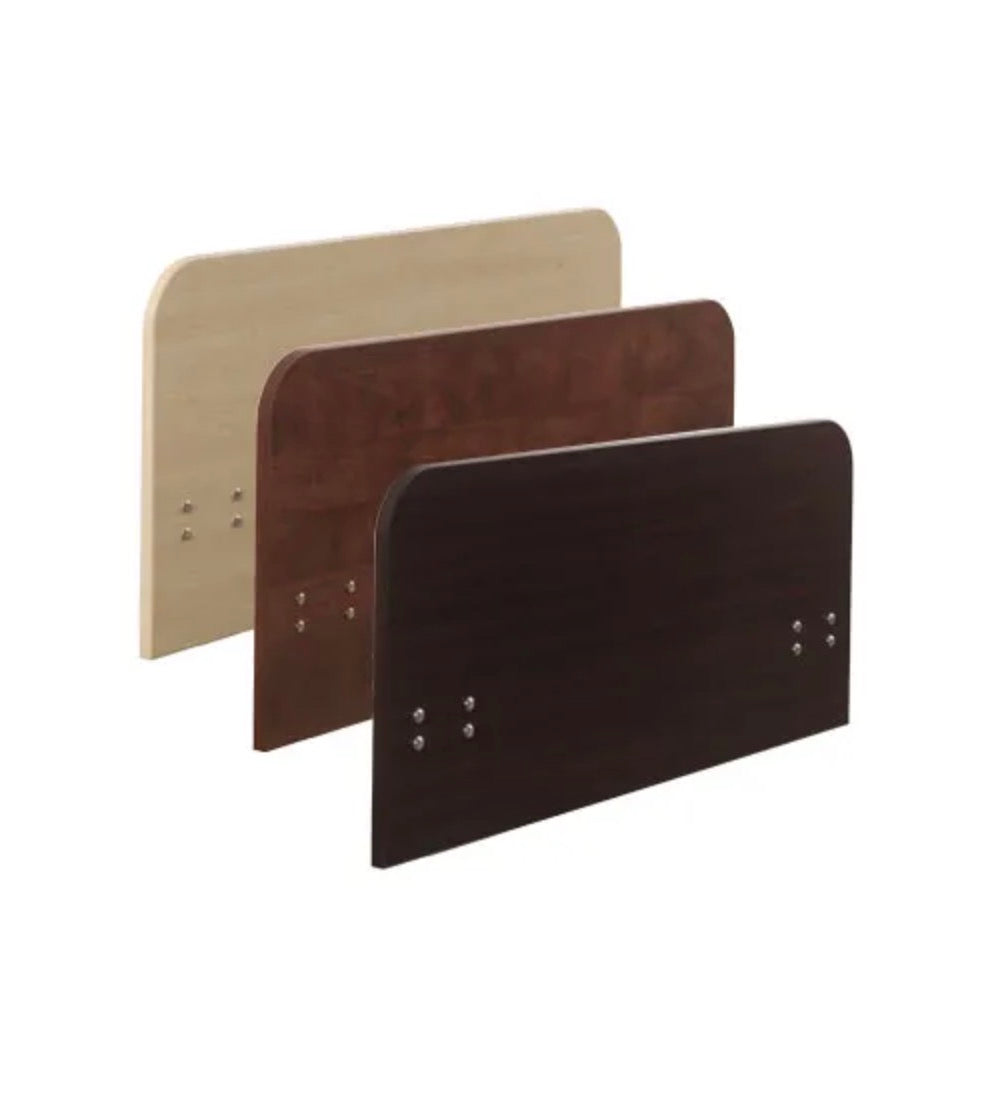

Head & Foot Board Wood Finish
Select your wood tone to complement existing home or facility décor:
- Mahogany – Deep, rich, classic elegance.
- Amber Cherry – Warm, inviting mid-tones.
- Maple – Bright, modern, clean look.
- Coastal Grey – Contemporary grey woodgrain finish designed to complement modern residential and care environments.

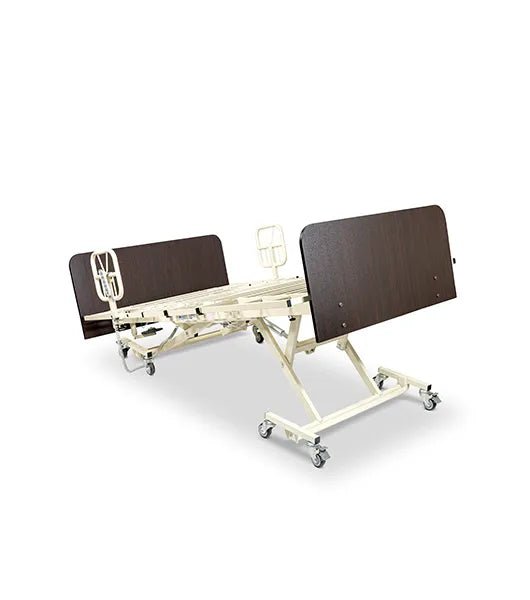

Assist Bars/Rails Options
Choose from a variety of assist bar and side rail configurations to provide the appropriate level of support for bed mobility, repositioning, transfers, and fall prevention based on individual user needs.
Key Performance Features
-
Built-In Width Expansion: Tool-less expansion deck adjusts from 36 inches to 42 inches and up to 48 inches wide to accommodate changing user size requirements.
-

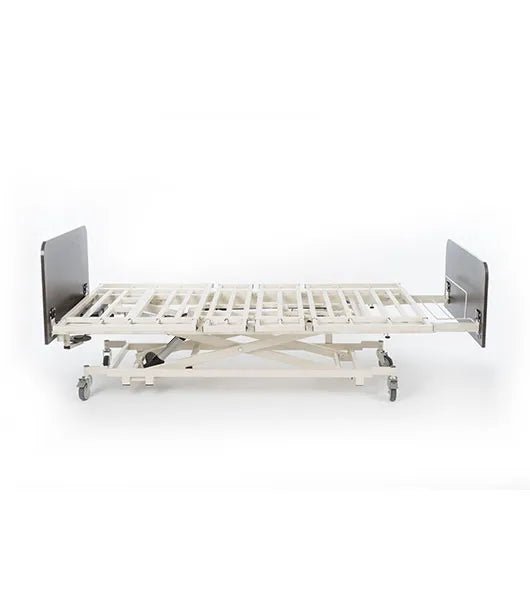

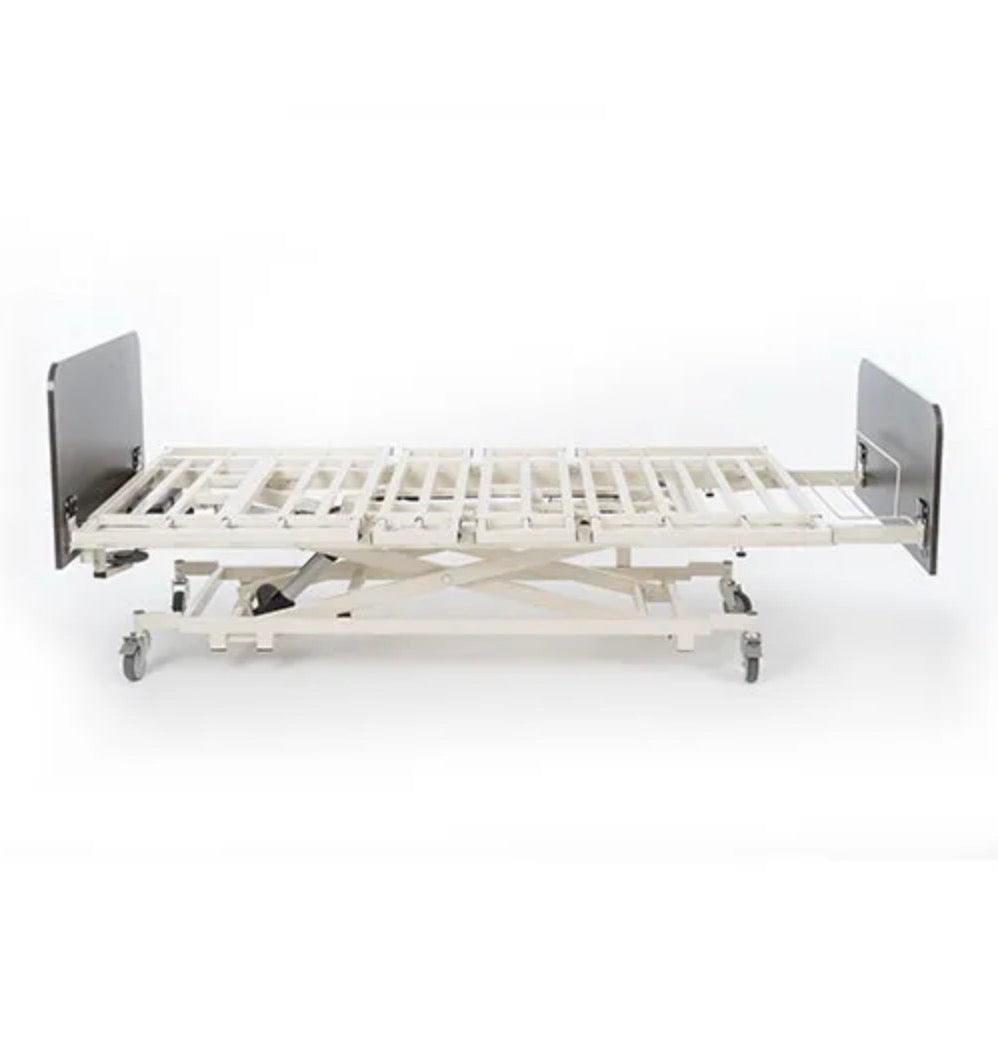

Built-In Length Extension: Sleep surface adjusts from 80 inches to 88 inches to accommodate varying user height requirements.
-

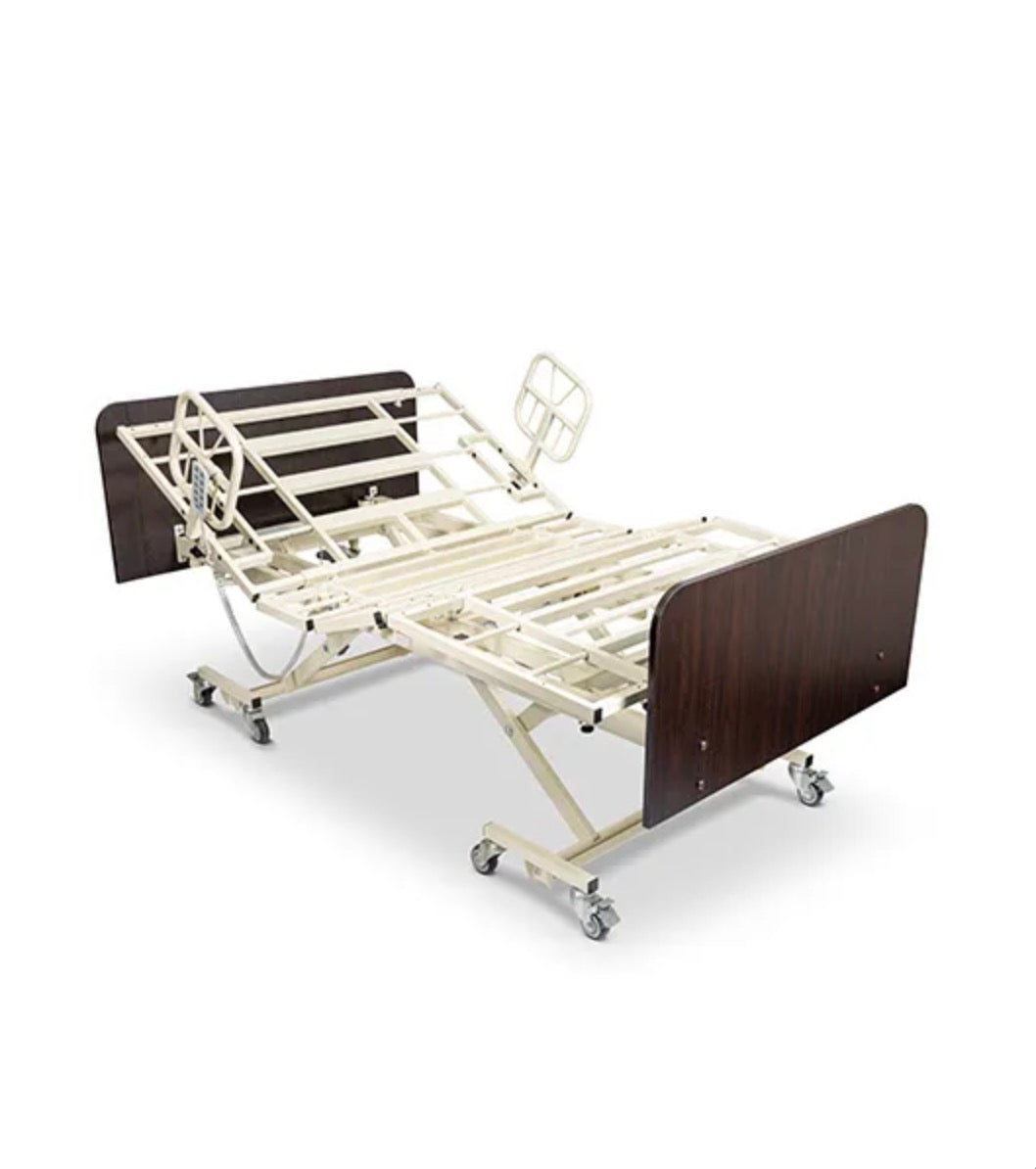

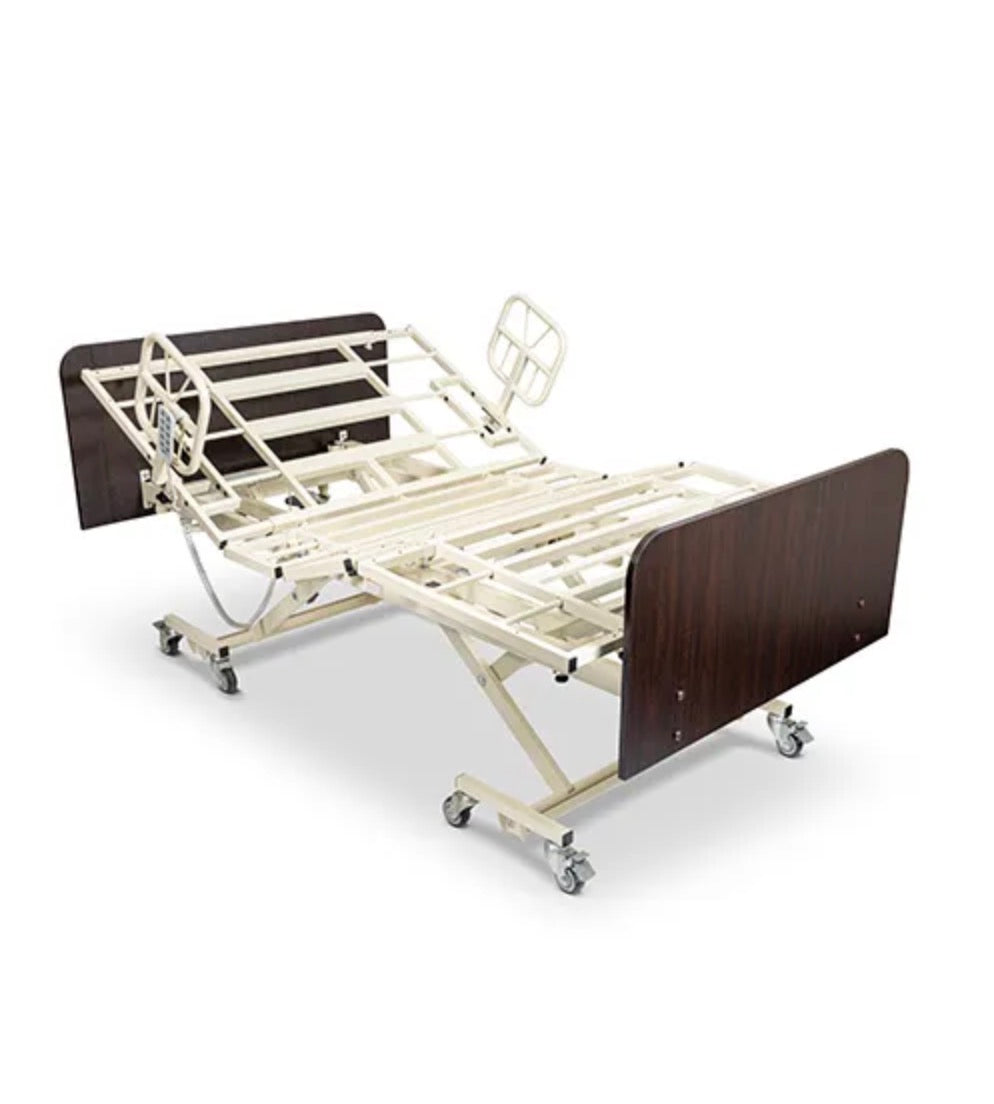

Advanced 5-Function Articulation: Provides electric Hi/Lo, head, foot, Auto Contour, Trendelenburg, and Reverse Trendelenburg positioning functions through the handheld control system.
-

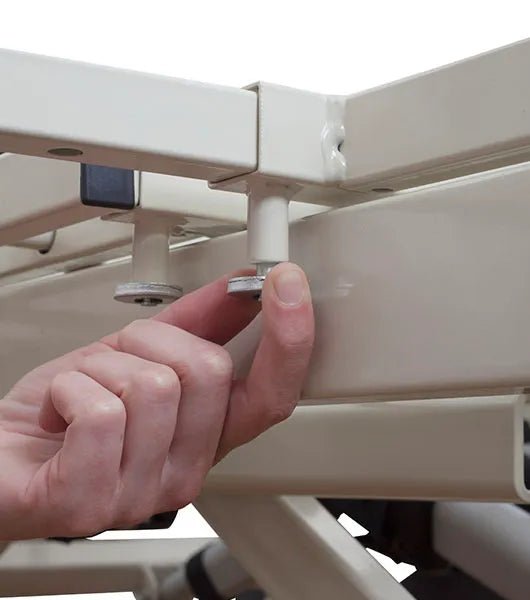

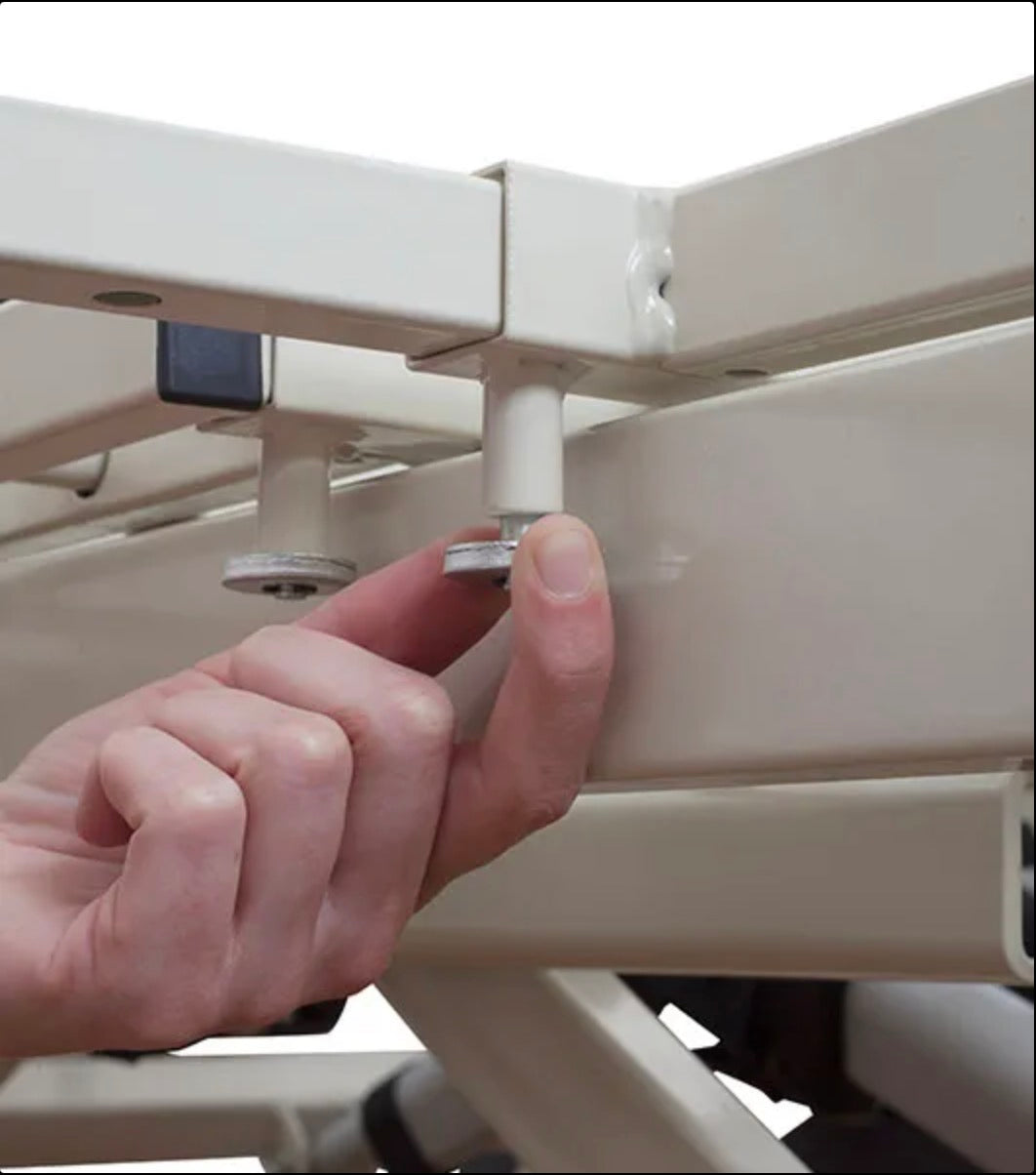

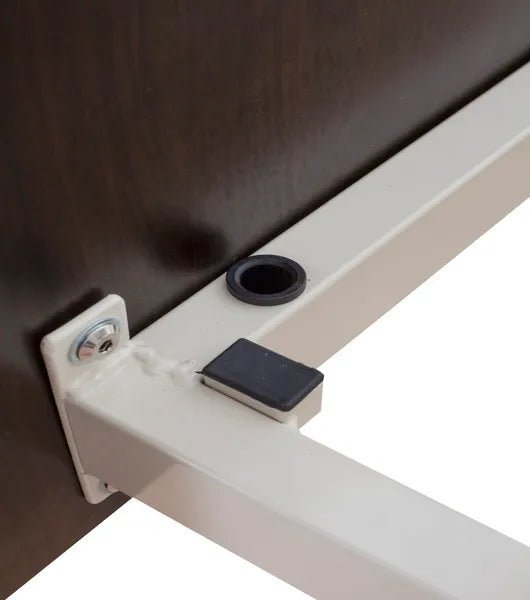

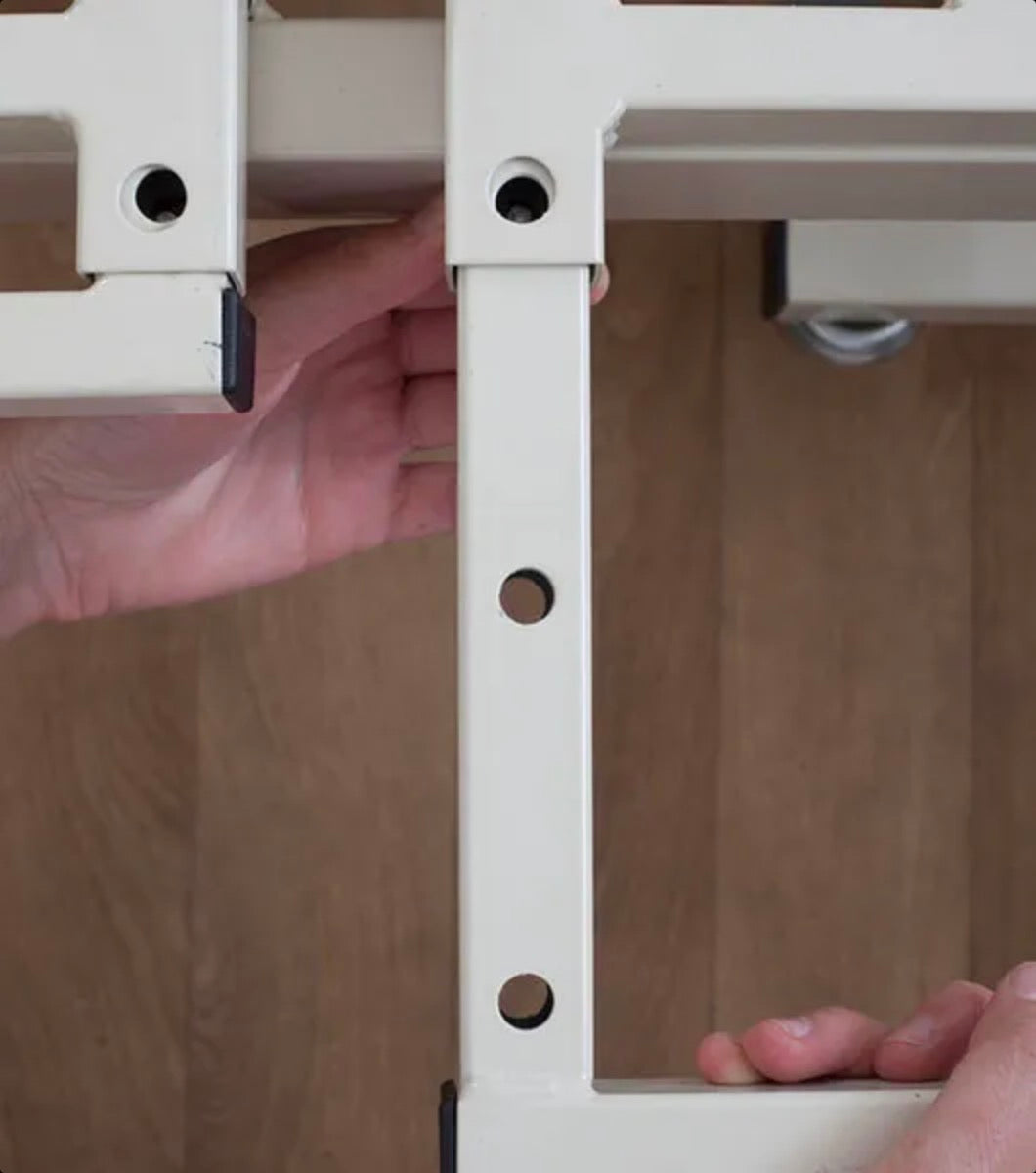

Tool-Less Adjustment System: Mattress deck, length extension, and expandable headboard adjustments are secured using spring-bolt mechanisms without requiring tools.
-
High-Capacity Bariatric Platform: Reinforced frame construction supports bariatric care applications with a 750 lb safe working load rating.

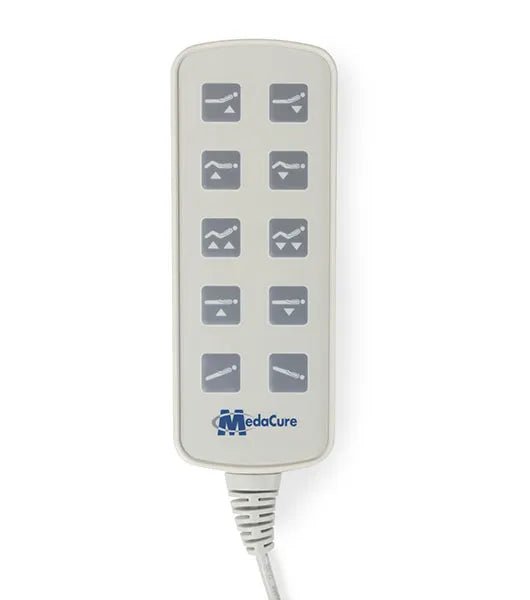

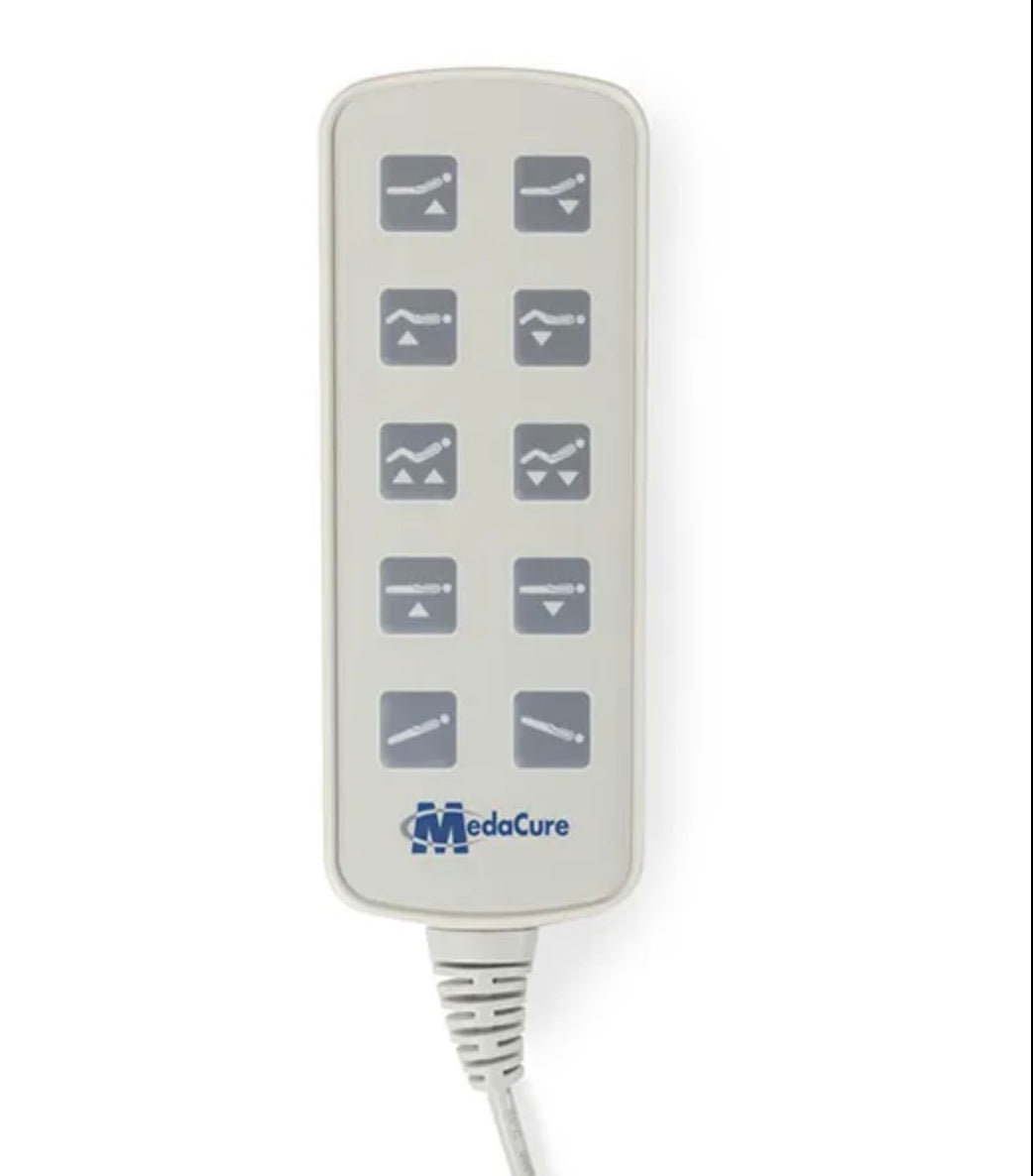

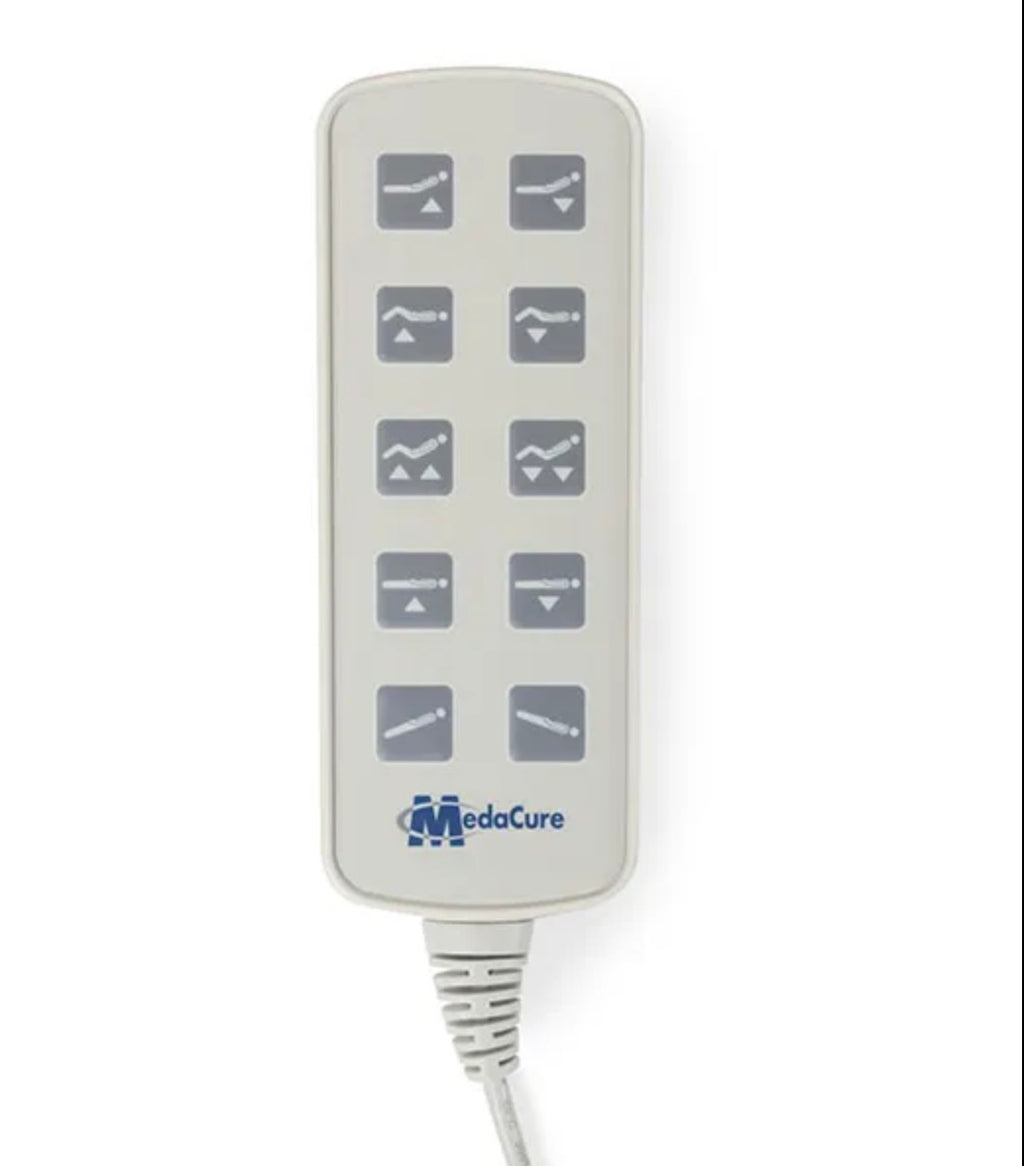

- Linak Component Integration: Powered by Linak actuators and controlled through a 10-function handheld pendant with universal symbols.
Technical Specifications
| Feature | Specification |
|---|---|
| Operation Type | 5-Function Electric (Hi/Lo, Head, Foot, Auto Contour, Trendelenburg/Reverse) |
| Model Number | LX-BARI |
| Built-In Width Expansion | Tool-Free 36" to 42" to 48" Expandable Deck |
| Built-In Length Extension | 80" to 88" Adjustable Length |
| Low Range | Standard Model: 14.9" / Ultra-Low Model: 9" Minimum Height |
| High Range | 30" Maximum Height |
| Weight Capacity | 750 lbs Safe Working Load (700 lbs Patient Capacity) |

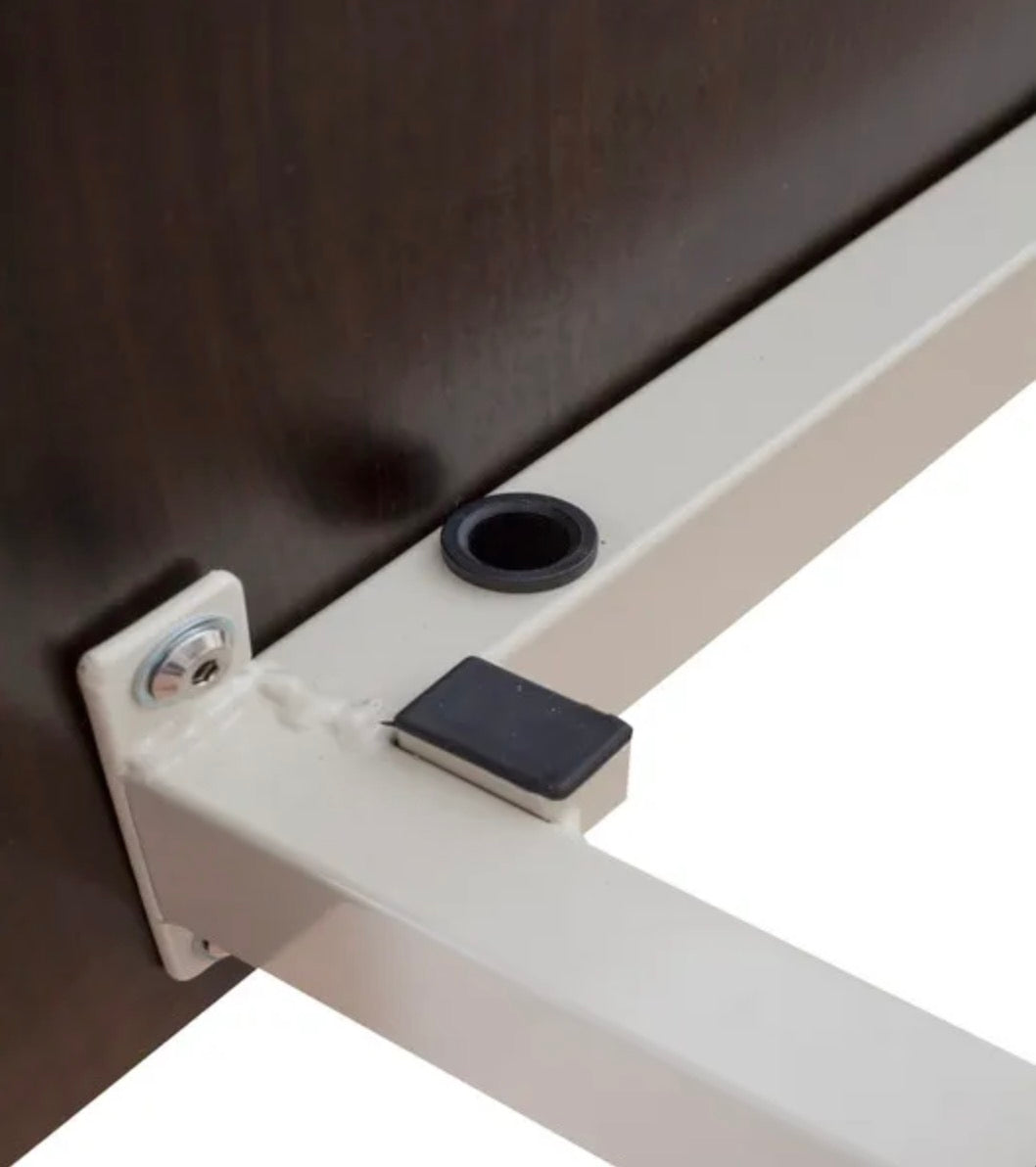

| Construction | Reinforced Heavy-Duty Rectangle Tube Steel Frame |
| Mobility | 3" Heavy-Duty Casters (4 Swivel / 4 Locking) |
| Electronics Brand | Linak Actuators & Controls |
| Warranty | 15 Years Frame, 3 Years Electronics, 1 Year Pendant |
