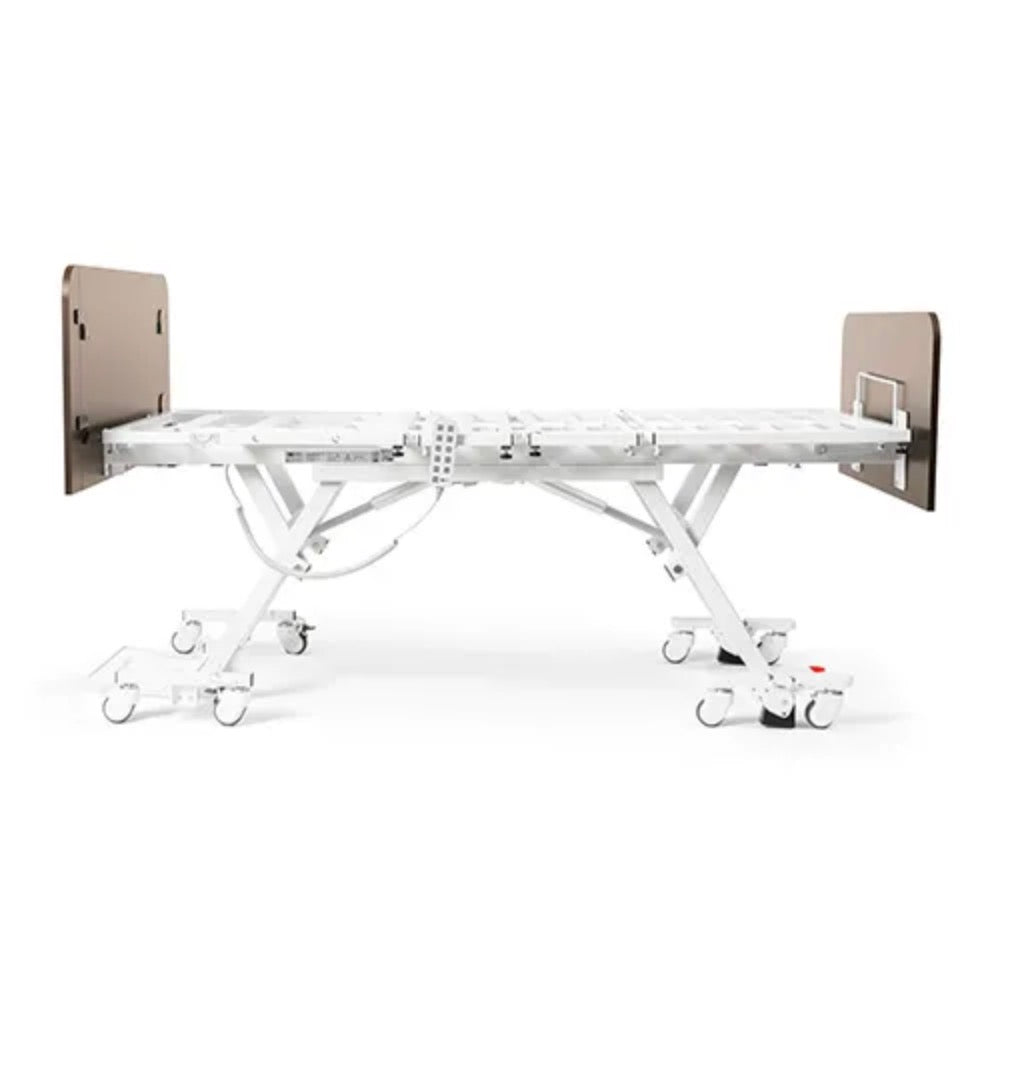

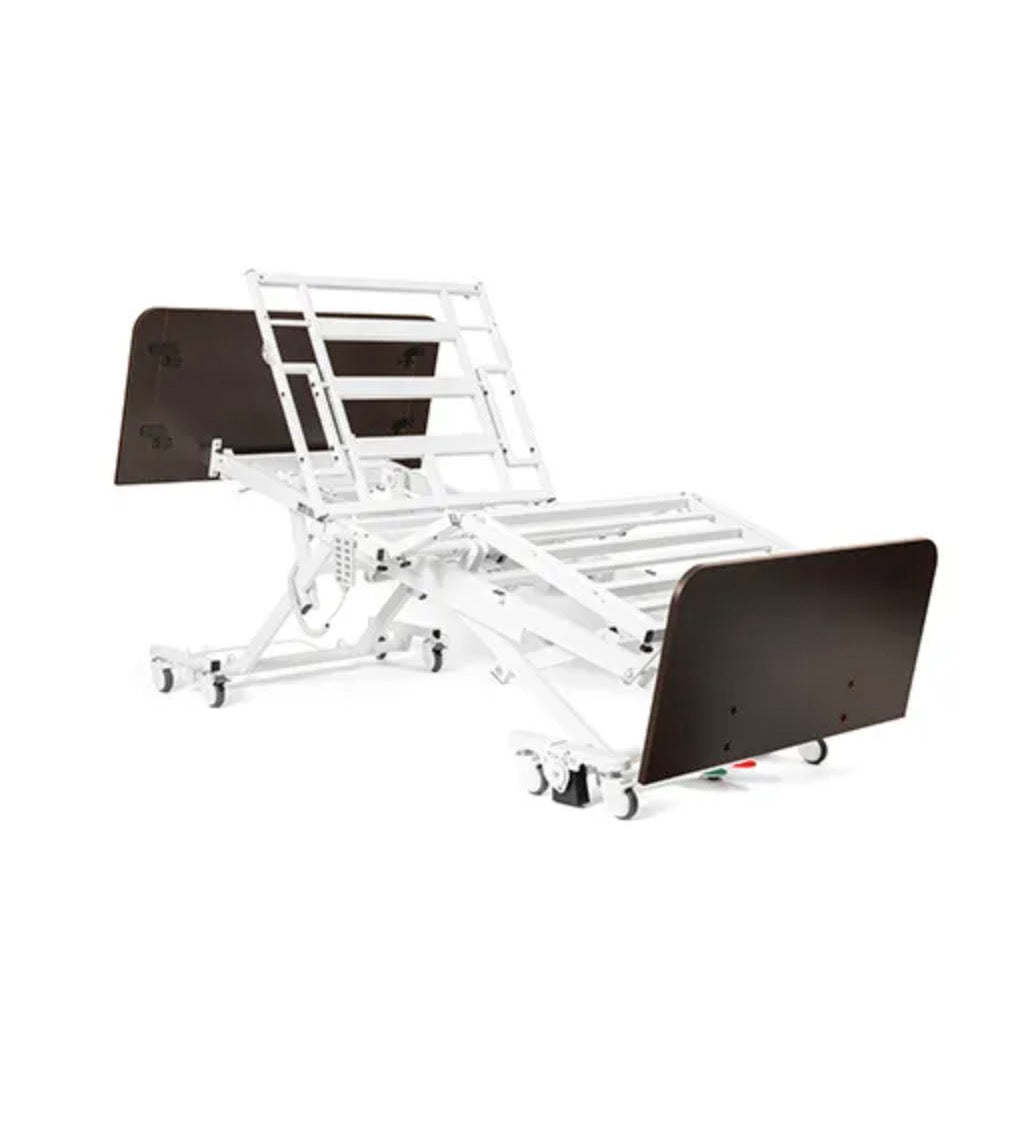

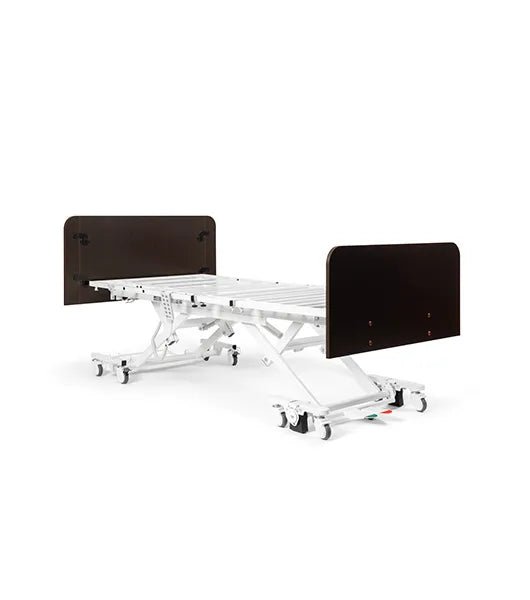

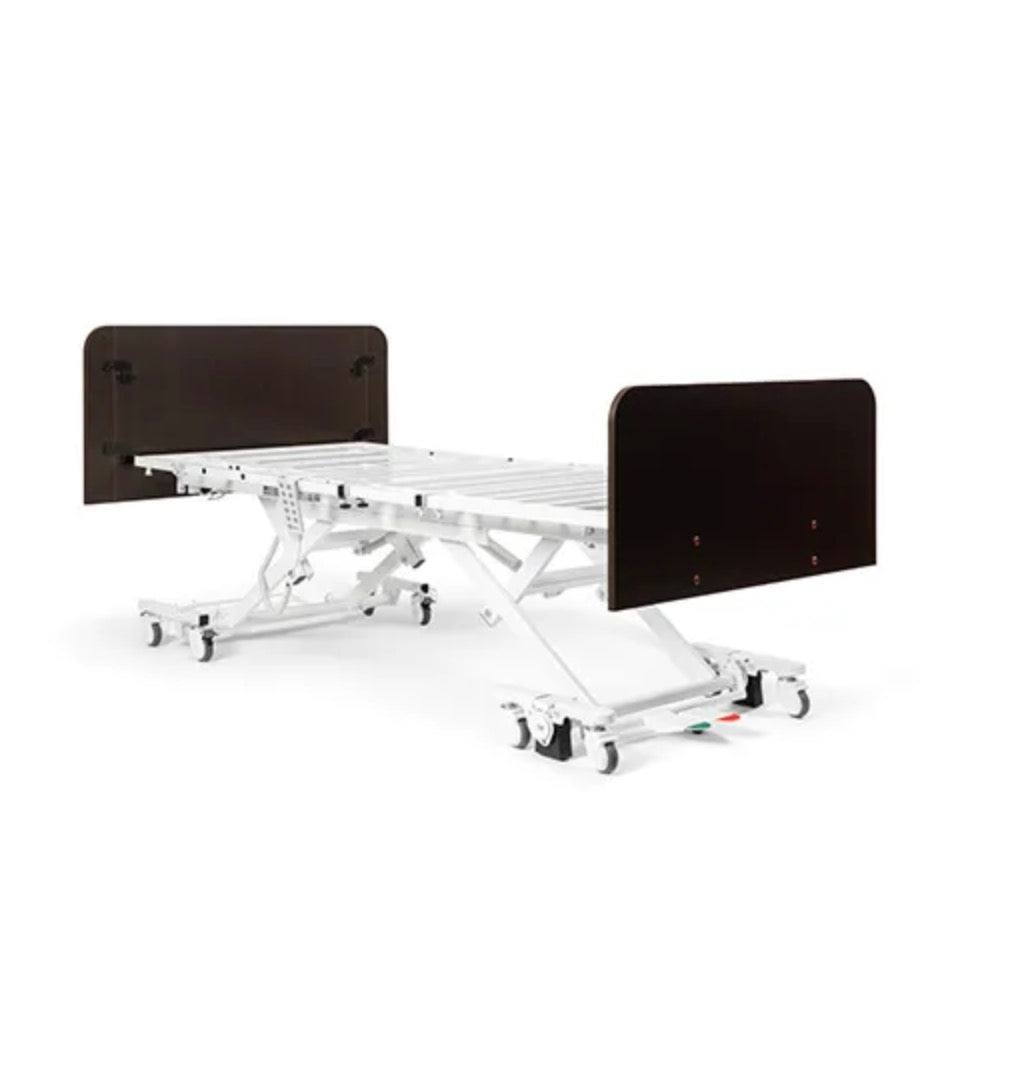

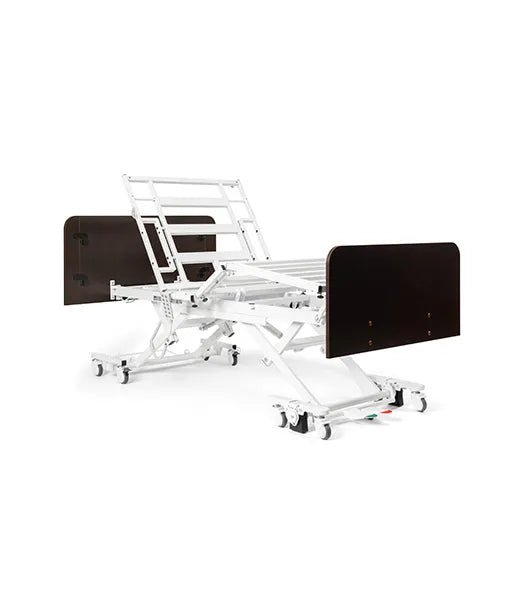

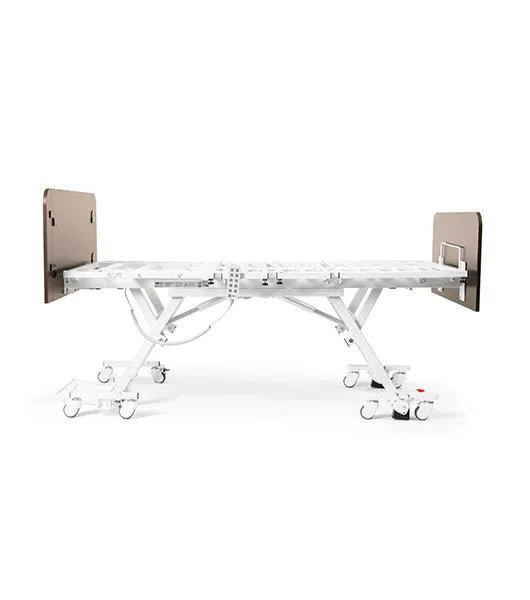

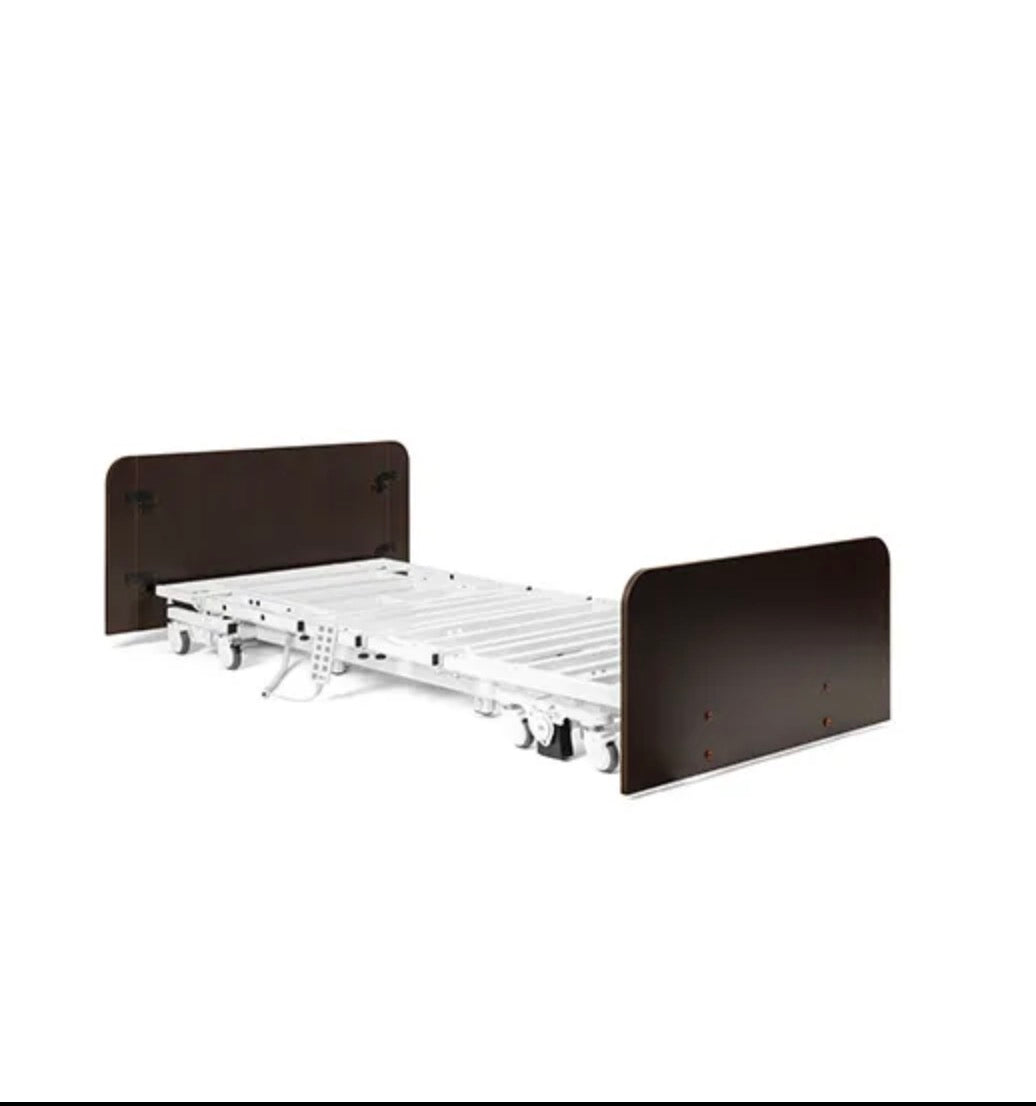

The Medacure DLX600-CLS Deluxe Expandable Bariatric Low Bed Series is a 10-function fully electric bed frame engineered for high-acuity senior care and long-term care environments. The expandable platform combines an ultra-low 7-inch floor profile with tool-less width and length adjustment capabilities, allowing a single bed frame to accommodate a broad range of resident care requirements.
This premium configuration incorporates a Cardiac Comfort Chair position, central locking system, integrated lighting features, USB charging ports, and multiple resident safety enhancements. The expandable deck adjusts from 36 inches to 42 inches and up to 48 inches wide, while the sleep surface extends from 80 inches to 84 inches with additional manual extension capability up to 88 inches.
Choose Your Configurations
Head & Foot Board Wood Finish
Select your wood tone to complement existing home or facility décor:
- Mahogany – Deep, rich, classic elegance.
- Amber Cherry – Warm, inviting mid-tones.
- Maple – Bright, modern, clean look.
- Coastal Grey – Contemporary grey woodgrain finish designed to complement modern residential and care environments.

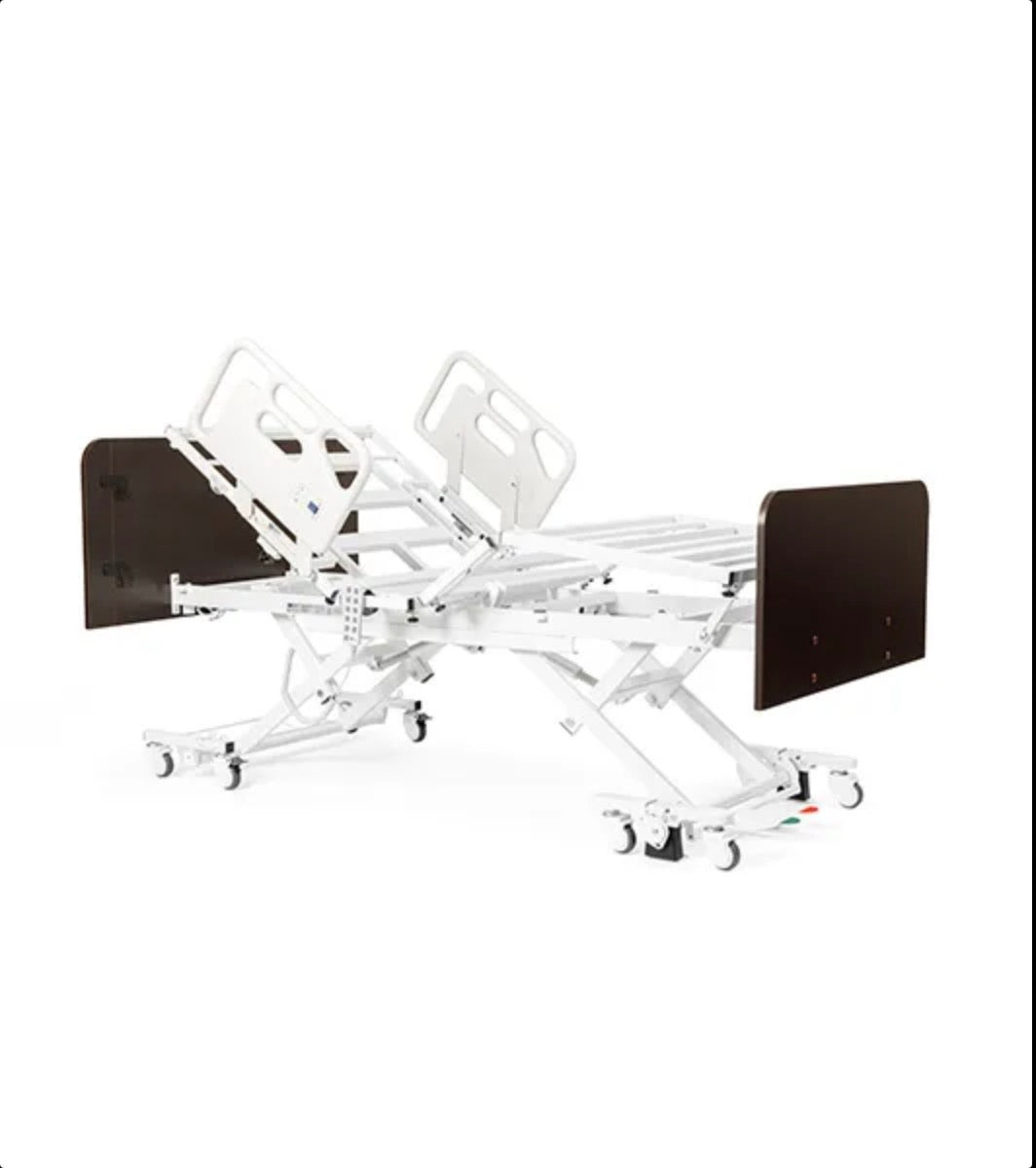

Assist Bars/Rails Options
Choose from a variety of assist bar and side rail configurations to provide the appropriate level of support for bed mobility, repositioning, transfers, and fall prevention based on individual user needs.
Key Performance Features
-

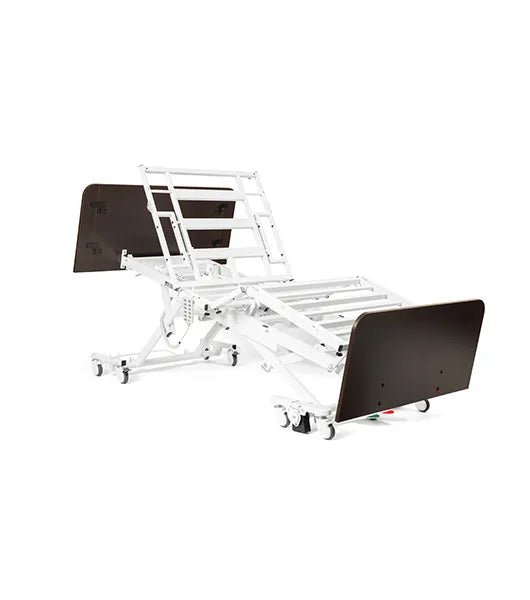

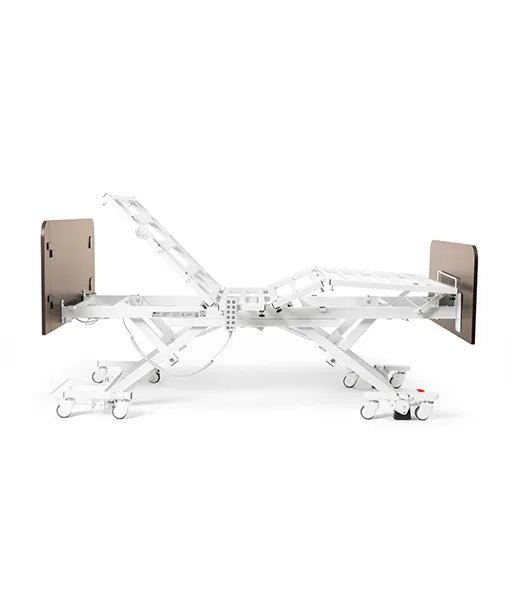

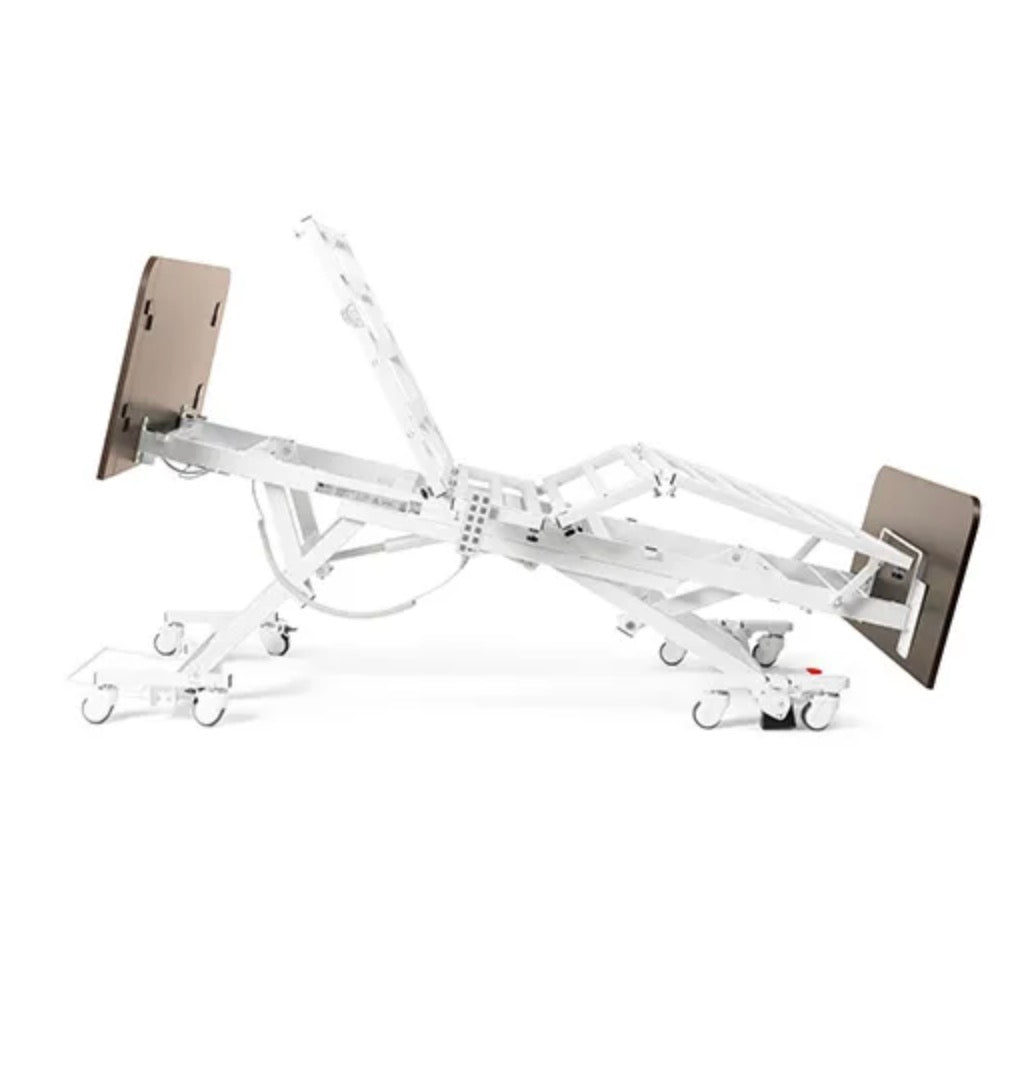

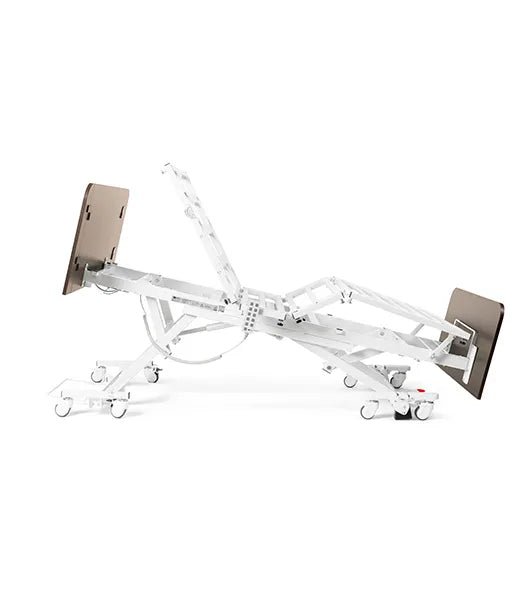

Cardiac Comfort Chair Position: Transitions into an upright seated position designed to support resident positioning and respiratory care protocols.
-

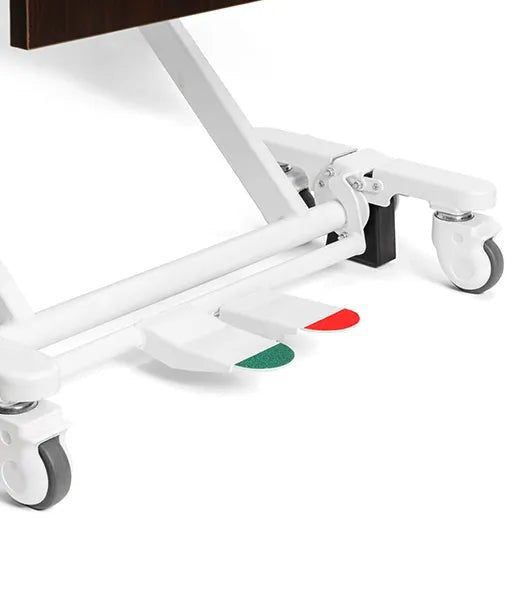

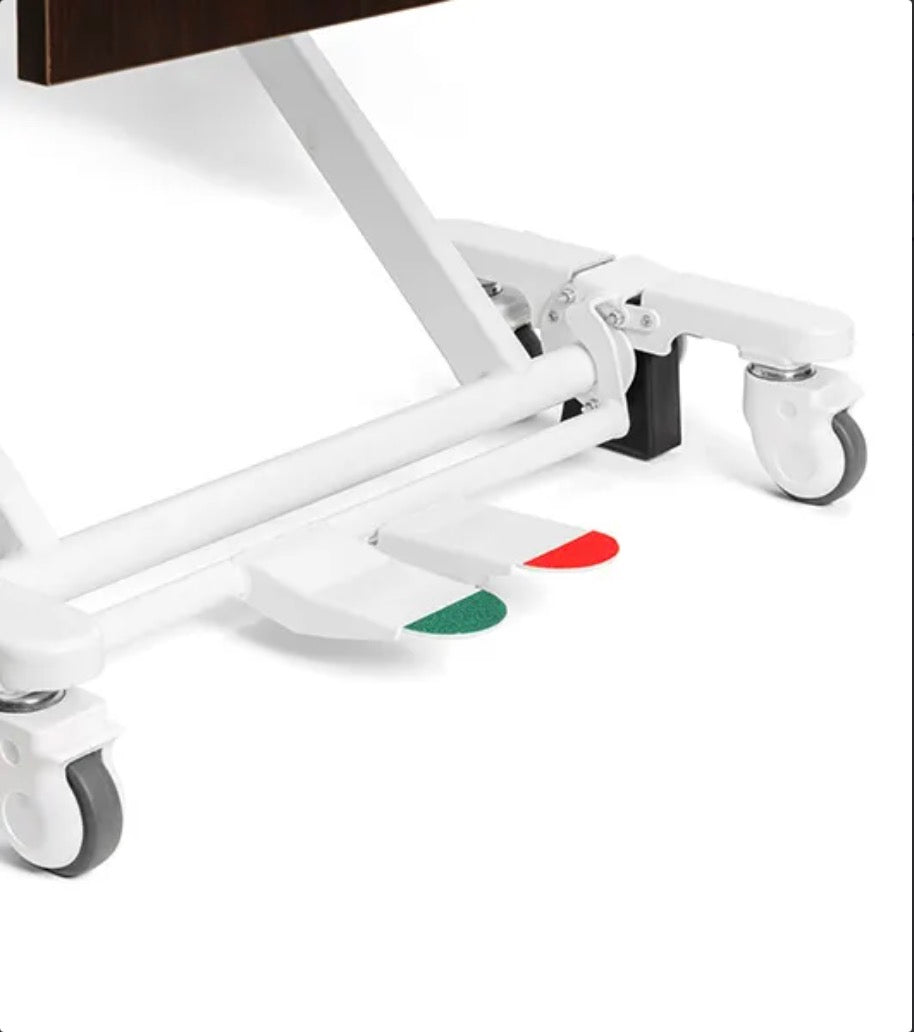

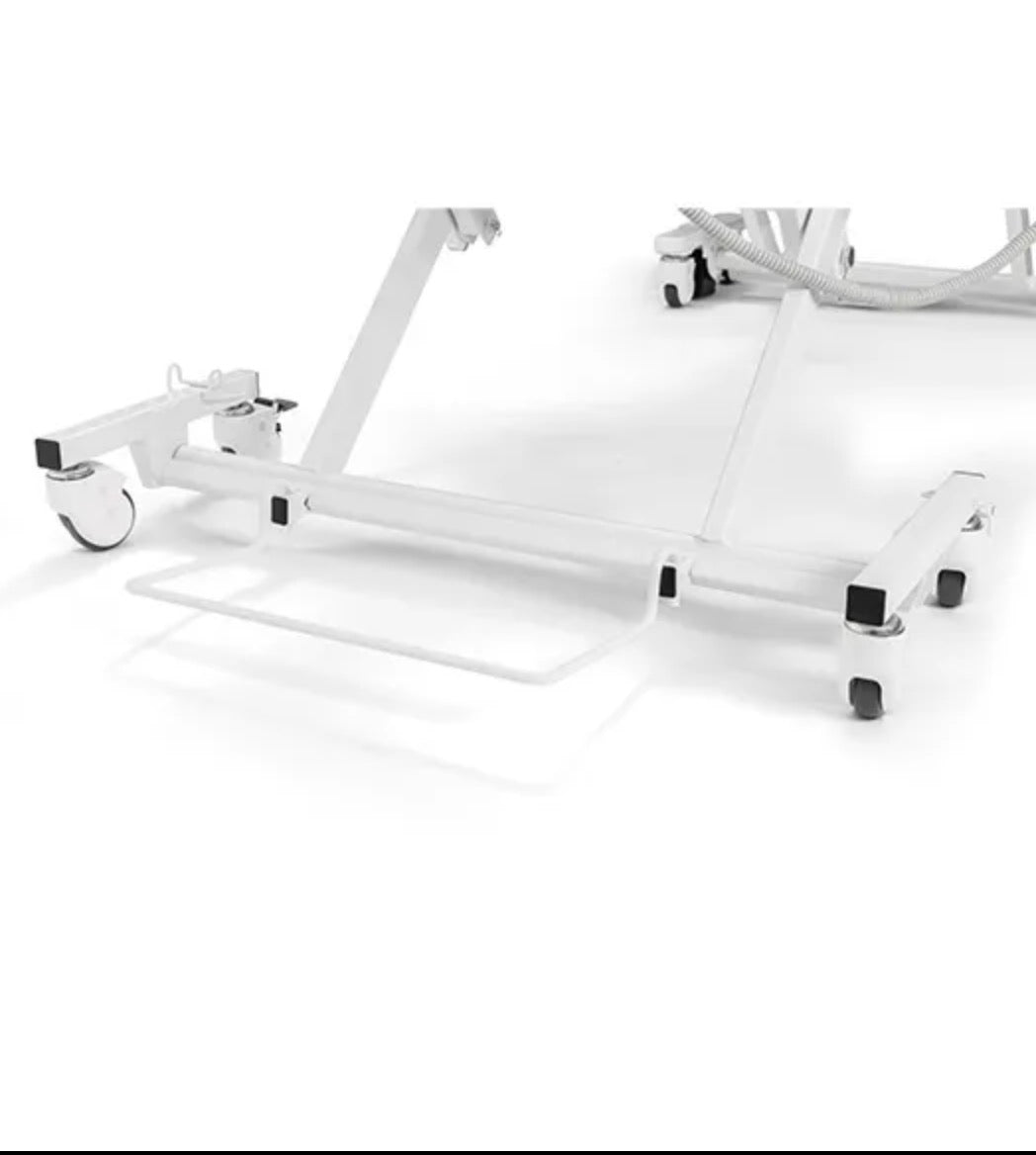

Central Locking System: Single-pedal locking mechanism engages all casters simultaneously to provide bedside stability and simplify bed positioning.
-
Tool-Less Multi-Width Expansion: Adjustable deck and matching headboard expand from 36 inches to 42 inches and up to 48 inches wide to accommodate varying resident requirements.
-

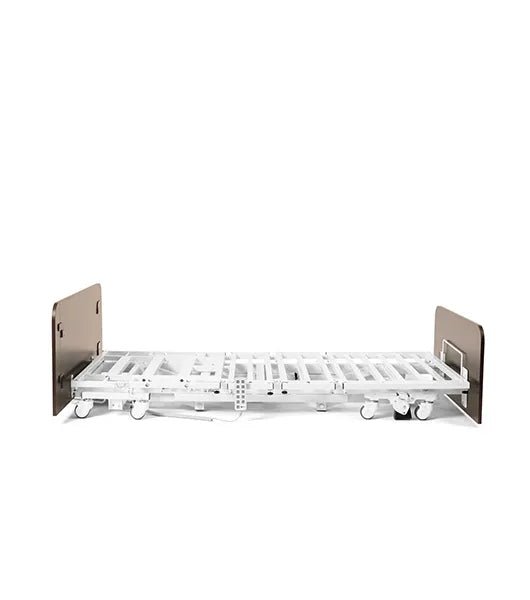

Ultra-Low Safety Profile: Lowers to 7 inches from the floor deck while raising to 30 inches to support resident safety and caregiver access.
-

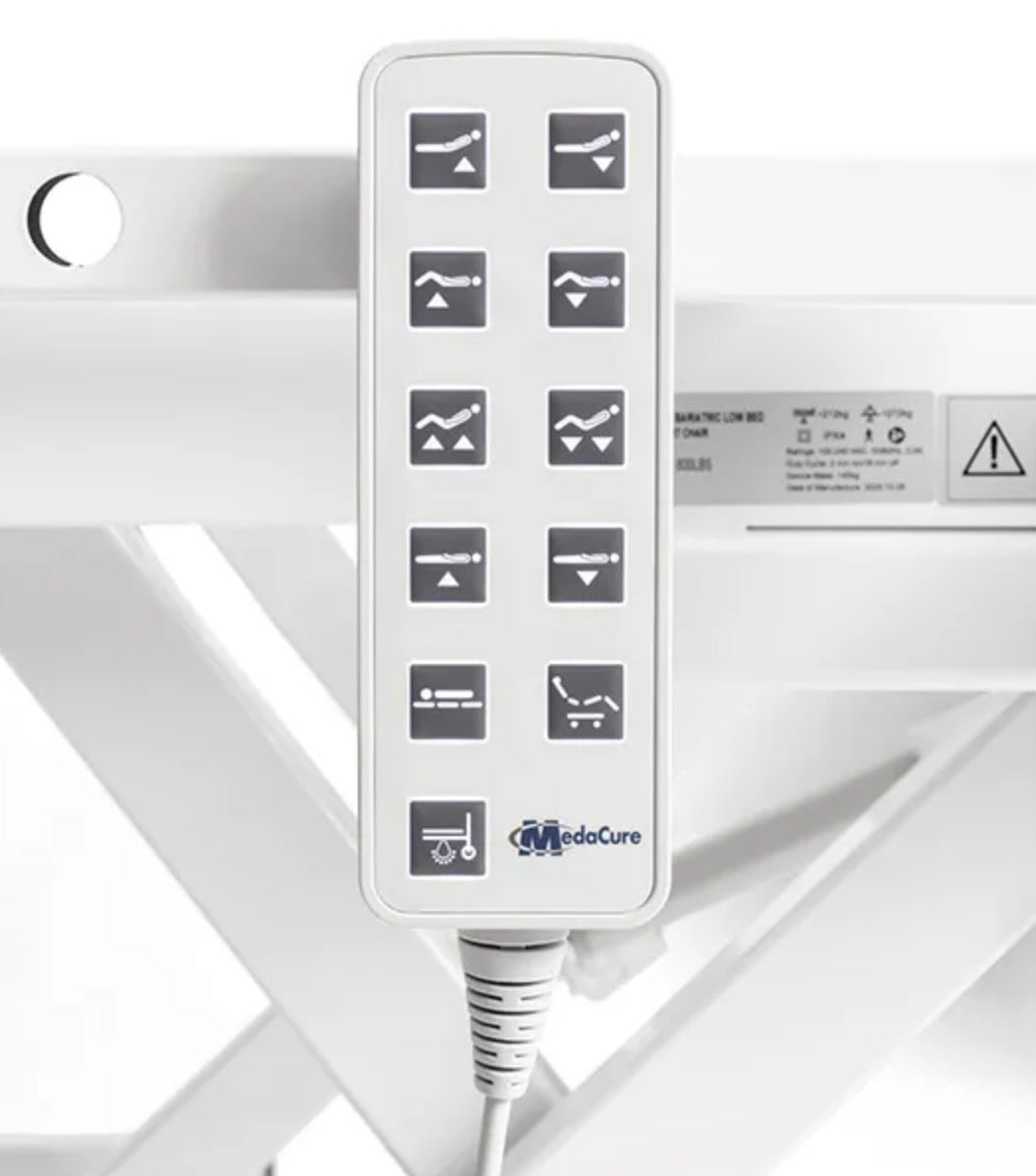

Integrated Lighting System: Includes under-bed LED lighting and an illuminated hand pendant to improve visibility in low-light conditions.
-

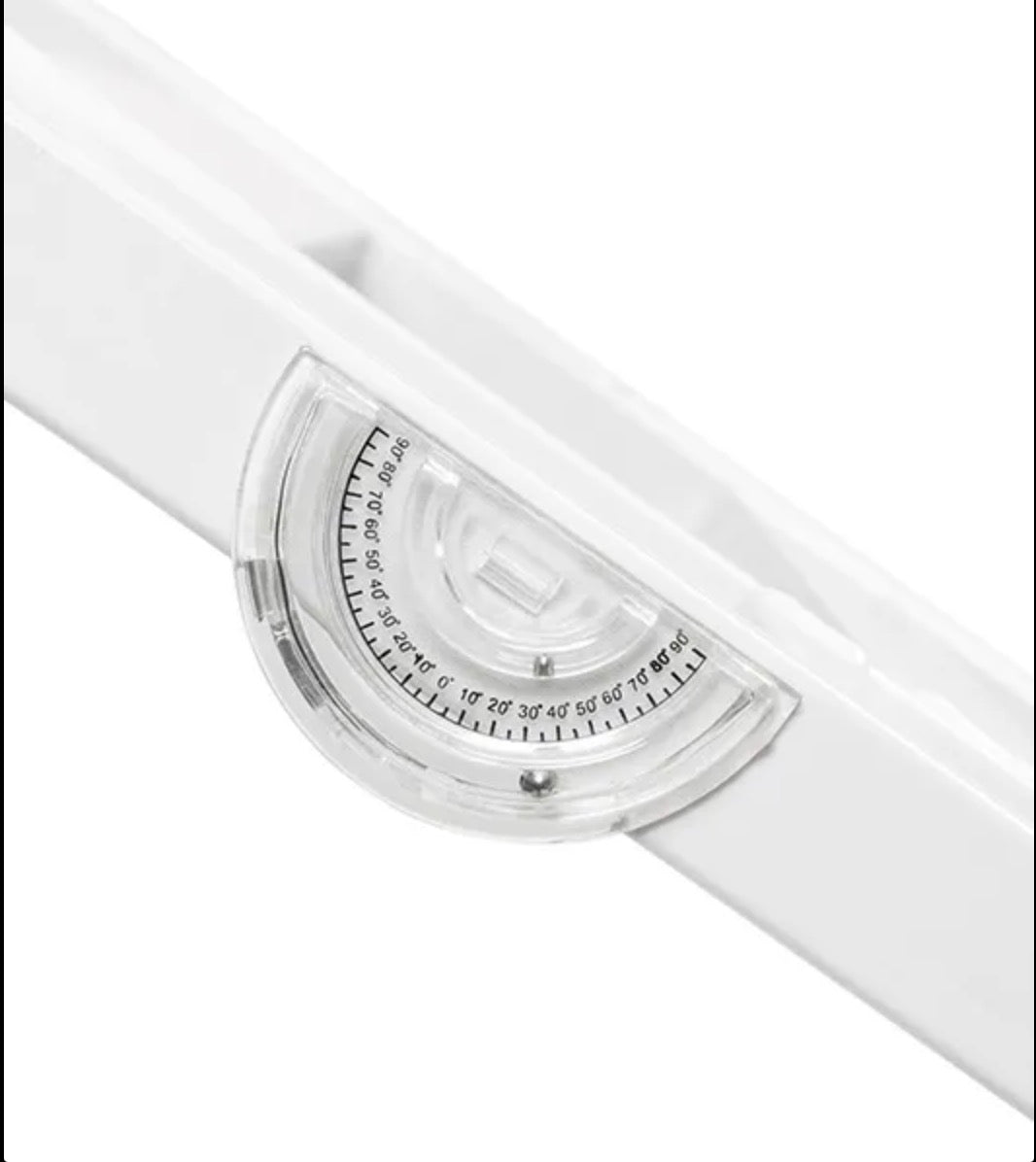

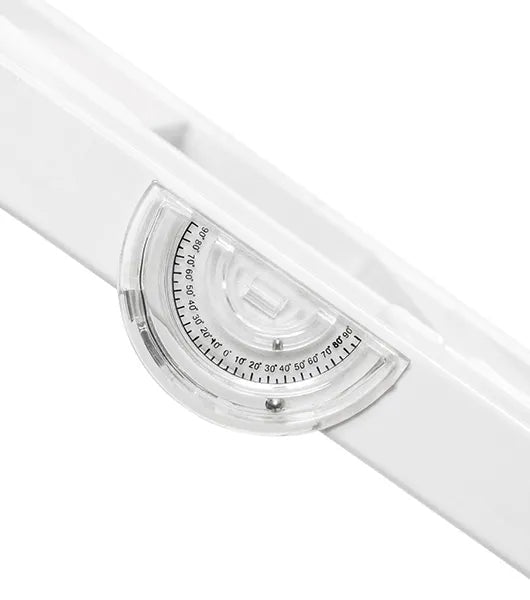

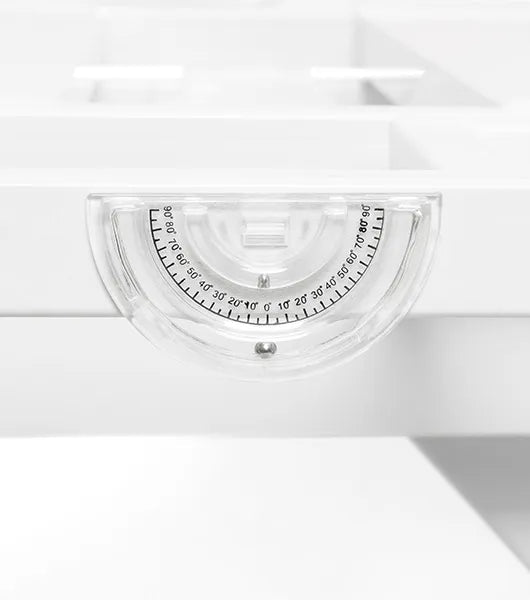

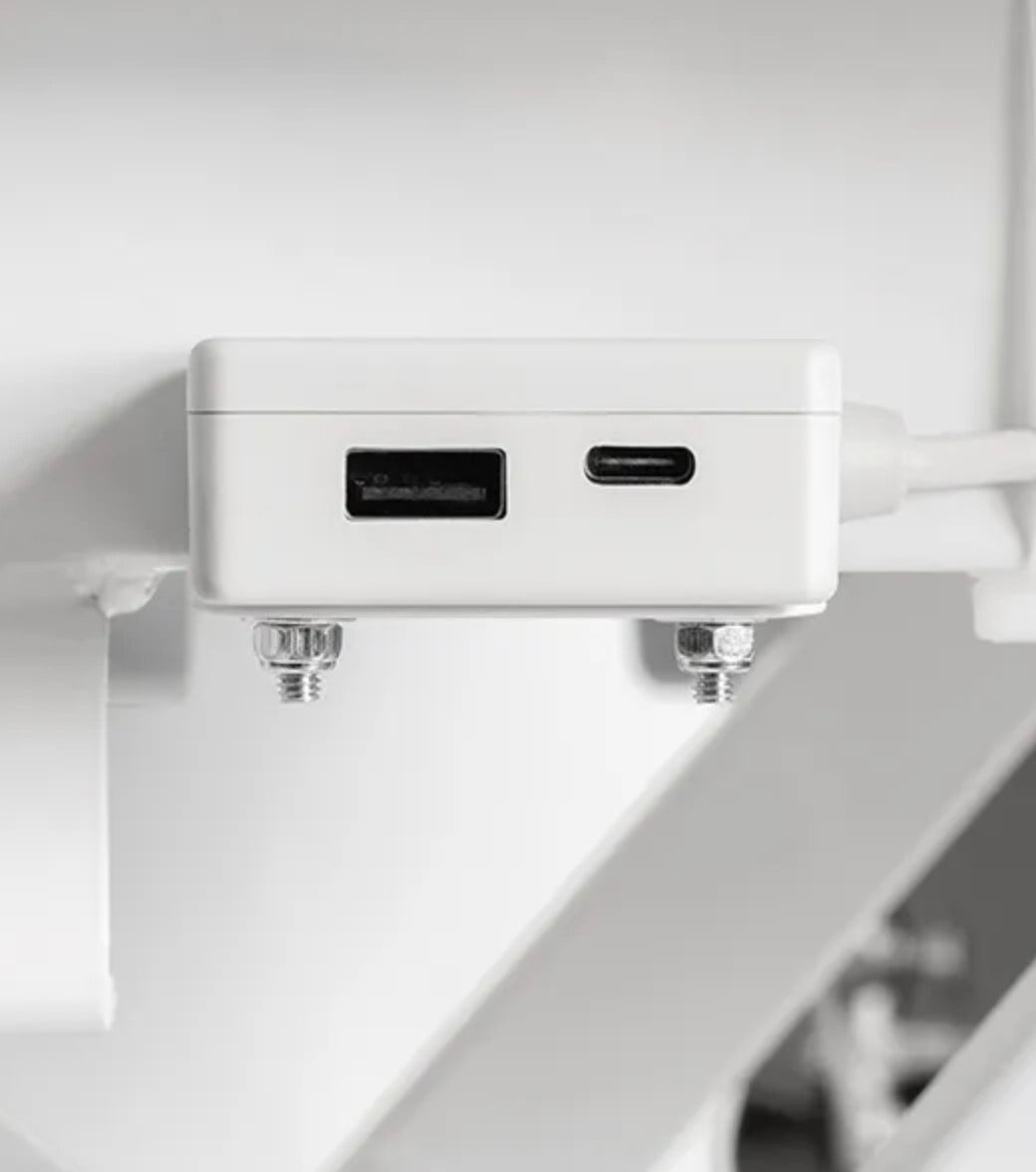

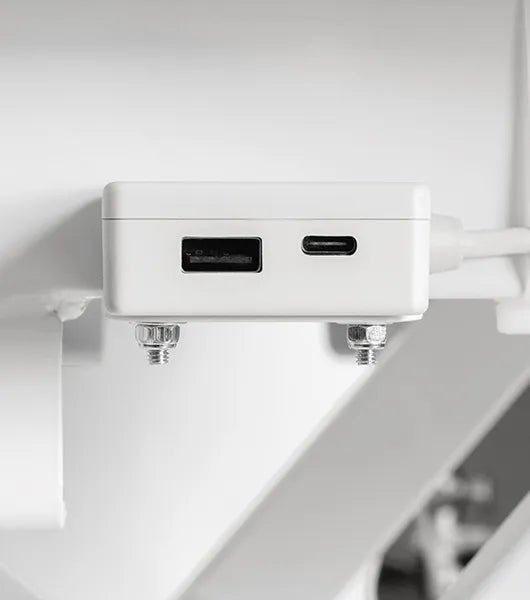

Integrated Technology Features: Includes Type A and Type C USB charging ports, dual-sided bed angle indicators, and eight mattress retainers integrated into the frame.
- Linak Component Integration: Powered by Linak actuators and controls for electric bed operation and positioning functions.
Technical Specifications
| Feature | Specification |
|---|---|
| Operation Type | 10-Function Fully Electric (Hi/Lo, Head, Foot, Auto Contour, Cardiac Chair) |
| Locking Mechanism | 1-Touch Central Locking System (Simultaneous Caster Floor Brake Pedal) |
| Model Number | DLX600-CLS / DLX600-CLS-F |
| Built-In Width Expansion | Tool-Free Adjustable Deck 36" x 42" x 48" |
| Built-In Length Extension | Tool-Free Adjustable Extension from 80" to 84" (Up to 88" Manual) |
| Travel Range | 7" Minimum to 30" Maximum (Floor to Deck Surface) |
| Weight Capacity | 600 lbs Safe Working Load |
| Construction | 1-Piece Reinforced Steel Rectangle Tube Bed Deck with Solid White Frame |

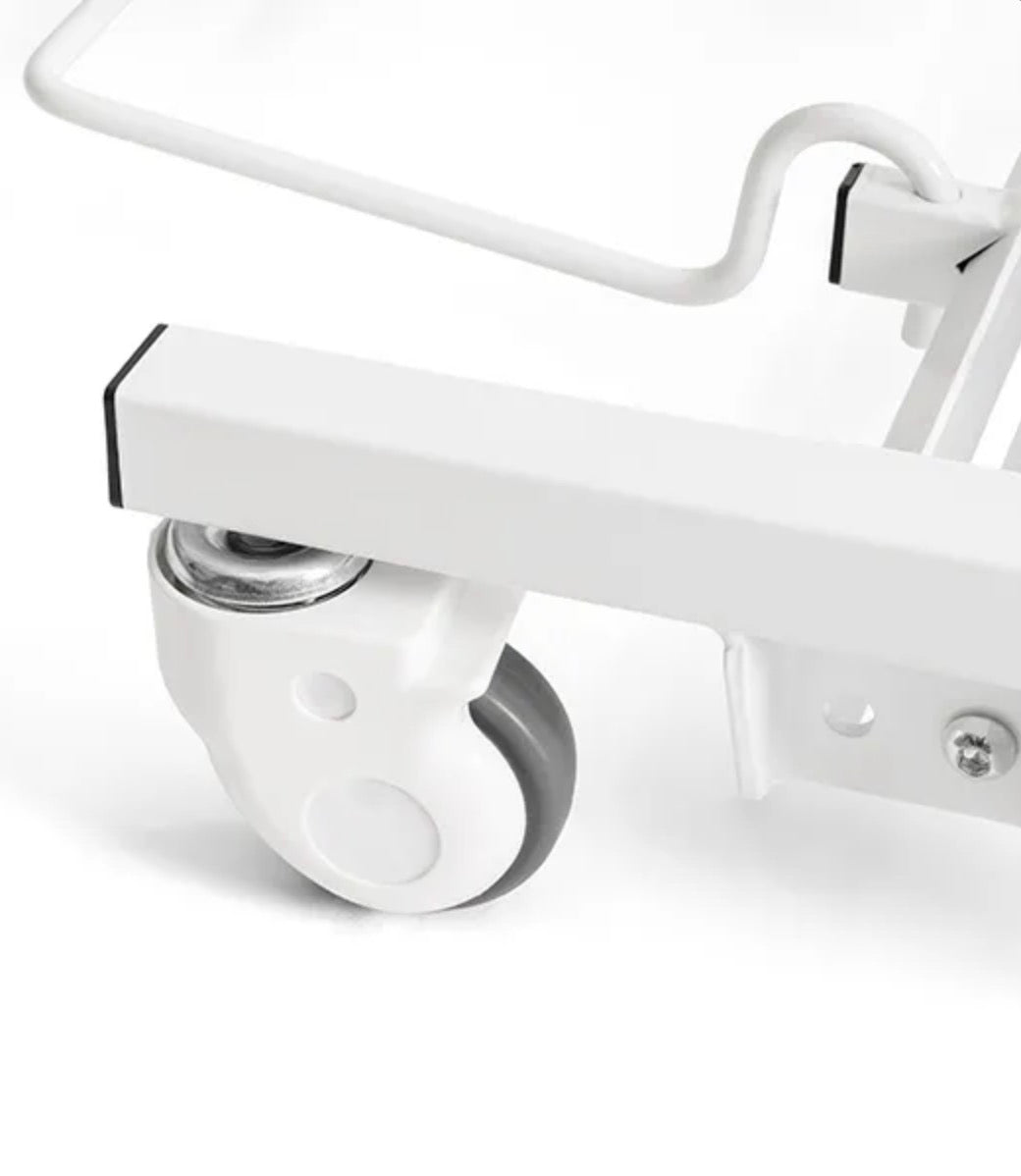

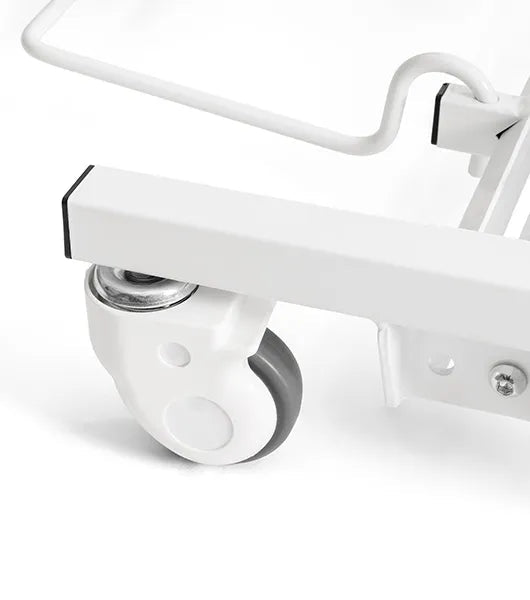

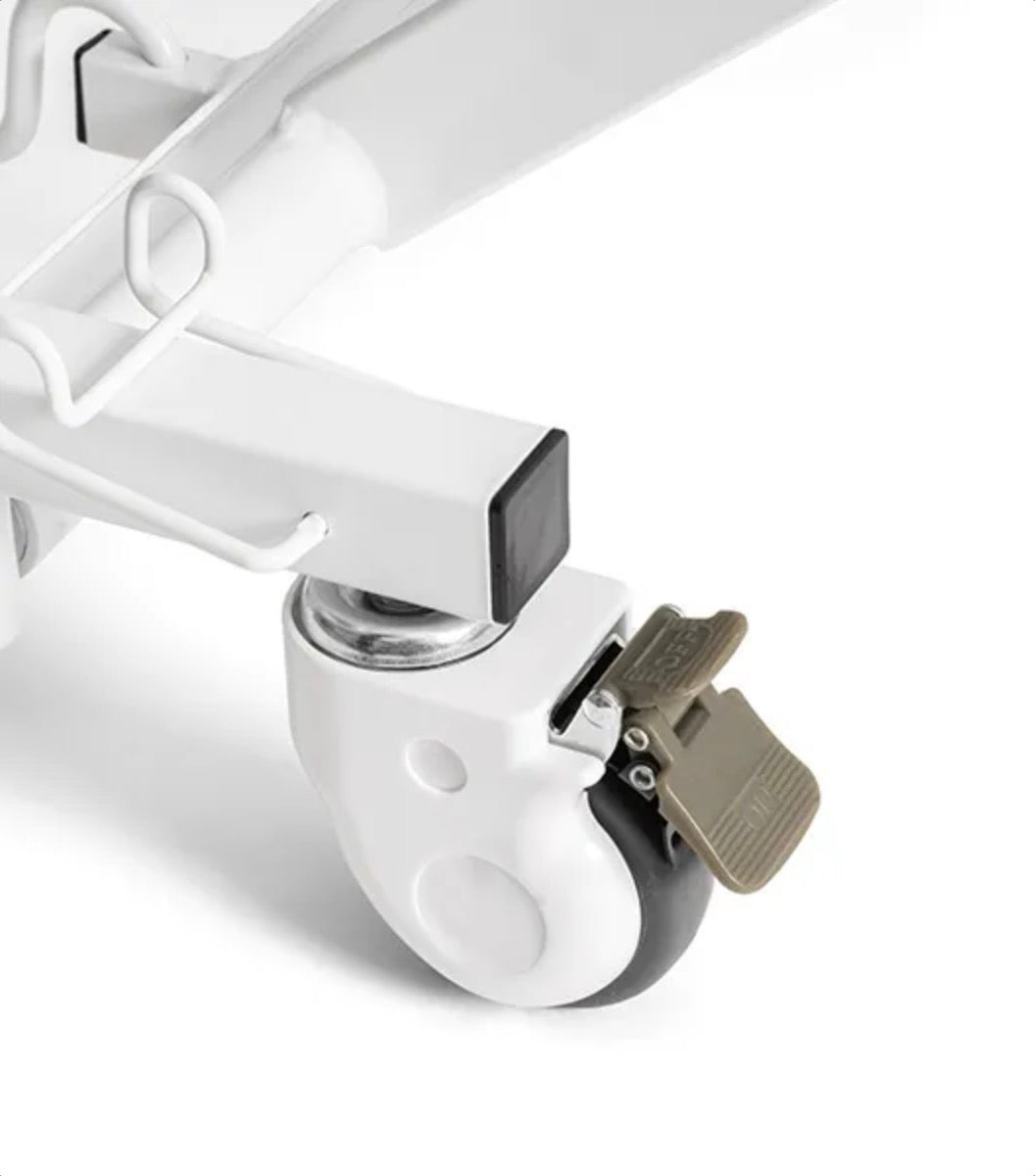

| Mobility | Eight 3" Covered Casters with Steer Control Guide Wheel Device |
| Electronics & Actuators | Linak Actuators & Controls with Type A & Type C USB Ports |

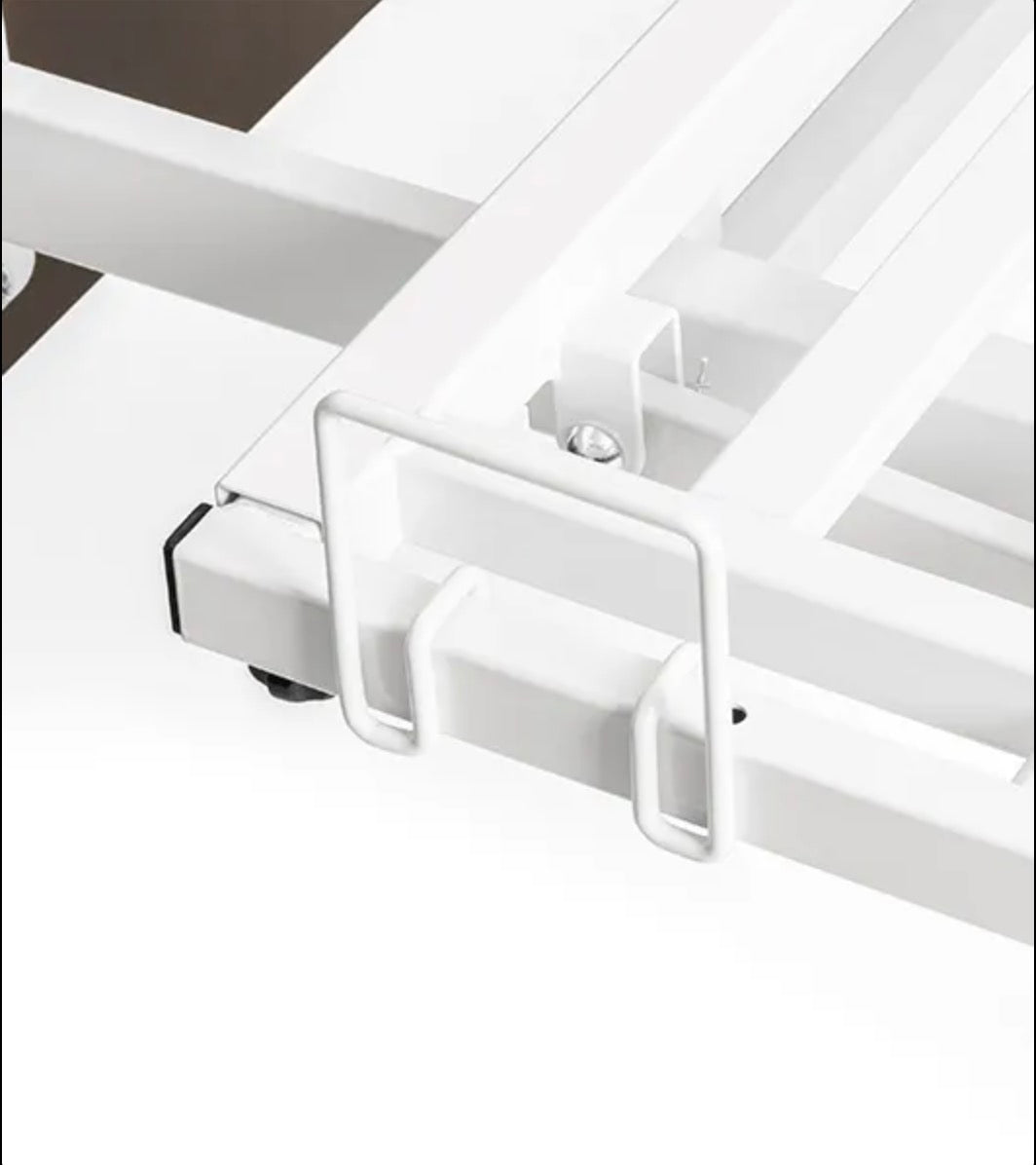

| Safety Features | Dual-Sided Bed Angle Indicators, Under-Bed LED Light, 8 Mattress Retainers |

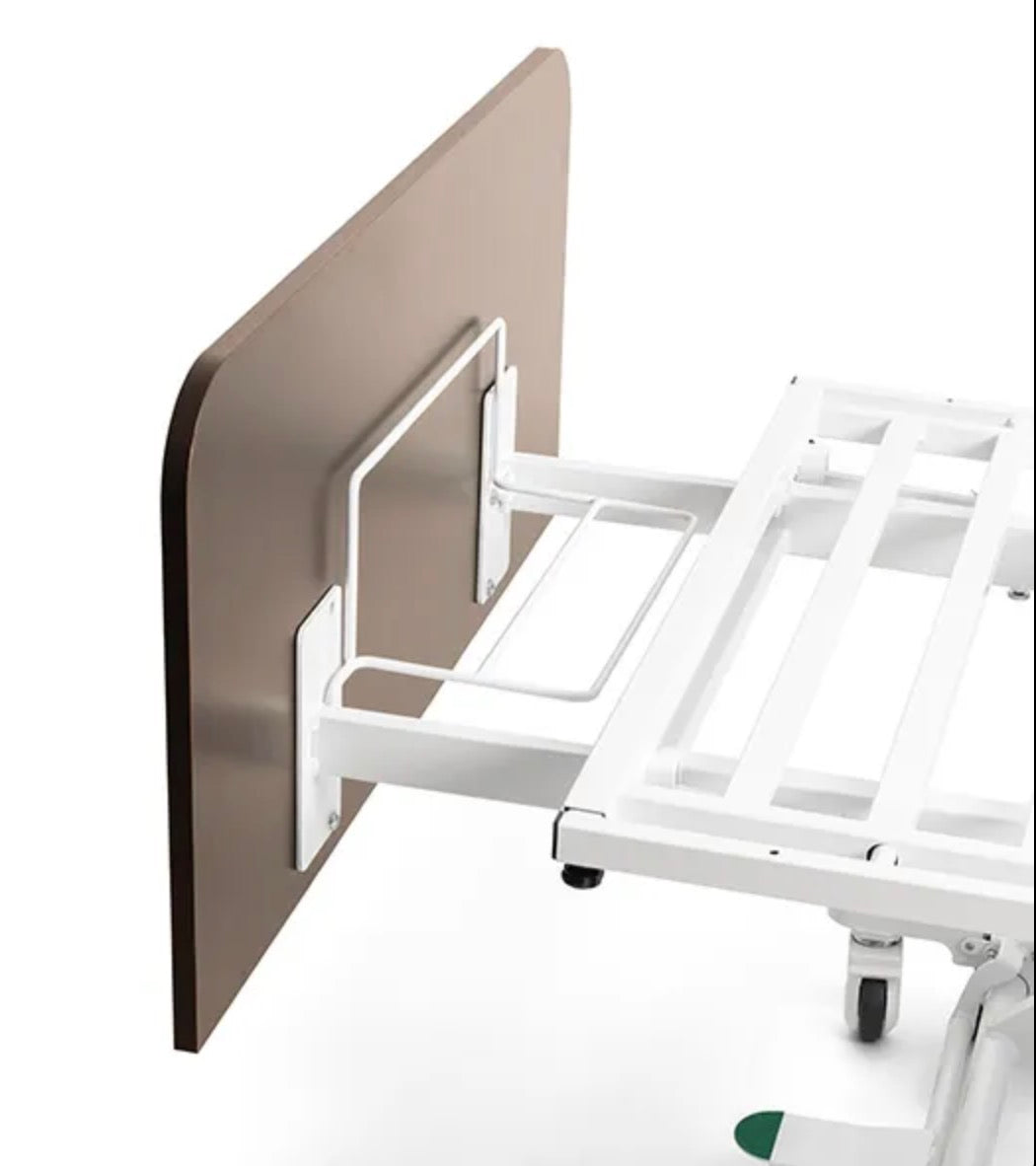

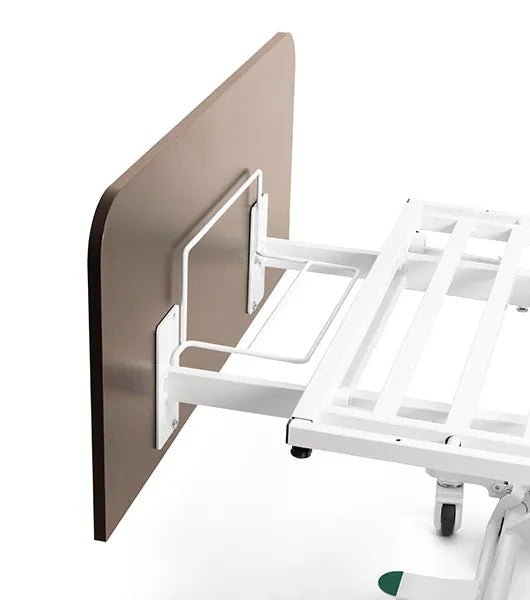

| Wall Protection | Integrated Headboard Bumper Bar |
| Accessory Mounts | Dual Head-Corner IV Pole Sockets and Trapeze Bracket Mounts |
| Warranty | 15 Years Frame, 3 Years Electronics, 1 Year Hand Pendant |
