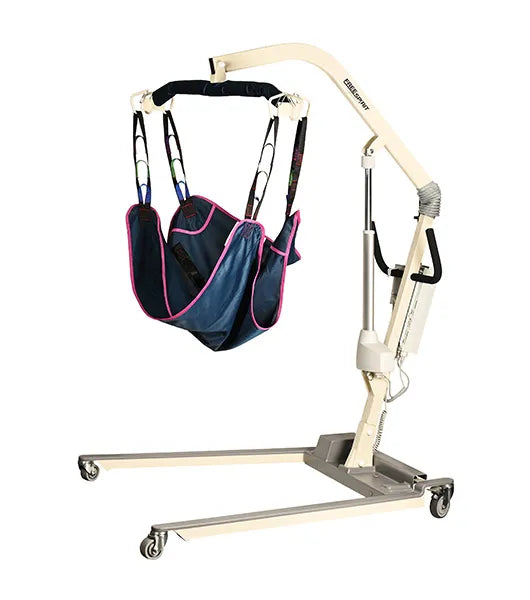

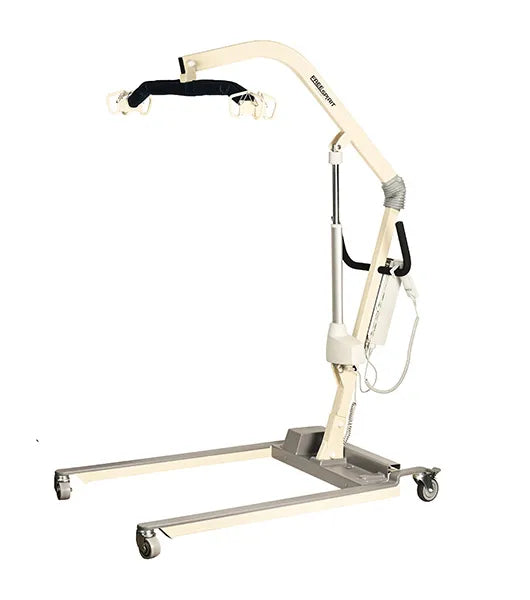

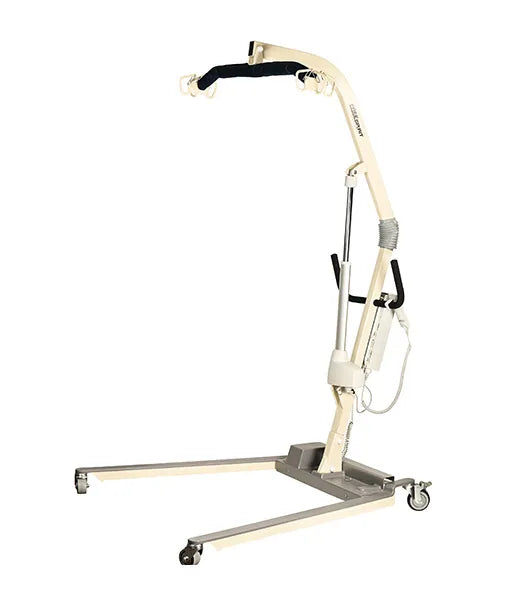

The MedaCure Free Spirit FS660-L Bariatric Battery Powered Patient Lift is a heavy-duty electric patient lift designed to safely transfer both standard and bariatric patients weighing up to 660 lbs. Built with a reinforced steel frame, dual-motor operation, and a power-adjustable base, the FS660-L provides controlled lifting performance while reducing the physical demands of manual patient handling. Its expanded lifting capacity and ultra-wide base make it suitable for facilities serving a diverse patient population.
Designed for hospitals, long-term care facilities, rehabilitation centers, and home care environments, the Free Spirit FS660-L delivers reliable patient transfer support for bed-to-chair, wheelchair, commode, and floor recovery applications. Dual powered functions allow caregivers to raise and lower patients while simultaneously adjusting the base width for positioning around bariatric wheelchairs, specialty seating, and medical equipment. Its quick-release battery system, emergency controls, and optional digital scale support efficient daily operation across demanding care settings.
Key Performance Features
-
660 lb Bariatric Capacity: Heavy-duty construction supports both standard and bariatric patients while providing stable transfer performance across a wide range of care environments.
-

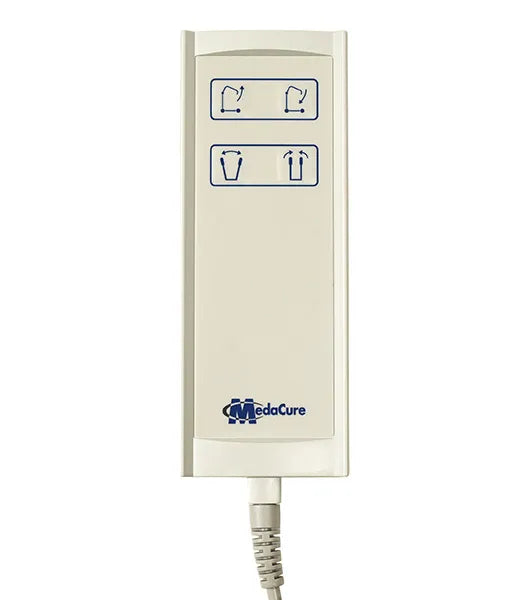

Dual Motor System: Independent powered functions operate both the lifting mechanism and base expansion system, allowing caregivers to position the lift efficiently around equipment and seating surfaces.
-

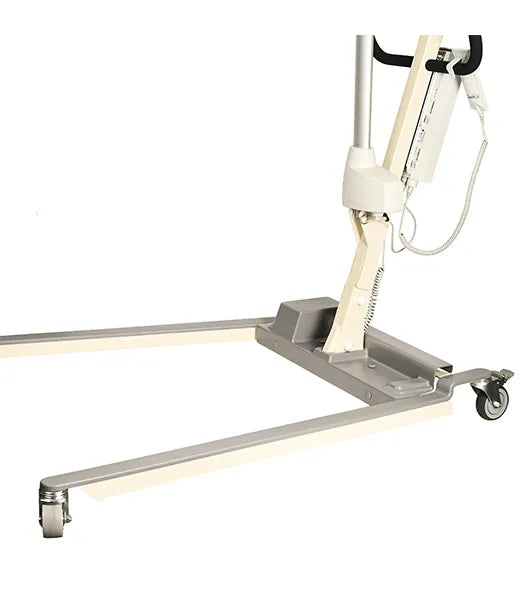

Ultra-Wide Power Base: Powered leg adjustment expands from 28 to 45 inches, providing additional clearance around bariatric wheelchairs, recliners, and medical equipment.
-
Extended Lift Range: Raises patients from floor level to approximately 70 inches, supporting a wide variety of transfer scenarios and recovery situations.
-
Enhanced Stability Design: Extra-long 50-inch legs help improve stability during patient transfers and positioning.
-

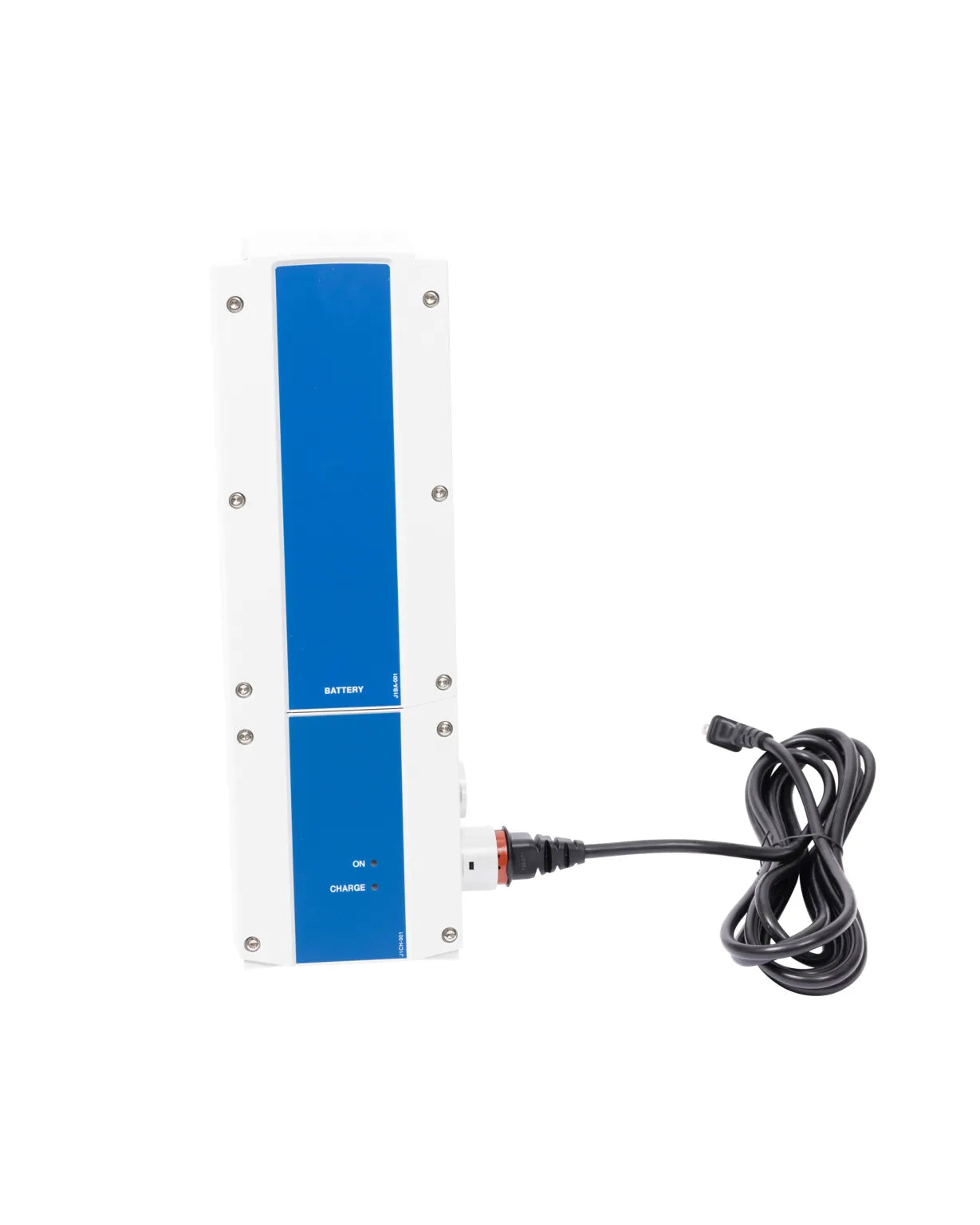

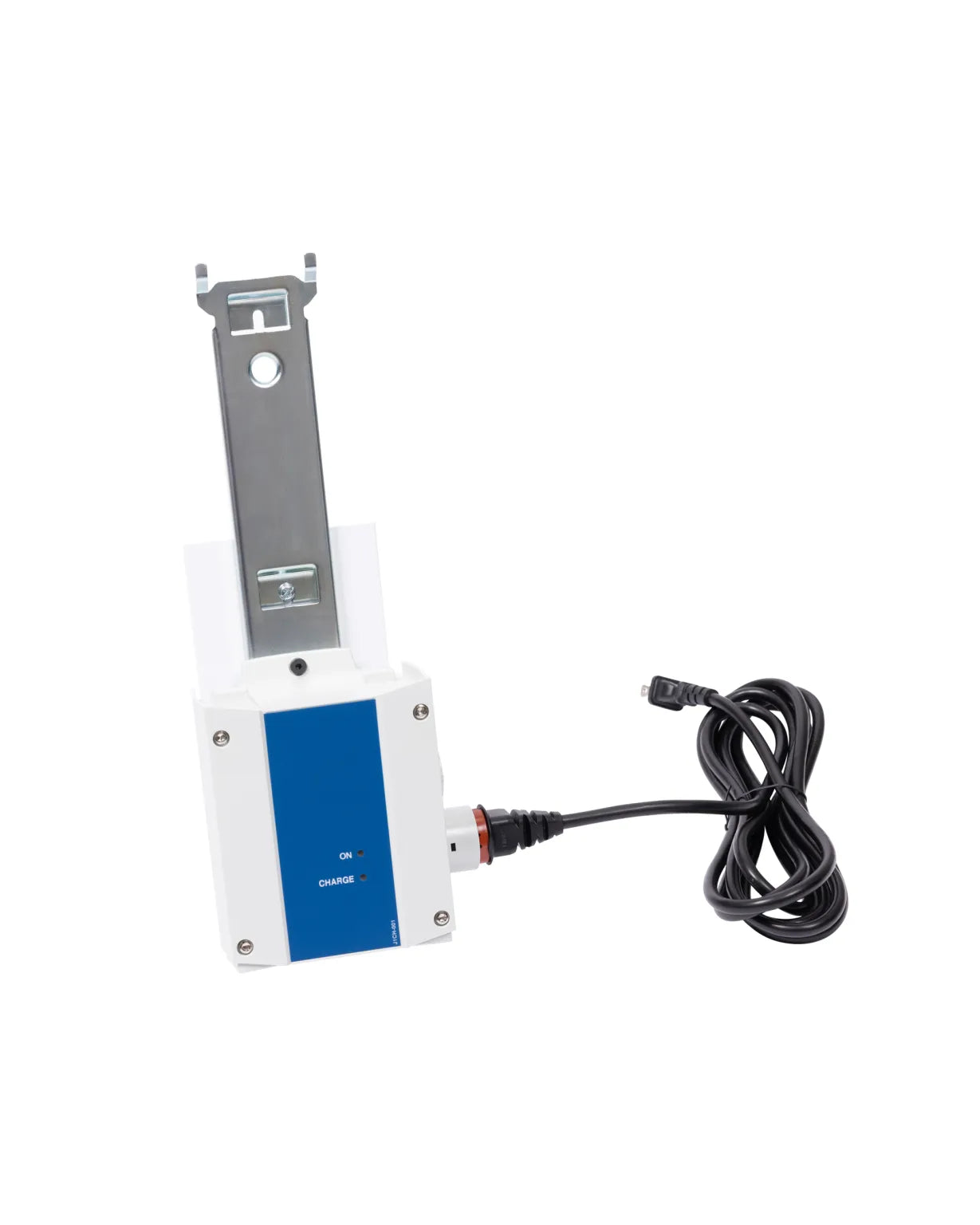

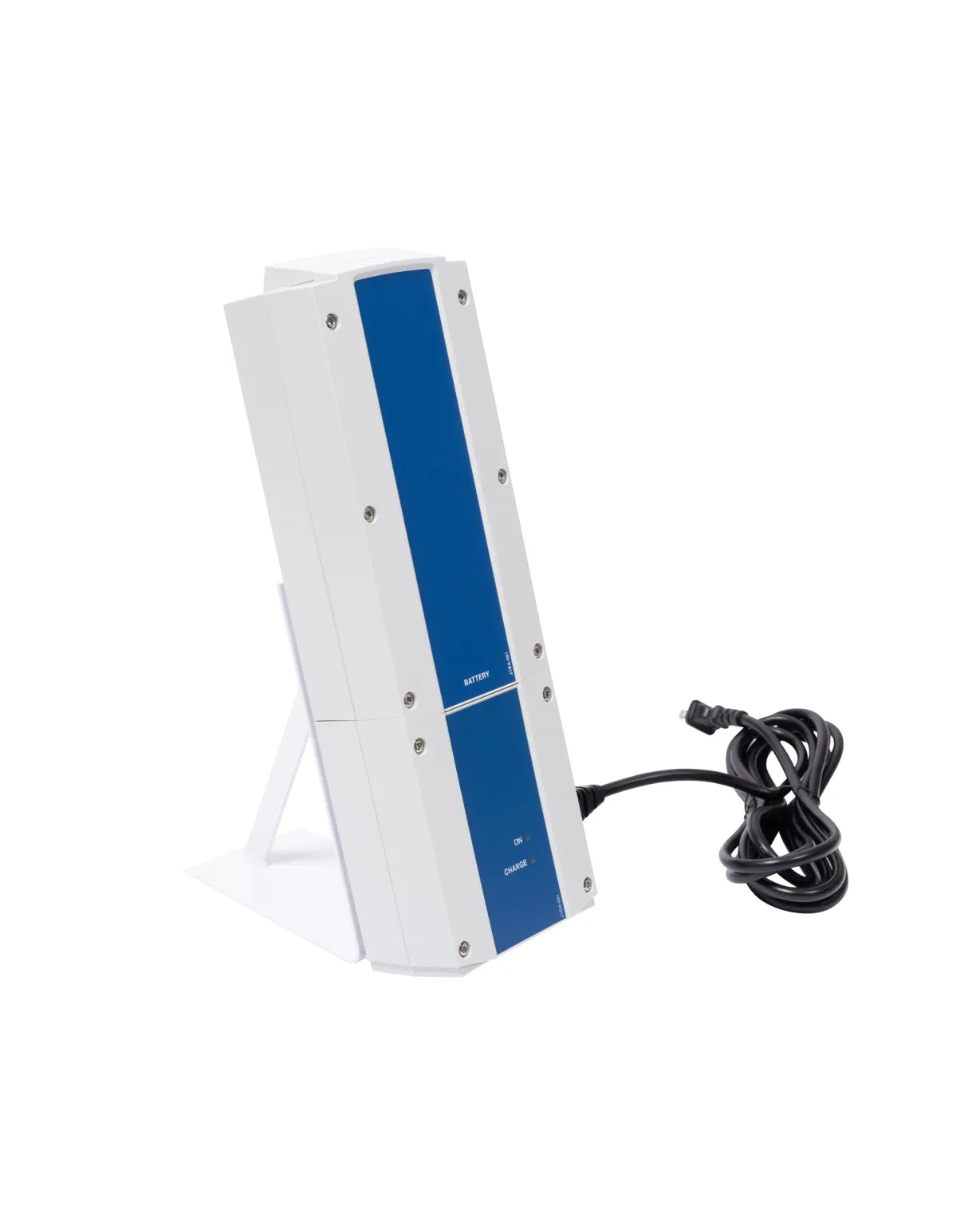

Quick-Release Battery System: Battery can be replaced quickly to minimize downtime and may be charged on-board or with an optional external charging station.
-

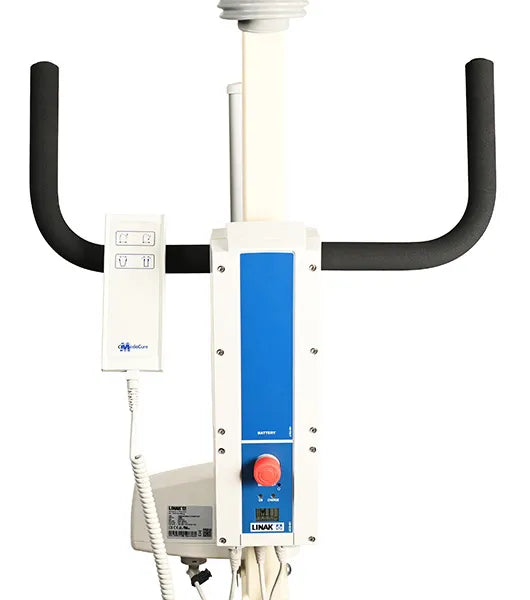

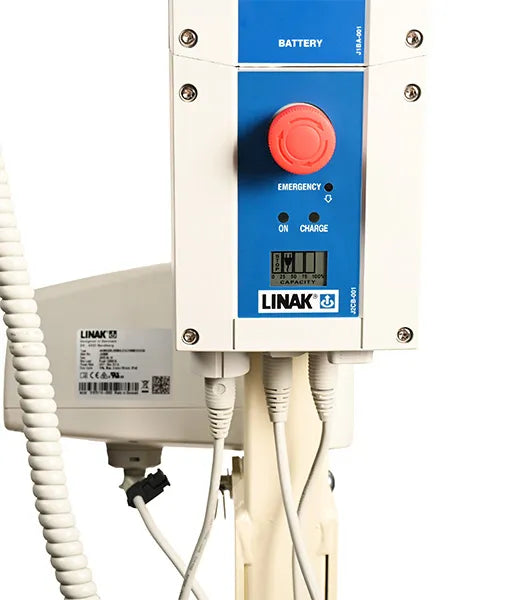

Emergency Stop & CPR Function: Integrated safety systems allow caregivers to stop lift operation immediately and perform emergency lowering or raising procedures when needed.
-
Total Pinch Point Protection: Designed to help reduce the risk of caregiver and patient injury during operation.
-

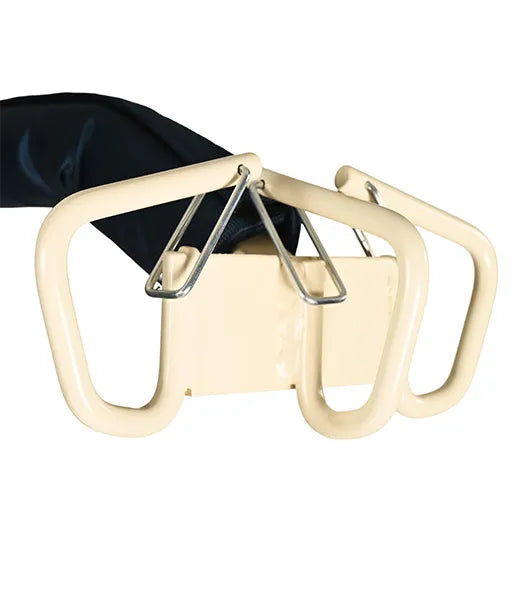

Padded Swivel Bar: Cushioned swivel bar helps protect the patient during lifting and transfer procedures.

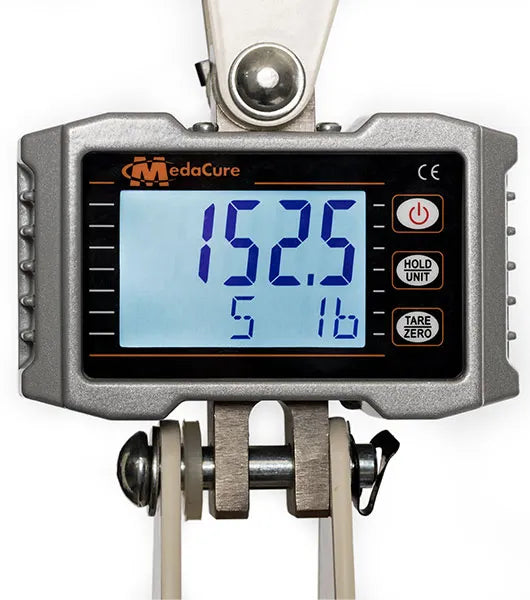

- Optional Digital Scale: Compatible with an optional integrated scale system for patient weight monitoring during transfers.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | MedaCure Free Spirit |
| Model | FS660-L |
| Product Type | Bariatric Battery Powered Patient Lift |
| Weight Capacity | 660 lbs. |
| Lift Type | Full Body Patient Lift |
| Operating System | Dual Motor Battery Powered Lift |
| Lifting Range | 28 in. – 70 in. |
| Base Width (Closed) | 28 in. |
| Base Width (Open) | 45 in. |
| Base Adjustment | Powered Expansion Base |
| Leg Length | 50 in. |
| Bed Clearance | 4.5 in. |
| Front Casters | 3 in. Swivel |

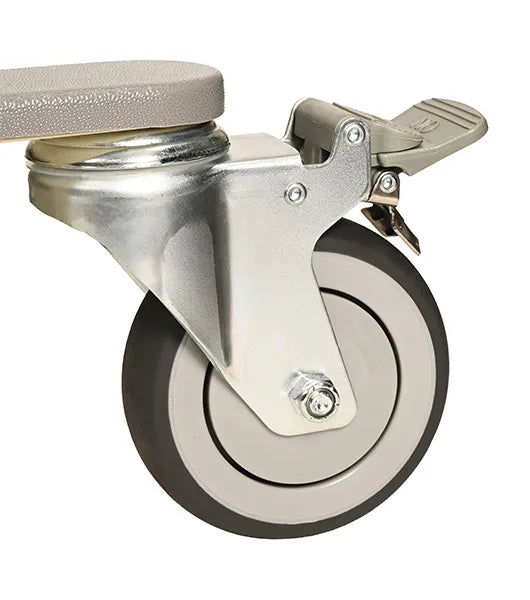

| Rear Casters | 4 in. Locking |
| Battery Features | Quick-Release Battery with On-Board Charging |
| Battery Monitoring | LED Battery Level Indicator |
| Safety Features | Emergency Stop, CPR Function, Pinch Point Protection, Locking Casters |
| Optional Accessory | Digital Patient Scale |
| Application Areas | Hospitals, Long-Term Care, Rehabilitation, Home Care, Bariatric Patient Transfers |
