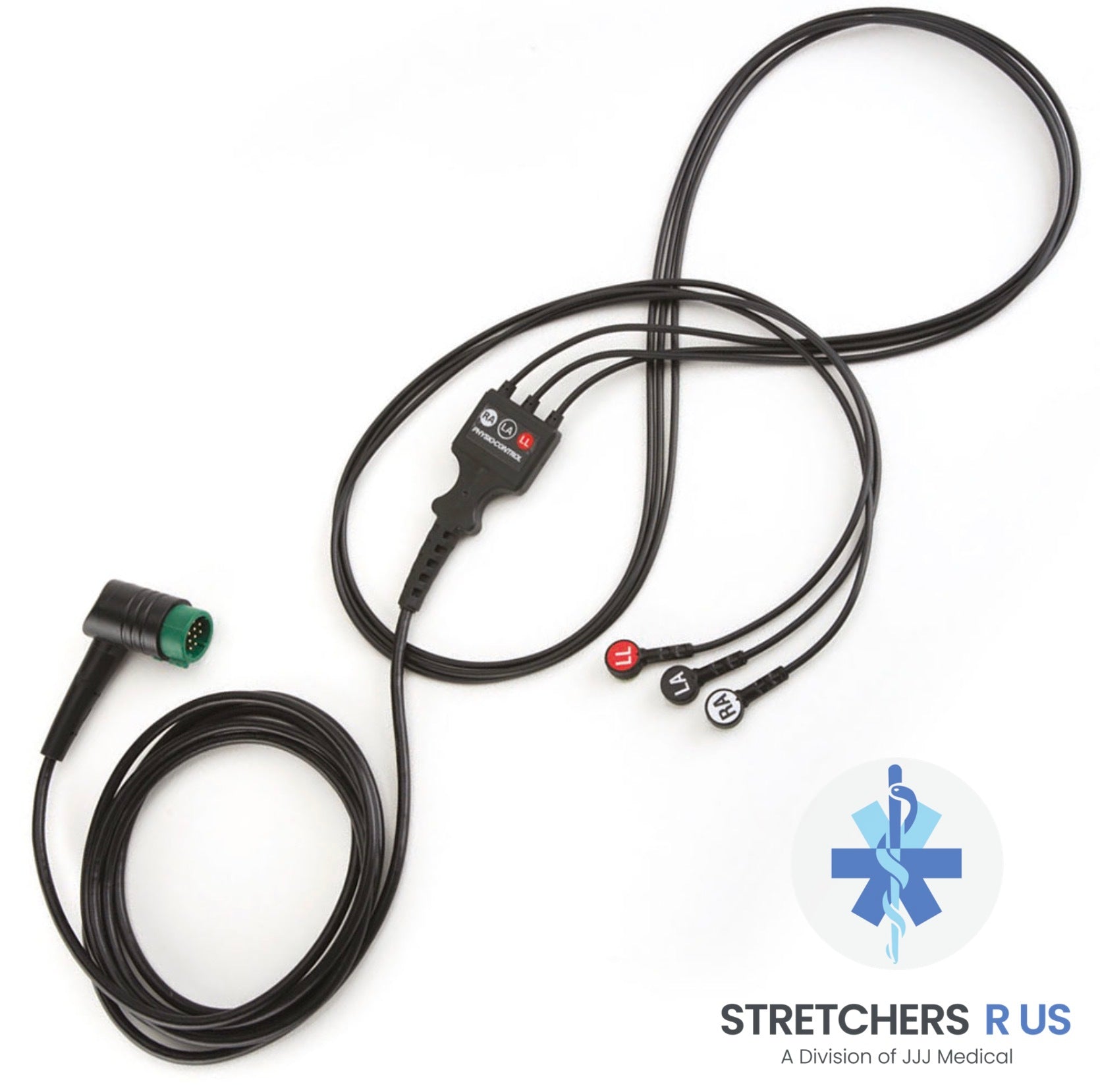

Stryker / Physio-Control OEM (SKU - 11110-000029) 3-wire ECG cable

Ensure your critical clinical monitoring setup remains continuous and fully operational with this authentic OEM Physio-Control / Stryker (SKU-11110000029) 3-wire ECG cable. This item consists strictly of the standalone, one-piece direct-connect diagnostic cable with no detachable or replaceable leadwire pieces. It is engineered exclusively for use with Stryker / Physio-Control LIFEPAK Monitor and Defibrillator Systems, serving as the essential underlying analog interface to capture real-time, diagnostic-grade cardiac electrical activity from patients.

The 3-wire ECG cable is engineered to withstand the extreme pulling forces, rapid deployments, and constant motion typical of daily emergency medical services (EMS) transit and critical care hospital environments. Precision insulated and molded from high-flexibility thermoplastic polyurethane, it functions as a rugged shielded conduit that plugs flush into your clinical hardware. These specialized clinical wires provide the electrical grounding and signal clarity required to track basic cardiac rhythms across several generations of LIFEPAK equipment, including the LIFEPAK 15, LIFEPAK 12, LIFEPAK 20, crash cart monitors.

System Architecture & Signal Layout

In a standard clinical monitoring layout, this specific cable connects directly to the analog ECG input port located on the side of the device. Once installed, it pairs structurally with standard medical-grade adhesive monitoring electrodes to map patient heart waveforms cleanly across the following designated pathways:

• The 3 Limb Leads (RA, LA, LL): Positions securely onto the patient's extremities to establish the foundational 3-wire tracking vectors required for standard anatomical monitoring leads I, II, and III.



Key Features & Technical Specifications

• Heavy-Duty One-Piece Design: Sold exclusively as a fixed, direct-connect trunk line with permanently integrated 3-foot patient leads, reducing cable clutter and preventing lost wire components.


• Defibrillation-Proof Safety: Equipped with integrated 10K Ohm current-limiting resistors built into each patient snap, protecting internal monitor circuitry from high-energy shock feedback surges.


• Rugged Industrial Durability: Finished with a thick, chemical-resistant protective TPU jacket designed to resist deep tears, tight knots, and regular exposure to medical-grade chemical sanitizers.


• Right-Angle Molded Connector: Engineered with a specialized 12-pin keyed connector that sits flush against the machine bulkhead, protecting the physical device port from stress fractures and impact damage.



Technical Specifications Table
