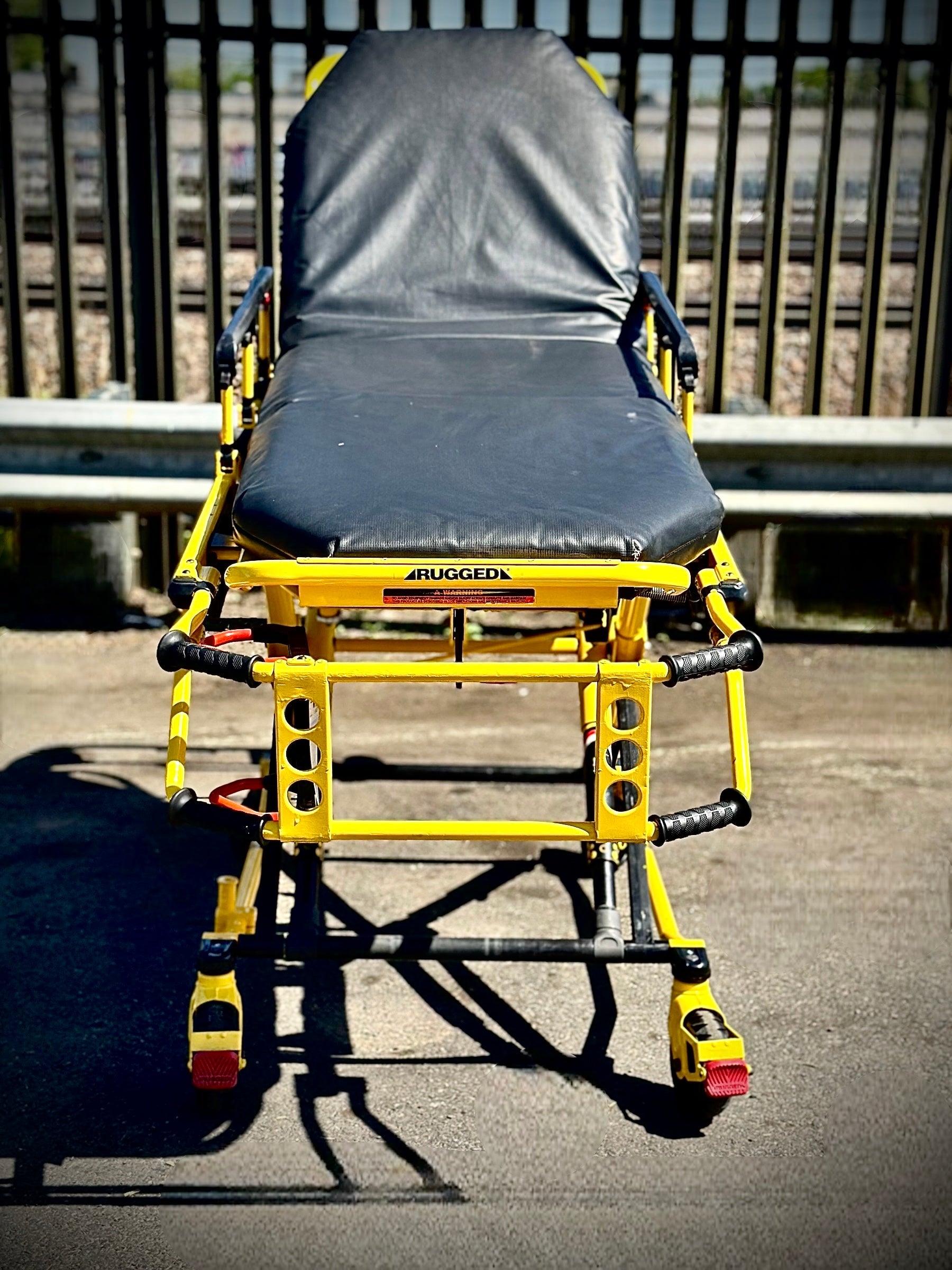

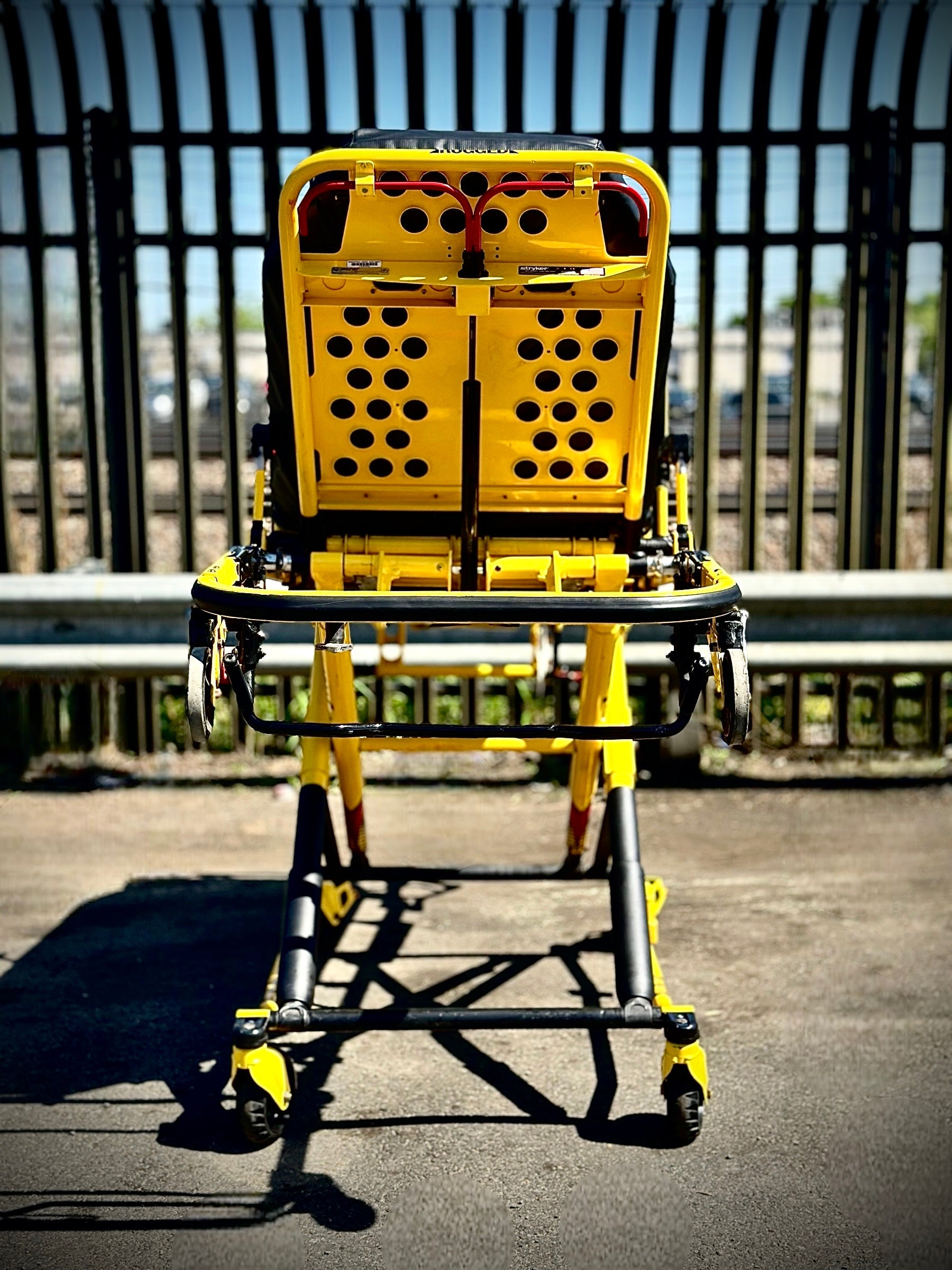

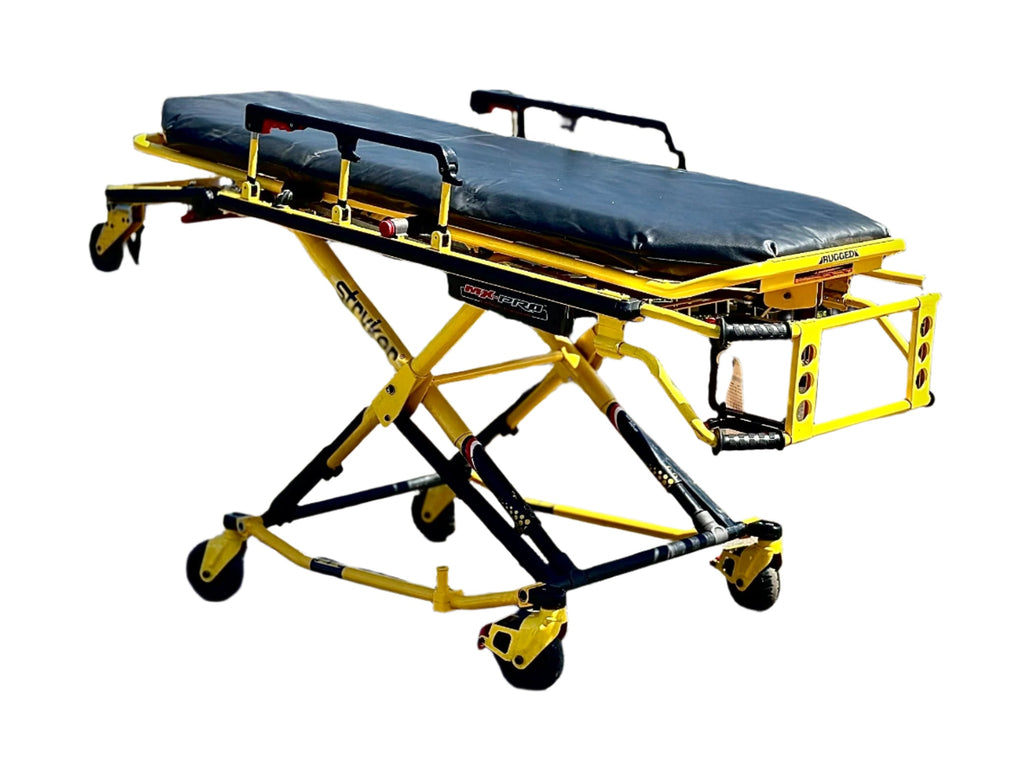

The Stryker MX-PRO 6083 Bariatric Ambulance Cot is engineered for safe, stable transport of larger patients, combining an expanded patient surface with a reinforced X-frame design. This cot includes a sealed flat mattress and a full restraint set for secure patient handling.

Warranty: 90 Days – Parts & Labor

Some accessories shown in photos may be optional.

Product Overview

The Stryker MX-PRO 6083 is a high-strength manual bariatric transport cot designed to maximize stability and reduce strain on EMS crews during larger-patient transports.

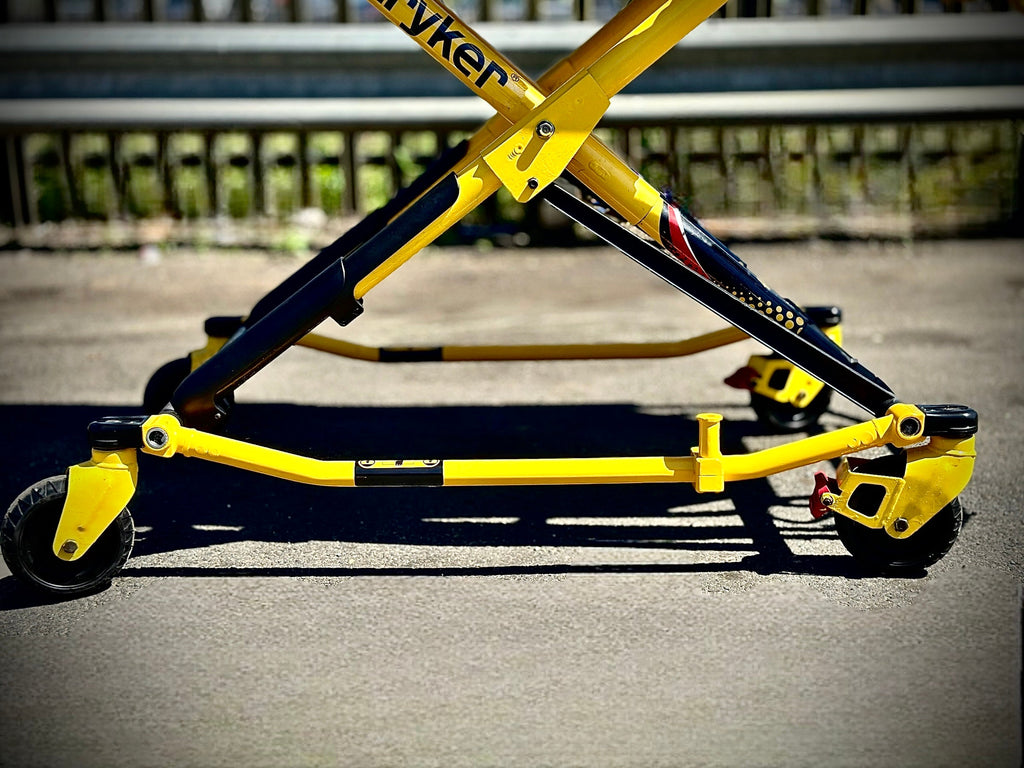

Its widened patient surface, reinforced aluminum X-frame, and optimized lift geometry ensure improved comfort and safety for both patients and providers.

Despite its bariatric capabilities, the 6083 is designed to fit through standard doorways and ambulance entry thresholds, maintaining access without requiring vehicle modification.

Stryker’s intuitive color-coded controls, pneumatically assisted backrest, breakaway head section, and fold-down side rails help maintain consistent operation across your fleet.

Compatible with Stryker’s recommended retention fastener systems, the 6083 secures safely during transport and loads smoothly when used with proper mounting hardware.

Key Features

• Expanded patient surface width for bariatric comfort

• Lightweight yet reinforced aluminum construction

• Transport-at-load-height capability

• Positive-action height adjustment

• Color-coded quick-identification controls

• One-hand release breakaway head section with safety bar

• One-hand release fold-down side rails

• Pneumatically assisted infinite-position backrest

• Reinforced lower lifting bar + lift-capable safety bar

• Optimized lift-bar geometry to reduce operator strain

• Seven adjustable height positions

• Oversized wheels with sealed caster and wheel bearings

• Integrated bumper system

• High-visibility powder-coated frame with reflective labeling

• Sealed flat mattress included

• Includes patient restraint straps

Specifications

Weight Capacity:

• 850 lb at standard height positions

• 1600 lb in the lowest position

Dimensions

• Length: 80.5 in (204.5 cm)

• Minimum Length: 62 in (157.5 cm)

• Width: 29 in (73.7 cm) (expanded bariatric patient surface)

• Weight: 111 lb (50.3 kg) (without mattress/restraints)

Height Positions (from ground)

• Position 1: 13.5 in (34.3 cm)

• Position 2: 24.5 in (62.2 cm)

• Position 3: 27.5 in (69.9 cm)

• Position 4: 30 in (76.2 cm)

• Position 5: 32.5 in (82.6 cm)

• Position 6: 34.5 in (87.6 cm)

• Position 7: 37 in (94 cm)

Wheels

• Diameter: 6 in (15.2 cm)

• Width: 2 in (5.1 cm)

Fastener Compatibility

• Compatible with Stryker Power-LOAD (retention only — does not lift the cot)

• Compatible with standard Stryker mechanical fastener systems when used with the correct hardware

• Works with common EMS fastening systems designed for bariatric cot widths

• The 6083 is designed to work with “existing cot fastener configurations,” including floor-mounted systems such as models 6370/6377/6378, and wall-mount 6371.

• It is also listed as compatible with the Ferno 175 Fastening System (a commonly used alternative fastener system).

• That means in many cases, the 6083 can be secured using standard existing hardware — no special “conversion kit” required in many installations.

Optional Features

• Heavy-duty two-stage or three-stage IV poles (patient right or left)

• Base storage tray

• Non-pocketed head-end storage compartment

• Height-limit kit

• Permanent or removable O₂ (oxygen) bottle holders – foot end

• Rigid head-end and foot-end push/pull handles


• X-frame guard kit

• Side lift handles for improved maneuverability

• Tow package for assisted movement

Why Add the Tow Package?

The tow package provides a reinforced connection point that allows crews to attach a winch or powered loading device when moving the cot up ramps or into vehicles. This significantly reduces physical strain during bariatric transports, where the combined patient + cot weight can exceed 800–1,000 lb.

Benefits of the Tow Package:

• Reduces lifting force required for uphill movement

• Improves safety during load/unload of heavier patients

• Provides controlled, steady movement using a winch or assist device

• Helps prevent back and shoulder injuries among EMS crews

Ideal For:

Agencies performing frequent bariatric transports, loading into higher deck-height ambulances, or working in tight spaces where manual pushing is harder.

Why Add the Push/Pull Handle Package?

The push/pull handle package adds rigid handles at the head end and/or foot end, giving EMS personnel more leverage when maneuvering the cot.

Because the 6083 has an expanded patient surface width, it becomes harder to grip from the frame alone. The handles provide stable, ergonomic points of contact that allow safer movement.

Benefits of Push/Pull Handles:

• Provides firm, ergonomic handholds for improved control

• Makes steering and pivoting easier in tight hallways and doorways

• Reduces wrist and shoulder strain during transport

• Enhances crew safety when handling heavier patients

Ideal For:

Agencies that frequently operate in narrow spaces, long transport distances, or bariatric calls where better leverage is critical.

Condition: Used – Professionally inspected and tested to ensure full functionality. The cot may show cosmetic wear from prior use, but all systems meet operational performance standards.
