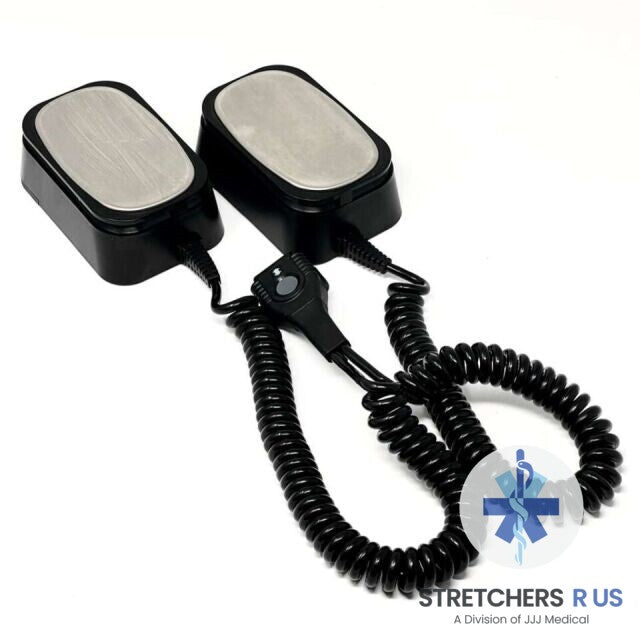

Physio-Control / Stryker OEM (SKU - 11130-000061) manual hard paddles

Ensure your critical emergency response equipment remains fully prepared and therapeutically versatile with these authentic OEM Physio-Control / Stryker (SKU-11130000061) manual hard paddles. This item consists strictly of the standalone external paddle assembly handle set with integrated controls and attached cabling. It is engineered exclusively for use with the Stryker / Physio-Control LIFEPAK 15 Monitor/Defibrillator System, serving as the essential underlying hardware interface for delivering manual defibrillation, synchronized cardioversion, and pacing therapies.

The manual hard paddles are engineered to withstand the extreme impact forces, fast-paced manual stress, and constant physical handling typical of daily emergency medical services (EMS) transit and high-acuity resuscitation bays. Precision molded from high-impact structural polymers, they feature robust, heavily insulated wiring built to plug flush into your clinical equipment port. This heavy-duty electrode system provides the high-energy conduction paths and tactical control responsiveness required to manage cardiac emergencies directly at the patient's side.

System Architecture & Clinical Layout

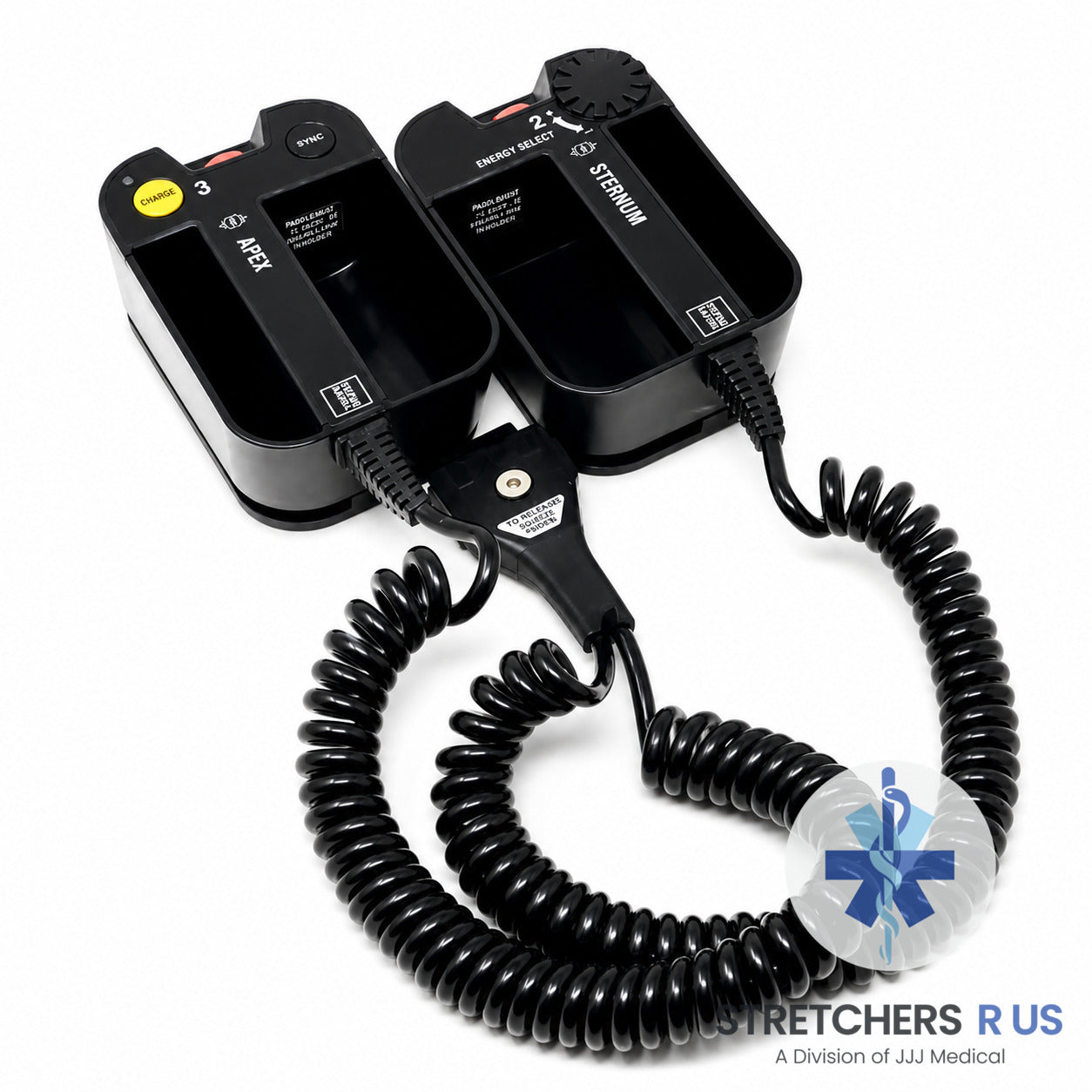

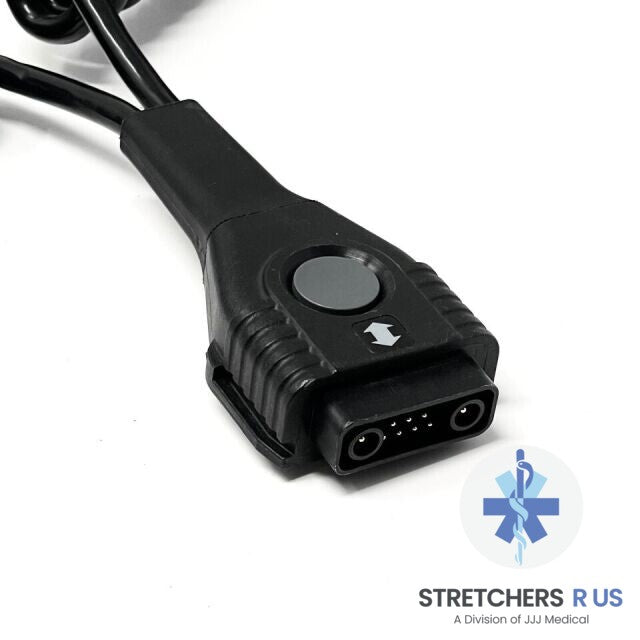

In a standard emergency setup, this paddle assembly plugs directly into the therapy cable port on the front panel of the monitor. Once connected, the two-handle configuration assigns specific clinical functionalities across the following dedicated pathways:

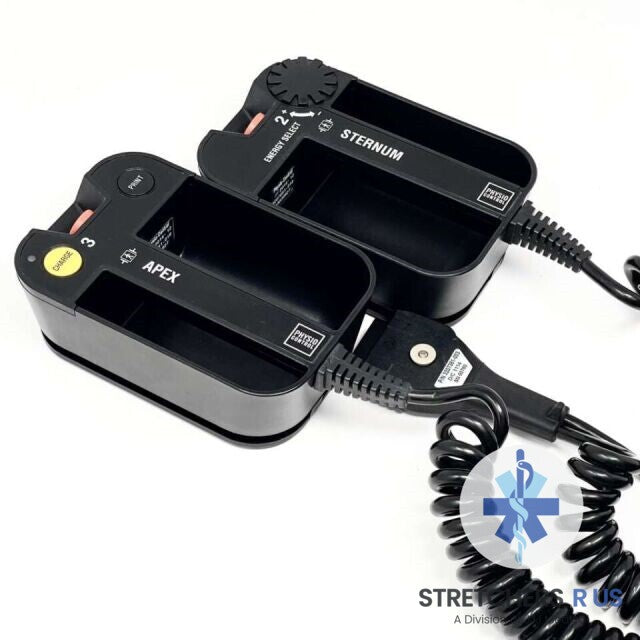

• The Sternum Paddle: Placed on the upper right clavicular area, featuring built-in, tactile energy selection buttons and a clear digital charge indicator to rapidly adjust therapy levels.


• The Apex Paddle: Placed over the lower left chest wall, outfitted with the primary manual discharge controls to safely deliver targeted electrical current across the cardiac axis.



Key Features & Technical Specifications

• Dual-Patient Convertible Base: Equipped with adult electrode surfaces that easily slide off to instantly expose integrated, built-in pediatric paddle plates underneath for rapid patient adapting.


• Direct Handle Controls: Features ergonomically placed buttons allowing the clinical operator to fully charge, change energy levels, and discharge energy without looking away from the patient.


• Rugged Fluid Resistance: Sealed with chemical-resistant protective barriers designed to withstand heavy body fluid exposures, high-impact storage box drops, and regular chemical sanitization.

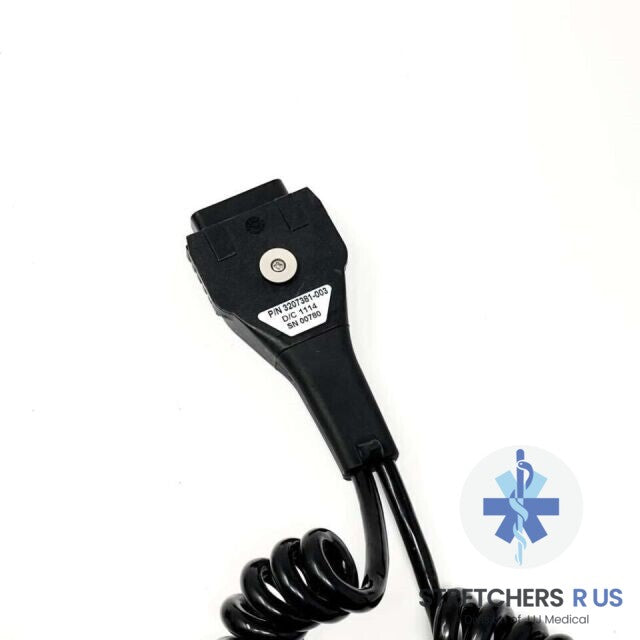

• Heavy-Duty Coiled Cord: Engineered with a flexible, high-memory coiled cable jacket that extends long distances during operation and cleanly contracts flush to eliminate loose clutter.



Technical Specifications Table
