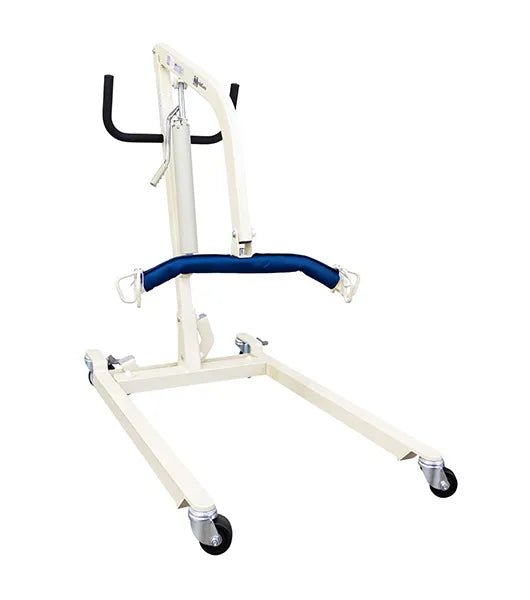

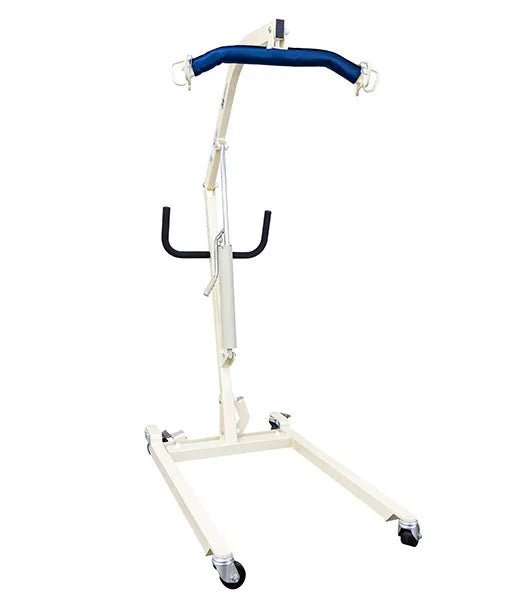

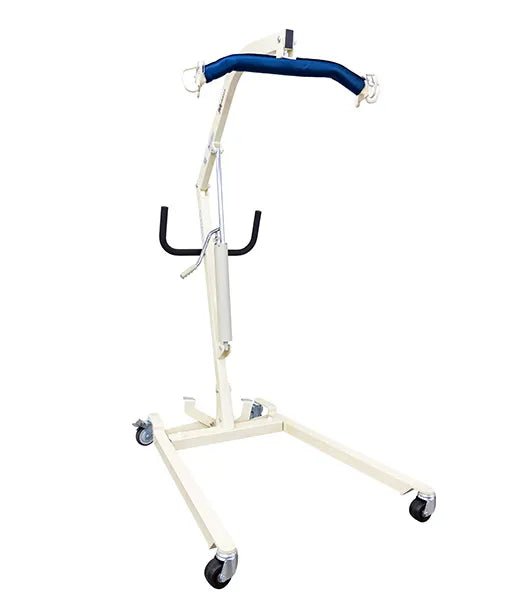

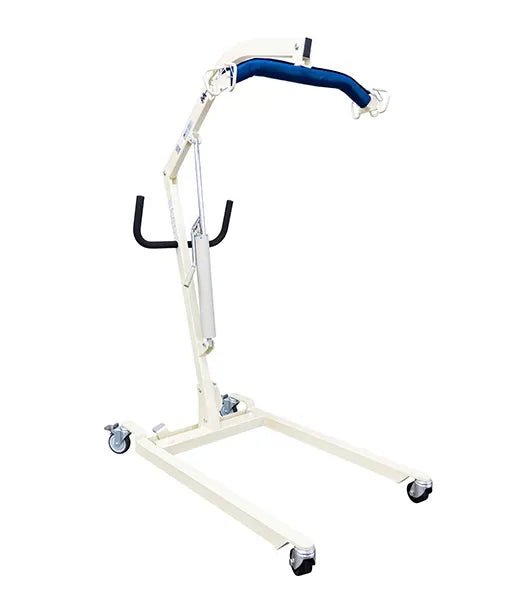

The MedaCure Free Spirit FS450-H Deluxe Hydraulic Manual Patient Lift is a manual full-body patient lift designed to provide a cost-effective transfer solution for caregivers who do not require a fully electric lift. With a 450 lb. weight capacity, high-performance hydraulic pump, and reinforced steel frame, the FS450-H supports controlled lifting and lowering during routine patient transfers.
Designed for home care, long-term care, rehabilitation, and clinical environments, the Free Spirit FS450-H helps caregivers transfer patients from beds, wheelchairs, chairs, and other care surfaces with improved control and stability. Its six-point swivel bar, safety clips, foam-covered spreader bar, manual open-close base, padded grip handle, and rear locking casters support safe handling and maneuverability around furniture and equipment.
Key Performance Features
-
450 lb Weight Capacity: Supports standard full-body patient transfer applications while maintaining stability during lifting and lowering.
-

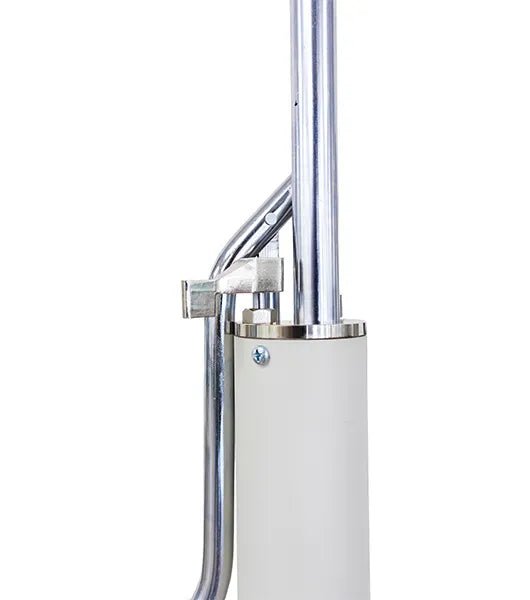

Hydraulic Manual Operation: High-performance hydraulic pump gradually lifts and lowers the patient without requiring battery power or electric controls.
-

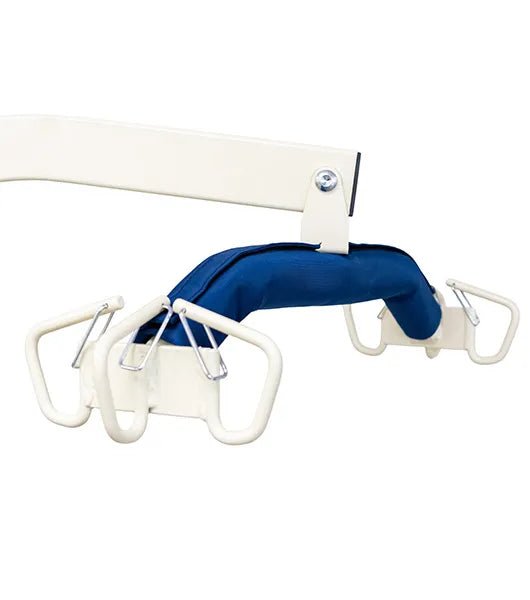

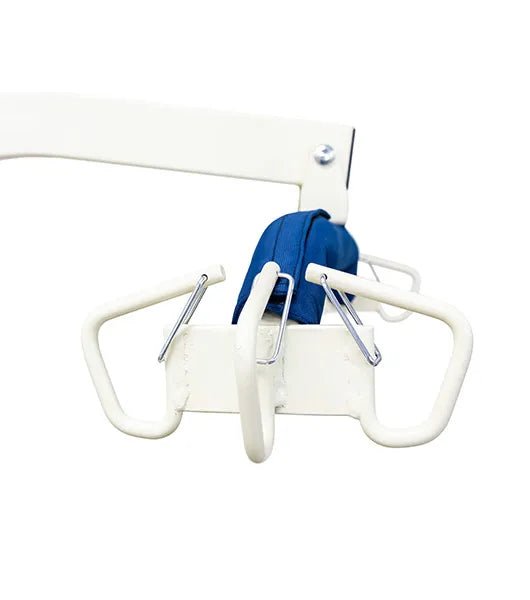

Six-Point Swivel Bar: Provides secure sling attachment points for full-body lifting applications.
-
Safety Clip Sling Attachment: Integrated safety clips help keep the sling secured to the swivel bar during patient transfers.
-

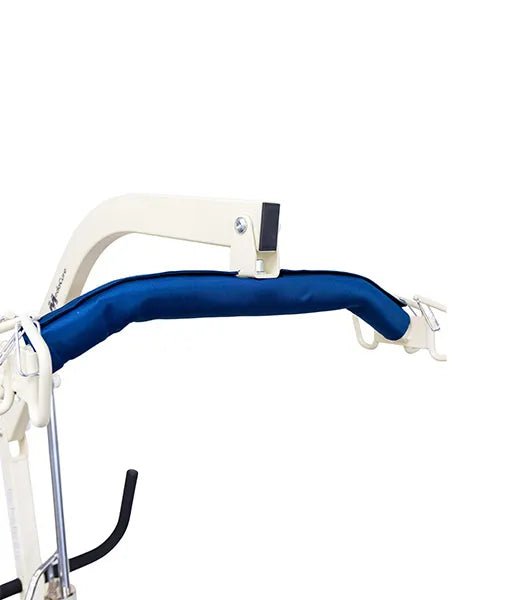

Foam-Covered Spreader Bar: Helps support safer patient handling and reduces contact risk during lift operation.
-
Manual Open-Close Base: Base legs adjust manually to help caregivers position the lift around furniture, wheelchairs, beds, and other equipment.
-
Reinforced Steel Frame: Durable frame construction supports long-term use in daily patient care environments.
-

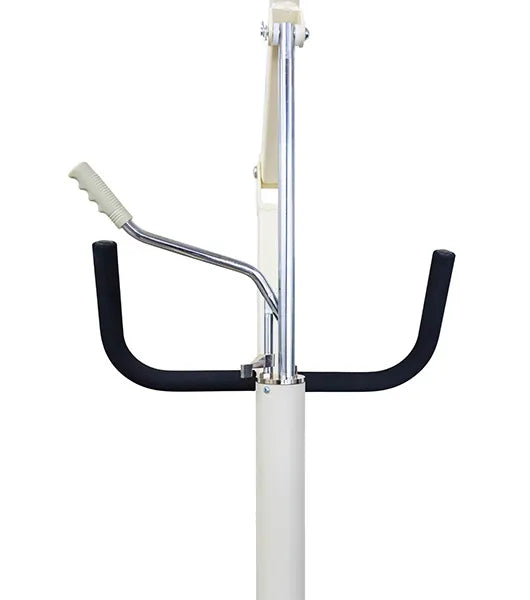

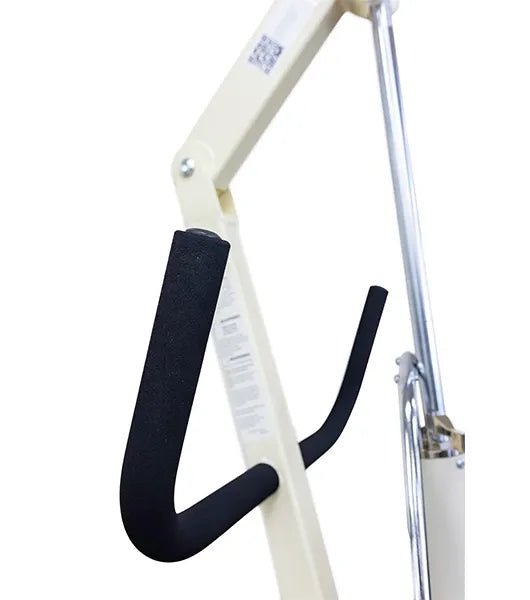

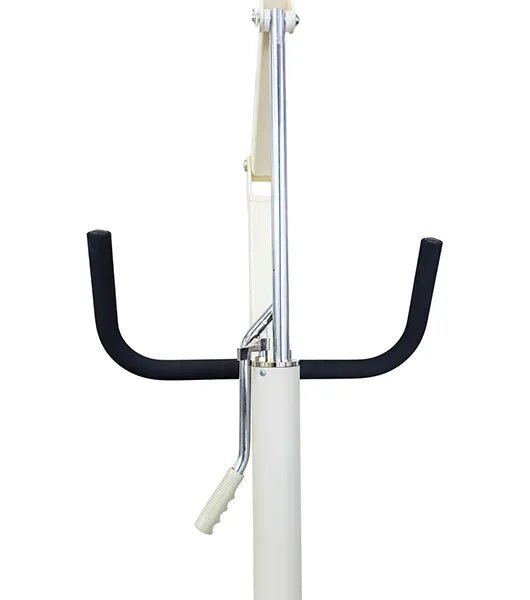

Foam-Padded Safe Grip Handle: Provides a comfortable caregiver grip for maneuvering and positioning the lift.
-
Rear Caster Brakes: Locking rear casters help secure the lift during patient handling and transfer routines.
-
Low Bed Clearance: 4.5 inch bed clearance helps the lift position under compatible beds and care surfaces.
-
Wide Adjustable Base: Base adjusts from 22 inches closed to 38.2 inches open for improved access during patient transfers.
- Practical Non-Electric Design: Manual hydraulic operation provides a simple transfer option for facilities and caregivers seeking lift support without battery charging requirements.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | MedaCure Free Spirit |
| Model | FS450-H |
| Product Type | Deluxe Hydraulic Manual Patient Lift |
| Operation | Manual Hydraulic Lift |
| Weight Capacity | 450 lbs. |
| Lifting Range | 17 in. – 61.2 in. |
| Base Width (Closed) | 22 in. |
| Base Width (Open) | 38.2 in. |
| Base Width Adjustment | Manual |
| Bed Clearance | 4.5 in. |
| Front Casters | 3 in. Swivel Casters |
| Rear Casters | 4 in. Locking Casters |
| Frame Construction | Reinforced Steel |
| Swivel Bar | Six-Point Swivel Bar with Safety Clips |
| Spreader Bar | Foam Covered |
| Handle | Foam Padded Safe Grip Handle |
| Warranty | 15 Years on Frame |
| Applications | Patient Transfers, Bed Transfers, Wheelchair Transfers, Home Care, Long-Term Care, Rehabilitation, Clinical Care |
