Zoll X Series & Propaq MD Auxiliary AC Power Adapter Charger - 8300-0004

Part # 8300-0004In stock
$499.99
CONDITION
Request a Quote
For a detailed inspection,

Deliver dependable, uninterrupted power to your critical care monitors and defibrillation systems.

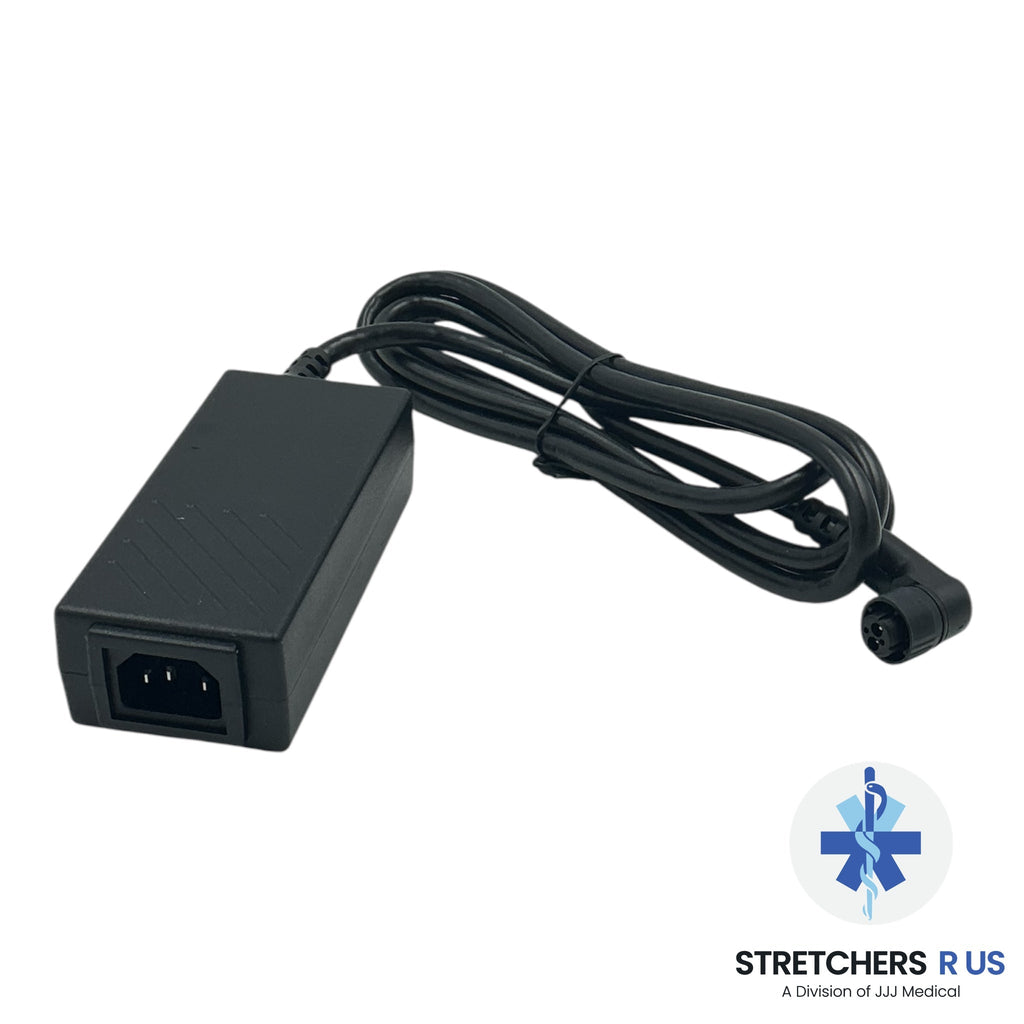

The ZOLL Auxiliary AC Power Adapter (SKU: 8300-0004) is a premium, medical-grade power supply engineered specifically for the ZOLL X Series, X Series Advanced, and Propaq MD/M monitor/defibrillator units. This authentic OEM component acts as a direct power source for the main monitor device while simultaneously recharging docked lithium-ion batteries—ensuring your system remains 100% operational during high-stakes patient care.
Built with a compact and ruggedized external chassis, this adapter handles continuous operation across demanding emergency rooms, operating theaters, and ground transport configurations.

Product Cross-Bay Compatibility
This power supply connects directly into the secondary power ports of:
  • ZOLL X Series Monitor / Defibrillators
  • ZOLL X Series Advanced
  • ZOLL Propaq MD
  • ZOLL Propaq M

Technical Specifications & Characteristics
  • Input Power Flexibility: Automatic sensing supports universal 120 to 240 VAC inputs, running cleanly across 50 Hz, 60 Hz, and 400 Hz aviation frequencies.
  • Output Power Rating: Produces a stabilized 14.5 Volt DC output at a 4.15 Amp load rating.
  • Connector Configurations: Input chassis accepts a standard medical IEC 320-C14 prong, output cable terminates at a secure Pulse-Lok locking plug assembly.
  • Structural Integrity: Includes a heavy-duty 6-foot cable assembly with integrated FT1-rated flame-retardant outer jacketing.
  • System Safeguards: Designed with automated internal overload protection, short-circuit mitigation, and over-temperature safety cutoffs.

Important Configuration Note
This product includes the primary auxiliary brick power block only. The companion wall socket cable (SKU: 8000-0100) is sold separately and must be used to link this block to a standard 110-120V wall outlet. Prevent power depletion on your lifesaver fleets by tracking and stocking genuine ZOLL 8300-0004 power modules in your active biomedical inventory bins.

For questions about fit or condition, call 800-282-9352 or email sales@jjjmedical.com with your model and a photo.
