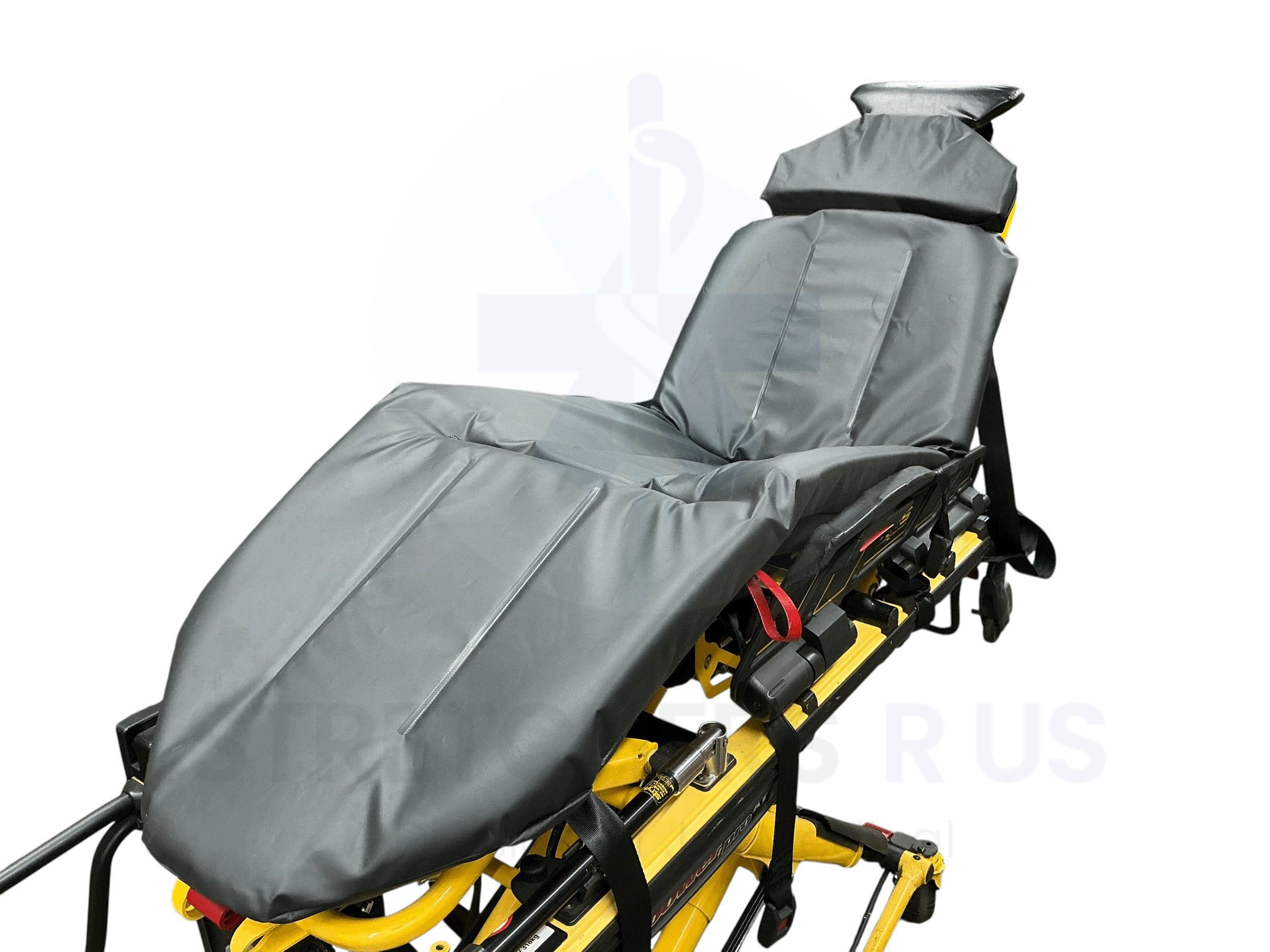

The Stryker 6506700004 | XPS Retrofit Kit with XPS Mattress is a fully refurbished Expandable Patient Surface system designed to upgrade compatible Stryker ambulance cots with a wider, adjustable patient-support area. Once installed, the XPS siderails remain integrated with the cot and can be repositioned through seven locking settings to accommodate different patients, transport environments, and clinical requirements.
This complete refurbished package includes two XPS siderails, an XPS knee-gatch mattress, and the mounting hardware required for installation on the appropriate cot configuration. The wider mattress is designed to work with the XPS siderails and the cot’s knee-gatch positioning while helping reduce the transfer gap between the mattress and the expanded siderail surfaces.
Key Performance Features
-
Expandable Patient Surface: Increases the usable patient-support width to accommodate a broader range of patient sizes and transport requirements.
-
Seven Locking Positions: Allows each XPS siderail to be adjusted through seven secure positions according to the patient and operating environment.
-
Integrated Cot Installation: Remains mounted to the cot after installation so the expandable patient surface is available whenever needed.
-

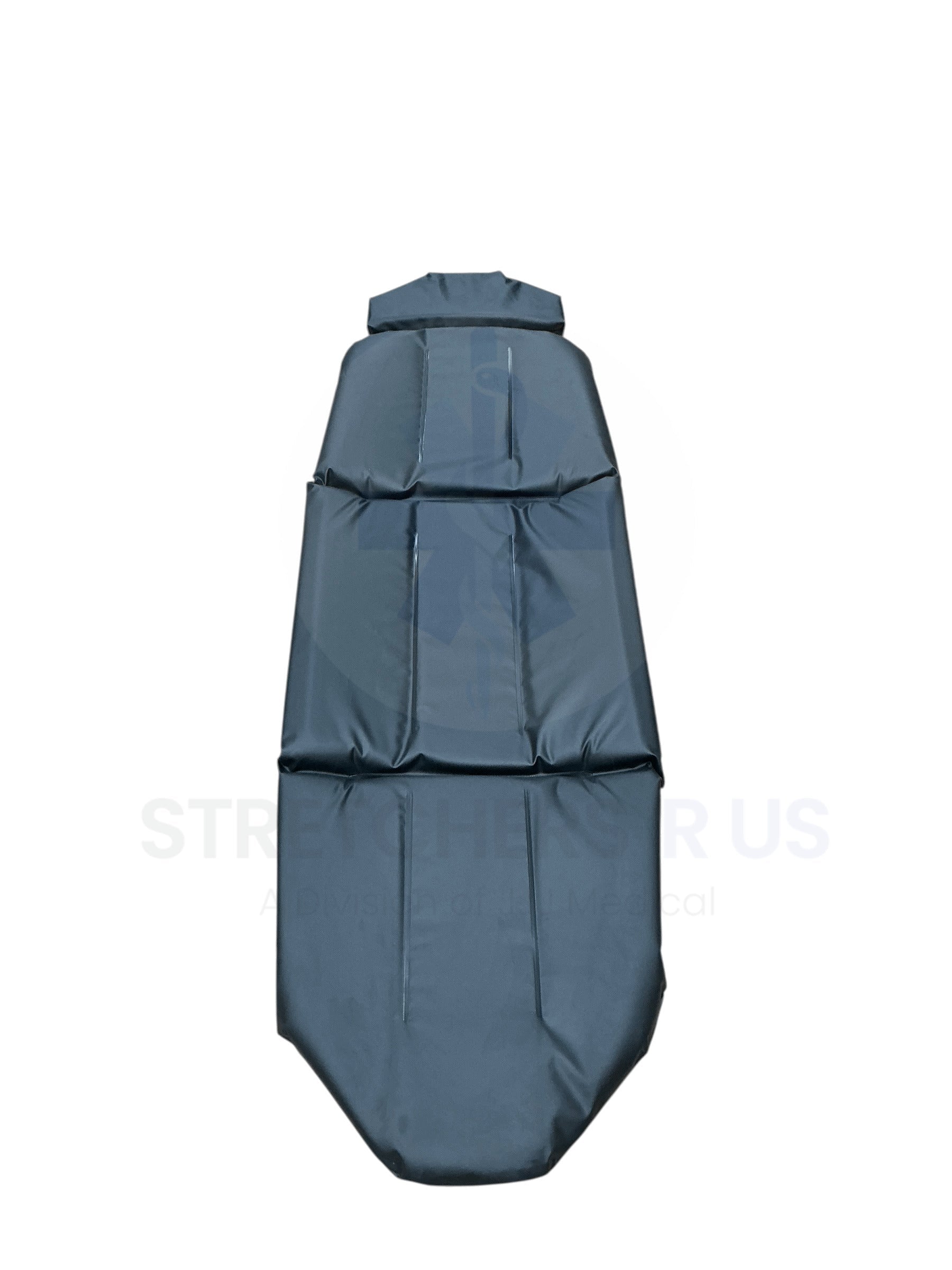

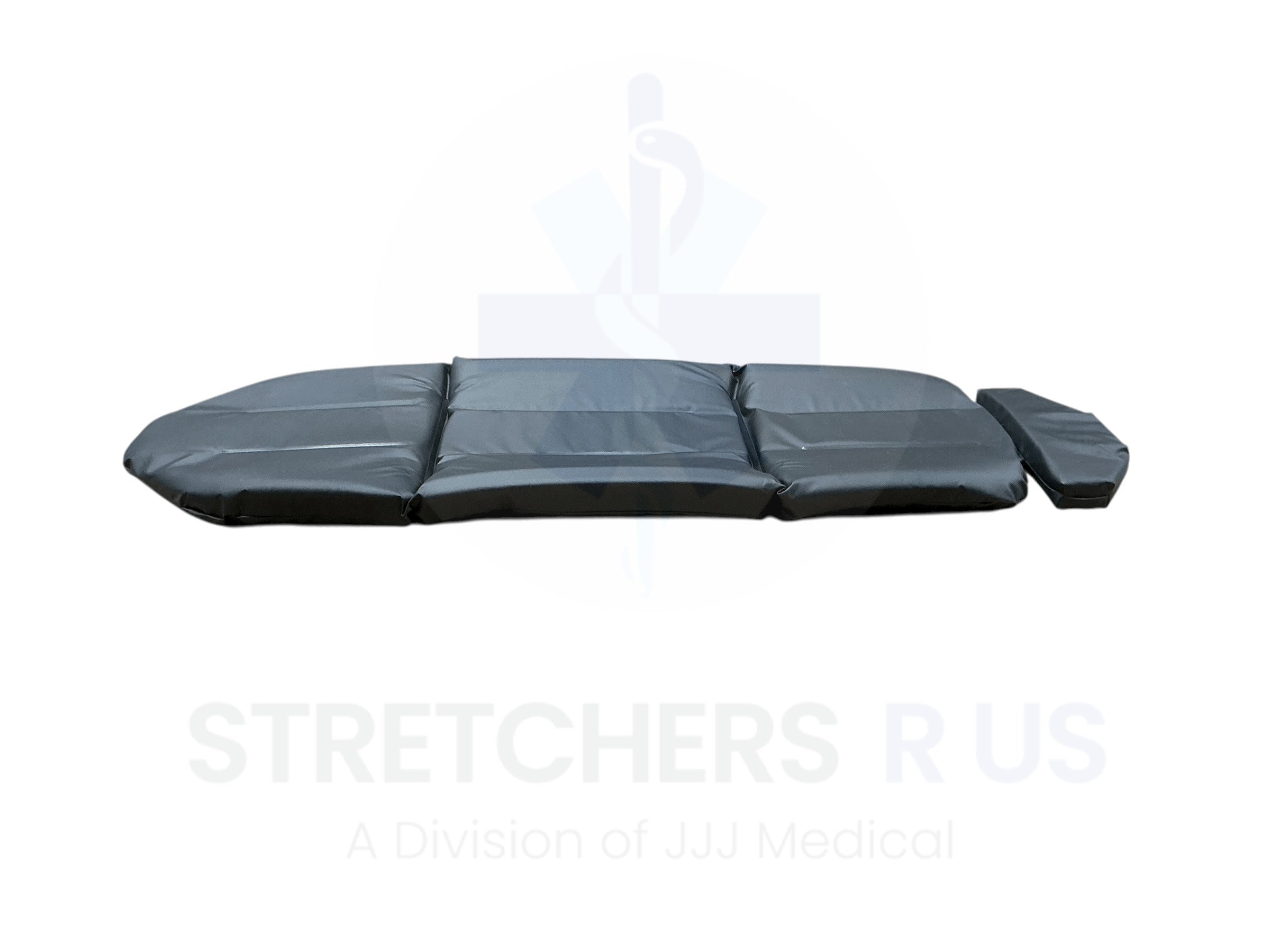

Knee Gatch Mattress Included: Includes an XPS-compatible mattress designed to accommodate the cot’s knee-gatch positioning and expanded siderail configuration.
-
Reduced Transfer Gap: The XPS-specific mattress design helps minimize the space between the mattress and siderails during lateral patient transfers.
-

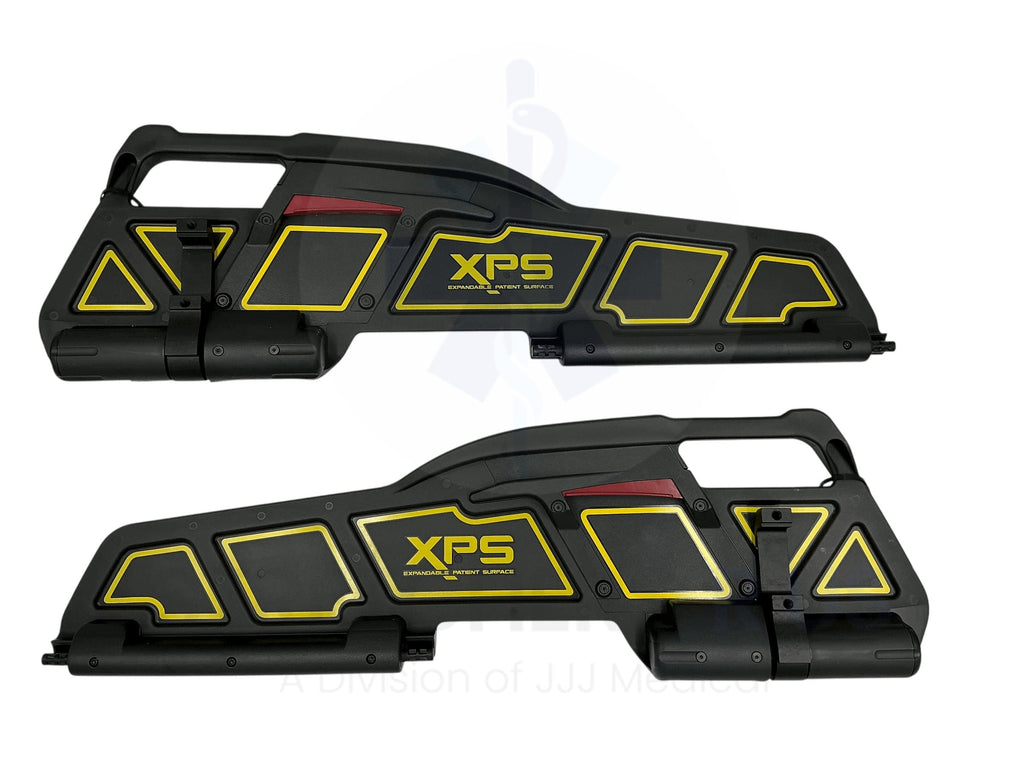

Durable Siderail Construction: Features a sturdy aluminum-core, over-molded design developed for repeated emergency transport use.
-
Integrated Release Handles: Provides accessible controls for adjusting the expandable siderails between their available locking positions.
-
Retrofit Configuration: Designed to upgrade compatible existing Stryker ambulance cots without requiring replacement of the complete cot.
-
Safety-Tested Design: The XPS system is designed to comply with applicable cot tip-stability and dynamic crash-testing requirements when correctly installed on a compatible cot.
- Fully Refurbished Package: Components are inspected, serviced, cleaned, and tested for proper operation. Cosmetic wear may remain from previous service without affecting intended function.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Stryker |
| Manufacturer Part Number | 6506700004 |
| Formatted Part Number | 6506-700-004 |
| Product Name | XPS Retrofit Kit with Knee Gatch Mattress |
| Product Type | Expandable Patient Surface Retrofit Kit |
| Condition | Fully Refurbished |
| Primary Compatibility | Stryker Power-PRO XT Models 6500 and 6506 |
| Additional Compatible Cot Families | Power-PRO TL and Performance-PRO XT with the Correct Installation Configuration |
| Patient Surface Width | Adjustable from Approximately 23 to 33 in |
| Siderail Positions | Seven Locking Positions |
| Siderail Construction | Aluminum-Core Over-Mold Design |
| Mattress Type | XPS Knee Gatch Mattress |
| Included Siderails | Two XPS Siderails |

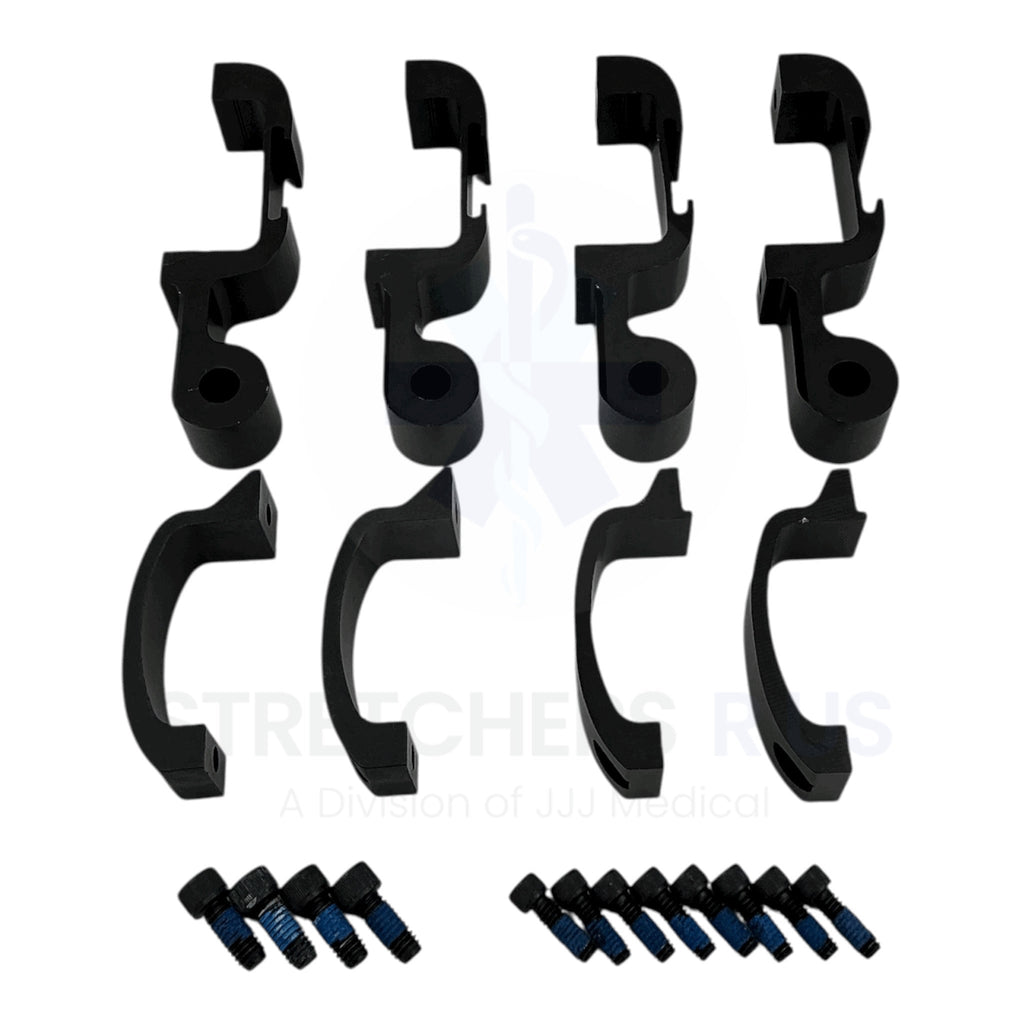

| Installation Hardware | Included |
| Ambulance Cot Included | No |
| Included Components | Two XPS Siderails, XPS Knee Gatch Mattress, and Cot-Specific Mounting Hardware |
