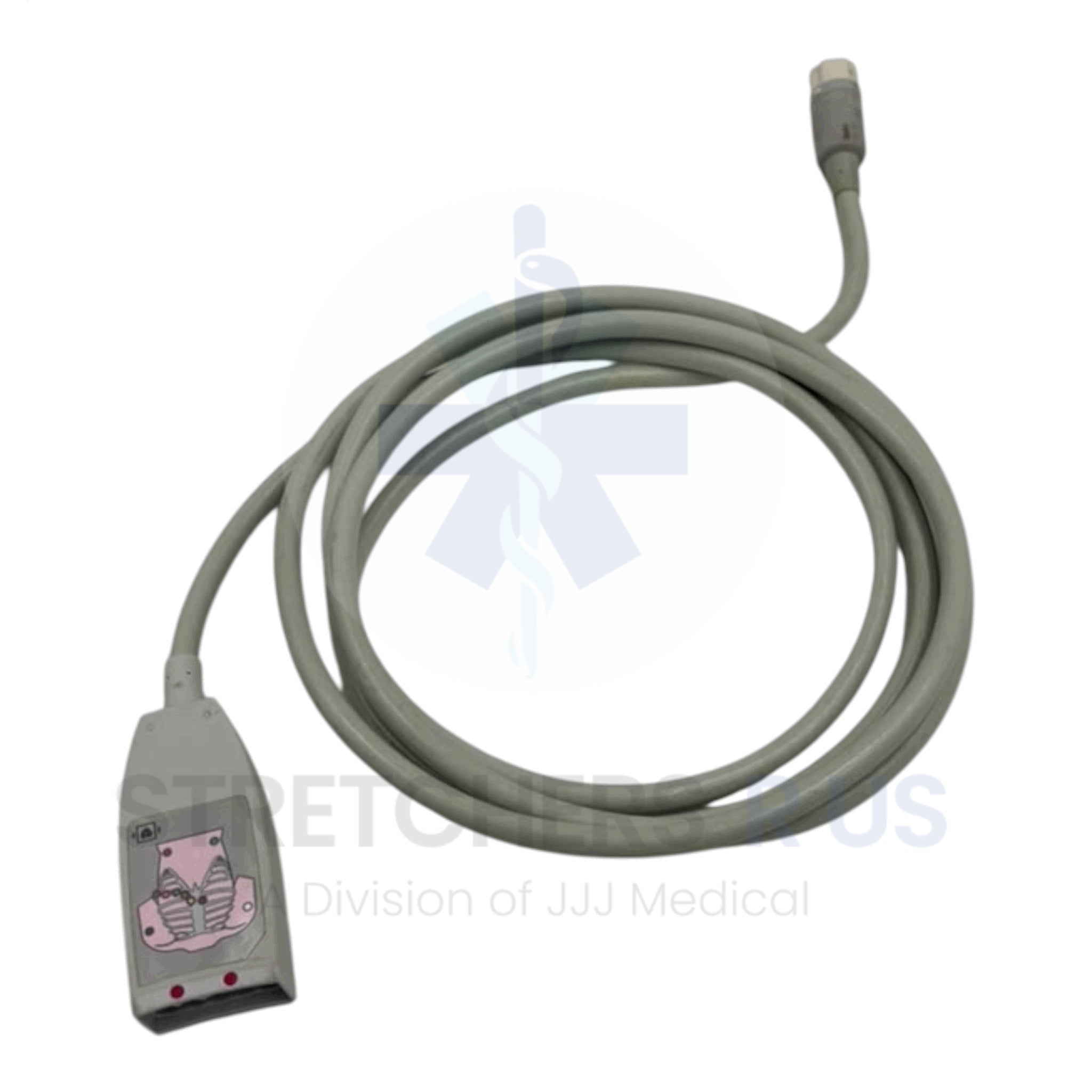

The Philips M3525A | 10-Lead ECG Trunk Cable is a reusable patient-monitoring cable designed to connect compatible ECG lead sets to supported Philips monitoring and defibrillation equipment. Its 10-lead configuration supports ECG acquisition through a dedicated trunk-cable connection while allowing the individual patient lead sets to be connected separately.
The cable features a 12-pin monitor-side connector and two 5-pin lead-set connections for attaching compatible limb and chest lead sets. Designed for use with supported Philips HeartStart MRx monitor/defibrillators, the M3525A provides the connection required for compatible 3-lead and diagnostic 12-lead ECG monitoring configurations.
Key Performance Features
-
10-Lead ECG Configuration: Supports compatible limb and chest lead sets used for ECG monitoring and diagnostic 12-lead acquisition.
-

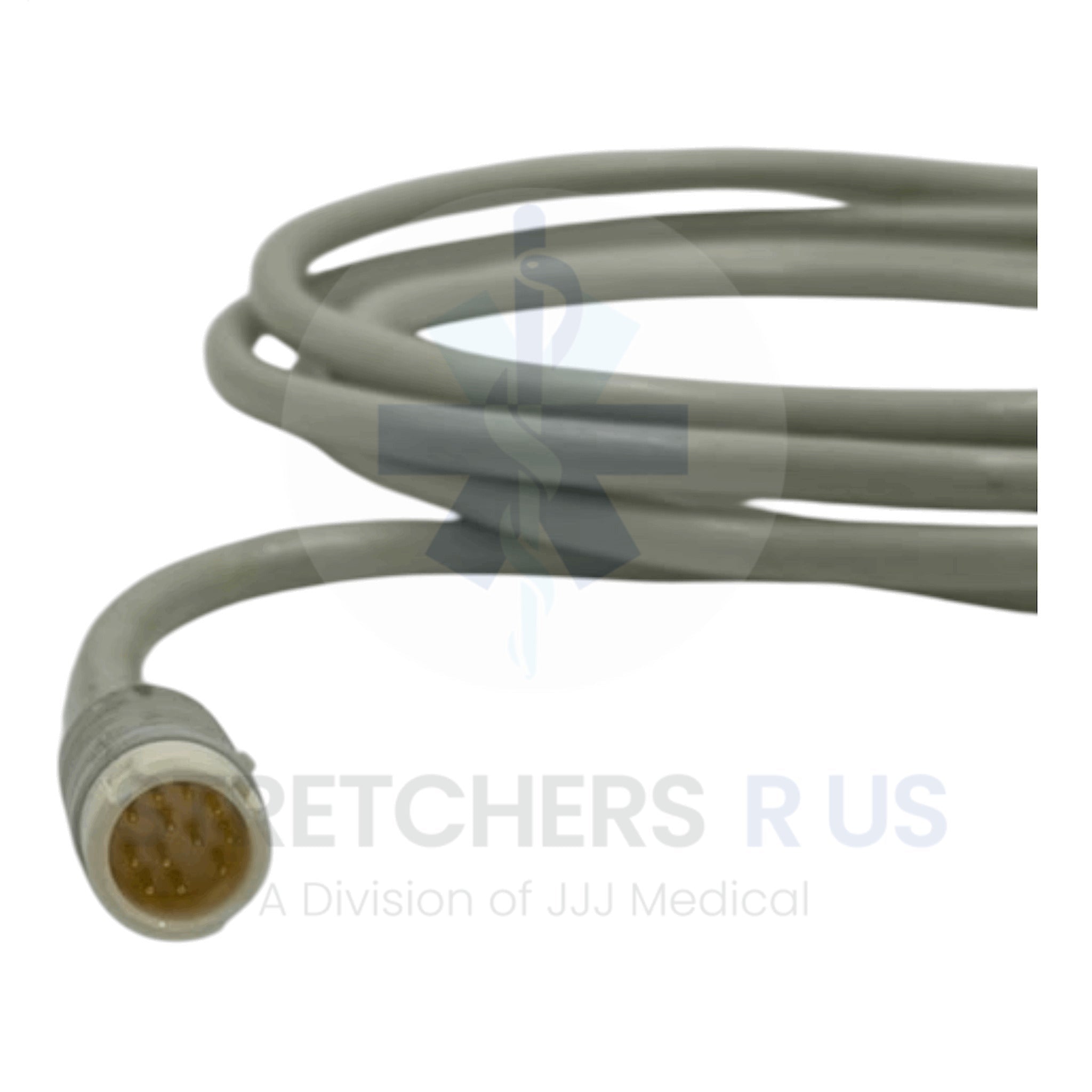

12-Pin Monitor Connector: Connects directly to the compatible ECG input port on supported Philips monitoring equipment.
-

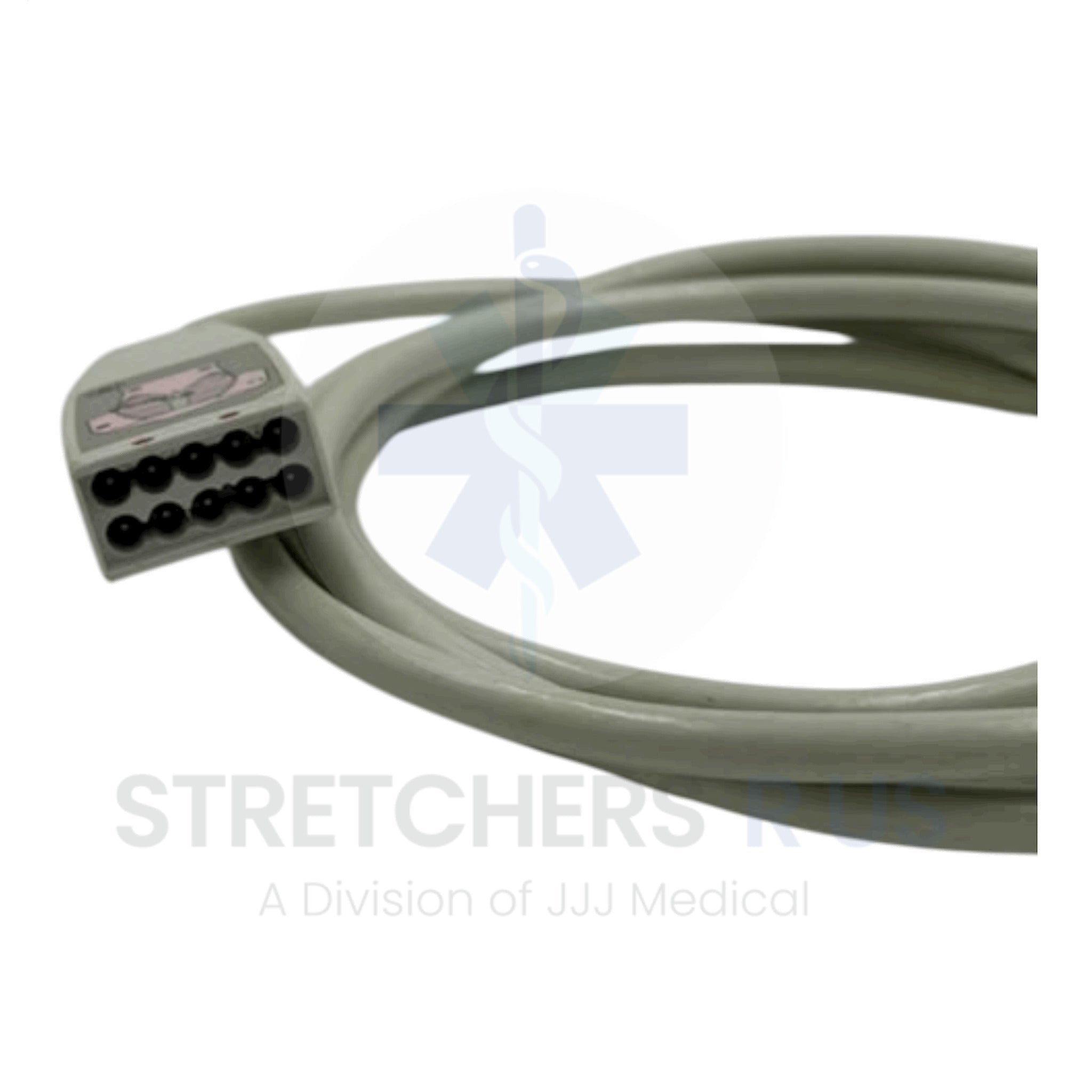

Dual Lead-Set Interface: Features two 5-pin connections for attaching compatible ECG limb and chest lead sets.
-
HeartStart MRx Compatibility: Identified for use with Philips HeartStart MRx M3535A, M3536A, and M3536M monitor/defibrillators.
-
Multiple ECG Applications: Supports compatible 3-lead monitoring and diagnostic 12-lead ECG configurations when used with the appropriate lead sets.
-
Reusable Cable Design: Intended for repeated use as part of a compatible patient-monitoring cable system.
- Separate Lead-Set Connection: Allows compatible patient lead sets to be connected to or removed from the trunk cable without replacing the monitor-side cable.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Philips |
| Manufacturer Part Number | M3525A |
| Alternate Part Number | 989803128951 |
| Product Type | ECG Trunk Cable |
| Lead Configuration | 10-Lead (5 + 5) |
| Monitor-Side Connector | 12-Pin |
| Lead-Set Connections | Two 5-Pin Connections |
| Equipment Compatibility | Philips HeartStart MRx M3535A, M3536A, and M3536M |
| ECG Applications | Compatible 3-Lead and Diagnostic 12-Lead ECG Monitoring |
| Reusable / Disposable | Reusable |
