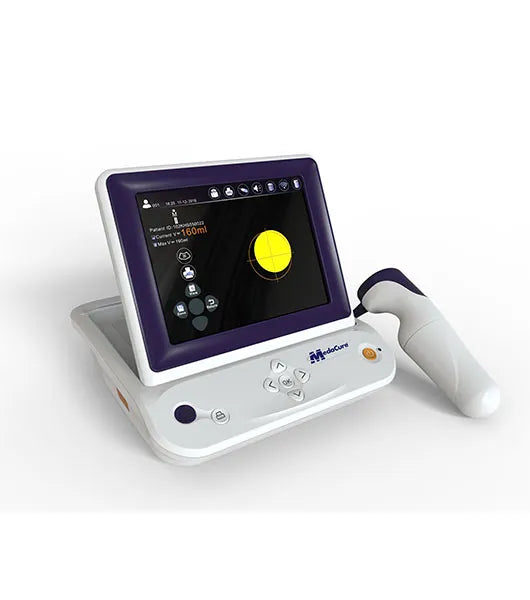

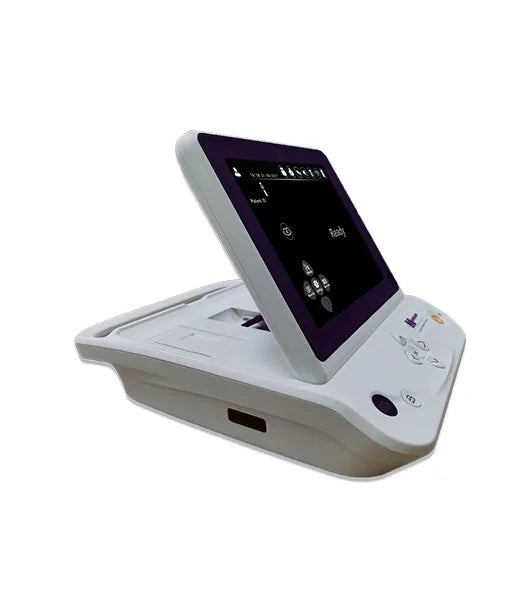

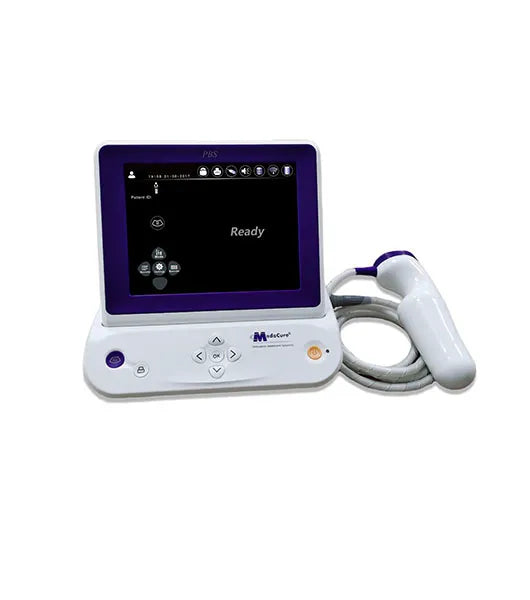

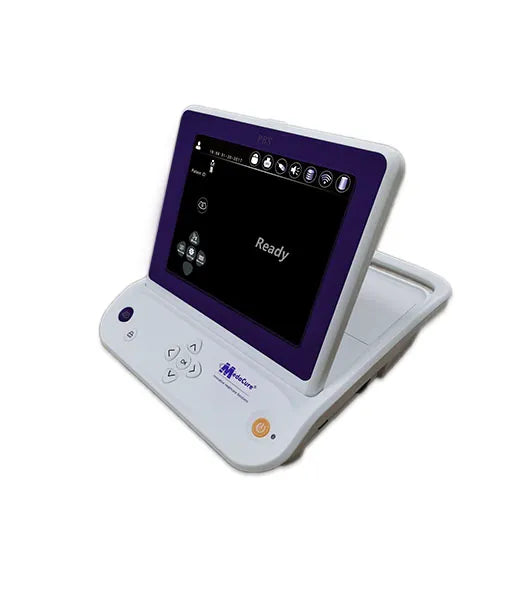

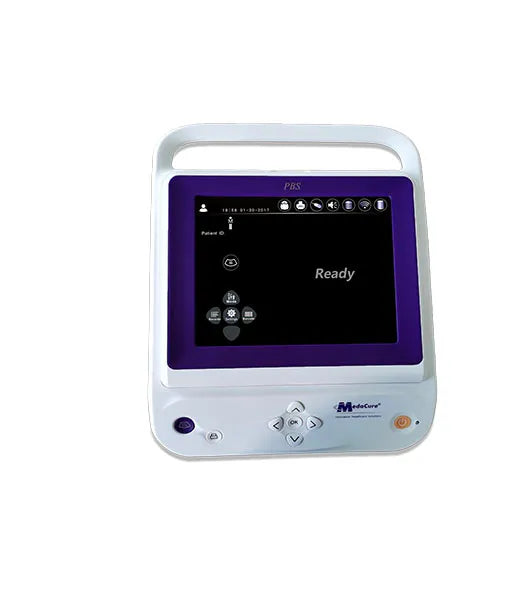

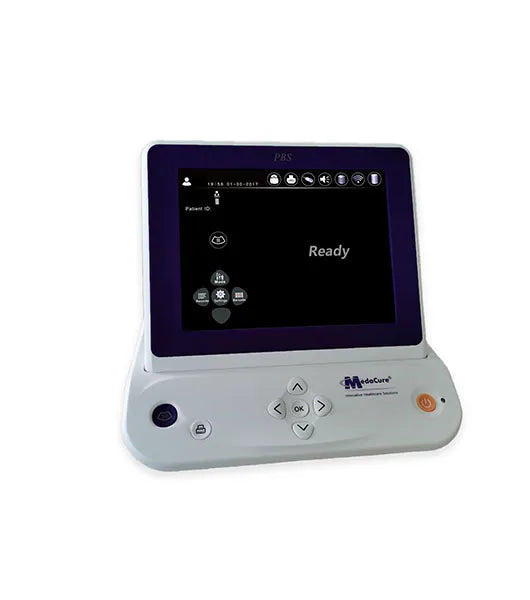

The Medacure PBS5.1 Professional Bladder Scanner is a non-invasive diagnostic ultrasound system designed to accurately measure bladder volume using advanced 3D ultrasound technology. Engineered for hospitals, rehabilitation centers, urology practices, long-term care facilities, and clinical environments, the system provides bladder volume assessments without catheterization, improving patient comfort while supporting efficient clinical workflows.
The scanner incorporates a patented volumetric algorithm, real-time imaging, and an intuitive positioning system designed to assist clinicians in obtaining accurate measurements, including post-void residual (PVR) assessments. An 8.4-inch color touchscreen, onboard data storage, integrated result evaluation system, and rechargeable battery operation support mobile use throughout a healthcare facility. :contentReference[oaicite:0]{index=0}
Key Performance Features
-
3D Ultrasound Technology: Non-invasive scanning system measures bladder volume without catheterization procedures.
-
Patented Volumetric Algorithm: Advanced measurement technology is designed to improve bladder volume assessment accuracy.
-

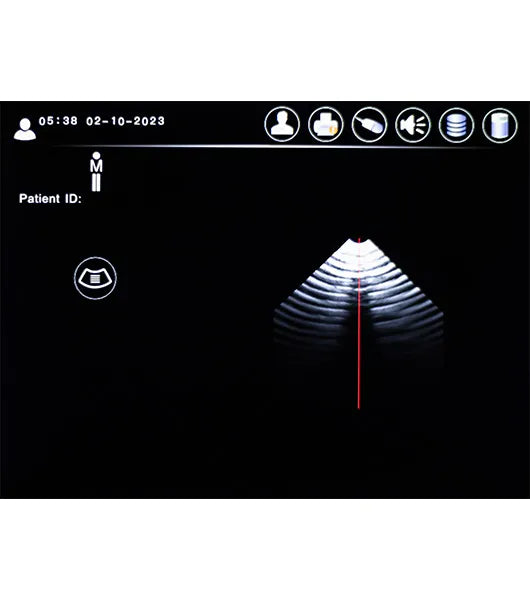

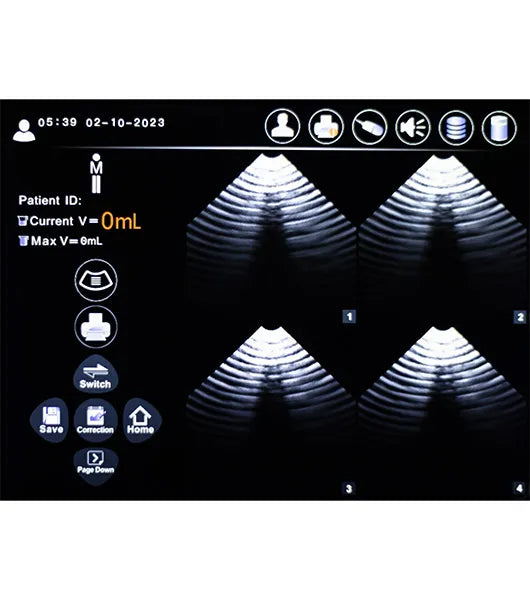

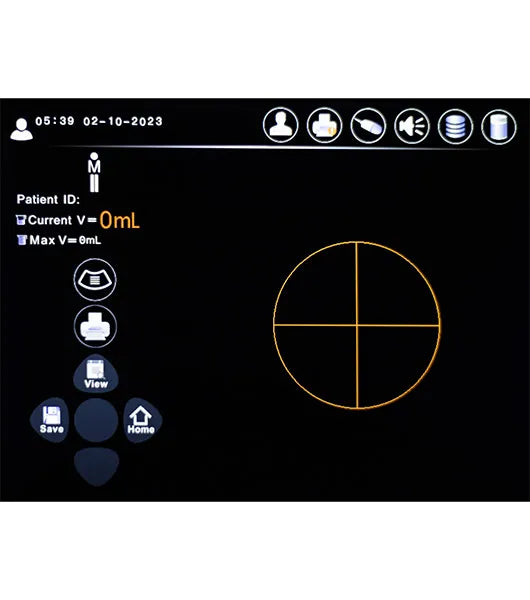

Real-Time Imaging: Assists clinicians in locating the optimal probe position during scanning procedures.
-
Result Evaluation System: Integrated system evaluates measurement reliability to support clinical decision-making.
-
Dual Operation Controls: Features both touchscreen operation and physical function keys for workflow flexibility.
-
Patient Data Storage: Stores patient records directly on the scanner and supports result printing through the integrated printer system.

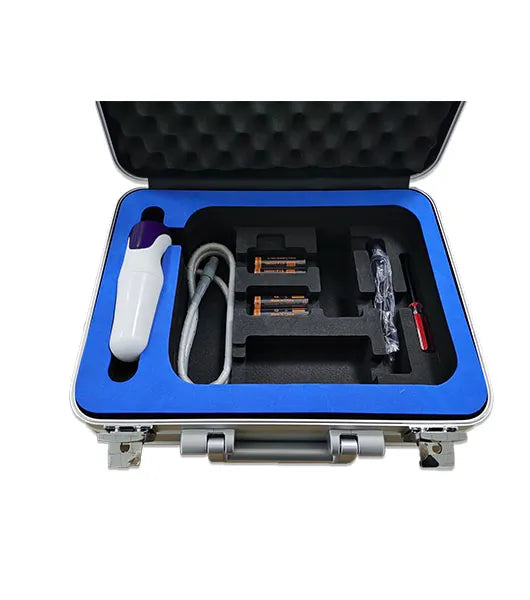

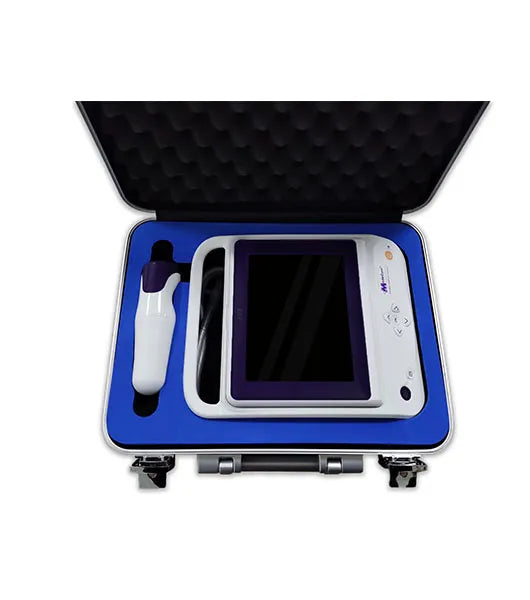

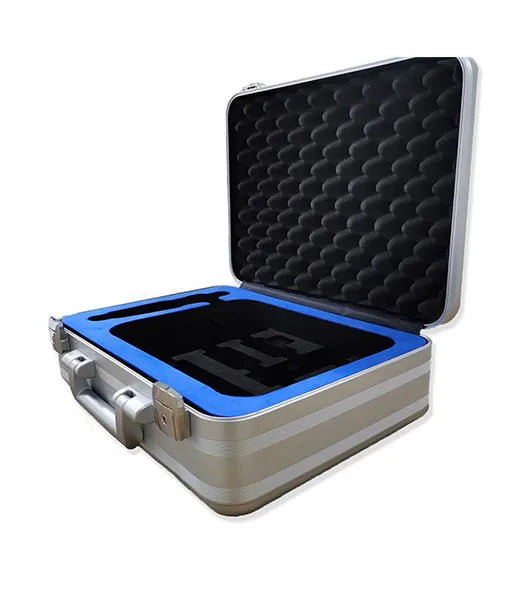

- Portable Rechargeable Design: Includes rechargeable battery system, charging accessories, and a metal carrying case for transport and storage.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Medacure |
| Model | PBS5.1 |
| Product Type | Professional Bladder Scanner |
| Technology | 3D Ultrasound Bladder Volume Measurement |

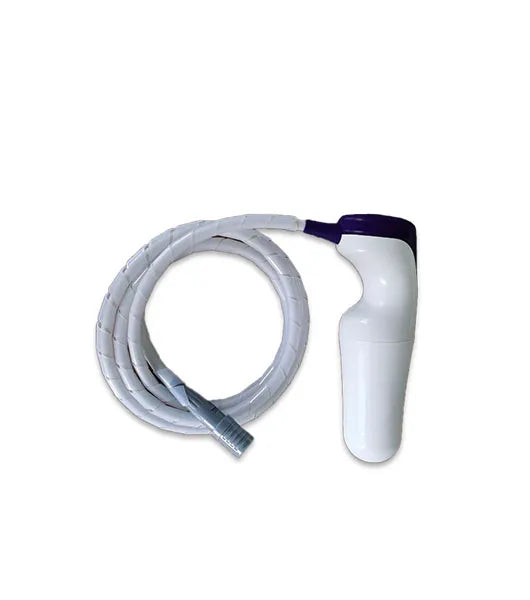

| Transducer Frequency | 2.6 MHz |
| Scan Method | 3D |
| Scan Depth | 140 mm |
| Scan Range | 0 – 999 mL |
| Error Range | ±15%, ±15 mL |
| Sway Angle | 95° ± 2° |
| Rotate Angle | 180° ± 2° |
| Storage Capacity | 100 Cases |
| Scan Modes | Male, Female, Pediatric |
| Patient ID Capacity | 12 Digits Maximum |
| Display | 8.4" Color LCD TFT Touch Screen |
| Power Supply | 4 Rechargeable Batteries Included |
| Battery Runtime | Approximately 4 Hours |
| Battery Charge Time | Approximately 4 Hours |
| Interface | USB 2.0 |
| Included Accessories | Metal Carrying Case, External Charging Kit, Extra Set of Rechargeable Batteries |
| Warranty | 3 Years Scanner, 2 Years Probe |
