LIFEPAK CR Plus Replacement Kit for Charge-Pak

Physio-Control LIFEPAK CR Plus / EXPRESS AED CHARGE-PAK Kit (Includes Pad & Battery)

Product Overview

The Physio-Control LIFEPAK CR Plus / EXPRESS CHARGE-PAK is an OEM replacement kit designed for use with the LIFEPAK CR Plus and LIFEPAK EXPRESS automated external defibrillators. This all-in-one kit replaces both the battery system and defibrillation electrode pad, which are designed by the manufacturer to be serviced and replaced together.

The CHARGE-PAK system ensures the AED remains ready for emergency use by providing long-term standby power and preconnected electrode pads.

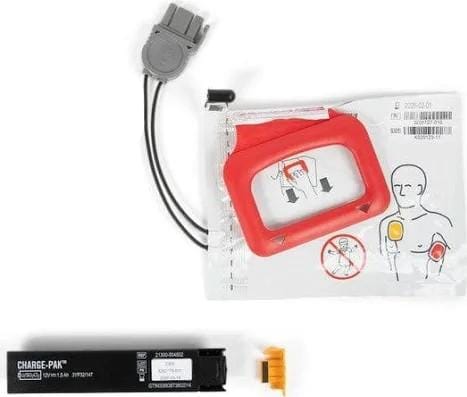

What’s Included

• 1 × CHARGE-PAK lithium battery / charging unit

• 1 × set of adult defibrillation electrode pads

• Integrated discharger, used to safely deplete a spent CHARGE-PAK prior to disposal or recycling

Important: The battery/discharger and electrode pads are supplied only as a combined kit and are not available separately. Both components must be replaced at the same time after use or upon expiration.

Key Specifications

• Battery Type: Lithium (non-rechargeable)

• Standby Life: Up to 2 years

• Energy Output Capability:

  • Approximately 166 shocks at 200 joules, or

  • Approximately 103 shocks at 360 joules

• Estimated Operating Time: Up to 800 minutes

• Electrode Pad Replacement Interval:

  • Every 2 years, or

  • Immediately after patient use

• OEM Part Number: 11403-000002

• Alternate / Cross-Reference Part Numbers:
  3200727-002, 3200727-005, 3200731-002, 3200731-003, 3200731-009,
  3201616-001, 3201616-003,
  3202176, 3202176-003, 3202176-005, 3202176-006, 3202176-007, 3202176-008, 3202176-010,
  11403-000001

Compatibility

This CHARGE-PAK kit is only compatible with the following AED models:

• Physio-Control LIFEPAK CR Plus AED

• Physio-Control LIFEPAK EXPRESS AED

These AED models have been discontinued by the manufacturer and are no longer available for new purchase. This CHARGE-PAK is intended for continued support of existing devices in service.

Replacement Overview (General Guidance)

1. Place the AED face up on a flat surface

2. Locate the battery compartment at the lower portion of the unit

3. Slide the existing CHARGE-PAK out

4. Align the new CHARGE-PAK with the compartment rails

5. Insert until fully seated and locked in place

(Always follow manufacturer instructions and facility protocols when servicing AEDs.)

Notes

• This listing is for the CHARGE-PAK kit only

• AED device not included

• Designed for emergency response readiness and regulatory compliance

• Replacement of battery and pads simultaneously is required by OEM design
