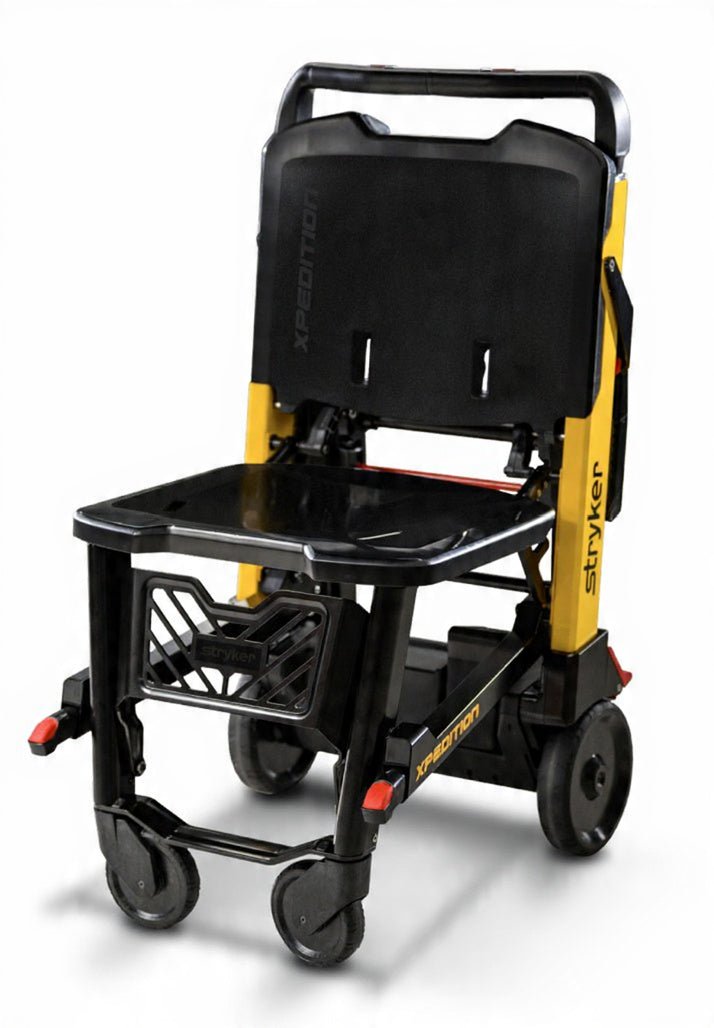

The Stryker 625705550001 | Xpedition Powered Stair Chair is a powered EMS transport chair designed to assist caregivers with moving seated patients up and down stairs. Its powered track system helps reduce the physical effort associated with stair transport, while multiple speed settings and conveniently positioned activation controls allow operators to manage movement according to the patient, staircase, and surrounding environment.

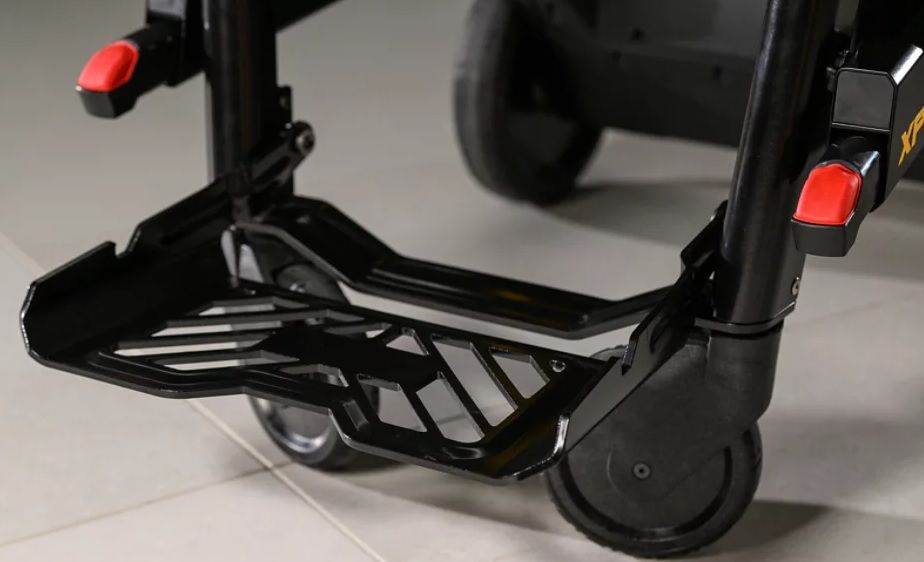

The Xpedition supports a safe working load of up to 500 lb and includes a rechargeable universal lithium-ion battery, patient containment system, ankle restraint, footrest, lower lift handles, IV hook, and upper carry handles. Large transport wheels support movement across level surfaces, while integrated head-end and foot-end lights improve visibility around the patient and chair. The unit folds to a compact 8-inch depth for storage inside an ambulance or equipment area.
Key Performance Features
-
Powered Stair Transport: Uses a powered track system to assist caregivers when transporting seated patients up and down compatible stairways.
-

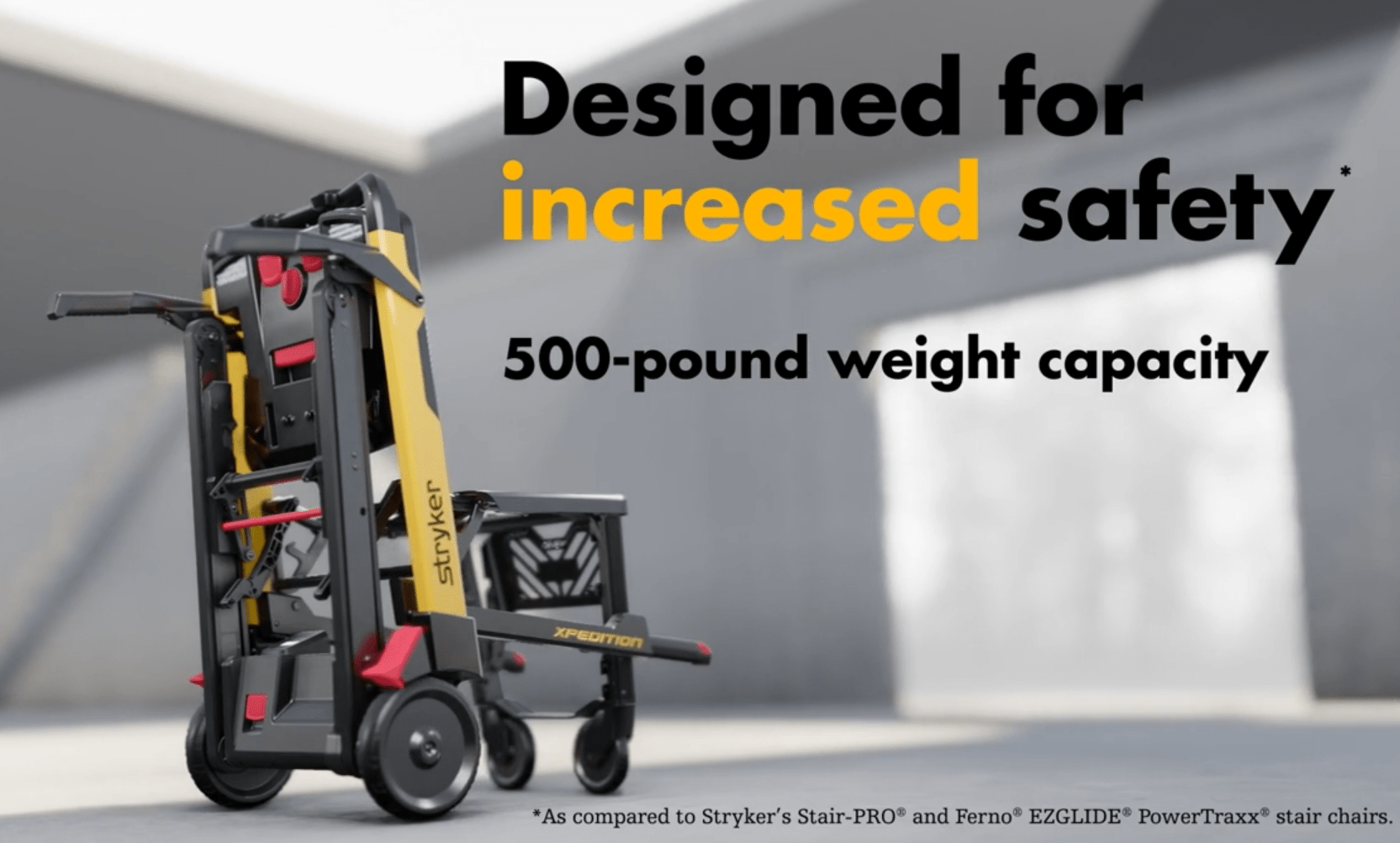

500 lb Safe Working Load: Supports a combined patient, equipment, and accessory load of up to 500 lb.
-
Multiple Speed Settings: Allows the operator to select an appropriate powered-track speed for the patient and transport environment.
-

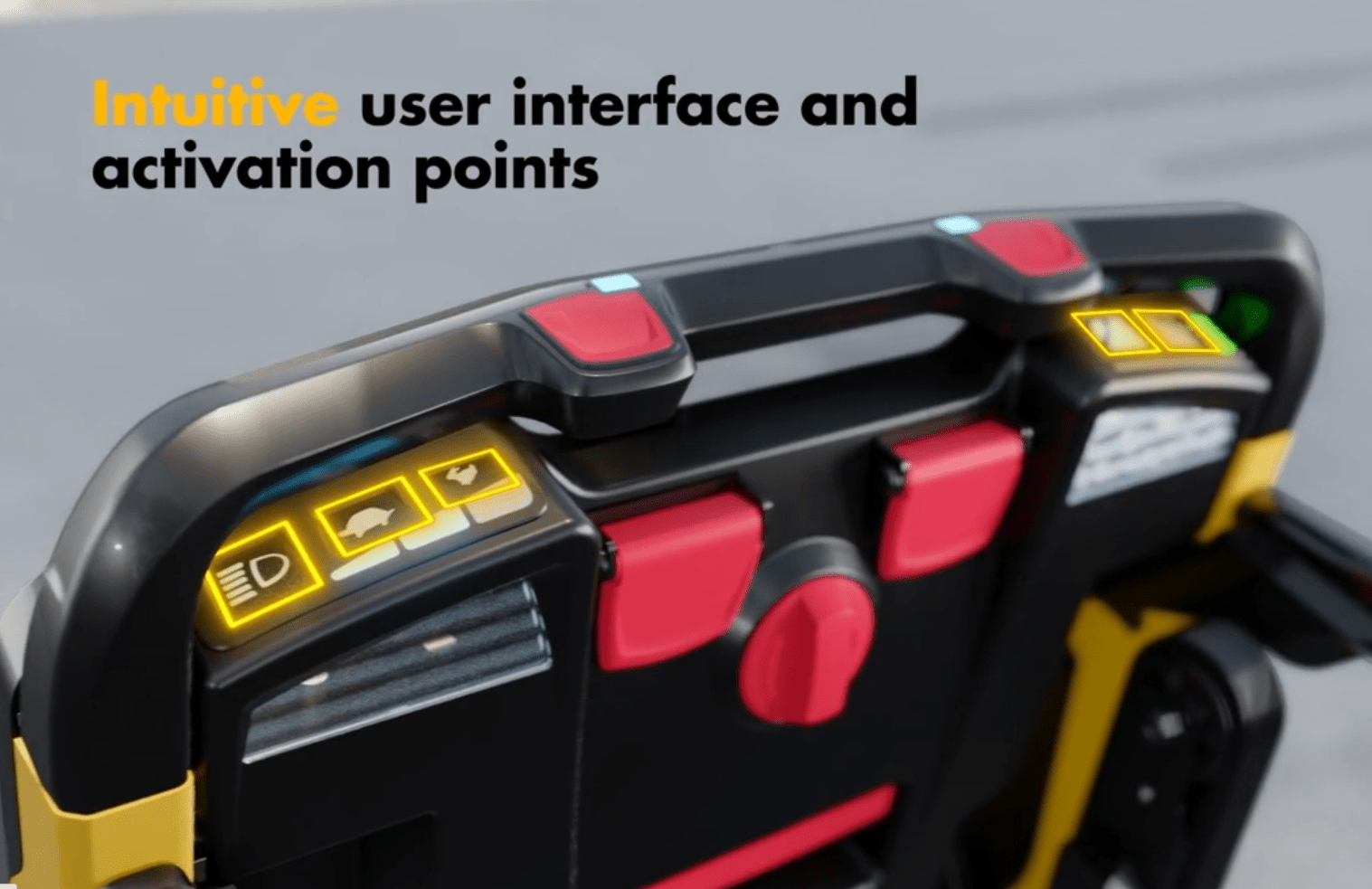

Convenient Activation Controls: Provides accessible controls for operating the powered track during stair ascent and descent.
-

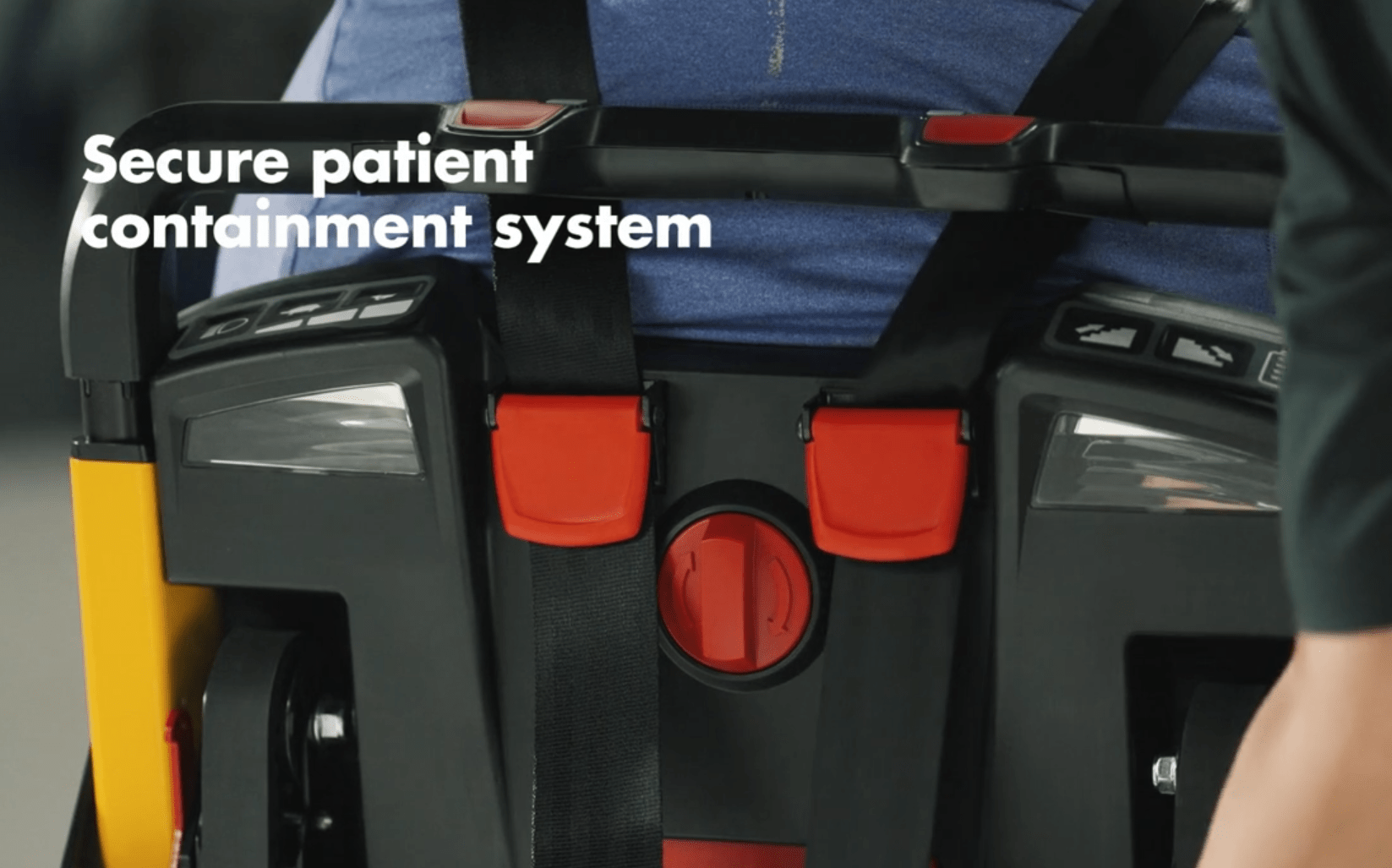

Patient Containment System: Includes a dedicated restraint system designed to help position and secure the patient during transport.
-

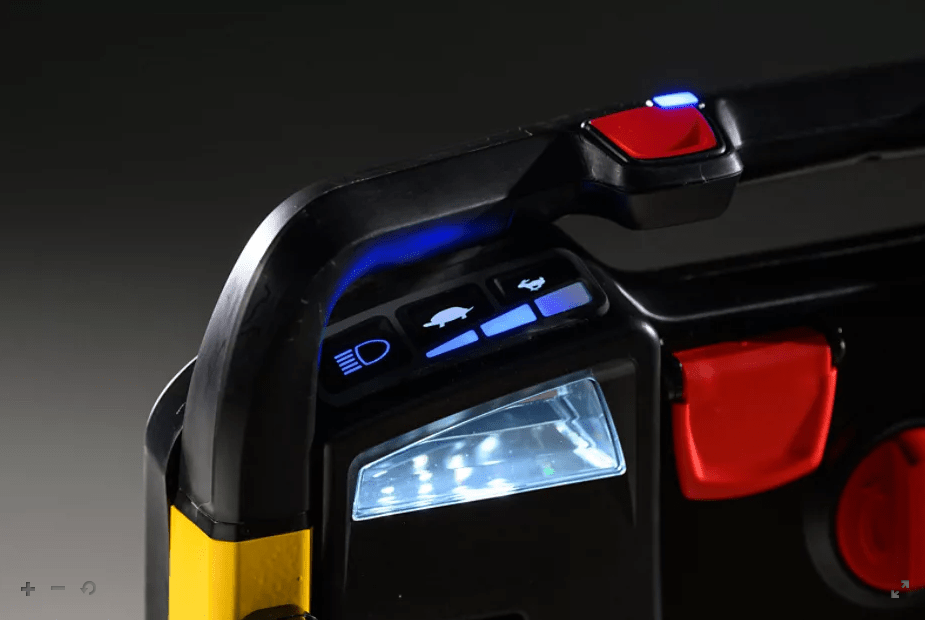

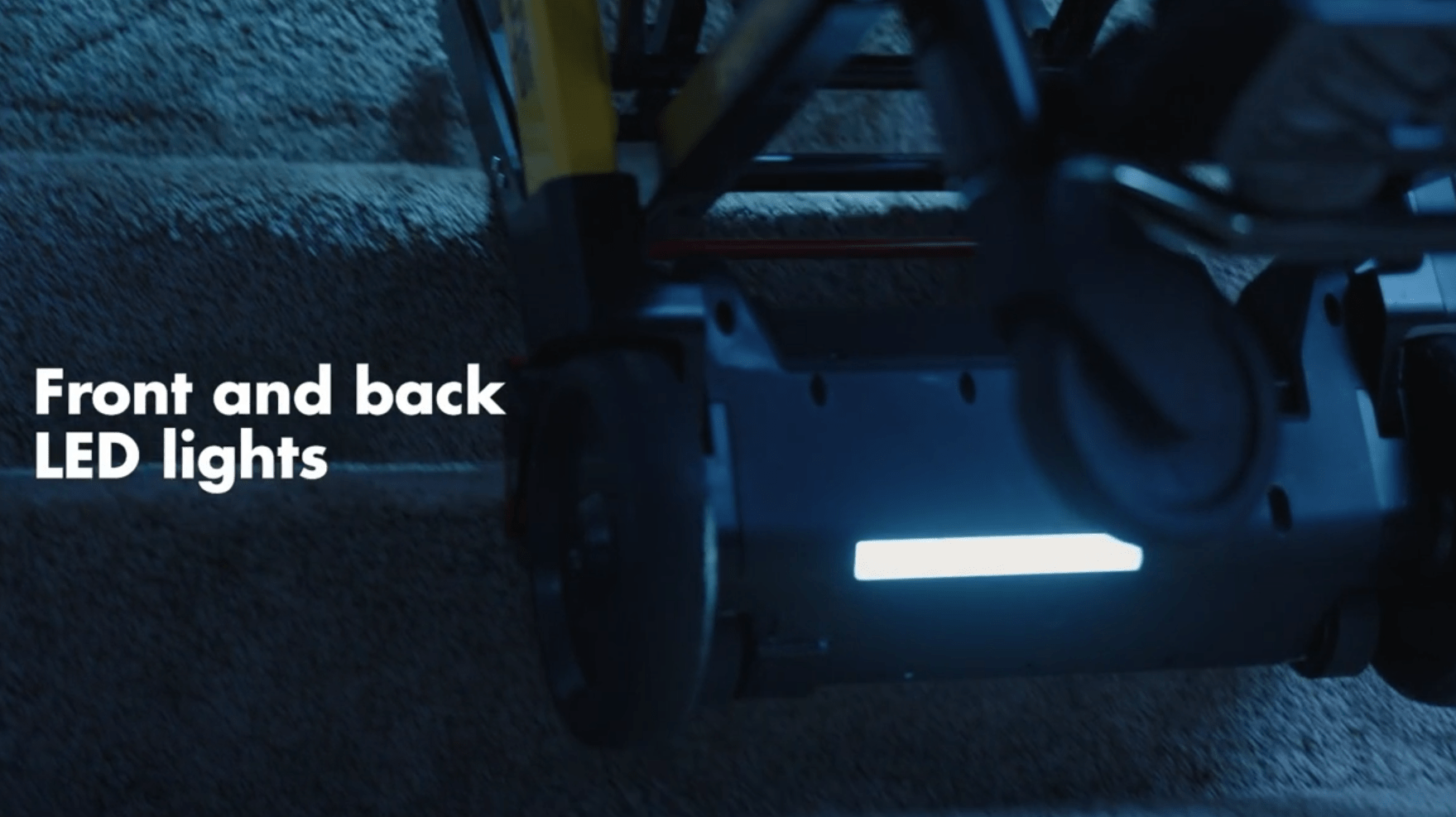

Integrated Scene Lighting: Head-end and foot-end lights help improve visibility around the chair, patient, stairs, and surrounding environment.
-
Flexible Stair Track: The flexible track belt conforms to stair surfaces to provide traction while helping limit damage to finished staircases.
-
Improved Ground Clearance: Designed to transition over obstacles and move between level flooring and stairways with increased track clearance.
-
Large Transport Wheels: Supports controlled maneuvering across a variety of indoor and outdoor level surfaces.
-
Compact Folded Profile: Folds to an 8-inch depth for space-efficient storage inside an ambulance or equipment area.
-
Universal Lithium-Ion Battery: Uses Stryker’s rechargeable universal battery platform for powered operation.
- Complete Patient Transport Setup: Includes the battery, patient restraints, footrest, lower lift handles, IV hook, and upper carry handles associated with this product configuration.

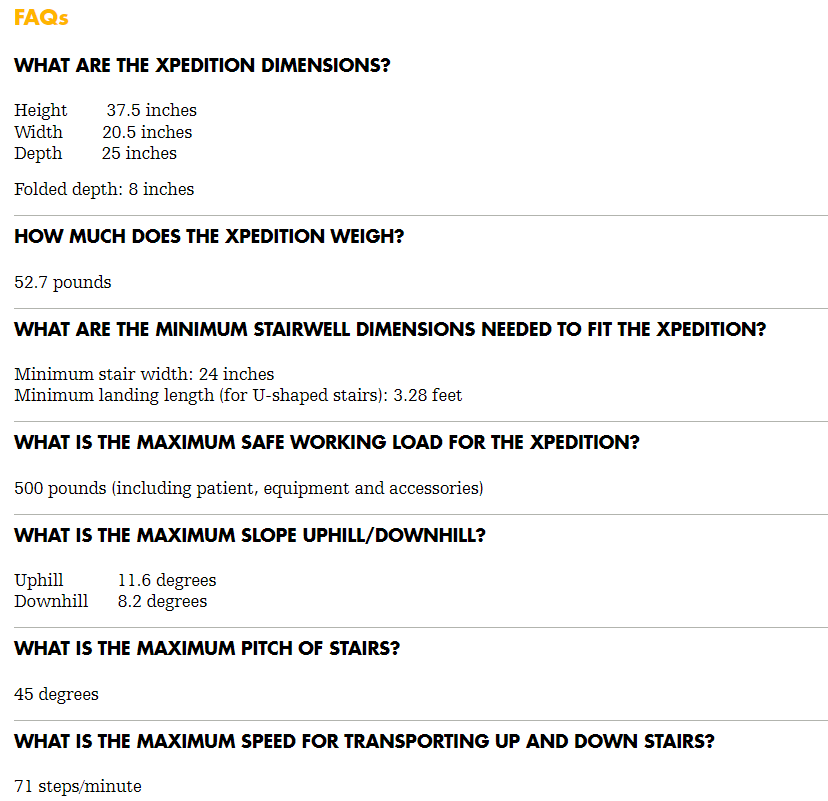

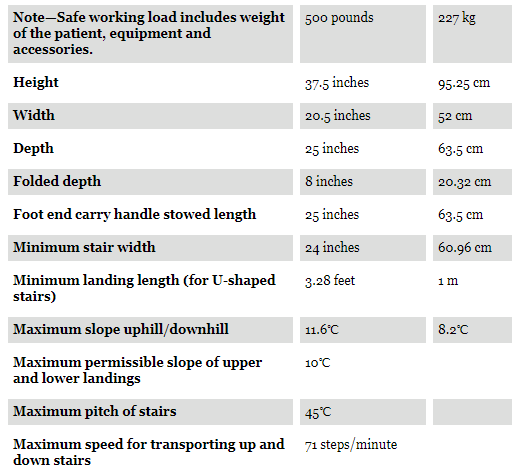

Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Stryker |
| Manufacturer Part Number | 625705550001 |
| Model | 6257 Xpedition |
| Product Type | Powered EMS Stair Chair |
| Safe Working Load | 500 lb, Including Patient, Equipment, and Accessories |
| Chair Weight | 52.7 lb |
| Operating Dimensions | 37.5 × 20.5 × 25 in |
| Folded Depth | 8 in |
| Maximum Stair Speed | 71 Steps per Minute |
| Maximum Stair Pitch | 45 Degrees |
| Maximum Uphill Slope | 11.6 Degrees |
| Maximum Downhill Slope | 8.2 Degrees |
| Minimum Stair Width | 24 in |
| Minimum Landing Length | 3.28 ft for U-Shaped Stairways |
| Power System | Rechargeable Universal Lithium-Ion Battery |
| Included Battery | 650707000002 |
| Patient Containment System | 625700100600 |
| Ankle Restraint | 625700100450 |
| Footrest Kit | 625707000009 |
| Lower Lift Handles | 625709990003 |
| IV Hook | Patient-Left IV Hook, 625700100260 |
| Upper Carry Handles | Upper Carry Handle Kit, 625707000008 |
