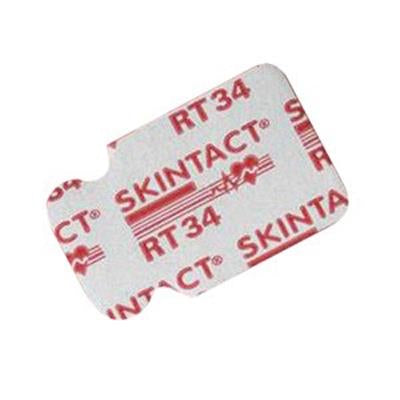

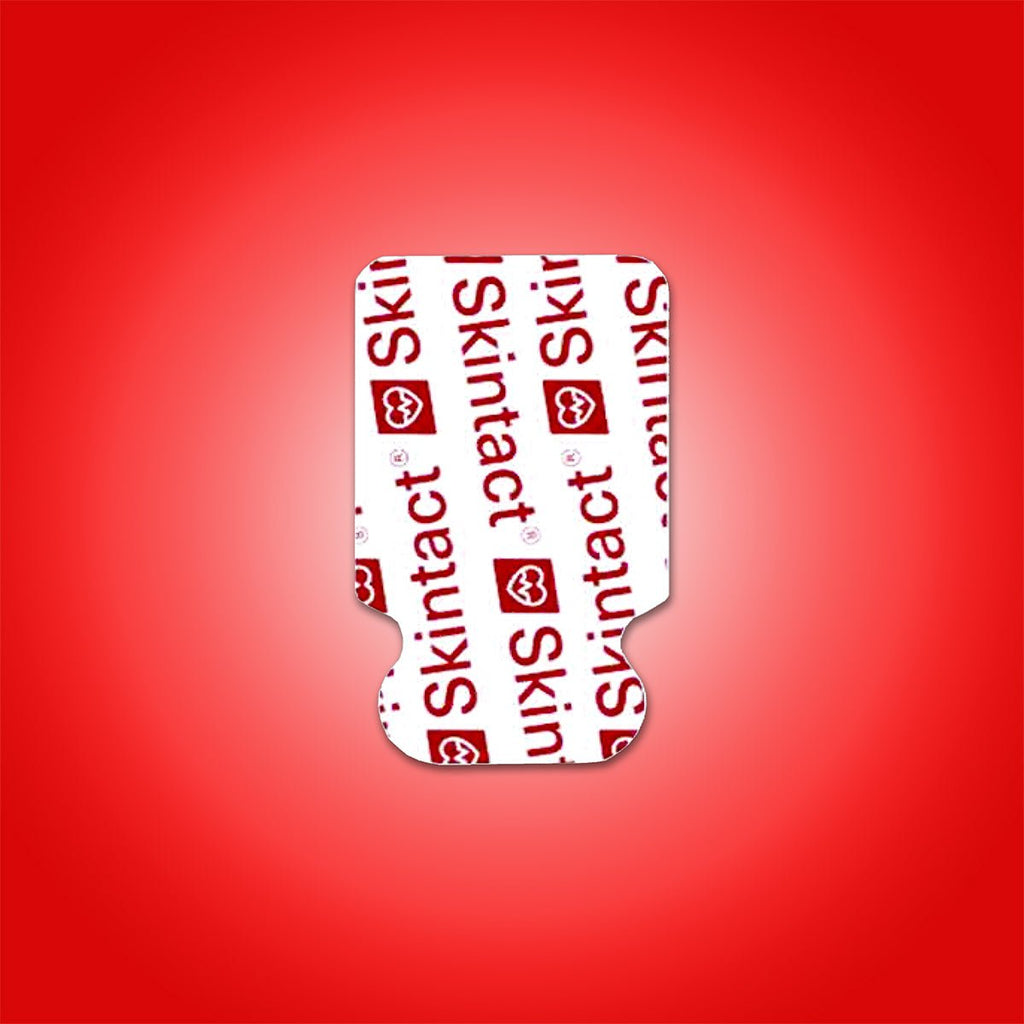

The Skintact RT-34 Resting ECG Tab Electrodes are premium, disposable pre-gelled electrodes designed for diagnostic resting 12-lead ECG procedures. The electrodes feature a specialized tab design and conductive adhesive Aqua-Tac hydrogel that creates a reliable electrical pathway, ensuring quick and clear signal tracing without requiring messy post-procedure cleanup.
Constructed using Leonhard Lang's unique C-LINE technology, the RT-34 incorporates a carbon-coated polyester-paper laminate backing for optimal baseline stability. The tab-style connection is engineered for use with standard alligator clips or universal adapter clips. PVC-free and latex-free construction prevents skin irritation, making it suitable for routine clinical use in physician offices, hospitals, outpatient clinics, and diagnostic testing environments.
Key Performance Features
-
Aqua-Tac Hydrogel: Solid conductive hydrogel provides immediate adhesion and high-quality signal transmission.
-
Easitab Connection System: Practical tab design allows easy attachment and secure grip for alligator and crocodile clips.
-
Infection Control: 100% disposable design eliminates cross-contamination risks associated with reusable electrodes.
-
Patient Comfort: Hypoallergenic backing peels off cleanly without leaving sticky residue or pulling skin hair.
- PVC & Latex Free: Manufactured without PVC or natural rubber latex to protect sensitive skin.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Skintact |
| Model | RT-34 |
| Product Type | Disposable ECG Electrode |
| Style | Resting Diagnostic ECG Tab |
| Dimensions | 22 mm x 34 mm (Adult Size) |
| Gel Type | Solid Conductive Aqua-Tac Hydrogel |
| Backing Material | Carbon-coated Polyester-Paper Laminate |
| Connector Type | Easitab (Tab Style) |
| Standards Compliance | Exceeds ANSI/AAMI EC12 Standard |
| PVC Free | Yes |
| Latex Free | Yes |
| Packaging | 10 Electrodes per Card, 100 per Pouch |
| Box Quantity | 500 Electrodes |
| Case Quantity | 5,000 Electrodes |
