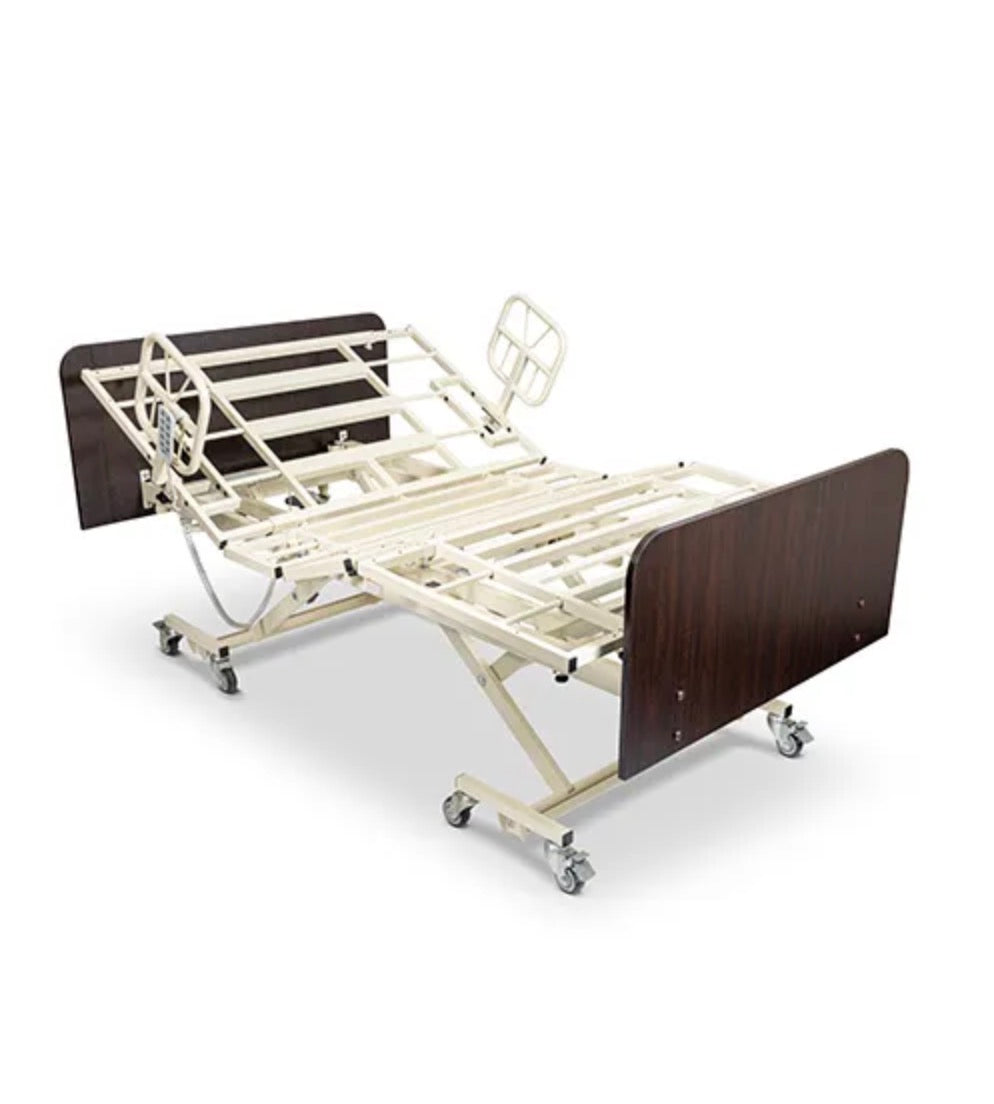

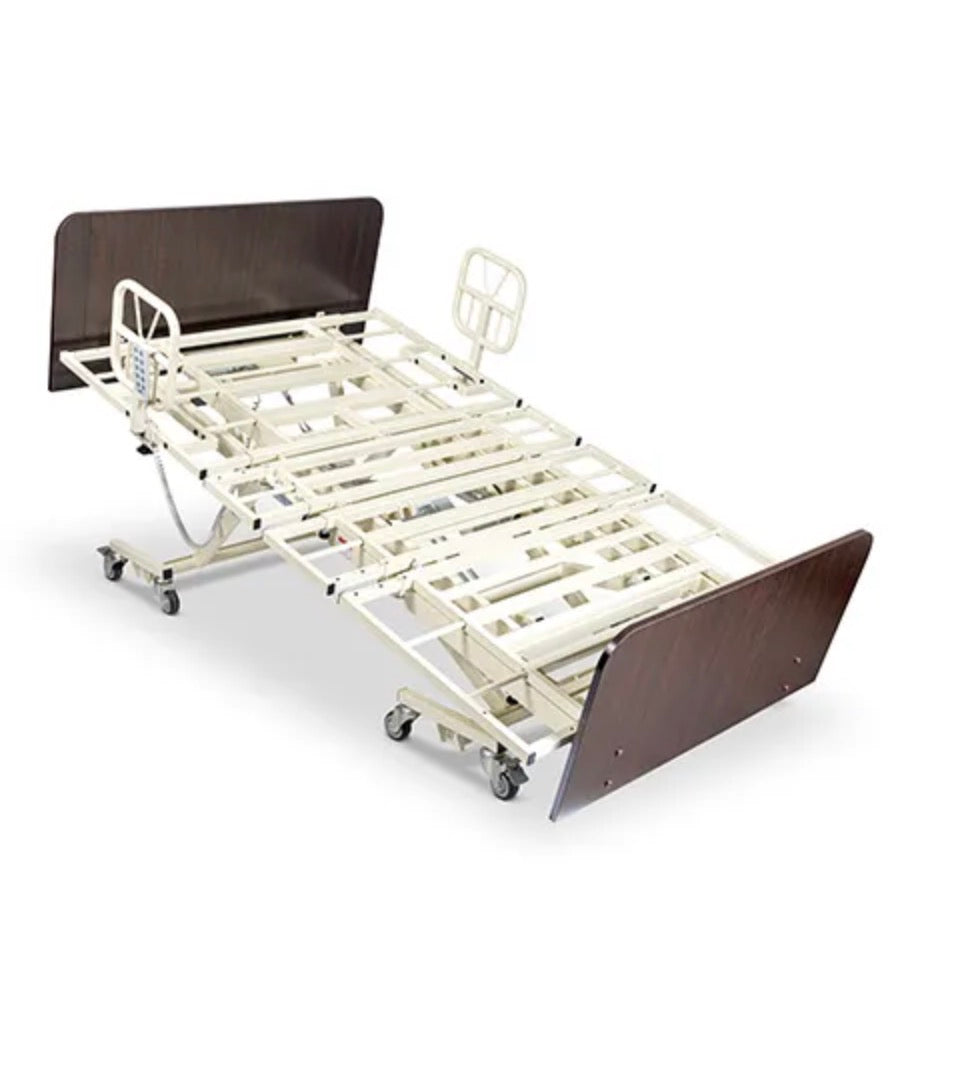

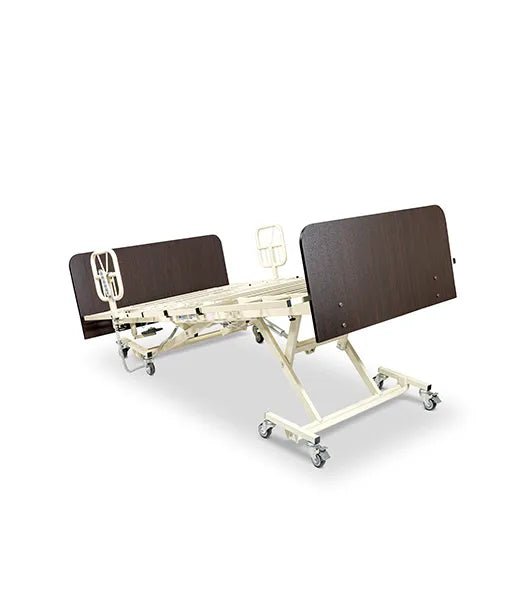

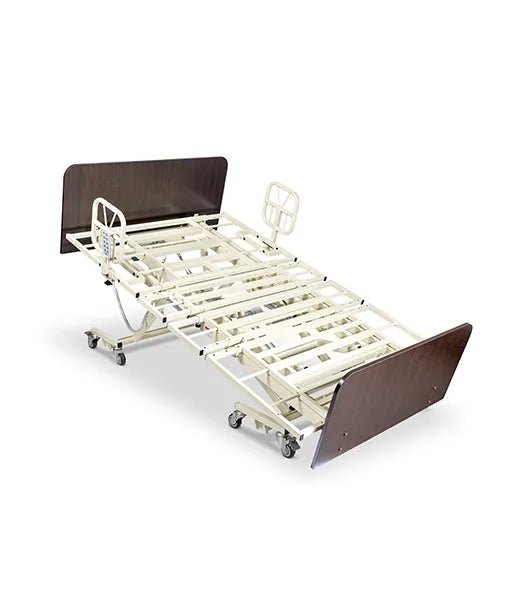

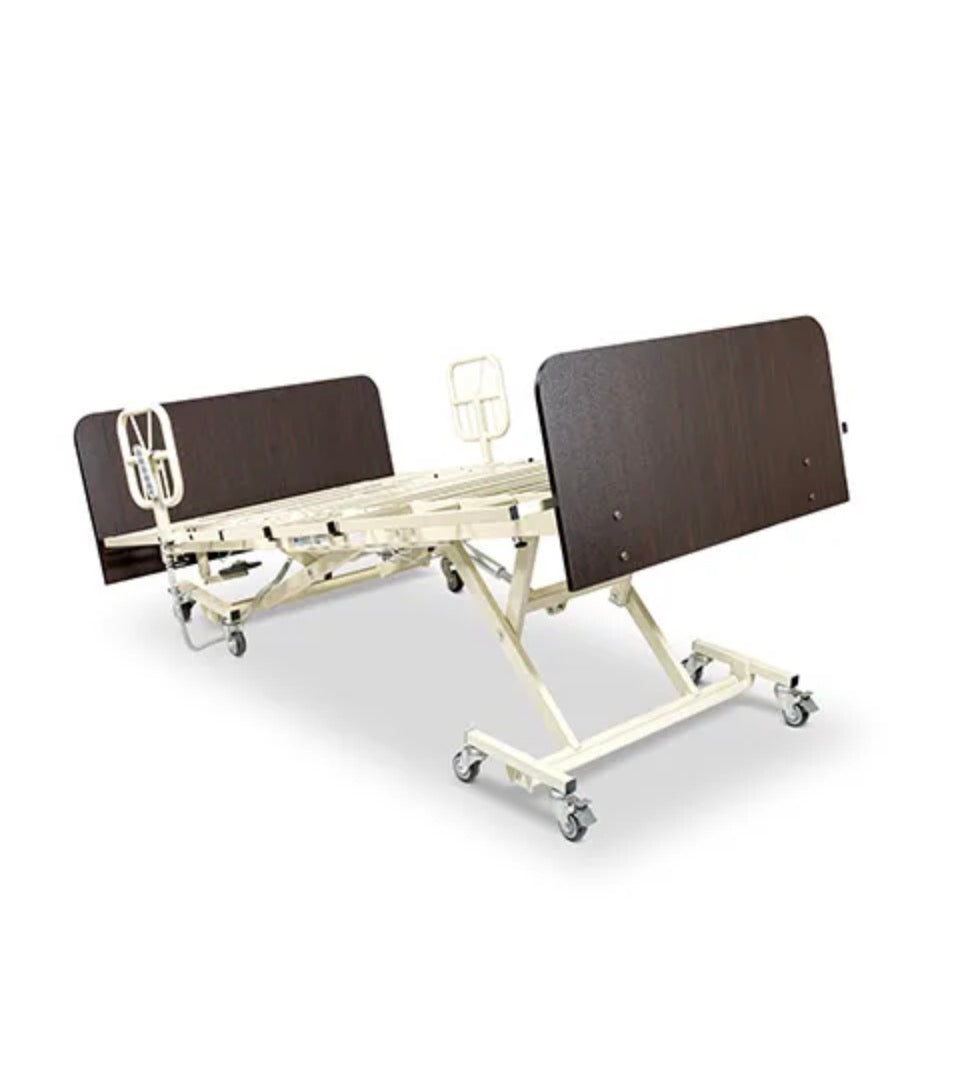

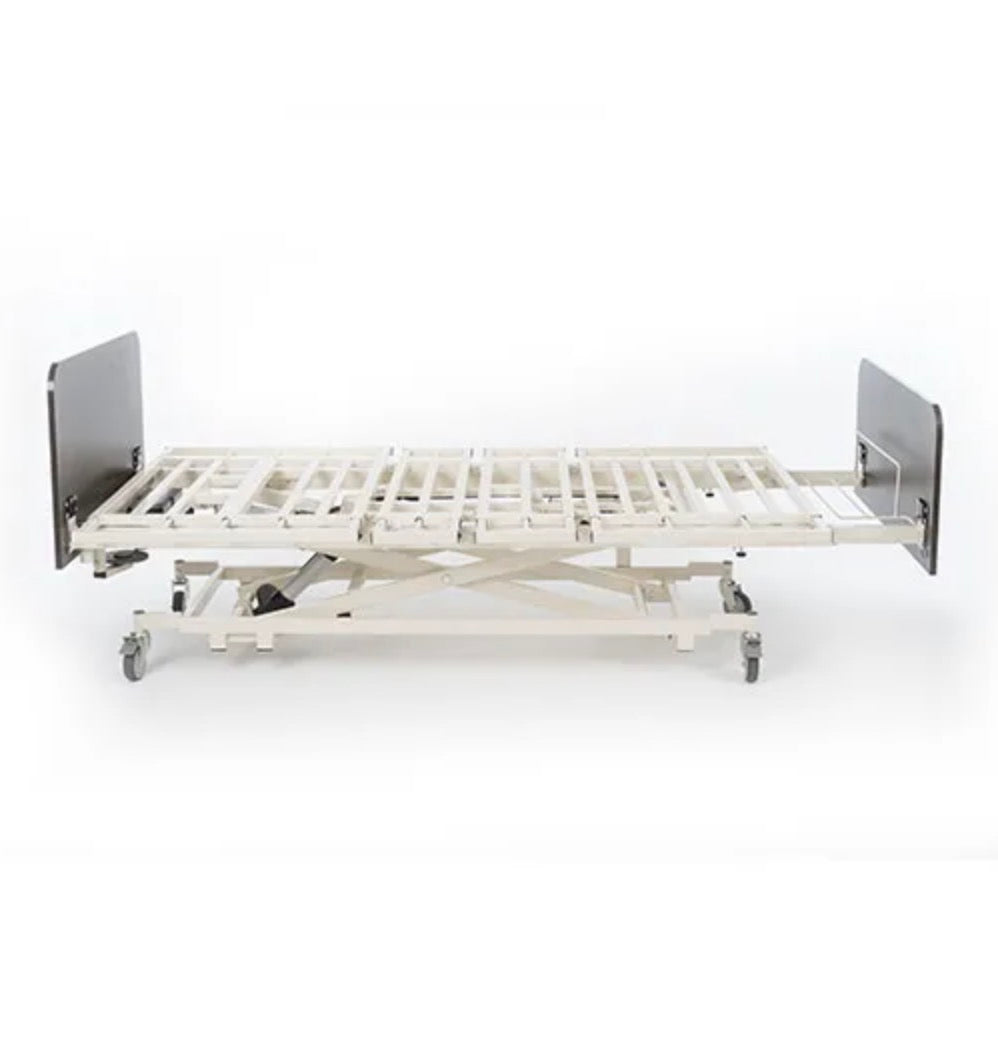

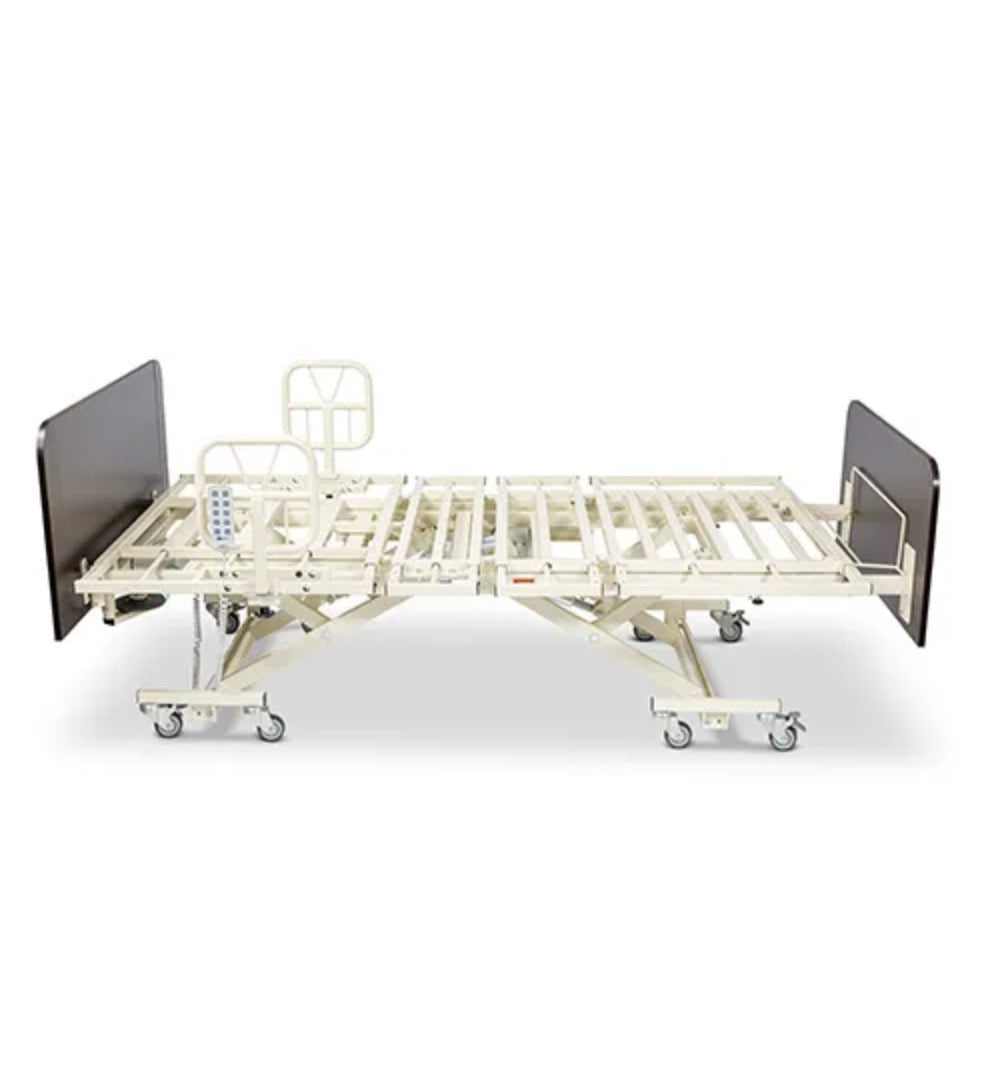

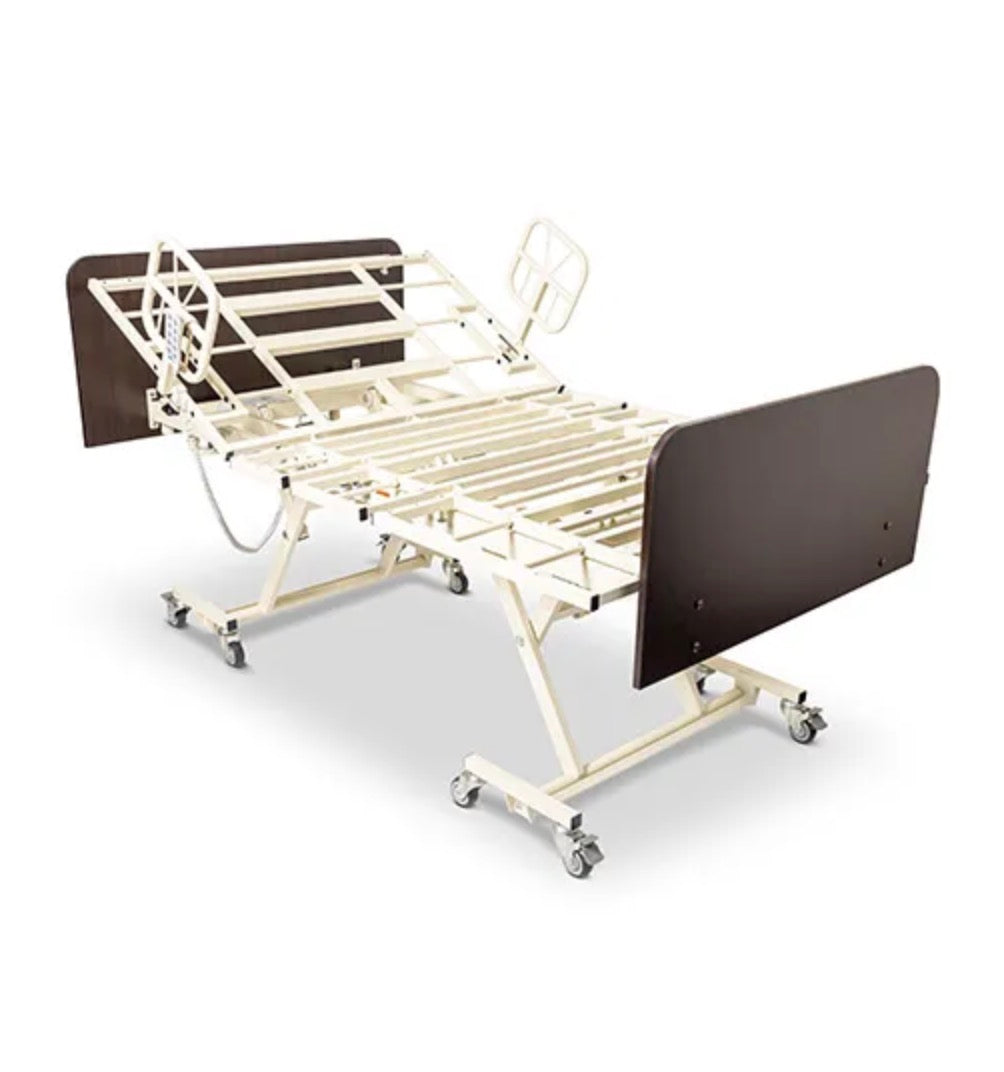

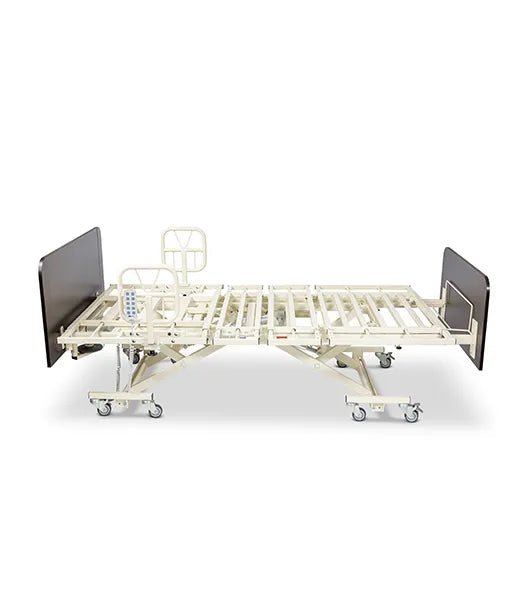

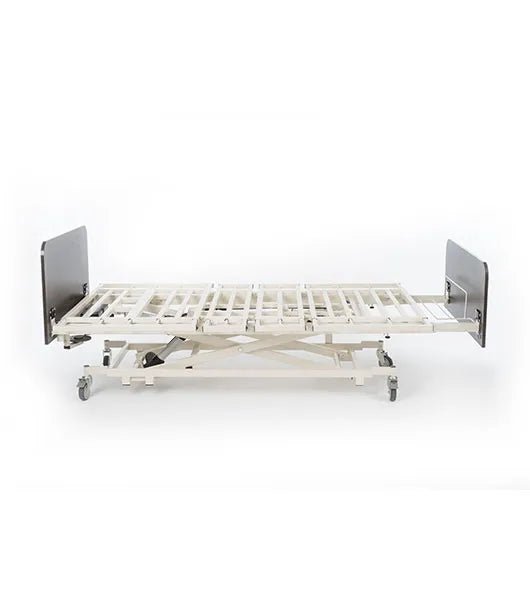

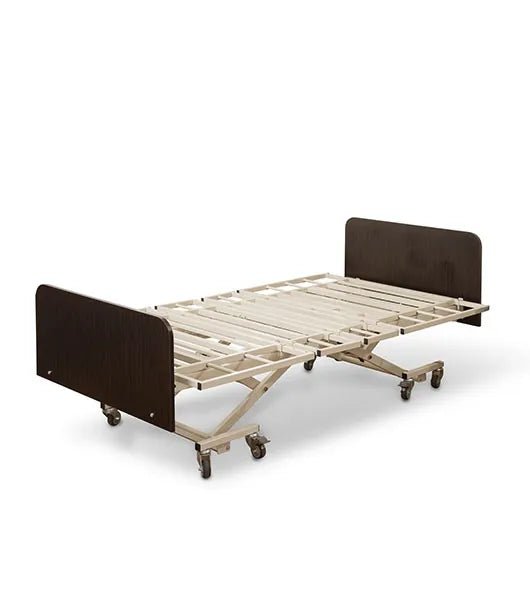

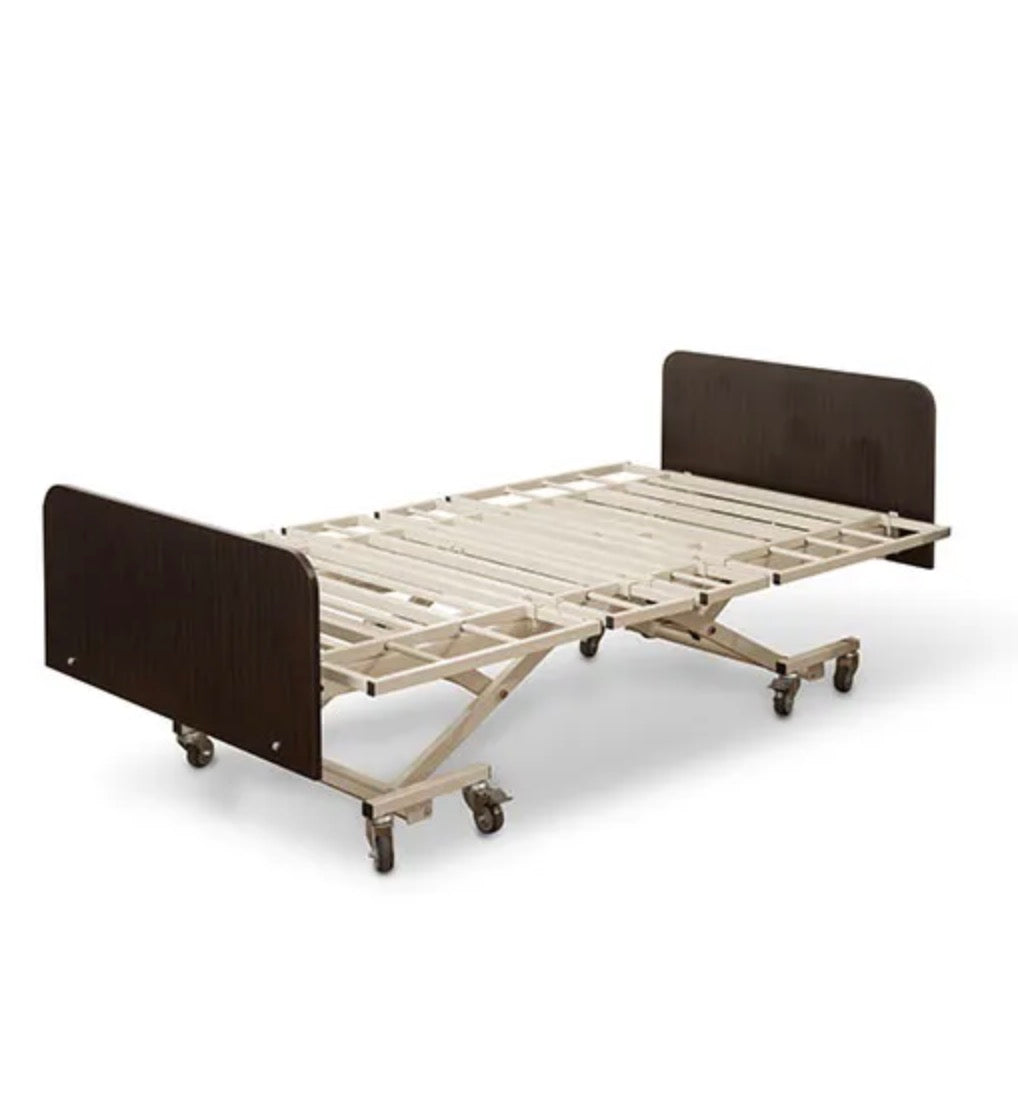

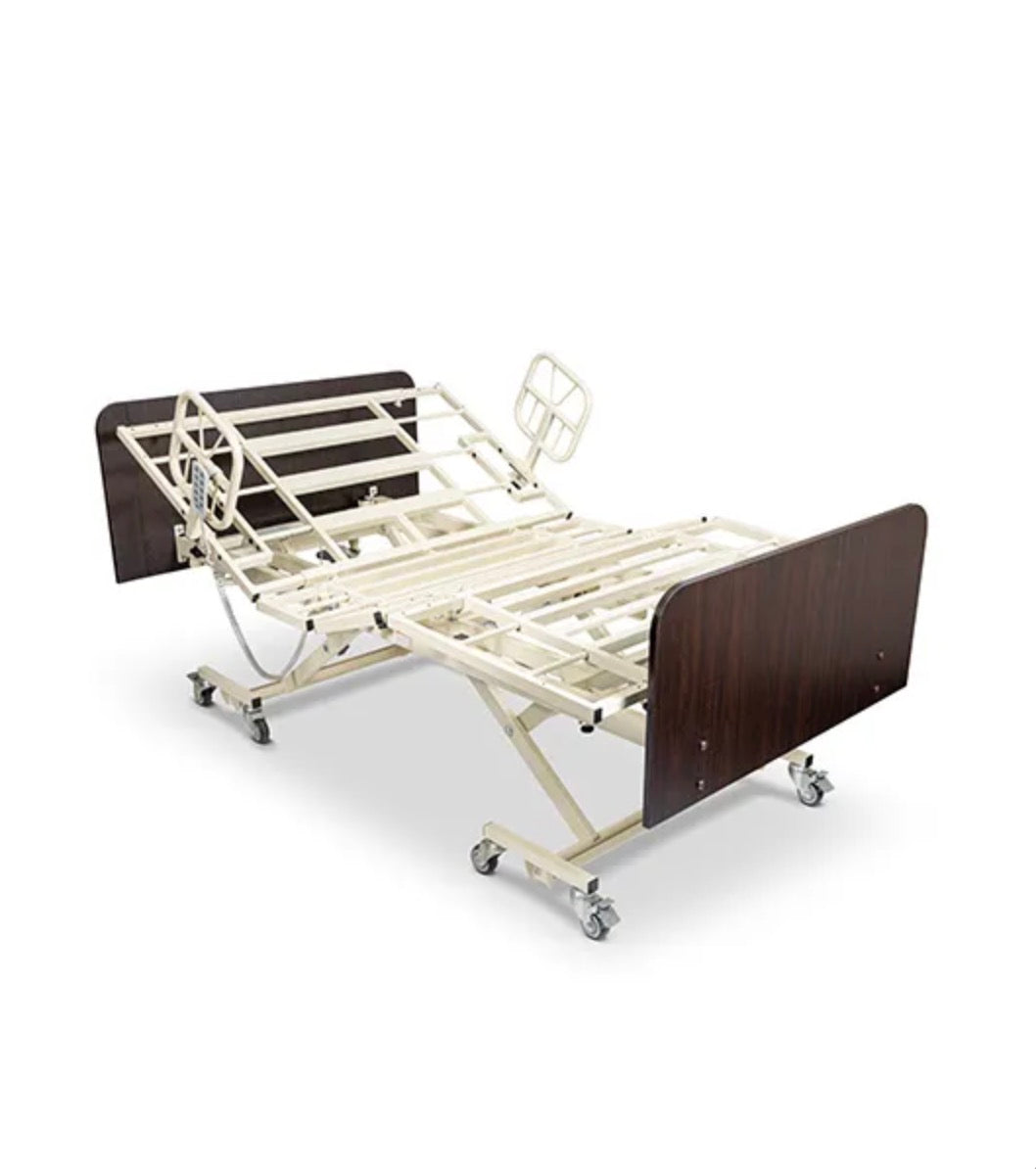

The Medacure Lincoln Expandable Bariatric Bed Frame (LX-BARI-9 Ultra-Low Model) is a 5-function electric bariatric bed frame engineered for high-capacity senior care and long-term care environments. This ultra-low configuration combines a reinforced bariatric platform with tool-less width and length expansion capabilities while lowering to just 9 inches from the floor deck to support fall-reduction strategies for residents at risk of bed-exit injuries.
The expandable platform adjusts from 36 inches to 42 inches and up to 48 inches wide, while the sleep surface extends from 80 inches to 88 inches. Full-electric articulation includes Trendelenburg and Reverse Trendelenburg positioning functions, allowing the bed to accommodate a broad range of resident care and positioning requirements.
Choose Your Configurations

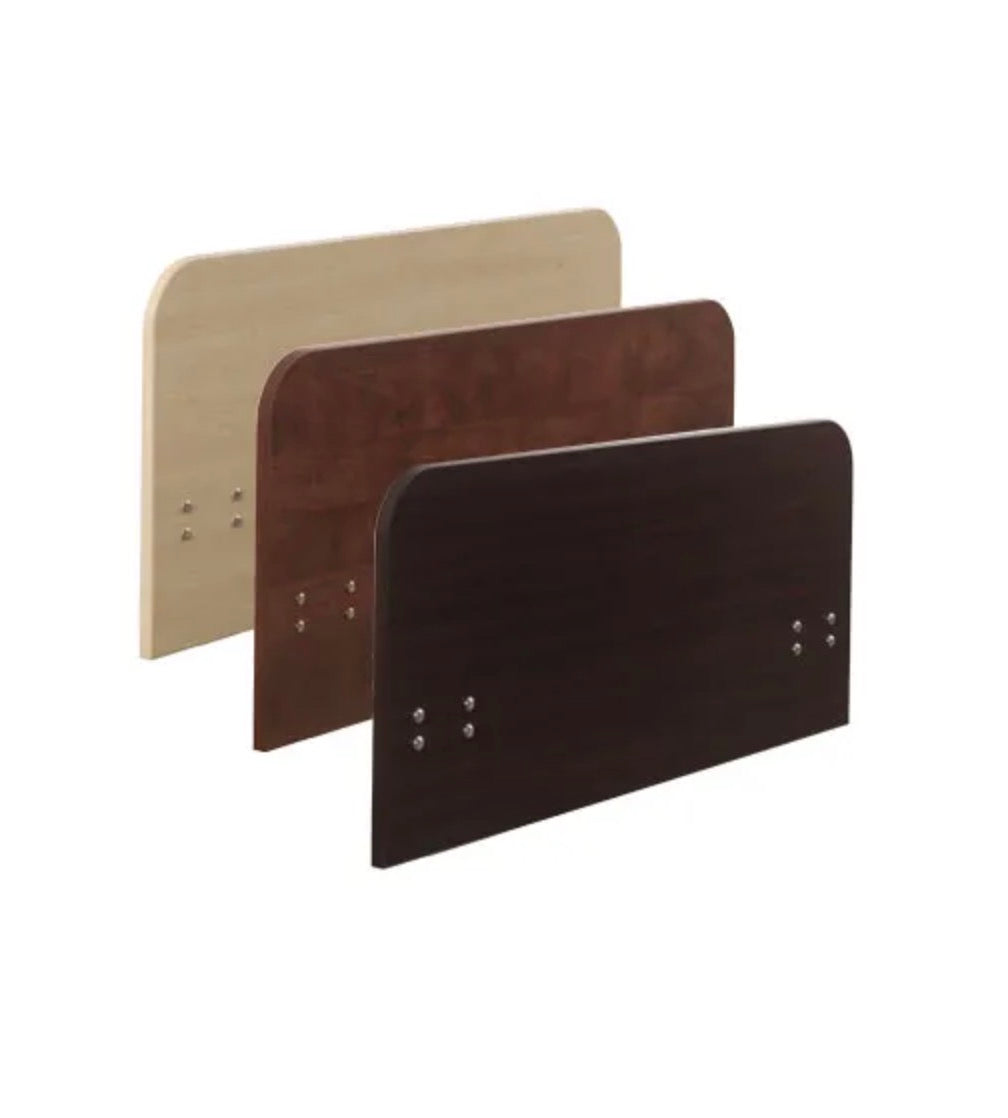

Head & Foot Board Wood Finish
Select your wood tone to complement existing home or facility décor:
- Mahogany – Deep, rich, classic elegance.
- Amber Cherry – Warm, inviting mid-tones.
- Maple – Bright, modern, clean look.
- Coastal Grey – Contemporary grey woodgrain finish designed to complement modern residential and care environments.

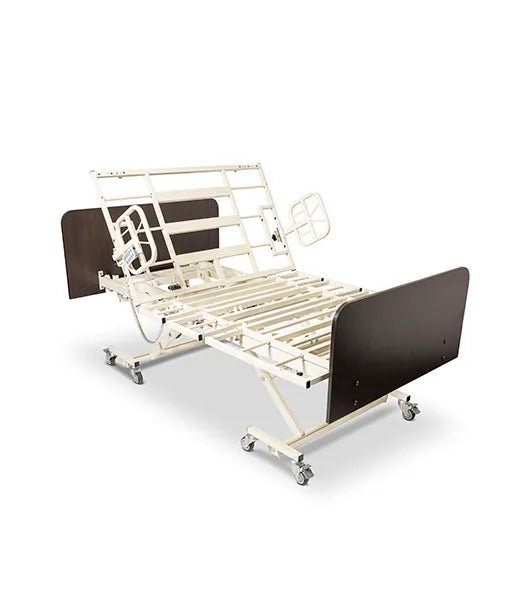

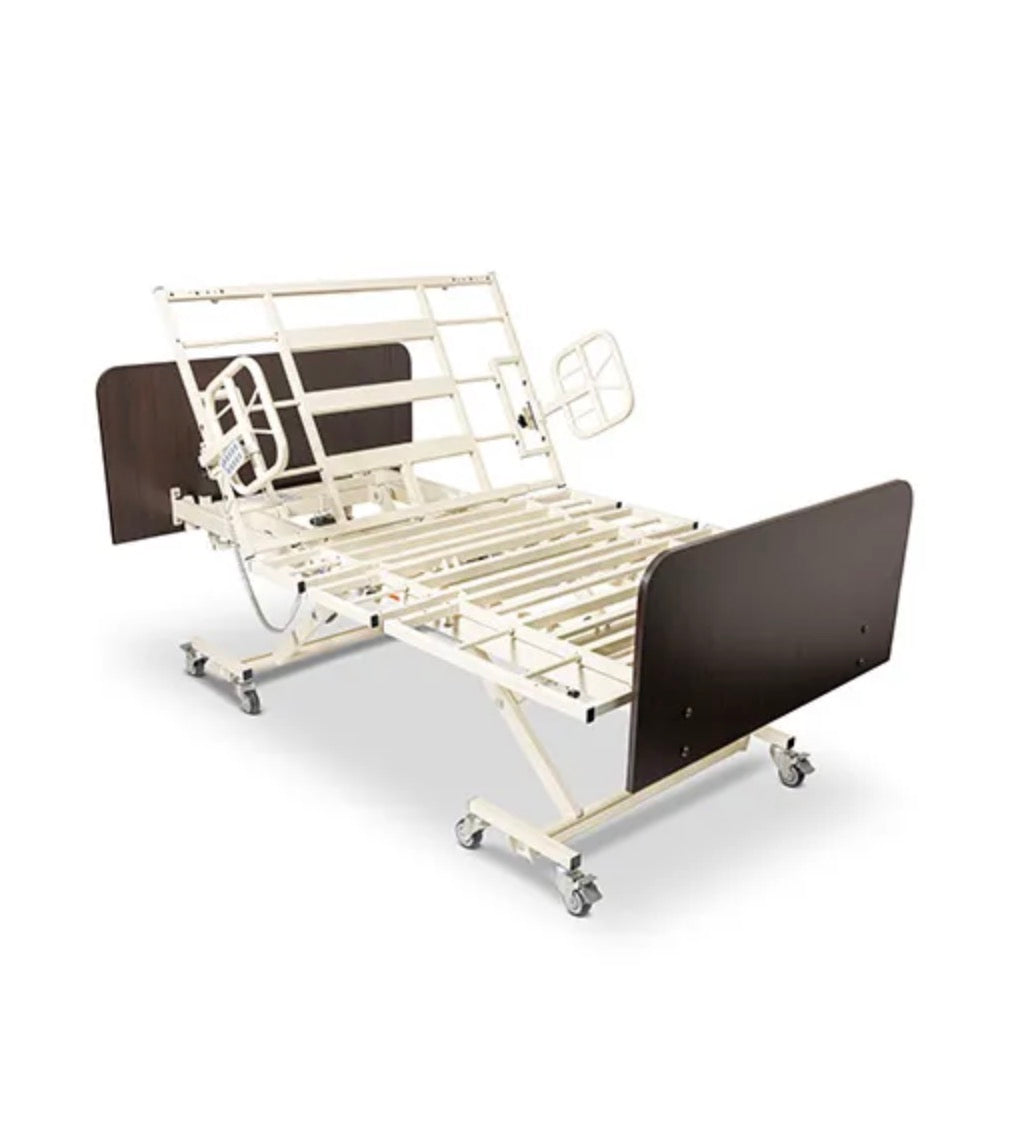

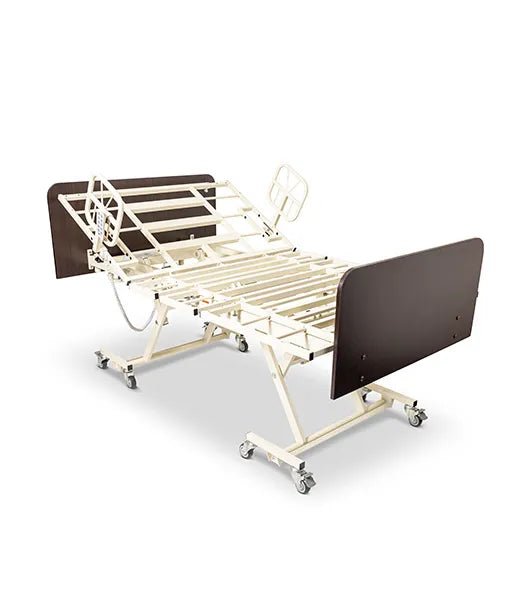

Assist Bars/Rails Options
Choose from a variety of assist bar and side rail configurations to provide the appropriate level of support for bed mobility, repositioning, transfers, and fall prevention based on individual user needs.
Key Performance Features
-
Ultra-Low Safety Profile: Lowers to 9 inches from the floor deck to support fall-reduction strategies for bariatric residents at risk of bed-exit injuries.
-
Built-In Width Expansion: Tool-less expansion deck adjusts from 36 inches to 42 inches and up to 48 inches wide to accommodate changing user size requirements.
-
Built-In Length Extension: Sleep surface adjusts from 80 inches to 88 inches to accommodate varying user height requirements.
-
Advanced 5-Function Articulation: Provides electric Hi/Lo, head, foot, Auto Contour, Trendelenburg, and Reverse Trendelenburg positioning functions through the handheld control system.
-

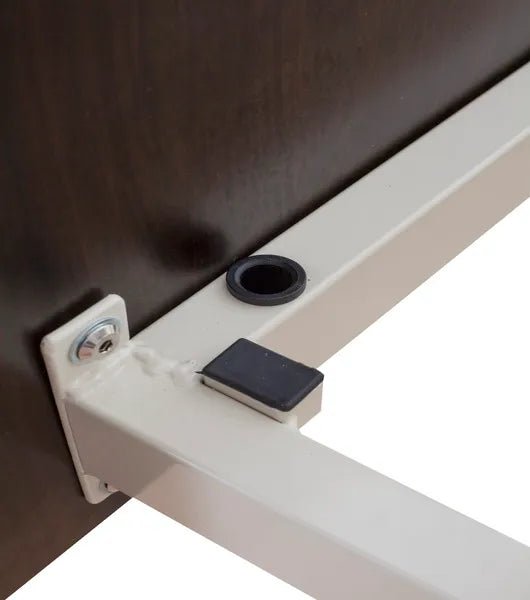

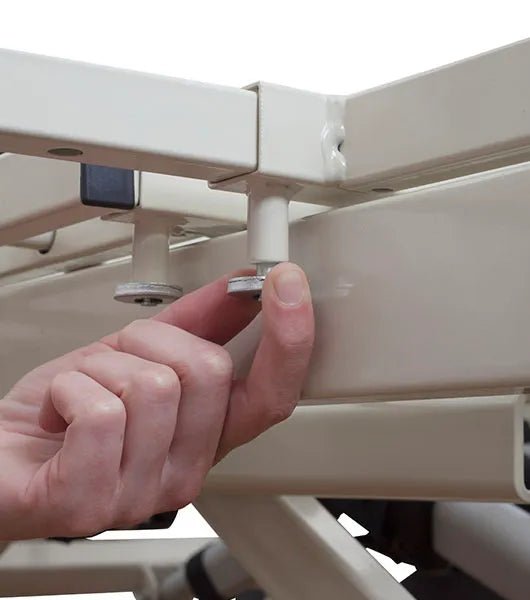

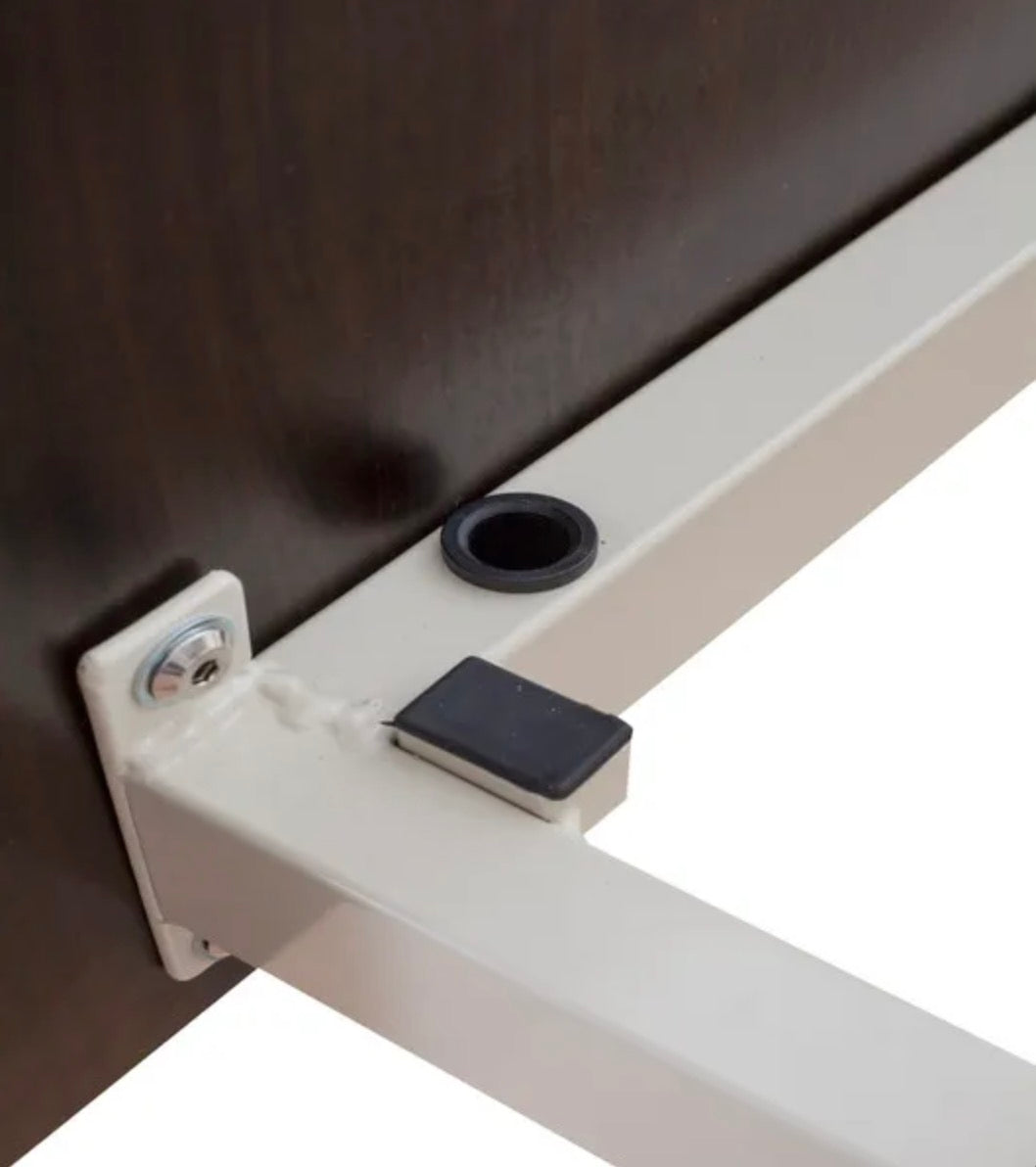

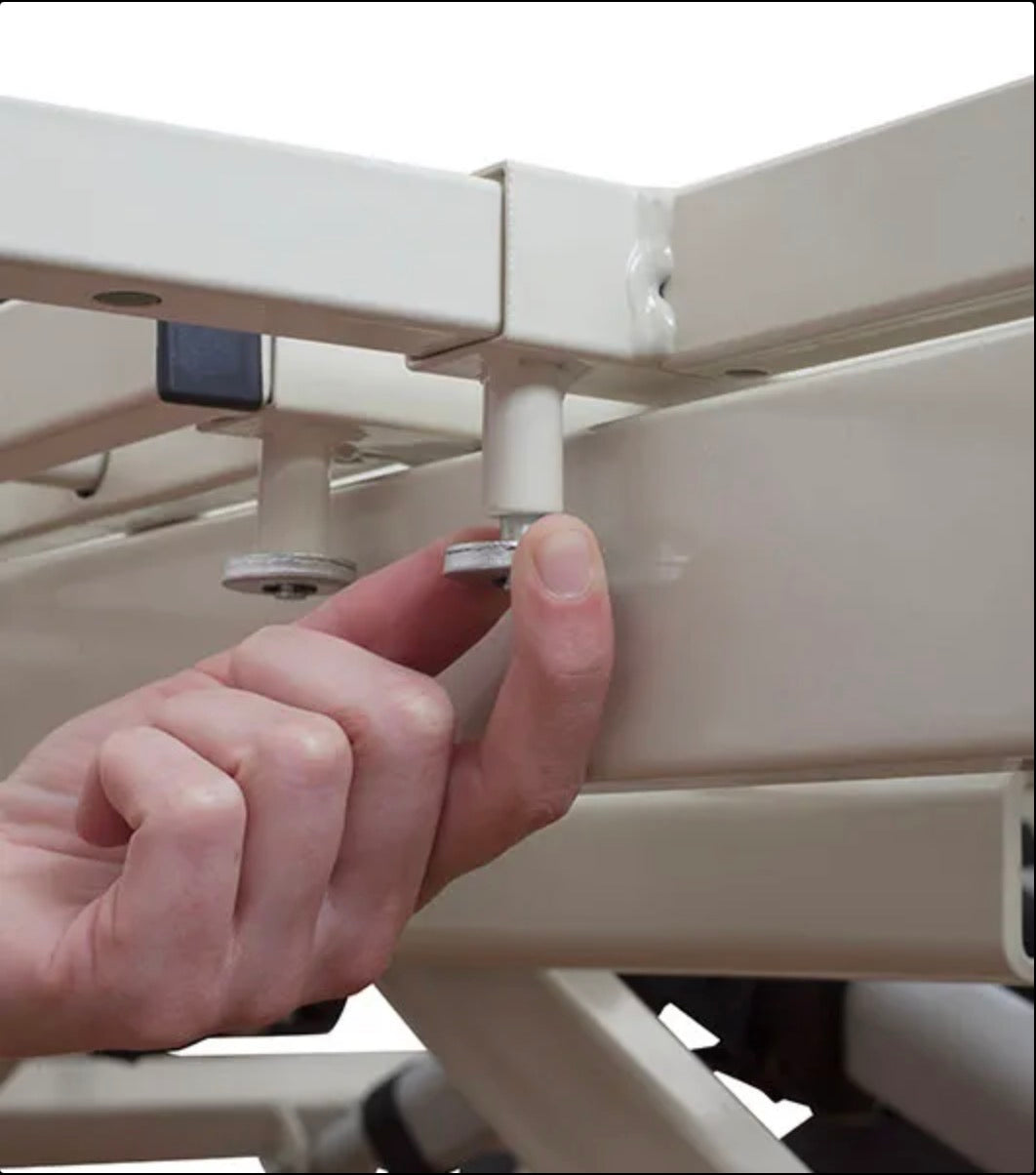

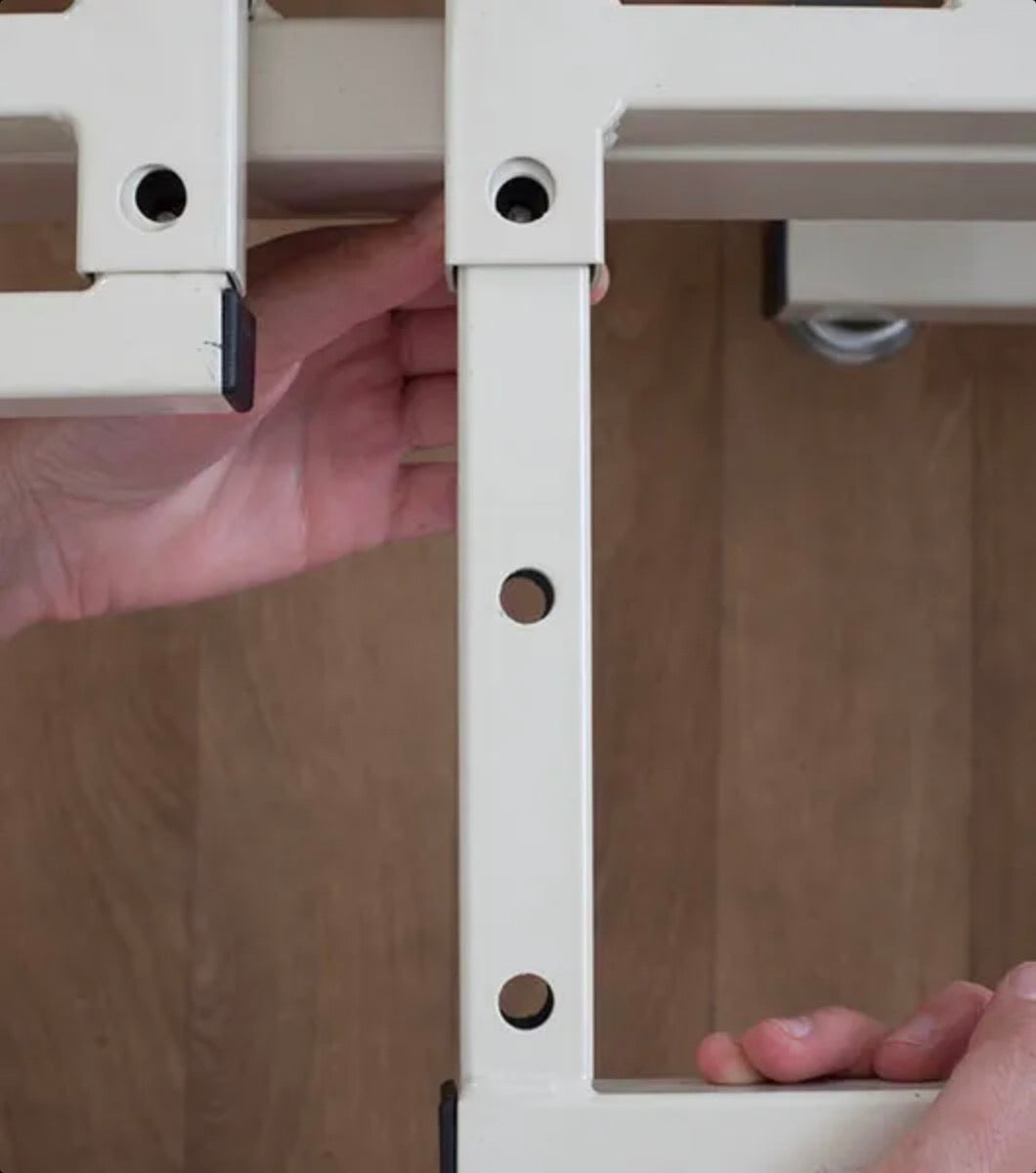

Tool-Less Adjustment System: Mattress deck, length extension, and expandable headboard adjustments are secured using spring-bolt mechanisms without requiring tools.
-
High-Capacity Bariatric Platform: Reinforced frame construction supports bariatric care applications with a 750 lb safe working load rating.

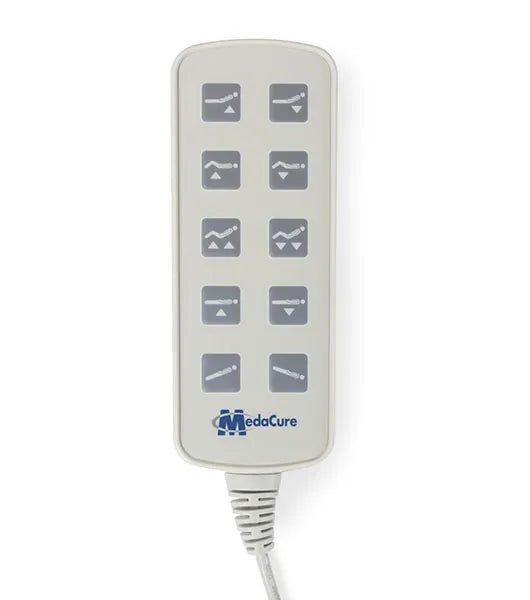

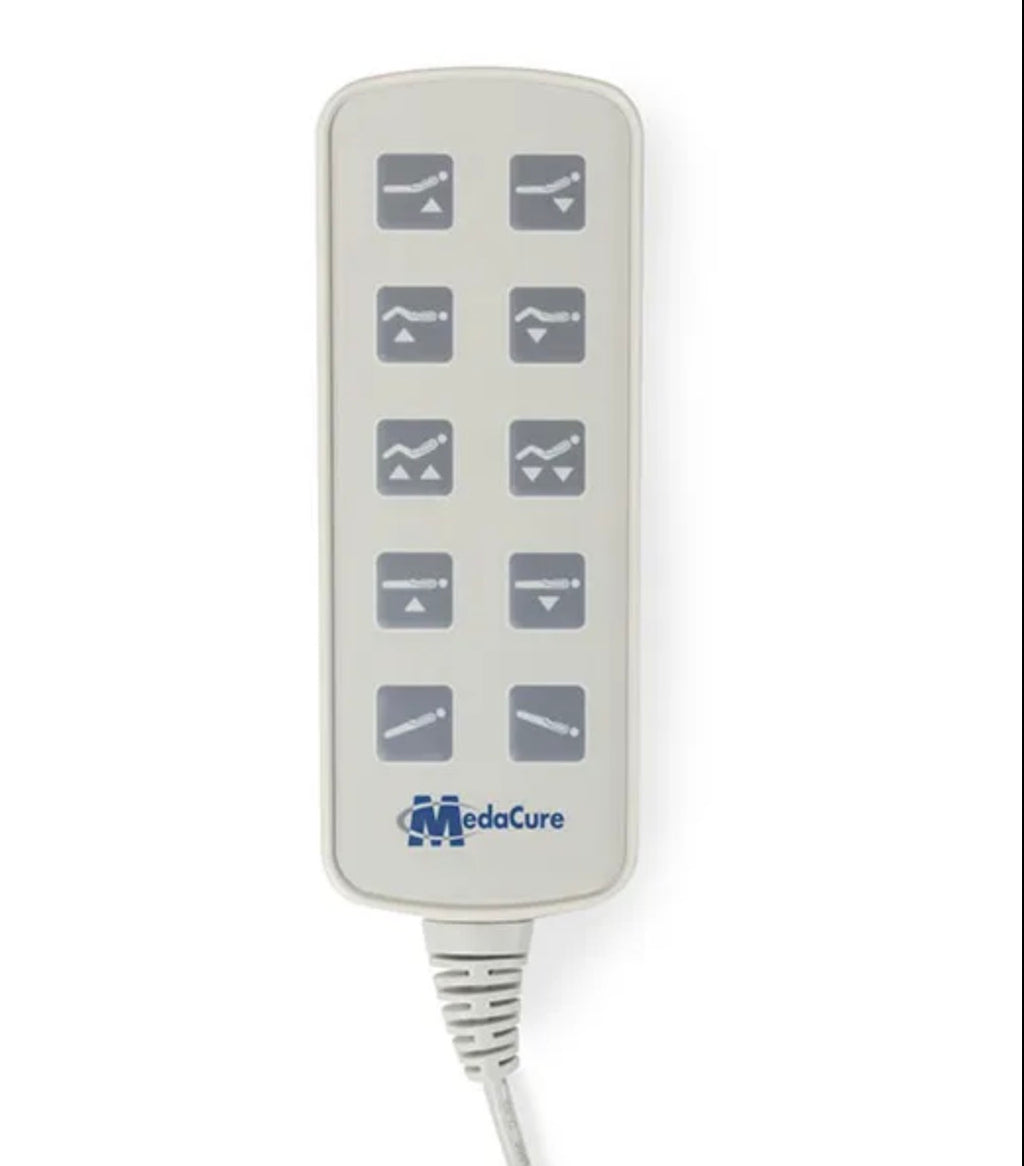

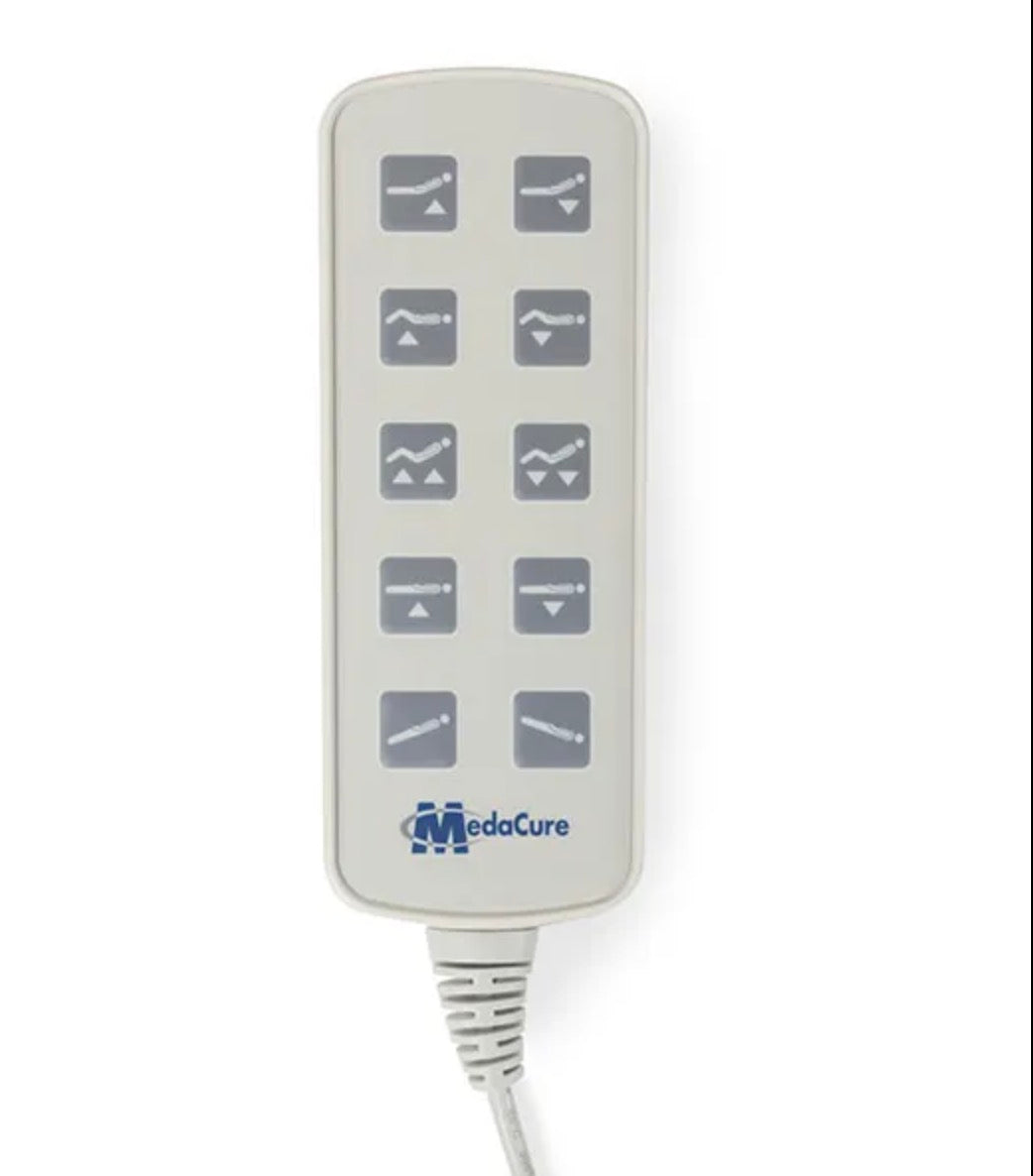

- Linak Component Integration: Powered by Linak actuators and controlled through a 10-function handheld pendant with universal symbols.
Technical Specifications
| Feature | Specification |
|---|---|
| Operation Type | 5-Function Electric (Hi/Lo, Head, Foot, Auto Contour, Trendelenburg/Reverse) |
| Model Number | LX-BARI-9 |
| Profile Class | Ultra-Low Bariatric |
| Built-In Width Expansion | Tool-Free 36" to 42" to 48" Expandable Deck |
| Built-In Length Extension | 80" to 88" Adjustable Length |
| Low Range | 9" Minimum Height (Floor to Deck) |
| High Range | 30" Maximum Height (Floor to Deck) |
| Weight Capacity | 750 lbs Safe Working Load (700 lbs Patient Capacity) |
| Construction | Reinforced Heavy-Duty Rectangle Tube Steel Frame |
| Mobility | 3" Heavy-Duty Casters (4 Swivel / 4 Locking) |
| Electronics Brand | Linak Actuators & Controls |
| Warranty | 15 Years Frame, 3 Years Electronics, 1 Year Pendant |
